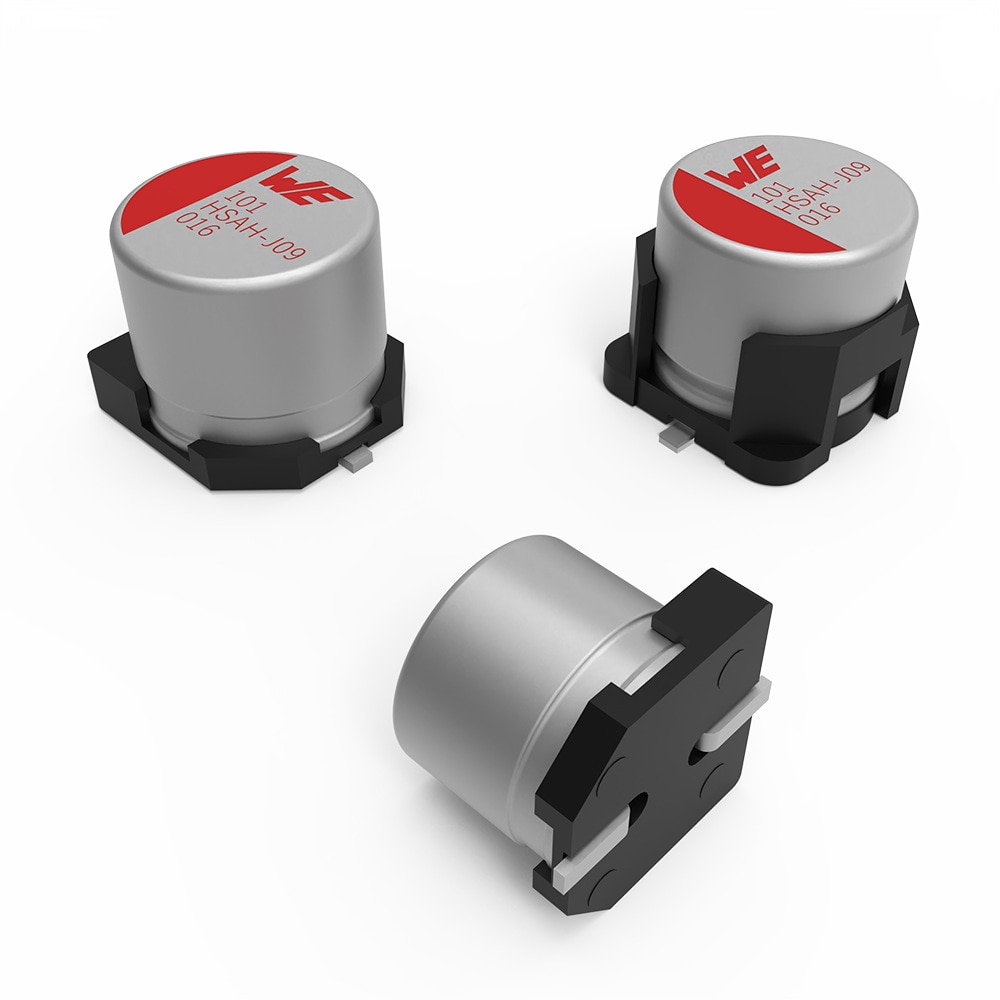

WCAP-HSAH Advanced High Temperature 125°C

LTSpice files

LT
LTSpice_WCAP-HSAH (rev23b).zip
|
2.3 KB

Characteristics

High operating temperature product series
Low ESR
High ripple current characteristics
High stability over the temperature range
Low leakage current

Applications

Industry and telecommunication
Smoothing
e.g. Servo inverter, air conditioner, industrial power supply, security camera, base station
Your application demands vibration resistant capacitors?
Find here more information and request your solution

Products

All

⌀ 5 mm

⌀ 6,3 mm

⌀ 8 mm

⌀ 10 mm

Reset all

Filter article data

show article in 4 product lines

article in 4 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	C	V_R(V (DC))	I_RIPPLE(mA)	I_Leak(µA)	DF(%)	R_ESR(mΩ)	Ø D(mm)	L(mm)	Design Kit
875585844001	10 µF, 63 V (DC), 700 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage63 V (DC)	Ripple Current700 mA	Leakage Current6.3 µA	Dissipation Factor8 %	ESR120 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit 875500
875585744002	22 µF, 50 V (DC), 750 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage50 V (DC)	Ripple Current750 mA	Leakage Current11 µA	Dissipation Factor10 %	ESR80 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit 875500
875585845002	22 µF, 63 V (DC), 900 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP IGS IGS_6.3x7 (rev1).igs \| 1.7 MB STP 3D_6.3x7 (rev1).pdf \| 358.7 KB STP STP_6.3x7 (rev1).stp \| 408.6 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage63 V (DC)	Ripple Current900 mA	Leakage Current13.9 µA	Dissipation Factor8 %	ESR80 mΩ	Diameter6.3 mm	Length7.7 mm	Design Kit 875500
875585957003	22 µF, 100 V (DC), 1200 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 10 (rev1).pdf \| 374.9 KB IGS IGS_10.0 x 10 (rev1).igs \| 1.8 MB STP STP_10.0 x 10 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage100 V (DC)	Ripple Current1200 mA	Leakage Current22 µA	Dissipation Factor8 %	ESR45 mΩ	Diameter10 mm	Length10.5 mm	Design Kit 875500
875585559001	33 µF, 25 V (DC), 550 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_5.0 x 5 (rev1).pdf \| 363.8 KB IGS IGS_5.0 x 5 (rev1).igs \| 1.6 MB STP STP_5.0 x 5 (rev1).stp \| 413.8 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage25 V (DC)	Ripple Current550 mA	Leakage Current8.3 µA	Dissipation Factor14 %	ESR80 mΩ	Diameter5 mm	Length5.8 mm	Design Kit 875500
875585745003	33 µF, 50 V (DC), 1100 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP IGS IGS_6.3x7 (rev1).igs \| 1.7 MB STP 3D_6.3x7 (rev1).pdf \| 358.7 KB STP STP_6.3x7 (rev1).stp \| 408.6 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage50 V (DC)	Ripple Current1100 mA	Leakage Current16.5 µA	Dissipation Factor10 %	ESR40 mΩ	Diameter6.3 mm	Length7.7 mm	Design Kit 875500
875585853003	33 µF, 63 V (DC), 1100 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_8.0 x 10 (rev1).pdf \| 354.7 KB IGS IGS_8.0 x 10 (rev1).igs \| 1.7 MB STP STP_8.0 x 10 (rev1).stp \| 444.5 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage63 V (DC)	Ripple Current1100 mA	Leakage Current20.8 µA	Dissipation Factor8 %	ESR40 mΩ	Diameter8 mm	Length10.5 mm	Design Kit 875500
875585961005	33 µF, 100 V (DC), 1360 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 12 (rev1).pdf \| 364.6 KB IGS IGS_10.0 x 12 (rev1).igs \| 1.7 MB STP STP_10.0 x 12 (rev1).stp \| 444.6 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage100 V (DC)	Ripple Current1360 mA	Leakage Current33 µA	Dissipation Factor8 %	ESR40 mΩ	Diameter10 mm	Length12.4 mm	Design Kit 875500
875585853004	47 µF, 63 V (DC), 1100 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_8.0 x 10 (rev1).pdf \| 354.7 KB IGS IGS_8.0 x 10 (rev1).igs \| 1.7 MB STP STP_8.0 x 10 (rev1).stp \| 444.5 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage63 V (DC)	Ripple Current1100 mA	Leakage Current29.6 µA	Dissipation Factor8 %	ESR40 mΩ	Diameter8 mm	Length10.5 mm	Design Kit 875500
875585544002	56 µF, 25 V (DC), 900 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance56 µF	Rated Voltage25 V (DC)	Ripple Current900 mA	Leakage Current14 µA	Dissipation Factor14 %	ESR50 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit 875500
875585757004	56 µF, 50 V (DC), 1600 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 10 (rev1).pdf \| 374.9 KB IGS IGS_10.0 x 10 (rev1).igs \| 1.8 MB STP STP_10.0 x 10 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance56 µF	Rated Voltage50 V (DC)	Ripple Current1600 mA	Leakage Current28 µA	Dissipation Factor10 %	ESR28 mΩ	Diameter10 mm	Length10.5 mm	Design Kit 875500
875585857006	56 µF, 63 V (DC), 1400 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 10 (rev1).pdf \| 374.9 KB IGS IGS_10.0 x 10 (rev1).igs \| 1.8 MB STP STP_10.0 x 10 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance56 µF	Rated Voltage63 V (DC)	Ripple Current1400 mA	Leakage Current35.3 µA	Dissipation Factor8 %	ESR30 mΩ	Diameter10 mm	Length10.5 mm	Design Kit 875500
875585753005	68 µF, 50 V (DC), 1250 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_8.0 x 10 (rev1).pdf \| 354.7 KB IGS IGS_8.0 x 10 (rev1).igs \| 1.7 MB STP STP_8.0 x 10 (rev1).stp \| 444.5 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage50 V (DC)	Ripple Current1250 mA	Leakage Current34 µA	Dissipation Factor10 %	ESR30 mΩ	Diameter8 mm	Length10.5 mm	Design Kit 875500
875585857007	68 µF, 63 V (DC), 1400 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 10 (rev1).pdf \| 374.9 KB IGS IGS_10.0 x 10 (rev1).igs \| 1.8 MB STP STP_10.0 x 10 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage63 V (DC)	Ripple Current1400 mA	Leakage Current42.8 µA	Dissipation Factor8 %	ESR30 mΩ	Diameter10 mm	Length10.5 mm	Design Kit 875500
875585344001	100 µF, 16 V (DC), 900 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage16 V (DC)	Ripple Current900 mA	Leakage Current16 µA	Dissipation Factor16 %	ESR50 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit 875500
875585545003	100 µF, 25 V (DC), 1400 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP IGS IGS_6.3x7 (rev1).igs \| 1.7 MB STP 3D_6.3x7 (rev1).pdf \| 358.7 KB STP STP_6.3x7 (rev1).stp \| 408.6 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage25 V (DC)	Ripple Current1400 mA	Leakage Current25 µA	Dissipation Factor14 %	ESR30 mΩ	Diameter6.3 mm	Length7.7 mm	Design Kit 875500
875585757007	100 µF, 50 V (DC), 1600 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 10 (rev1).pdf \| 374.9 KB IGS IGS_10.0 x 10 (rev1).igs \| 1.8 MB STP STP_10.0 x 10 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage50 V (DC)	Ripple Current1600 mA	Leakage Current50 µA	Dissipation Factor10 %	ESR28 mΩ	Diameter10 mm	Length10.5 mm	Design Kit 875500
875585344003	150 µF, 16 V (DC), 900 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 µF	Rated Voltage16 V (DC)	Ripple Current900 mA	Leakage Current24 µA	Dissipation Factor16 %	ESR50 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit 875500
875585345004	220 µF, 16 V (DC), 1400 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP IGS IGS_6.3x7 (rev1).igs \| 1.7 MB STP 3D_6.3x7 (rev1).pdf \| 358.7 KB STP STP_6.3x7 (rev1).stp \| 408.6 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage16 V (DC)	Ripple Current1400 mA	Leakage Current35.2 µA	Dissipation Factor16 %	ESR30 mΩ	Diameter6.3 mm	Length7.7 mm	Design Kit 875500
875585553004	220 µF, 25 V (DC), 1600 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_8.0 x 10 (rev1).pdf \| 354.7 KB IGS IGS_8.0 x 10 (rev1).igs \| 1.7 MB STP STP_8.0 x 10 (rev1).stp \| 444.5 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage25 V (DC)	Ripple Current1600 mA	Leakage Current55 µA	Dissipation Factor14 %	ESR27 mΩ	Diameter8 mm	Length10.5 mm	Design Kit 875500
875585357006	330 µF, 16 V (DC), 2000 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 10 (rev1).pdf \| 374.9 KB IGS IGS_10.0 x 10 (rev1).igs \| 1.8 MB STP STP_10.0 x 10 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage16 V (DC)	Ripple Current2000 mA	Leakage Current52.8 µA	Dissipation Factor16 %	ESR20 mΩ	Diameter10 mm	Length10.5 mm	Design Kit 875500
875585557006	330 µF, 25 V (DC), 2000 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 10 (rev1).pdf \| 374.9 KB IGS IGS_10.0 x 10 (rev1).igs \| 1.8 MB STP STP_10.0 x 10 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage25 V (DC)	Ripple Current2000 mA	Leakage Current82.5 µA	Dissipation Factor14 %	ESR20 mΩ	Diameter10 mm	Length10.5 mm	Design Kit 875500
875585357008	470 µF, 16 V (DC), 2000 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 10 (rev1).pdf \| 374.9 KB IGS IGS_10.0 x 10 (rev1).igs \| 1.8 MB STP STP_10.0 x 10 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage16 V (DC)	Ripple Current2000 mA	Leakage Current75.2 µA	Dissipation Factor16 %	ESR20 mΩ	Diameter10 mm	Length10.5 mm	Design Kit 875500
875585561007	470 µF, 25 V (DC), 2260 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 12 (rev1).pdf \| 364.6 KB IGS IGS_10.0 x 12 (rev1).igs \| 1.7 MB STP STP_10.0 x 12 (rev1).stp \| 444.6 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage25 V (DC)	Ripple Current2260 mA	Leakage Current117.5 µA	Dissipation Factor14 %	ESR16 mΩ	Diameter10 mm	Length12.4 mm	Design Kit 875500
875585357010	560 µF, 16 V (DC), 2000 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 10 (rev1).pdf \| 374.9 KB IGS IGS_10.0 x 10 (rev1).igs \| 1.8 MB STP STP_10.0 x 10 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 µF	Rated Voltage16 V (DC)	Ripple Current2000 mA	Leakage Current89.6 µA	Dissipation Factor16 %	ESR20 mΩ	Diameter10 mm	Length10.5 mm	Design Kit 875500
875585361011	820 µF, 16 V (DC), 2260 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSAH (rev23a).IntLib \| 465 KB CDS Cadence_WCAP-HSAH (rev23b).zip \| 2.7 MB EAG Eagle_WCAP-HSAH (rev23a).lbr \| 45.2 KB KIC KiCad_WCAP-HSAH (rev25b).zip \| 882.3 KB CAD files ZIP 3D 3D_10.0 x 12 (rev1).pdf \| 364.6 KB IGS IGS_10.0 x 12 (rev1).igs \| 1.7 MB STP STP_10.0 x 12 (rev1).stp \| 444.6 KB Electric models ZIP PSP Pspice_WCAP-HSAH (rev23b).zip \| 7.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance820 µF	Rated Voltage16 V (DC)	Ripple Current2260 mA	Leakage Current131.2 µA	Dissipation Factor16 %	ESR16 mΩ	Diameter10 mm	Length12.4 mm	Design Kit 875500

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WCAP-HSAH / WCAP-HSG5 Aluminum Hybrid Polymer Capacitors SMT
