ComponentsPassive ComponentsCapacitorsFilm CapacitorsDC-Link (MKP)

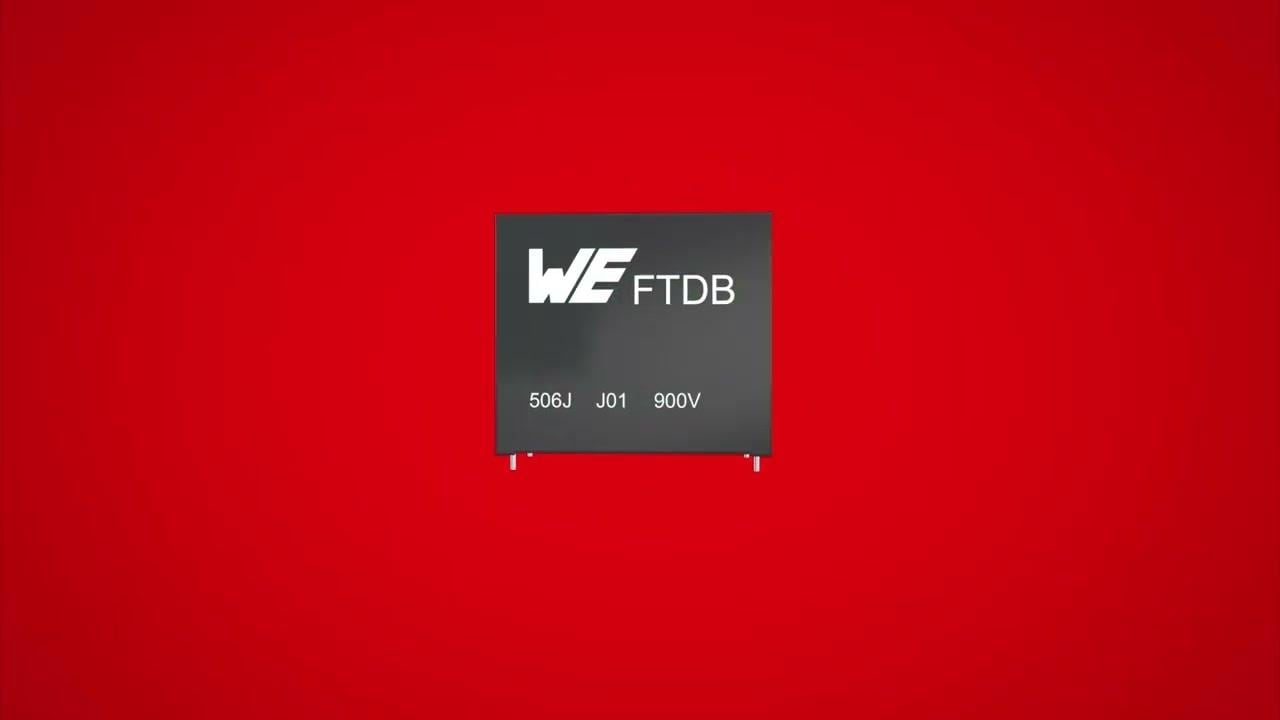

WCAP-FTDB DC-Link

WCAP-FTDB DC-Link
SizeDimen­sionsL
(mm)		Mount
Pitch 27.5 mm
 32 THT
Pitch 37.5 mm
 42 THT
Pitch 52.5 mm
 57 THT

LTSpice files

Characteristics

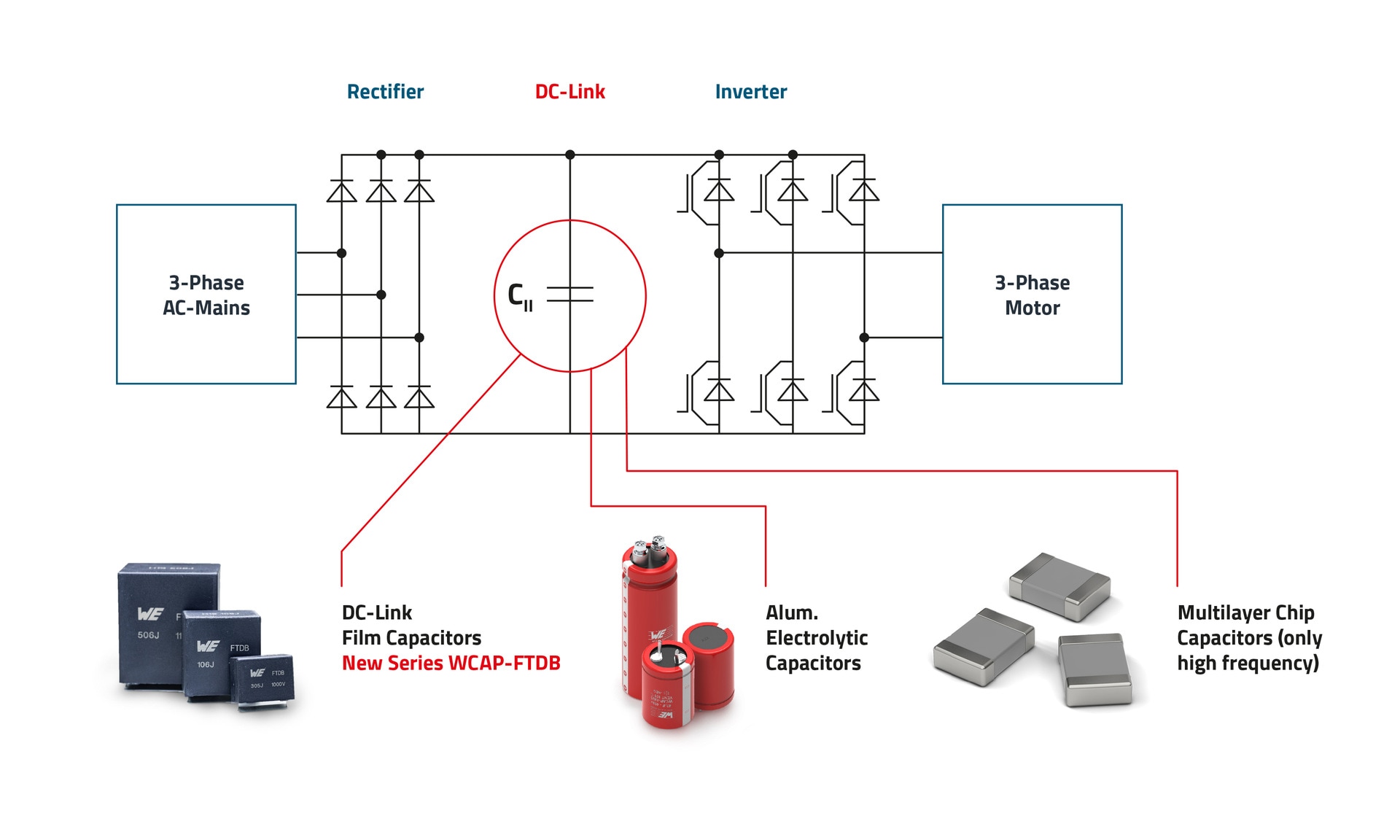

  • Product series for DC-Link applications
  • Self-healing properties
  • Long expected lifetime
  • High ripple current capability
  • Dielectric: Polypropylene

Applications

  • AC/DC converters
  • DC/AC converters
  • Renewable energy, battery charger, wind power converter, solar low power converter, motor drives

Application Notes

Products

All
Pitch 27.5 mm
Pitch 37.5 mm
Pitch 52.5 mm
Reset all
Filter article data
Filter by
Delete all
 show  articles in 3 product lines
 articles in 3 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
C
VR(V (DC))
dV/dt(V/µs)
DF @ 1 kHz(%)
IRIPPLE(A)
RISO
Pins
Operating Temperature
L(mm)
W(mm)
H(mm)
Packaging
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
890744427001CS
SPEC1 µF, 1200 V (DC), 90 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance1 µF
Rated Voltage1200 V (DC)
Rate of Voltage Rise90 V/µs
Dissipation Factor0.07 %
Ripple Current3.5 A
Insulation Resistance10 GΩ
Pins2
Operating Temperature -40 °C up to +105 °C
Length32 mm
Width11 mm
Height20 mm
PackagingCarton
–Check availability
890724427001CS
SPEC1 µF, 900 V (DC), 70 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance1 µF
Rated Voltage900 V (DC)
Rate of Voltage Rise70 V/µs
Dissipation Factor0.09 %
Ripple Current1.5 A
Insulation Resistance10 GΩ
Pins2
Operating Temperature -40 °C up to +105 °C
Length32 mm
Width9 mm
Height18 mm
PackagingCarton
–Check availability
890494427003CS
SPEC3 µF, 1000 V (DC), 75 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance3 µF
Rated Voltage1000 V (DC)
Rate of Voltage Rise75 V/µs
Dissipation Factor0.08 %
Ripple Current5.2 A
Insulation Resistance3.33 GΩ
Pins2
Operating Temperature -40 °C up to +105 °C
Length32 mm
Width15 mm
Height24.5 mm
PackagingCarton
–Check availability
890734427005CS
SPEC3 µF, 1100 V (DC), 80 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance3 µF
Rated Voltage1100 V (DC)
Rate of Voltage Rise80 V/µs
Dissipation Factor0.08 %
Ripple Current6.5 A
Insulation Resistance3.33 GΩ
Pins2
Operating Temperature -40 °C up to +105 °C
Length32 mm
Width16 mm
Height30 mm
PackagingCarton
–Check availability
890484427001CS
SPEC5 µF, 500 V (DC), 65 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance5 µF
Rated Voltage500 V (DC)
Rate of Voltage Rise65 V/µs
Dissipation Factor0.1 %
Ripple Current5 A
Insulation Resistance2 GΩ
Pins2
Operating Temperature -40 °C up to +105 °C
Length32 mm
Width11 mm
Height20 mm
PackagingCarton
–Check availability
890744427005CS
SPEC5 µF, 1200 V (DC), 90 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance5 µF
Rated Voltage1200 V (DC)
Rate of Voltage Rise90 V/µs
Dissipation Factor0.07 %
Ripple Current10.4 A
Insulation Resistance2 GΩ
Pins2
Operating Temperature -40 °C up to +105 °C
Length32 mm
Width22 mm
Height37 mm
PackagingCarton
–Check availability
890764427009CS
SPEC10 µF, 600 V (DC), 65 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance10 µF
Rated Voltage600 V (DC)
Rate of Voltage Rise65 V/µs
Dissipation Factor0.11 %
Ripple Current11 A
Insulation Resistance1 GΩ
Pins2
Operating Temperature -40 °C up to +105 °C
Length32 mm
Width16 mm
Height30 mm
PackagingCarton
–Check availability
890724427010CS
SPEC10 µF, 900 V (DC), 70 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance10 µF
Rated Voltage900 V (DC)
Rate of Voltage Rise70 V/µs
Dissipation Factor0.09 %
Ripple Current12.2 A
Insulation Resistance1 GΩ
Pins2
Operating Temperature -40 °C up to +105 °C
Length32 mm
Width22 mm
Height37 mm
PackagingCarton
–Check availability
890734428004CS
SPEC15 µF, 1100 V (DC), 40 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance15 µF
Rated Voltage1100 V (DC)
Rate of Voltage Rise40 V/µs
Dissipation Factor0.15 %
Ripple Current12.4 A
Insulation Resistance666.66 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length42 mm
Width30 mm
Height45 mm
PackagingCarton
–Check availability
890494428004CS
SPEC25 µF, 1000 V (DC), 37 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance25 µF
Rated Voltage1000 V (DC)
Rate of Voltage Rise37 V/µs
Dissipation Factor0.15 %
Ripple Current19.2 A
Insulation Resistance400 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length42 mm
Width35 mm
Height50 mm
PackagingCarton
–Check availability
890744428006CS
SPEC25 µF, 1200 V (DC), 45 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance25 µF
Rated Voltage1200 V (DC)
Rate of Voltage Rise45 V/µs
Dissipation Factor0.13 %
Ripple Current25.1 A
Insulation Resistance400 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length42 mm
Width45 mm
Height60 mm
PackagingCarton
–Check availability
890744429002CS
SPEC25 µF, 1200 V (DC), 23 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance25 µF
Rated Voltage1200 V (DC)
Rate of Voltage Rise23 V/µs
Dissipation Factor0.24 %
Ripple Current12.6 A
Insulation Resistance400 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width35 mm
Height50 mm
PackagingCarton
–Check availability
890734428008CS
SPEC30 µF, 1100 V (DC), 40 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance30 µF
Rated Voltage1100 V (DC)
Rate of Voltage Rise40 V/µs
Dissipation Factor0.15 %
Ripple Current24.8 A
Insulation Resistance333.33 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length42 mm
Width45 mm
Height60 mm
PackagingCarton
–Check availability
890484428002CS
SPEC35 µF, 500 V (DC), 30 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance35 µF
Rated Voltage500 V (DC)
Rate of Voltage Rise30 V/µs
Dissipation Factor0.15 %
Ripple Current13.5 A
Insulation Resistance285.71 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length42 mm
Width24 mm
Height36 mm
PackagingCarton
–Check availability
890764428004CS
SPEC40 µF, 600 V (DC), 30 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance40 µF
Rated Voltage600 V (DC)
Rate of Voltage Rise30 V/µs
Dissipation Factor0.2 %
Ripple Current23 A
Insulation Resistance250 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length42 mm
Width30 mm
Height45 mm
PackagingCarton
–Check availability
890494429003CS
SPEC40 µF, 1000 V (DC), 17 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance40 µF
Rated Voltage1000 V (DC)
Rate of Voltage Rise17 V/µs
Dissipation Factor0.28 %
Ripple Current15.4 A
Insulation Resistance250 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width35 mm
Height50 mm
PackagingCarton
–Check availability
890744429005CS
SPEC40 µF, 1200 V (DC), 23 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance40 µF
Rated Voltage1200 V (DC)
Rate of Voltage Rise23 V/µs
Dissipation Factor0.24 %
Ripple Current20.1 A
Insulation Resistance250 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width45 mm
Height65 mm
PackagingCarton
–Check availability
890734429007CS
SPEC50 µF, 1100 V (DC), 20 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance50 µF
Rated Voltage1100 V (DC)
Rate of Voltage Rise20 V/µs
Dissipation Factor0.27 %
Ripple Current19.3 A
Insulation Resistance200 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width45 mm
Height65 mm
PackagingCarton
–Check availability
890714429003CS
SPEC50 µF, 800 V (DC), 15 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance50 µF
Rated Voltage800 V (DC)
Rate of Voltage Rise15 V/µs
Dissipation Factor0.33 %
Ripple Current16.8 A
Insulation Resistance200 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width35 mm
Height50 mm
PackagingCarton
–Check availability
890724429005CS
SPEC50 µF, 900 V (DC), 15 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance50 µF
Rated Voltage900 V (DC)
Rate of Voltage Rise15 V/µs
Dissipation Factor0.31 %
Ripple Current17.9 A
Insulation Resistance200 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width35 mm
Height50 mm
PackagingCarton
–Check availability
890494429005CS
SPEC50 µF, 1000 V (DC), 17 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance50 µF
Rated Voltage1000 V (DC)
Rate of Voltage Rise17 V/µs
Dissipation Factor0.28 %
Ripple Current19.2 A
Insulation Resistance200 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width45 mm
Height55 mm
PackagingCarton
–Check availability
890764429002CS
SPEC60 µF, 600 V (DC), 15 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance60 µF
Rated Voltage600 V (DC)
Rate of Voltage Rise15 V/µs
Dissipation Factor0.36 %
Ripple Current18.5 A
Insulation Resistance166.66 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width29.5 mm
Height43.5 mm
PackagingCarton
–Check availability
890724429010CS
SPEC75 µF, 900 V (DC), 15 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance75 µF
Rated Voltage900 V (DC)
Rate of Voltage Rise15 V/µs
Dissipation Factor0.31 %
Ripple Current25.7 A
Insulation Resistance133.33 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width45 mm
Height65 mm
PackagingCarton
–Check availability
890484429001CS
SPEC75 µF, 500 V (DC), 15 V/µs
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Capacitance75 µF
Rated Voltage500 V (DC)
Rate of Voltage Rise15 V/µs
Dissipation Factor0.35 %
Ripple Current16 A
Insulation Resistance133.33 MΩ
Pins4
Operating Temperature -40 °C up to +105 °C
Length57 mm
Width29.5 mm
Height43.5 mm
PackagingCarton
–Check availability

WCAP-FTDB: Film capacitors THT DC-link boxed (MKP)

A metallized polypropylene film (MKP) is used for the new DC-Link film capacitor product series. This results in the following features and properties:

  • High ripple current load capacity
  • High dielectric strength (up to 1200 VDC)
  • High expected service life
  • Capacitance range: 1 µF - 75 µF
  • Operating temperature: -40 °C to 105 °C

DC link application

DC link application

Foil capacitors, aluminum electrolytic capacitors or MLCCs can be used for the DC link application (DC link application). The main differences include the rated voltage, the possible capacitance and the design/size of the capacitor. DC link applications include frequency converters, solar inverters and DC chargers in the field of electromobility. The diagram shows a simplified representation of a three-phase inverter.

Schaubild mit mehreren Kondensatoren im Vordergrund

Example applications

EV-chargers
Power factor correction (PFC) stage
UPS – uninterruptible power supplies
DC input for solar inverter
Inverter for motor drives

Measurements

Redexpert

Measurements

Redexpert

With the help of REDEXPERT you will find the right capacitor based on your technical requirements. The tool supports, for example, with measured values for capacitance, impedance, ESR and dissipation factor (DF). The ability to compare individual components with each other in terms of measured values enables convenient component selection.

REDEXPERT
Computer screen with overlapping windows, graphs, and red 3D text: 'ONLINE PLATFORM BASED ON MEASURED VALUES.'

Videos

How to choose the right capacitor type for a circuit?! || Film vs. Ceramic vs. Electrolytic

Videos

DC-Link Capacitor, Specification and Application

Videos

Webinar: Introduction to the capacitor technologies and how to use them

Learn more
