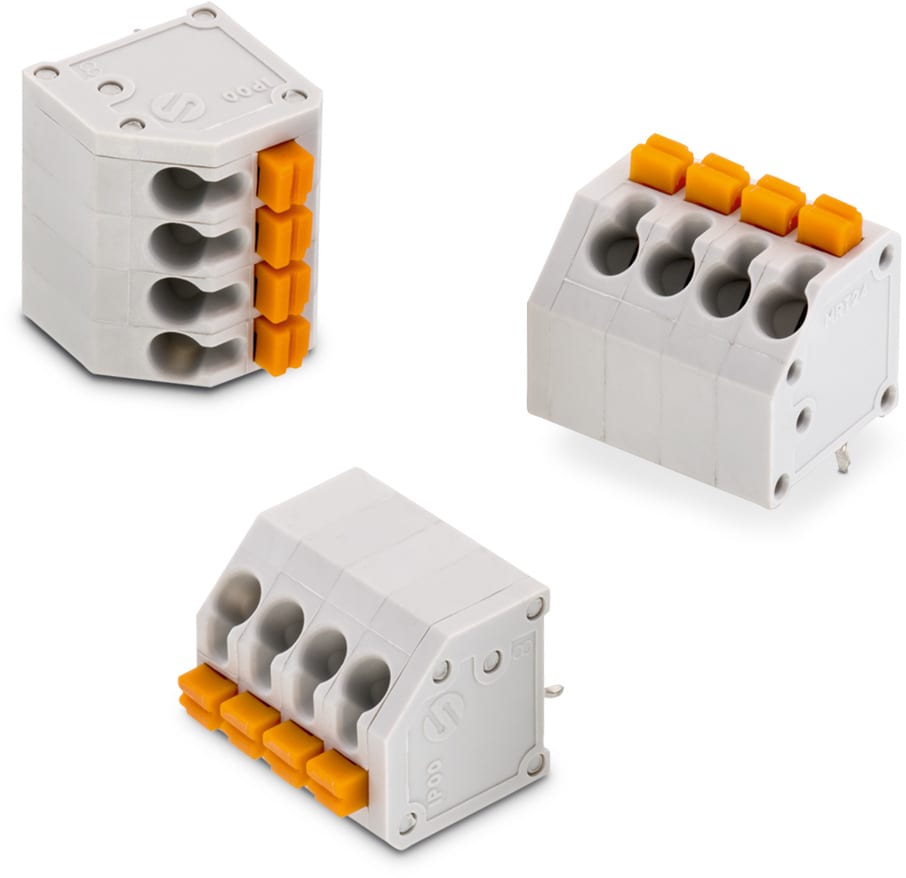

WR-TBL Series 4173S - 3.81 mm 45° Cable Entry Screwless | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	4 A
I_R	4 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	7 (mm)

Wire Properties
Solid Wire Section (AWG)	16 to 30 (AWG)
Solid Wire Section (Metric)	1.31 to 0.0509 (mm²)
Stranded Wire Section (AWG)	16 to 30 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.0509 (mm²)

Certification
cULus Approval	E150931
VDE Approval	40013441

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691417320002S	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691417320002S (rev1).pdf \| 143.5 KB IGS 691417320002S (rev1).iges \| 2.1 MB STP 691417320002S (rev1).stp \| 713.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Screwless	PCB	No	45°	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	691001
691417320003S	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691417320003S (rev1).pdf \| 143.7 KB IGS 691417320003S (rev1).iges \| 2.1 MB STP 691417320003S (rev1).stp \| 714.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Screwless	PCB	No	45°	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–
691417320004S	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691417320004S (rev1).pdf \| 143.9 KB IGS 691417320004S (rev1).iges \| 2.1 MB STP 691417320004S (rev1).stp \| 715.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Screwless	PCB	No	45°	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–
691417320005S	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691417320005S (rev1).pdf \| 144.1 KB IGS 691417320005S (rev1).iges \| 2.1 MB STP 691417320005S (rev1).stp \| 716 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Screwless	PCB	No	45°	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–
691417320006S	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 691417320006S (rev1).pdf \| 144.3 KB IGS 691417320006S (rev1).iges \| 2.1 MB STP 691417320006S (rev1).stp \| 716.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Screwless	PCB	No	45°	16 to 30 (AWG) 1.31 to 0.0509 (mm²)	–

Order Code	Datasheet
691417320002S	SPEC
691417320003S	SPEC
691417320004S	SPEC
691417320005S	SPEC
691417320006S	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
