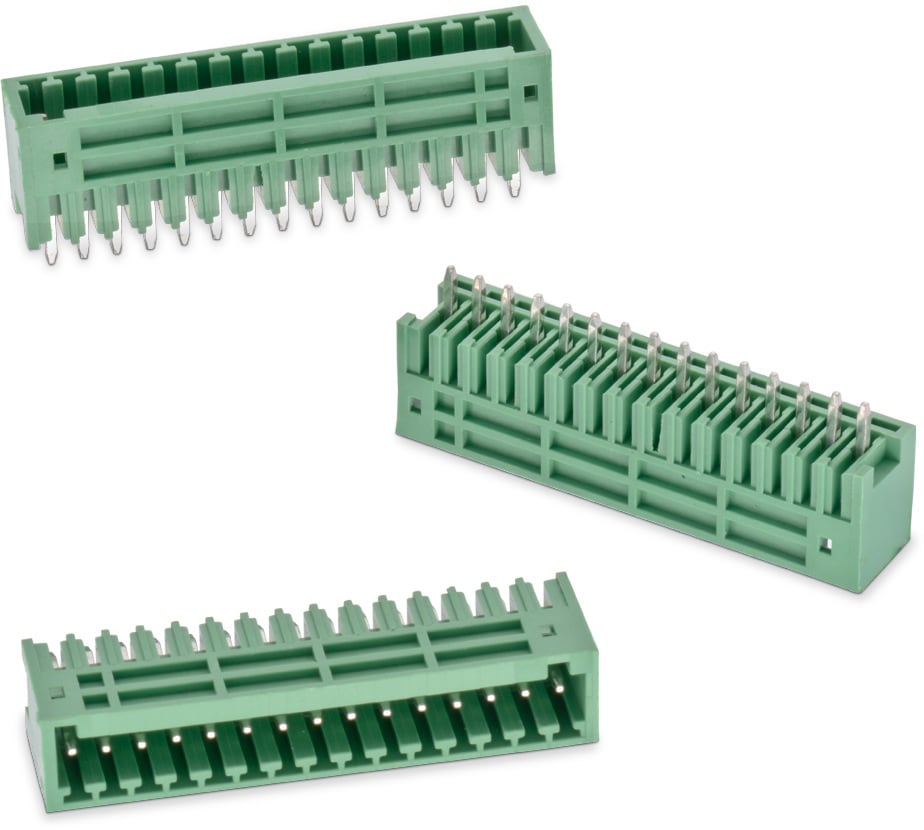

WR-TBL Series 382 - 2.50 mm Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	2.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Type	Stamped
Pin Material	Copper Alloy
Pin Plating	Tin over Nickel

Electrical Properties
I_R	4 A
I_R[cULus]	4 A
Working Voltage	160 V (AC)
Working Voltage [cULus]	150 V (AC)
Withstanding Voltage	1320 V (AC)
Withstanding Voltage [cULus]	1000 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691382000002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691382000002 (rev1).pdf \| 73.4 KB IGS Download_IGES_691382000002 (rev1).iges \| 791.9 KB STP 691382000002 (rev1).stp \| 320.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Vertical	612690
691382000003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691382000003 (rev1).pdf \| 104.9 KB IGS Download_IGES_691382000003 (rev1).iges \| 1.2 MB STP 691382000003 (rev1).stp \| 477.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Vertical	691002
691382000004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691382000004 (rev1).pdf \| 130.6 KB IGS Download_IGES_691382000004 (rev1).iges \| 1.5 MB STP 691382000004 (rev1).stp \| 595.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Vertical	–
691382000005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691382000005 (rev1).pdf \| 156.2 KB IGS Download_IGES_691382000005 (rev1).iges \| 1.7 MB STP 691382000005 (rev1).stp \| 717.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Vertical	–
691382000006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691382000006 (rev1).pdf \| 183.5 KB IGS Download_IGES_691382000006 (rev1).iges \| 2.1 MB STP 691382000006 (rev1).stp \| 481.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Vertical	–
691382000007	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691382000007 (rev1).pdf \| 205.4 KB IGS Download_IGES_691382000007 (rev1).iges \| 2.4 MB STP Download_STP_691382000007 (rev1).stp \| 983.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Vertical	–
691382000008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691382000008 (rev1).pdf \| 230.2 KB IGS Download_IGES_691382000008 (rev1).iges \| 2.7 MB STP 691382000008 (rev1).stp \| 615.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Vertical	–
691382000012	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691382000012 (rev1).pdf \| 317.8 KB IGS Download_IGES_691382000012 (rev1).iges \| 3.9 MB STP Download_STP_691382000012 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Vertical	–
