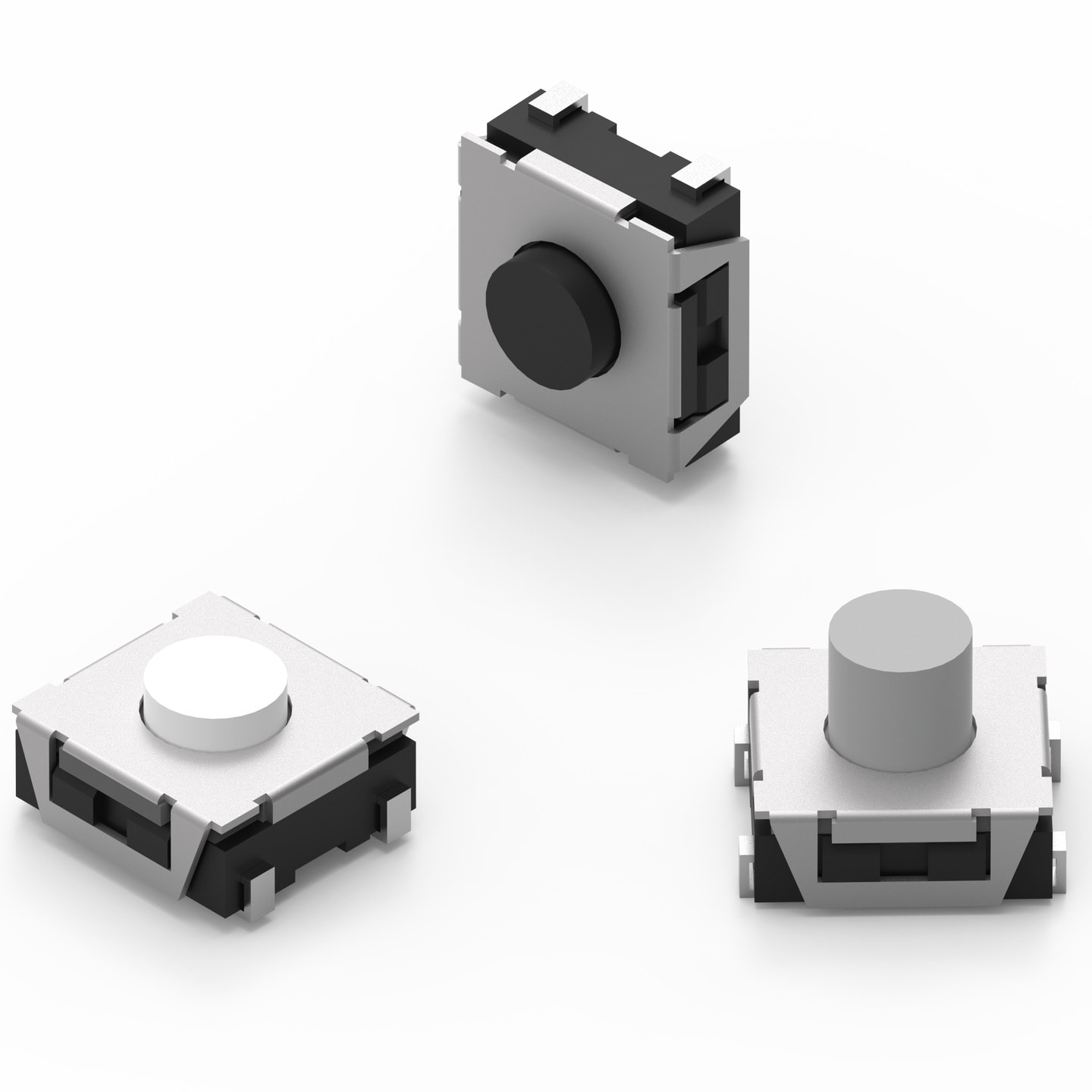

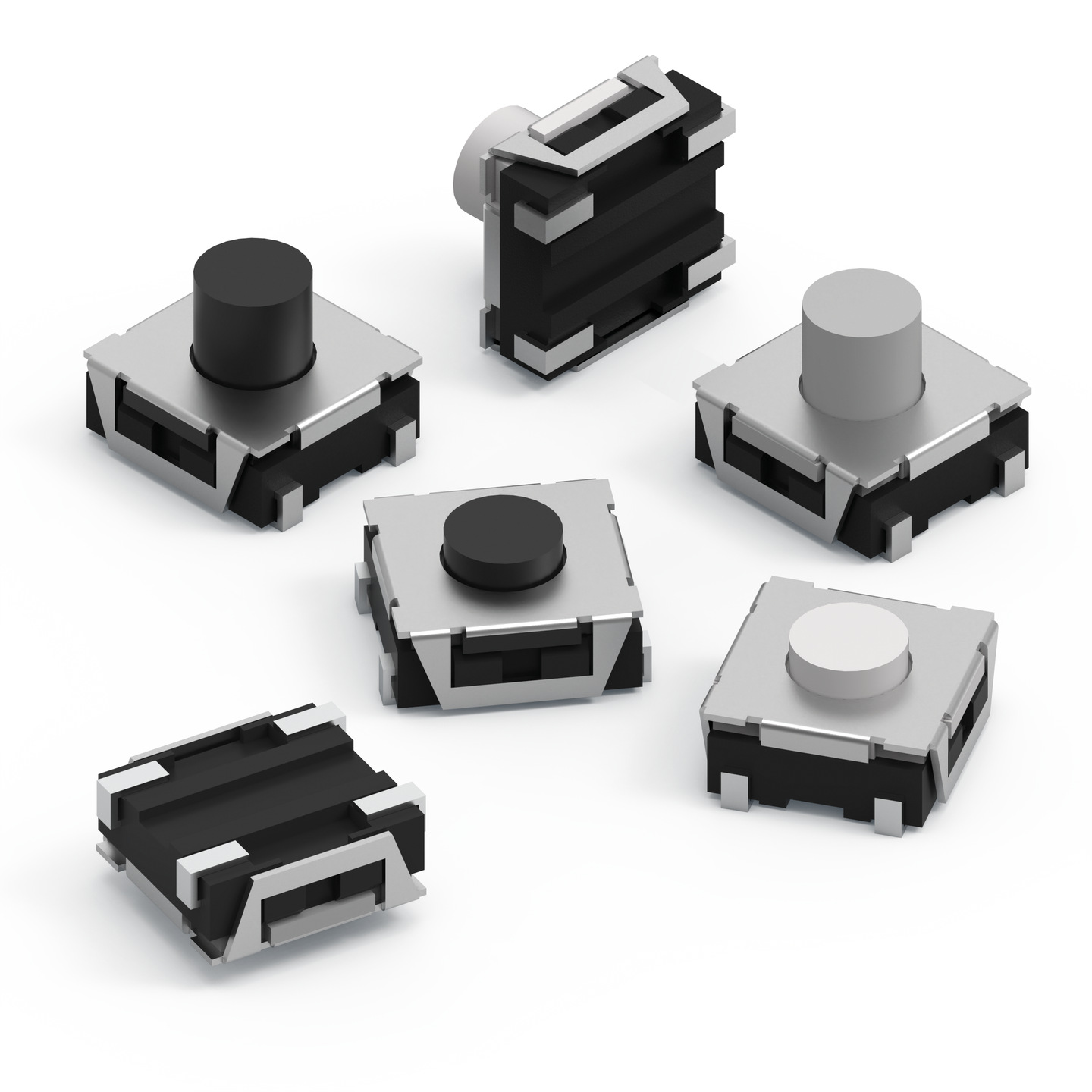

WS-TASV WS-TASV J-Hook SMT IP67 Tact Switch 6x6 mm

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	IP67

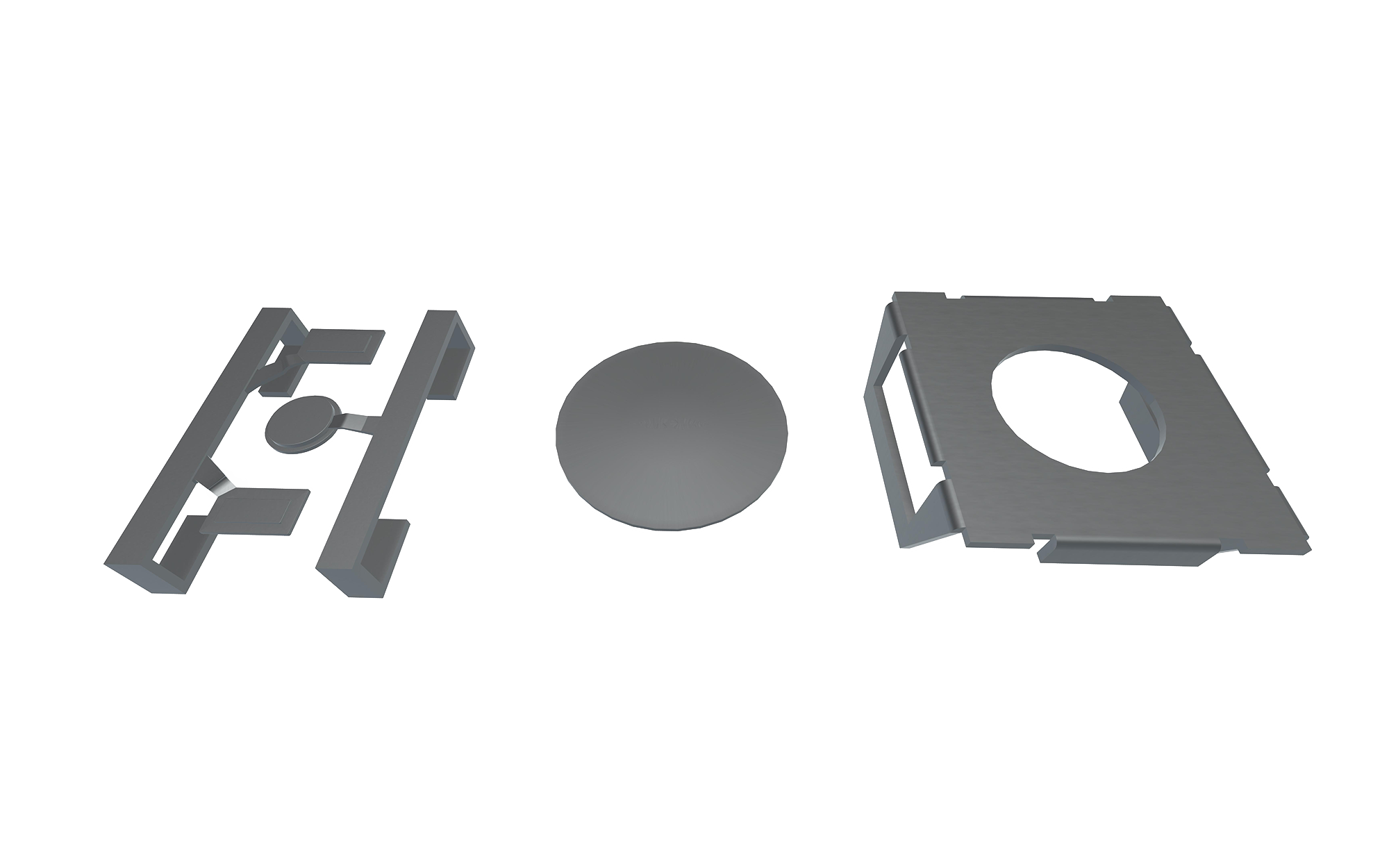

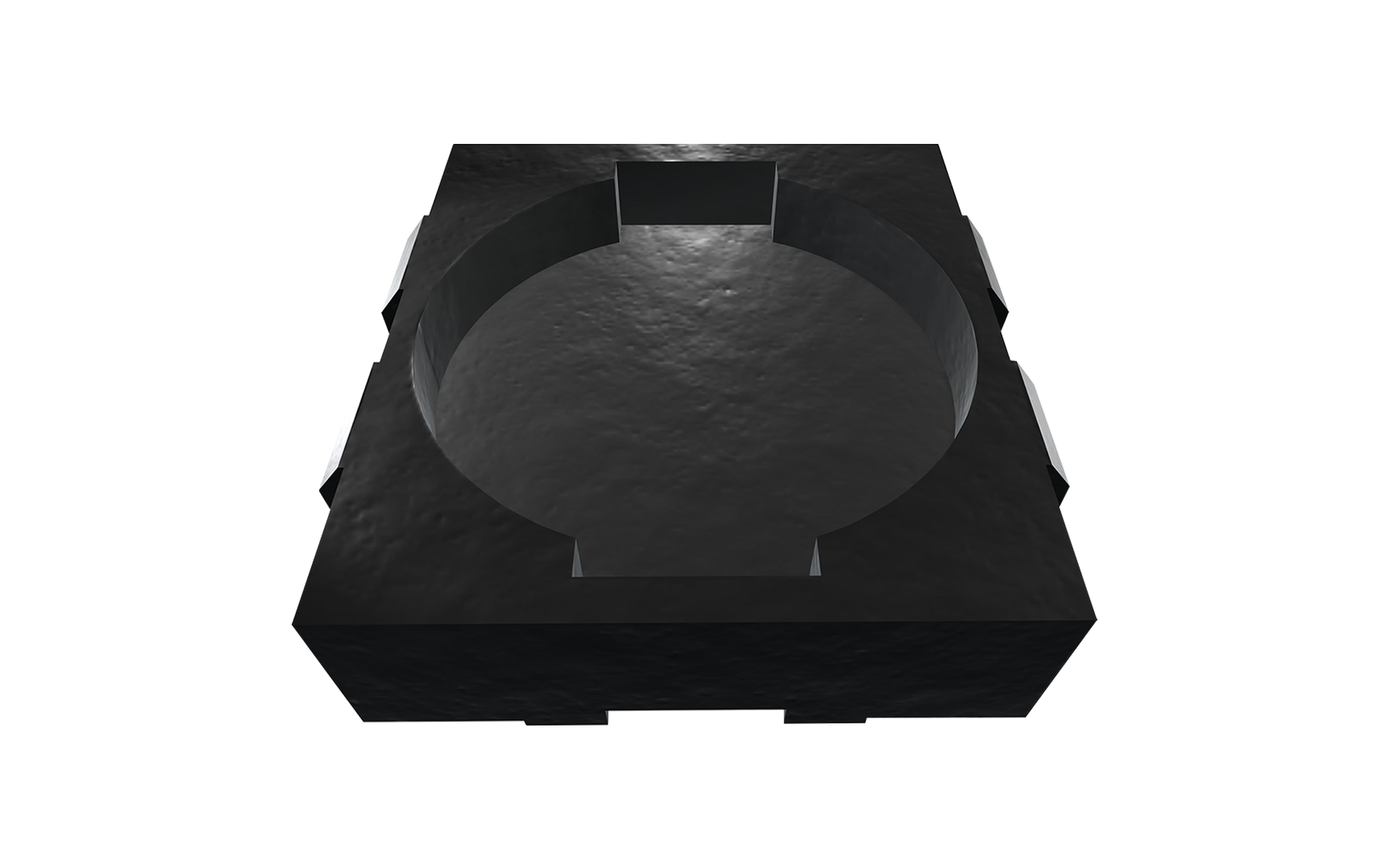

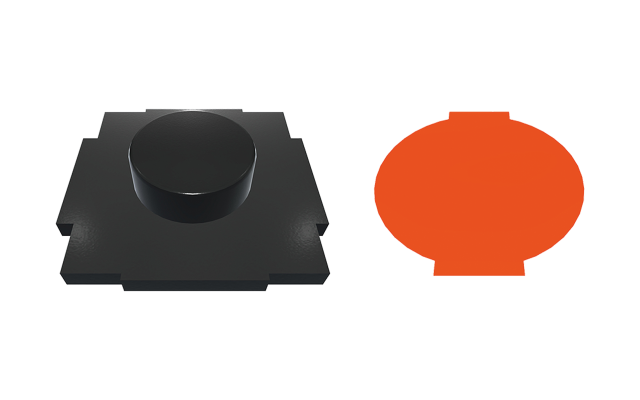

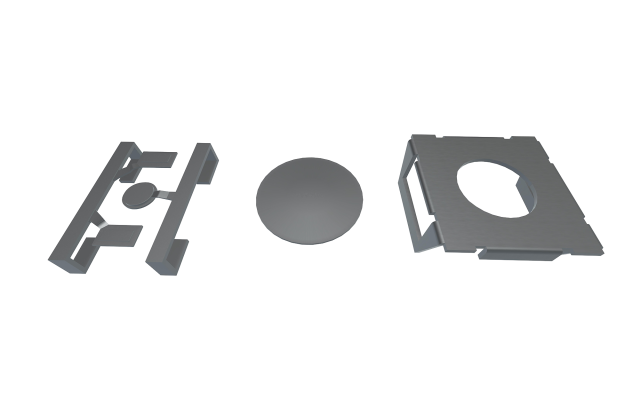

Material Properties
Actuator Material	Silicone Rubber
Actuator Flammability Rating	UL94 HB
Frame Material	HTN
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

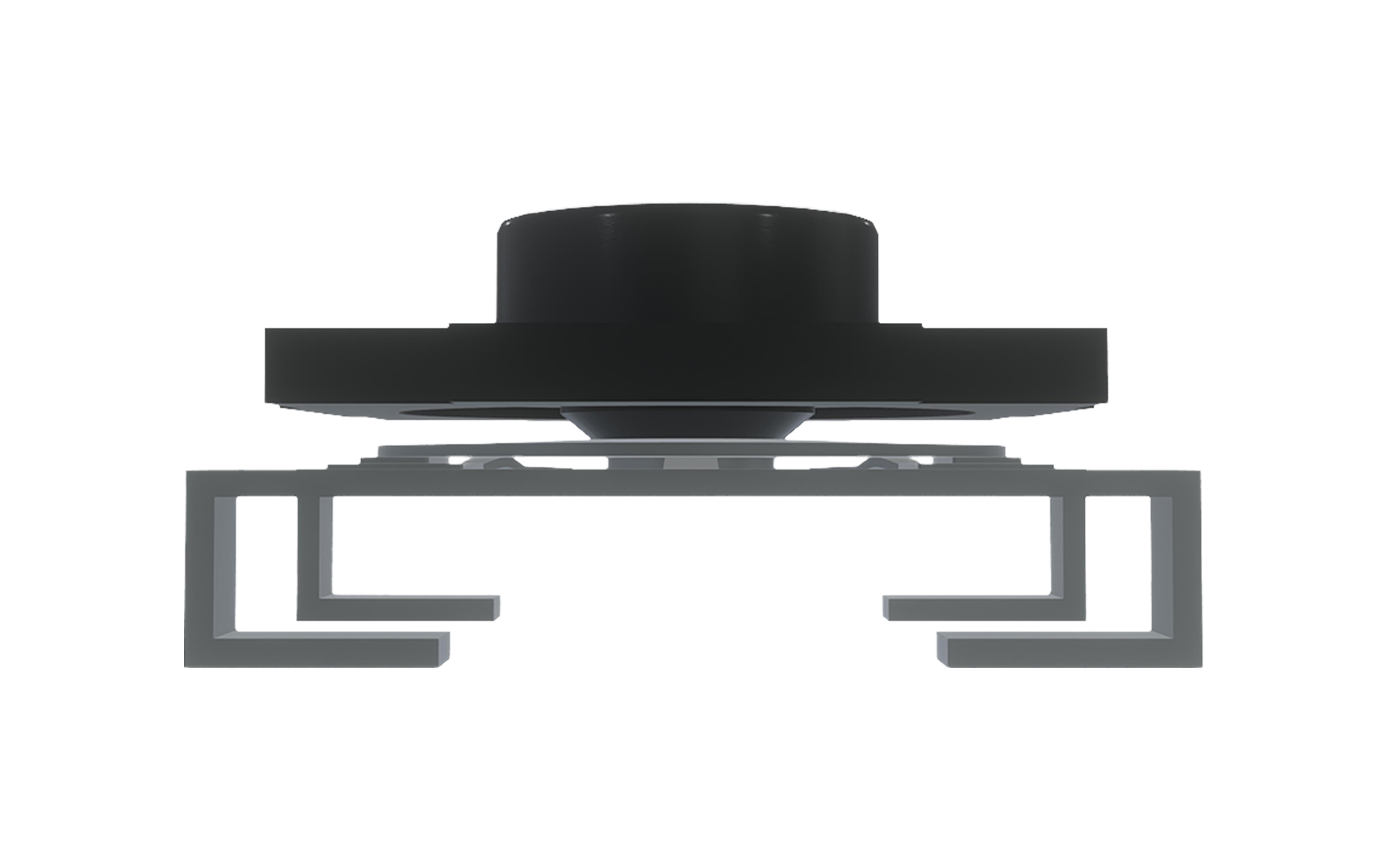

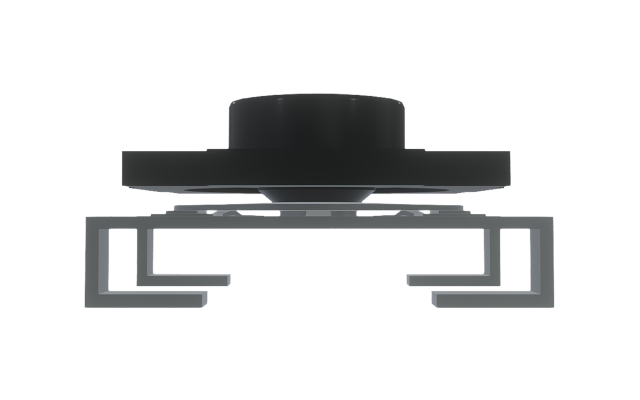

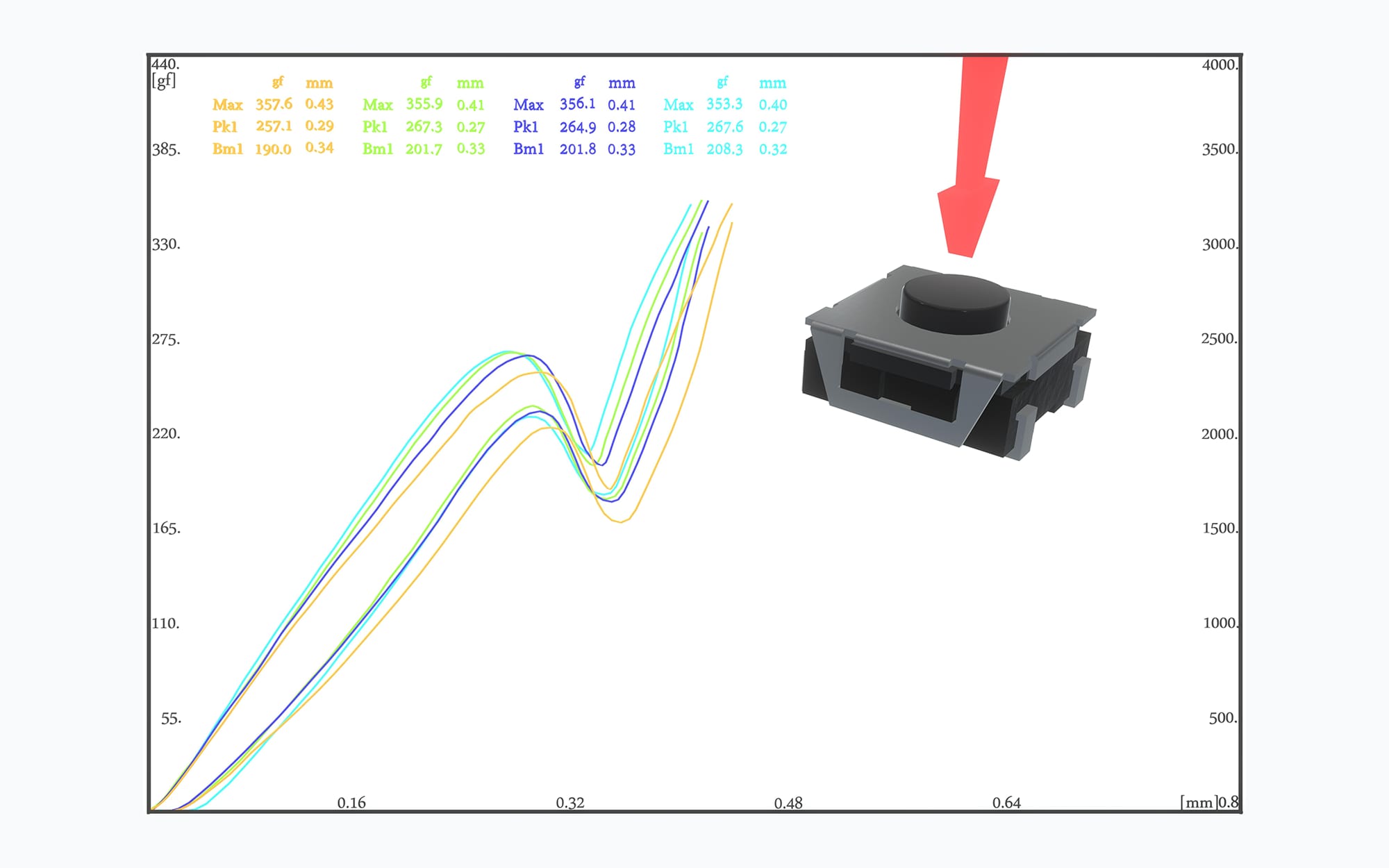

Mechanical Properties
Operation Force	160 g; 250 g; 320 g
Electrical Life	200000 Cycles; 500000 Cycles; 1000000 Cycles

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	H(mm)	Operation Force(g)	Electrical Life(Cycles)	Actuator Color	Washable	Vaporphase process	Design Kit
430773034825	3.4 mm, 250 g, 500000 Cycles	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP 3D 4307x30xx8xx_3D (rev1).pdf \| 151.7 KB IGS 4307x30xx8xx (rev1).igs \| 1.2 MB STP 4307x30xx8xx (rev1).stp \| 471.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.4 mm	Operation Force250 g	Electrical Life500000 Cycles	Actuator ColorGrey	WashableYes	Vaporphase processYes	Design Kit 499001
430783034816	3.4 mm, 160 g, 1000000 Cycles	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP 3D 4307x30xx8xx_3D (rev1).pdf \| 151.7 KB IGS 4307x30xx8xx (rev1).igs \| 1.2 MB STP 4307x30xx8xx (rev1).stp \| 471.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.4 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorWhite	WashableYes	Vaporphase processYes	Design Kit 499001
430753034832	3.4 mm, 320 g, 200000 Cycles	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP 3D 3D_WS-TASV_430753034832 (rev1).pdf \| 156.6 KB IGS IGS_WS-TASV_430753034832 (rev1).igs \| 1.2 MB STP STP_WS-TASV_430753034832 (rev1).stp \| 489.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.4 mm	Operation Force320 g	Electrical Life200000 Cycles	Actuator ColorBlack	WashableYes	Vaporphase processYes	Design Kit –
430773051825	5.1 mm, 250 g, 500000 Cycles	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP 3D 4307x30xx8xx_3D (rev1).pdf \| 151.7 KB IGS 4307x30xx8xx (rev1).igs \| 1.2 MB STP 4307x30xx8xx (rev1).stp \| 471.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5.1 mm	Operation Force250 g	Electrical Life500000 Cycles	Actuator ColorGrey	WashableYes	Vaporphase processYes	Design Kit 499001
430783051816	5.1 mm, 160 g, 1000000 Cycles	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP 3D 4307x30xx8xx_3D (rev1).pdf \| 151.7 KB IGS 4307x30xx8xx (rev1).igs \| 1.2 MB STP 4307x30xx8xx (rev1).stp \| 471.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5.1 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorWhite	WashableYes	Vaporphase processYes	Design Kit 499001
430753051832	5.1 mm, 320 g, 200000 Cycles	Downloads6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP 3D 3D_WS-TASV_430753051832 (rev1).pdf \| 153 KB IGS IGS_WS-TASV_430753051832 (rev1).igs \| 1.2 MB STP STP_WS-TASV_430753051832 (rev1).stp \| 472 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5.1 mm	Operation Force320 g	Electrical Life200000 Cycles	Actuator ColorBlack	WashableYes	Vaporphase processYes	Design Kit –
