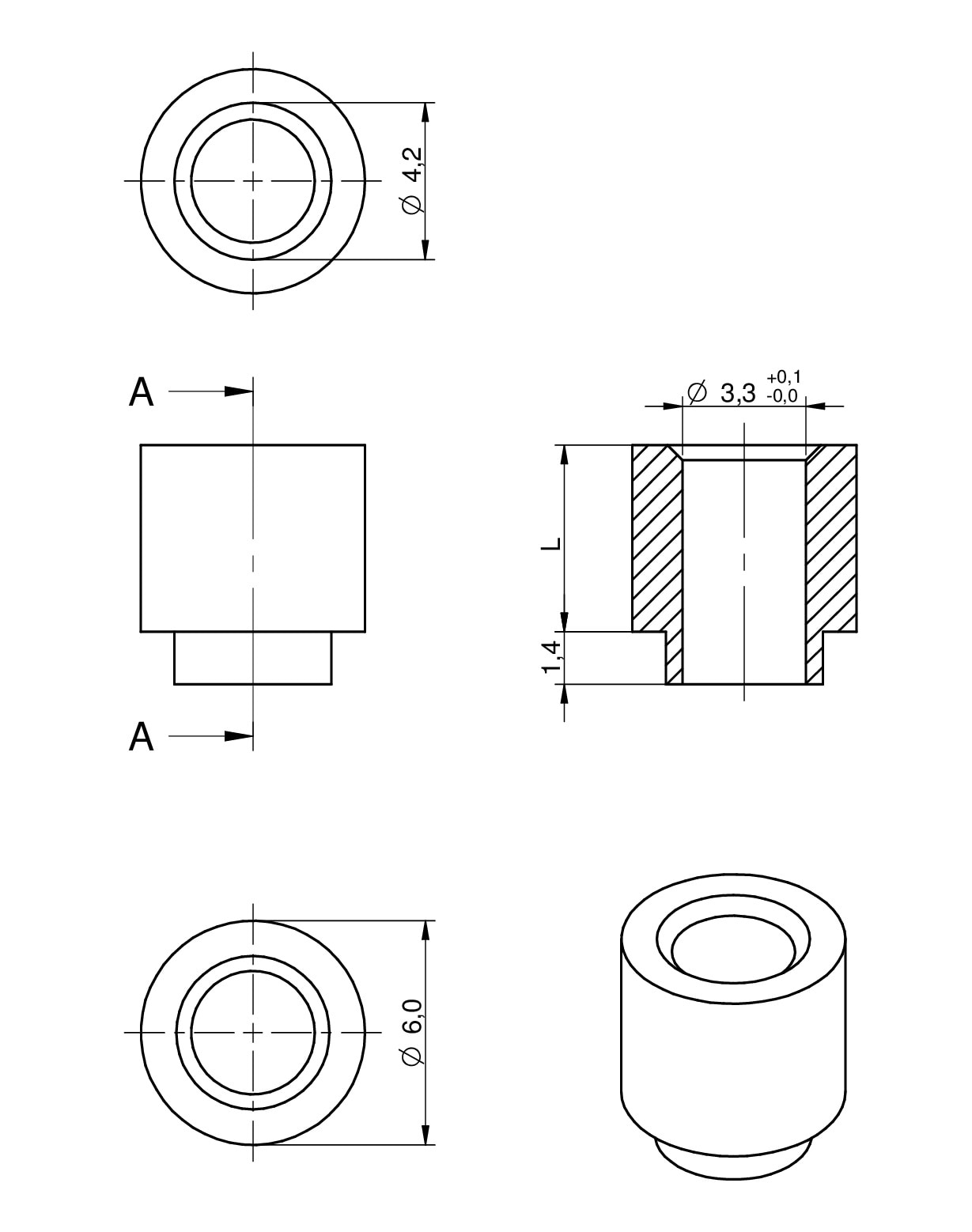

WA-SMST SMT Steel Spacer with through hole Ø 3.3

Applications

Assembling of PCBs to housing and to other PCBs
For distances from 1 to 16 mm
Fast and precise process
Strong holding forces and torques
Highest process reliability
Instant removable Polyimide Tape

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Steel
Surface	Tin
Ø f	3.3 mm
Solder Cream Thickness	150 µm

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	L (mm)	Ø f (mm)	Ø ID (mm)	Ø OD (mm)	Packaging	Qty.
9774010960R	1 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774010960R (rev1).pdf \| 30.7 KB IGS 9774010960R (rev1).igs \| 49.4 KB STP 9774010960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 1 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 1500
9774015960R	1.5 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774015960R (rev1).pdf \| 30.8 KB IGS 9774015960R (rev1).igs \| 49.4 KB STP 9774015960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 1.5 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 1200
9774020960R	2 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774020960R (rev1).pdf \| 30.5 KB IGS 9774020960R (rev1).igs \| 49.4 KB STP 9774020960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 2 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 1050
9774025960R	2.5 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774025960R (rev1).pdf \| 30.1 KB IGS 9774025960R (rev1).igs \| 49.4 KB STP 9774025960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 2.5 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 950
9774030960R	3 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774030960 (rev1).pdf \| 29.9 KB IGS 9774030960 (rev1).igs \| 49.4 KB STP 9774030960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 3 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 800
9774040960R	4 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774040960R (rev1).pdf \| 29.3 KB IGS 9774040960R (rev1).igs \| 49.4 KB STP 9774040960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 4 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 750
9774050960R	5 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774050960R (rev1).pdf \| 28.8 KB IGS 9774050960R (rev1).igs \| 49.4 KB STP 9774050960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 5 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 650
9774060960R	6 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774060960R (rev1).pdf \| 28.3 KB IGS 9774060960R (rev1).igs \| 49.4 KB STP 9774060960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 6 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 550
9774070960R	7 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774070960R (rev1).pdf \| 27.7 KB IGS 9774070960R (rev1).igs \| 49.4 KB STP 9774070960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 7 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 500
9774080960R	8 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774080960R (rev1).pdf \| 27.1 KB IGS 9774080960R (rev1).igs \| 49.4 KB STP 9774080960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 8 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 450
9774090960R	9 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774090960R (rev1).pdf \| 26.7 KB IGS 9774090960R (rev1).igs \| 49.3 KB STP 9774090960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 9 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 400
9774100960R	10 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774100960R (rev1).pdf \| 26.3 KB IGS 9774100960R (rev1).igs \| 49 KB STP 9774100960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 10 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 350
9774110960R	11 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774110960R (rev1).pdf \| 25.8 KB IGS 9774110960R (rev1).igs \| 49 KB STP 9774110960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 11 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 300
9774120960R	12 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774120960R (rev1).pdf \| 25.1 KB IGS 9774120960R (rev1).igs \| 49 KB STP 9774120960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 12 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 300
9774130960R	13 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774130960R (rev1).pdf \| 25.2 KB IGS 9774130960R (rev1).igs \| 49 KB STP 9774130960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 13 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 250
9774140960R	14 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774140960R (rev1).pdf \| 24.6 KB IGS 9774140960R (rev1).igs \| 49 KB STP 9774140960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 14 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 250
9774150960R	15 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774150960R (rev1).pdf \| 24.2 KB IGS 9774150960R (rev1).igs \| 49.2 KB STP 9774150960R (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 15 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 250
9774160960R	16 mm, 3.3 mm, 4.2 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 3D_9774160960 (rev1).pdf \| 25.1 KB IGS IGS_9774160960 (rev1).igs \| 49 KB STP STP_9774160960 (rev1).stp \| 7.1 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 16 mm	Hole Diameter 3.3 mm	Inner Diameter 4.2 mm	Outer Diameter 6 mm	Packaging Tape and Reel	Packaging Unit 180

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.

Fast and precise process
Instant removable kapton foil
Strong holding forces and torques
Highest process reliability
