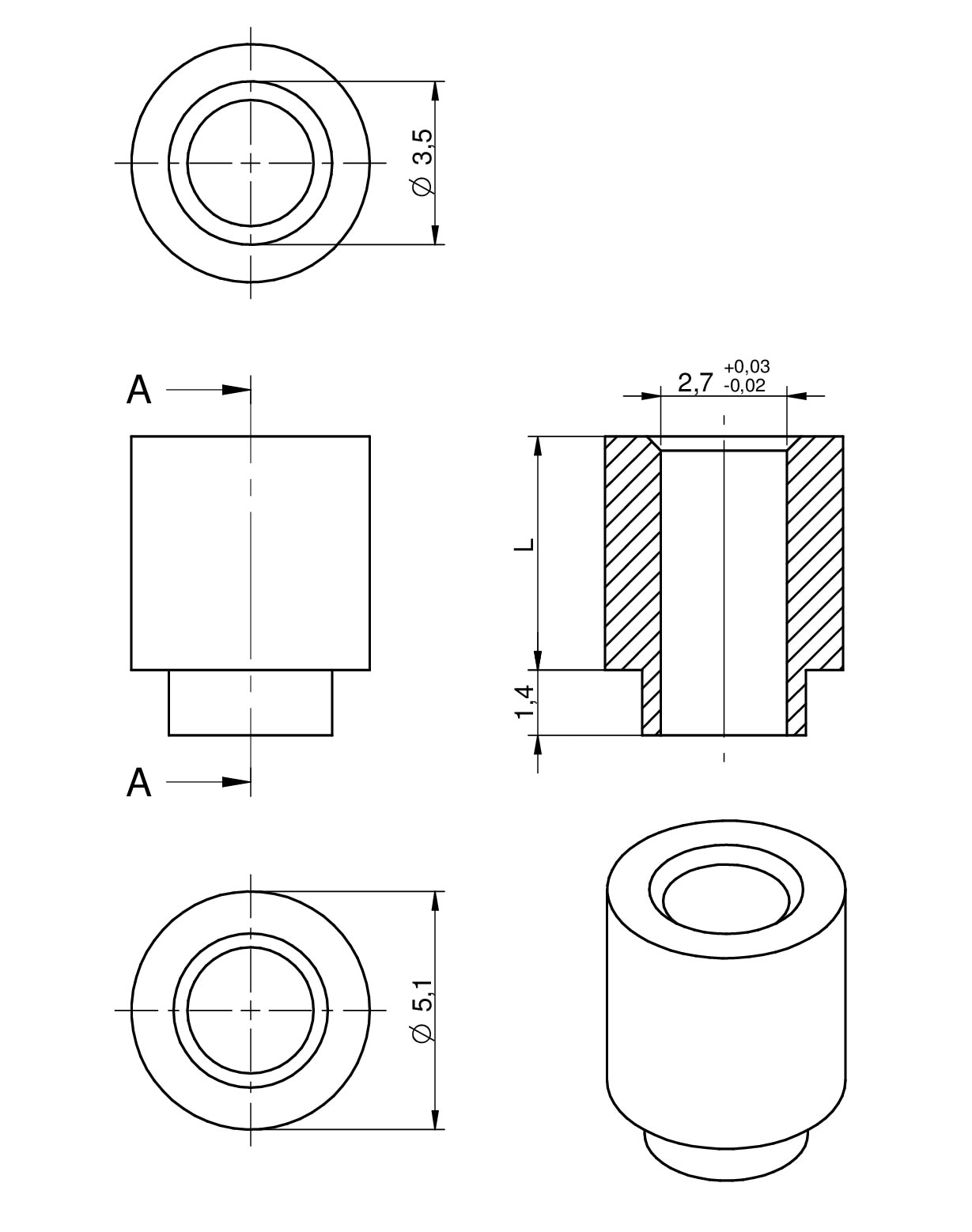

WA-SMST SMT Steel Spacer with through hole Ø 2.7

Applications

  • Assembling of PCBs to housing and to other PCBs
  • For distances from 1 to 10 mm
  • Fast and precise process
  • Strong holding forces and torques
  • Highest process reliability
  • Instant removable Polyimide Tape
General Information
Operating Temperature-55 °C up to +150 °C
MaterialSteel
SurfaceTin
Ø f2.7 mm
Solder Paste Thickness150 µm

Products

Order Code Data­sheet DownloadsL
(mm)
Ø f
(mm)
Ø ID
(mm)
Ø OD
(mm)
PackagingQty.
(pcs)
Board Samples
9774010951RSPEC
6 files 1 2.7 3.5 5.1 Tape and Reel 1500
9774015951RSPEC
6 files 1.5 2.7 3.5 5.1 Tape and Reel 1200
9774020951RSPEC
6 files 2 2.7 3.5 5.1 Tape and Reel 1050
9774025951RSPEC
6 files 2.5 2.7 3.5 5.1 Tape and Reel 950
9774030951RSPEC
6 files 3 2.7 3.5 5.1 Tape and Reel 700
9774040951RSPEC
6 files 4 2.7 3.5 5.1 Tape and Reel 700
9774050951RSPEC
6 files 5 2.7 3.5 5.1 Tape and Reel 450700990
9774055951RSPEC
6 files 5.5 2.7 3.5 5.1 Tape and Reel 450
9774060951RSPEC
6 files 6 2.7 3.5 5.1 Tape and Reel 450
9774065951RSPEC
6 files 6.5 2.7 3.5 5.1 Tape and Reel 450
9774070951RSPEC
6 files 7 2.7 3.5 5.1 Tape and Reel 450
9774080951RSPEC
6 files 8 2.7 3.5 5.1 Tape and Reel 400
9774090951RSPEC
6 files 9 2.7 3.5 5.1 Tape and Reel 300
9774100951RSPEC
6 files 10 2.7 3.5 5.1 Tape and Reel 300
Order Code Data­sheet
9774010951RSPEC
9774015951RSPEC
9774020951RSPEC
9774025951RSPEC
9774030951RSPEC
9774040951RSPEC
9774050951RSPEC
9774055951RSPEC
9774060951RSPEC
9774065951RSPEC
9774070951RSPEC
9774080951RSPEC
9774090951RSPEC
9774100951RSPEC
Samples
Order Code Data­sheet DownloadsL
(mm)
Ø f
(mm)
Ø ID
(mm)
Ø OD
(mm)
PackagingQty.
(pcs)
Board Samples

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.

  • Fast and precise process
  • Instant removable kapton foil
  • Strong holding forces and torques
  • Highest process reliability
