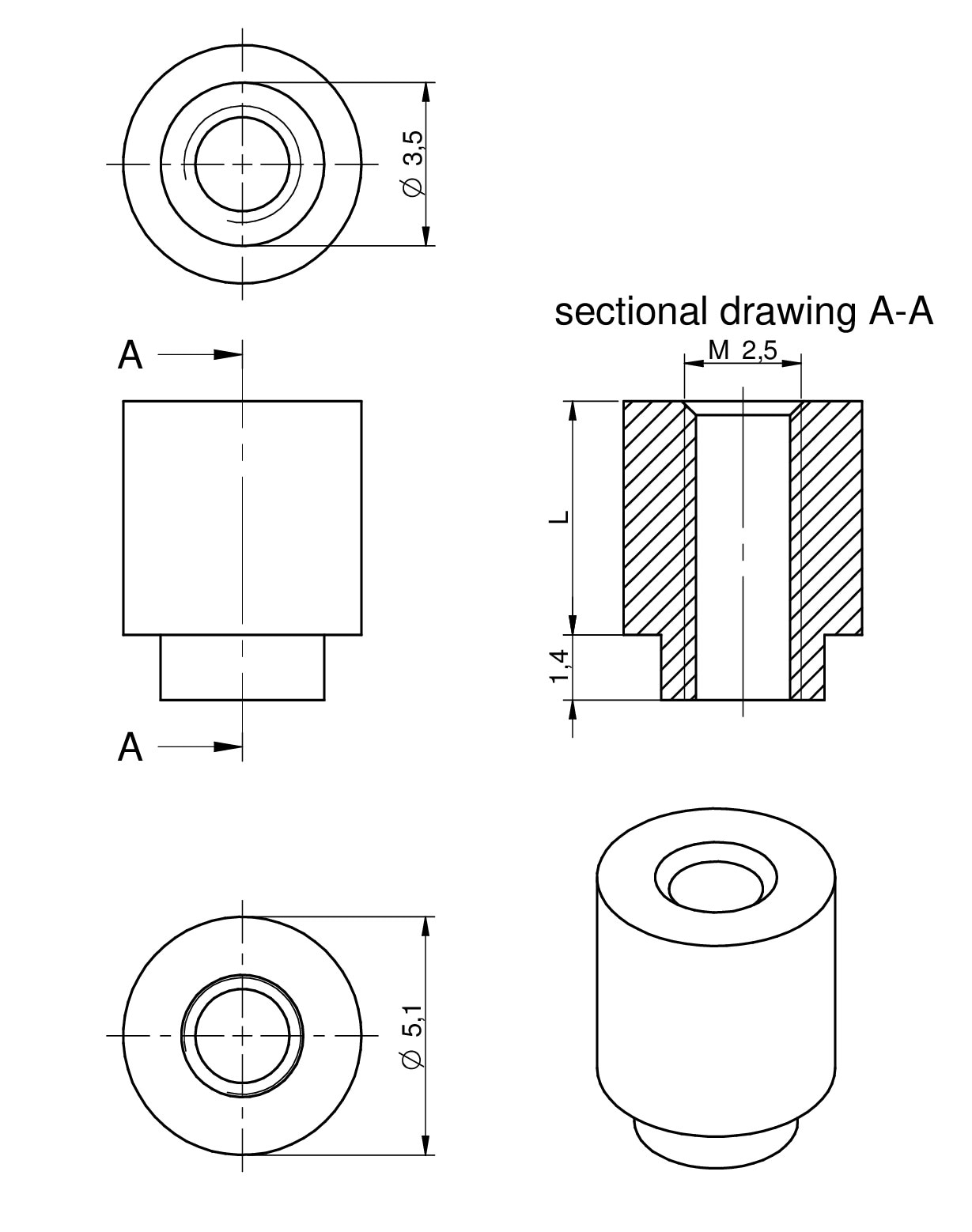

WA-SMSI SMT Steel Spacer with internal Thread M2.5

Applications

Assembling of PCBs to housing and to other PCBs
For distances from 0,5 to 10 mm
Fast and precise process
Strong holding forces and torques
Highest process reliability
Instant removable Polyimide Tape

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Steel
Surface	Tin
T_i	M2.5
Solder Cream Thickness (Value)	150 µm
Tightening Torque	0.35 N*m

Products

Order Code	Datasheet	Downloads	Status	L (mm)	T_i	Ø OD (mm)	Ø ID (mm)	Packaging	Qty.	Board
9774005151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774005151 (rev1).pdf \| 48.5 KB IGS IGS_9774005151 (rev1).igs \| 78.6 KB STP STP_9774005151 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.5	M2.5	5.1	3.5	Tape and Reel	3000	–
9774010151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774010151R (rev1).pdf \| 29.7 KB IGS 9774010151R (rev1).igs \| 50.5 KB STP 9774010151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	M2.5	5.1	3.5	Tape and Reel	1500	–
9774015151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774015151R (rev1).pdf \| 29.3 KB IGS 9774015151R (rev1).igs \| 51.3 KB STP 9774015151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	M2.5	5.1	3.5	Tape and Reel	1200	–
9774020151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774020151R (rev1).pdf \| 29.3 KB IGS 9774020151R (rev1).igs \| 50.7 KB STP 9774020151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	M2.5	5.1	3.5	Tape and Reel	1050	–
9774025151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774020151R (rev1).pdf \| 28.8 KB IGS 9774025151R (rev1).igs \| 51.3 KB STP 9774025151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	M2.5	5.1	3.5	Tape and Reel	950	–
9774027151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774027151R (rev1).pdf \| 28.9 KB IGS 9774027151R (rev1).igs \| 51.3 KB STP 9774027151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.7	M2.5	5.1	3.5	Tape and Reel	700	–
9774030151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774030151R (rev1).pdf \| 28.9 KB IGS 9774030151R (rev1).igs \| 51.1 KB STP 9774030151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	M2.5	5.1	3.5	Tape and Reel	700	700990
9774035151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774035151 (rev1).pdf \| 30.1 KB IGS IGS_9774035151 (rev1).igs \| 51.3 KB STP STP_9774035151 (rev1).stp \| 9.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.5	M2.5	5.1	3.5	Tape and Reel	–	–
9774040151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774040151R (rev1).pdf \| 28 KB IGS 9774040151R (rev1).igs \| 51 KB STP 9774040151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	M2.5	5.1	3.5	Tape and Reel	700	–
9774045151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774045151 (rev1).pdf \| 29.4 KB IGS IGS_9774045151 (rev1).igs \| 51.3 KB STP STP_9774045151 (rev1).stp \| 9.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.5	M2.5	5.1	3.5	Tape and Reel	–	–
9774050151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774050151R (rev1).pdf \| 27.5 KB IGS 9774050151R (rev1).igs \| 51.1 KB STP 9774050151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	M2.5	5.1	3.5	Tape and Reel	450	–
9774055151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774055151 (rev1).pdf \| 33.4 KB IGS Download_IGS_9774055151 (rev1).igs \| 59.6 KB STP Download_STEP_9774055151 (rev1).stp \| 9.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.5	M2.5	5.1	3.5	Tape and Reel	450	–
9774060151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774060151 (rev1).pdf \| 28.6 KB IGS 9774060151R (rev1).igs \| 51.1 KB STP 9774060151 (rev1).stp \| 9.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	M2.5	5.1	3.5	Tape and Reel	450	–
9774065151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774065151 (rev1).pdf \| 32.4 KB IGS Download_IGS_9774065151 (rev1).igs \| 59.6 KB STP Download_STEP_9774065151 (rev1).stp \| 9.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.5	M2.5	5.1	3.5	Tape and Reel	450	–
9774070151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774070151R (rev1).pdf \| 26.4 KB IGS 9774070151R (rev1).igs \| 51.1 KB STP 9774070151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	M2.5	5.1	3.5	Tape and Reel	450	–
9774075151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774075151 (rev1).pdf \| 27.6 KB IGS IGS_9774075151 (rev1).igs \| 51.3 KB STP STP_9774075151 (rev1).stp \| 9.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.5	M2.5	5.1	3.5	Tape and Reel	–	–
9774080151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774080151R (rev1).pdf \| 25.7 KB IGS 9774080151R (rev1).igs \| 51.1 KB STP 9774080151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	M2.5	5.1	3.5	Tape and Reel	400	–
9774085151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774085151 (rev1).pdf \| 27.2 KB IGS IGS_9774085151 (rev1).igs \| 51.3 KB STP STP_9774085151 (rev1).stp \| 9.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.5	M2.5	5.1	3.5	Tape and Reel	–	–
9774090151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774090151 (rev1).pdf \| 26.8 KB IGS 9774090151 (rev1).igs \| 50.9 KB STP 9774090151 (rev1).stp \| 9.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	M2.5	5.1	3.5	Tape and Reel	300	–
9774095151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774095151 (rev1).pdf \| 26.4 KB IGS IGS_9774095151 (rev1).igs \| 51.2 KB STP STP_9774095151 (rev1).stp \| 9.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	M2.5	5.1	3.5	Tape and Reel	–	–
9774100151R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774100151R (rev1).pdf \| 24.6 KB IGS 9774100151R (rev1).igs \| 50.7 KB STP 9774100151R (rev1).stp \| 12.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	M2.5	5.1	3.5	Tape and Reel	300	–

Order Code	Datasheet
9774005151R	SPEC
9774010151R	SPEC
9774015151R	SPEC
9774020151R	SPEC
9774025151R	SPEC
9774027151R	SPEC
9774030151R	SPEC
9774035151R	SPEC
9774040151R	SPEC
9774045151R	SPEC
9774050151R	SPEC
9774055151R	SPEC
9774060151R	SPEC
9774065151R	SPEC
9774070151R	SPEC
9774075151R	SPEC
9774080151R	SPEC
9774085151R	SPEC
9774090151R	SPEC
9774095151R	SPEC
9774100151R	SPEC

Samples

Order Code	Datasheet	Downloads	Status	L (mm)	T_i	Ø OD (mm)	Ø ID (mm)	Packaging	Qty.	Board	Samples

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.
