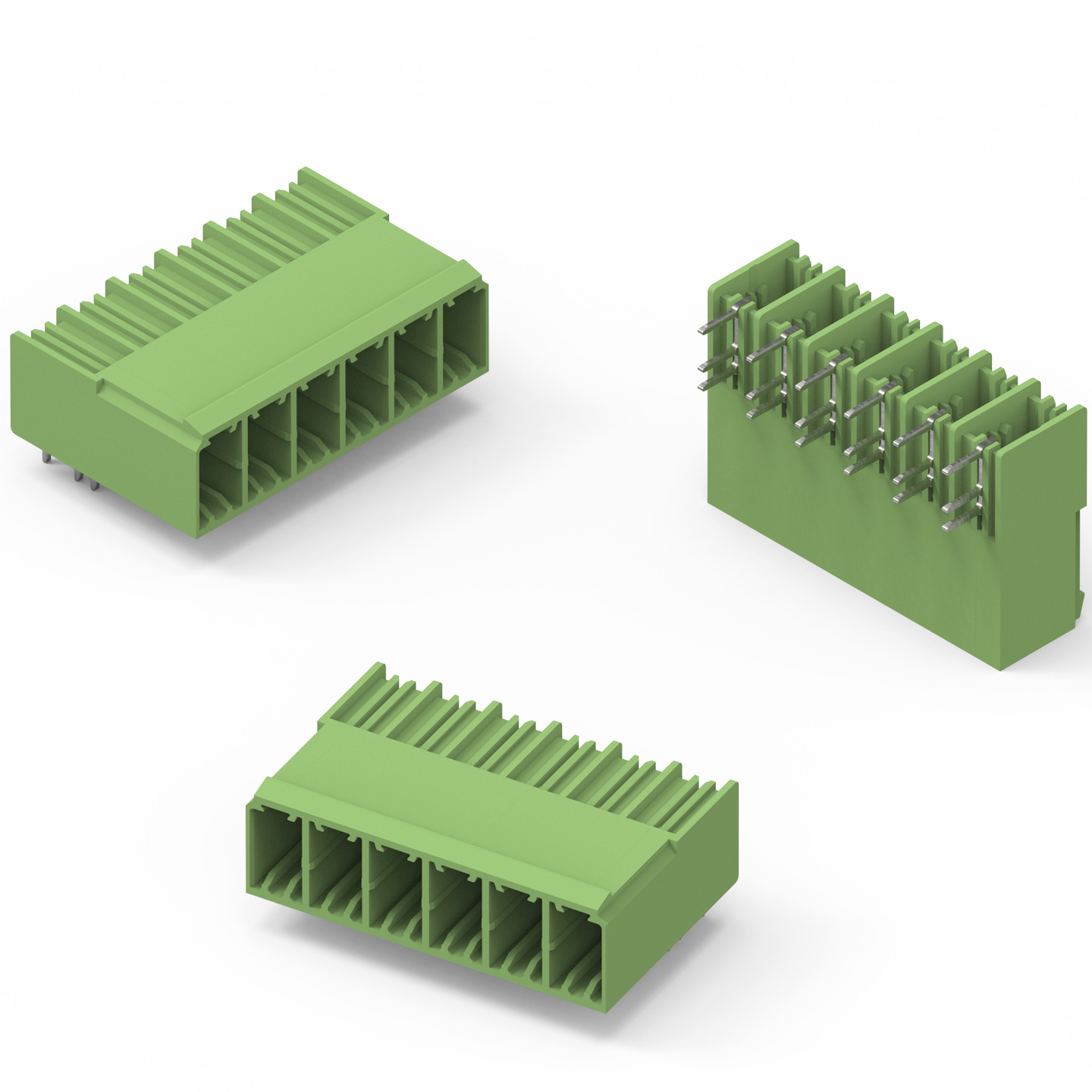

WR-TBL Series 3754 - PCB Header 7.62mm pitch - Horizontal cable entry - THT

General Information
Operating Temperature	-30 °C up to +160 °C
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Pin Material	Copper Alloy
Pin Plating	Tin over Nickel

Electrical Properties
I_R	41 A
I_R[cULus]	41 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage	1600 V (AC)
Contact Resistance	5 mΩ

Certification
cULus Approval	E150931
Glow Wire Approval	Conform [IEC 60335-1]

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Samples
691375410002	2, PCB Header, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375410002 (rev1).pdf \| 324.3 KB IGS Downloads_IGS_ConTBL3_691375410002 (rev1).igs \| 6 MB STP Downloads_STP_ConTBL3_691375410002 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691375410003	3, PCB Header, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375410003 (rev1).pdf \| 324.5 KB IGS Downloads_IGS_ConTBL3_691375410003 (rev1).igs \| 6 MB STP Downloads_STP_ConTBL3_691375410003 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691375410004	4, PCB Header, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375410004 (rev1).pdf \| 324.7 KB IGS Downloads_IGS_ConTBL3_691375410004 (rev1).igs \| 6 MB STP Downloads_STP_ConTBL3_691375410004 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691375410005	5, PCB Header, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375410005 (rev1).pdf \| 324.9 KB IGS Downloads_IGS_ConTBL3_691375410005 (rev1).igs \| 6 MB STP Downloads_STP_ConTBL3_691375410005 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691375410006	6, PCB Header, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691375410006 (rev1).pdf \| 325.1 KB IGS Downloads_IGS_ConTBL3_691375410006 (rev1).igs \| 6 MB STP Downloads_STP_ConTBL3_691375410006 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal

Mates with

WR-TBL Adhesive Marker Card Horizontally Printed

WR-TBL Series 3764 - Plug with Rising Cage Clamp 7.62mm pitch - Vertical cable entry - Cable
