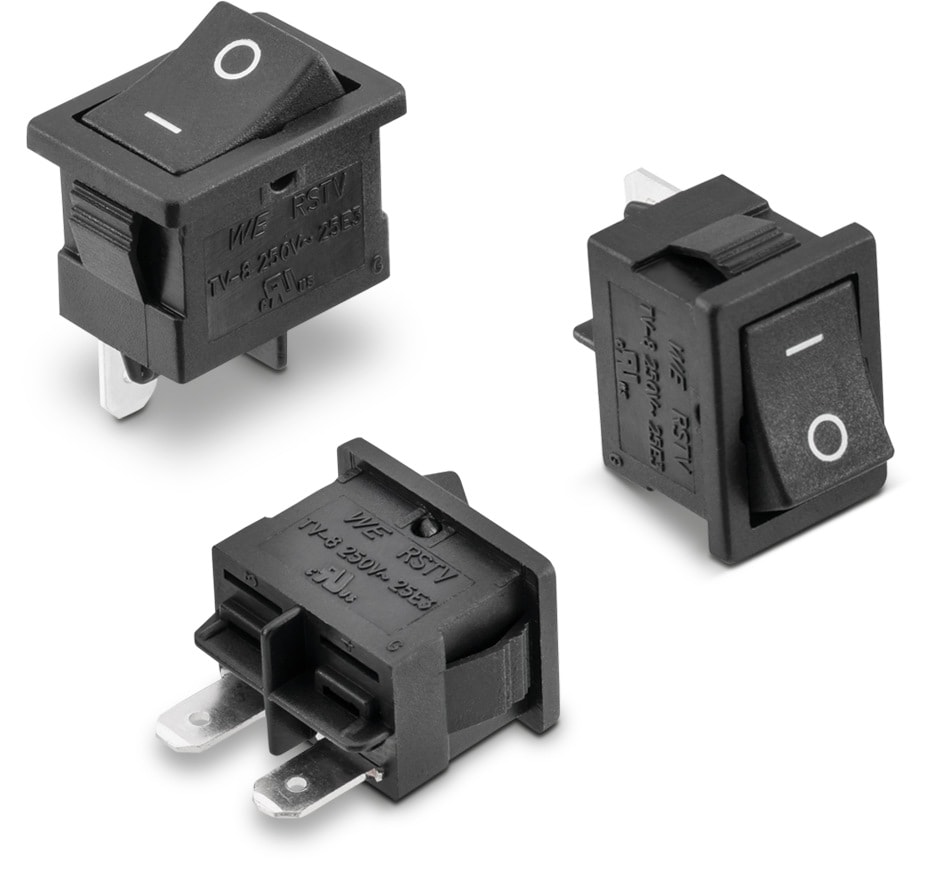

WS-RSTV 19.2 x 12.9 mm panel cut-out rocker switch with 0.187” quick connect terminal

Material Properties
Actuator Material	PA66
Actuator Flammability Rating	UL94 V-0
Frame Material	PA66
Frame Flammability Rating	UL94 V-0
Moveable Contact Material	Copper Alloy
Moveable Contact Plating	Silver
Stationary Contact Material	Copper Alloy
Terminal Material	Copper Alloy
Terminal Plating	Silver

Mechanical Properties
Electrical Life	10000 Cycles
Schematic	DPST; SPST

General Information
Operating Temperature	0 °C up to +85 °C
Ingress Protection Code	None

Packaging Properties
Packaging	Bulk

Certification
UL Approval	E483308
ENEC 15 Approval	ENEC-03124
CQC Approval	CQC16002160972
Glow Wire Approval	GWEPT: 850

Products

Order Code	Datasheet	Downloads	Status	Description	V_R (V (AC))	Actuator Color	Schematic
471001264143	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB CDS Cadence_WS-RSTV (rev24e).zip \| 62.6 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471001264143 (rev1).pdf \| 187.9 KB IGS Download_IGS_471001264143 (rev1).igs \| 2.5 MB STP Download_STP_471001264143 (rev1).stp \| 988.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Marking 0 I	250	Black	SPST
471016264143	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB CDS Cadence_WS-RSTV (rev24e).zip \| 62.6 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471016264143 (rev1).pdf \| 245.4 KB IGS Download_IGS_471016264143 (rev1).igs \| 3.2 MB STP Download_STP_471016264143 (rev1).stp \| 1.3 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Marking 0 I	250	Black	DPST
471001264142	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB CDS Cadence_WS-RSTV (rev24e).zip \| 62.6 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471001264142 (rev1).pdf \| 187.6 KB IGS Download_IGS_471001264142 (rev1).igs \| 2.5 MB STP Download_STP_471001264142 (rev1).stp \| 986.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Marking 0 -	250	Black	SPST
471016264142	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB CDS Cadence_WS-RSTV (rev24e).zip \| 62.6 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471016264142 (rev1).pdf \| 640.1 KB IGS IGS_471016264142 (rev1).igs \| 6.9 MB STP STP_471016264142 (rev1).stp \| 2.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Marking 0 -	250	Black	DPST

	Order Code	Datasheet
	471001264143	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
	471016264143	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
	471001264142	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
	471016264142	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

	Order Code	Datasheet	Downloads	Status	Description	V_R (V (AC))	Actuator Color	Schematic	Samples

Let's meet our WS-RSTV Rocker Switches series

WS-RSTV Rocker Switches

Introducing the Würth Elektronik Rocker Switch Series WS-RSTV - the ultimate solution for your switching needs. With UL/IEC/CQC 61058 certification and CE UKCA compliance, you can be assured of its quality and safety. Available in current ratings of 12, 28 and 60 VDC, these switches are built to last. And with a UV test certification of 60068-2-5, you can be confident that they can withstand even the harshest conditions. Try the WS-RSTV today and experience the difference.
