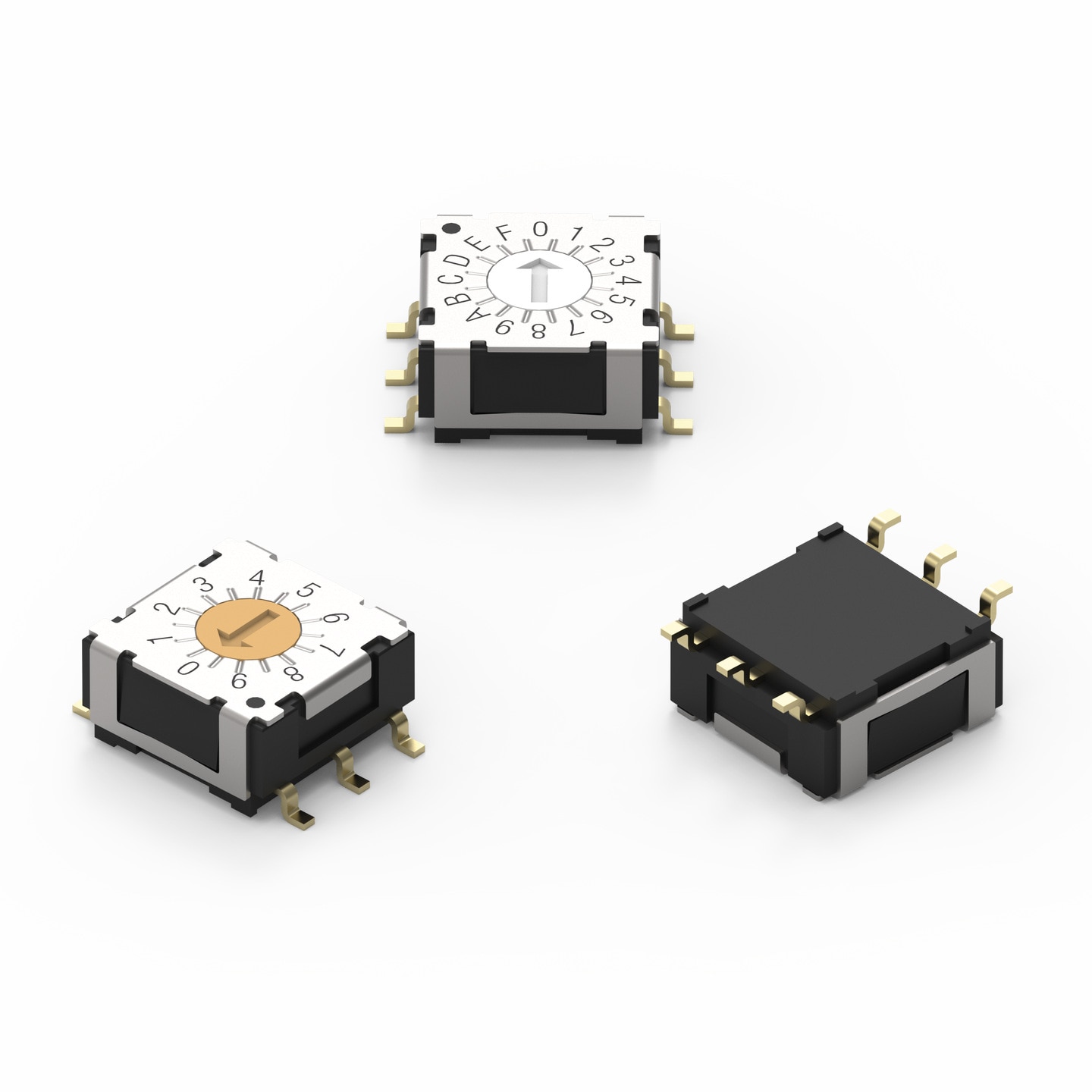

WS-ROSV SMT IP67 Rotary Switch with Arrow Type Actuator 7x7 mm

Material Properties
Cover Material	Stainless Steel
Base Material	LCP
Base Flammability Rating	UL94 V-0
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Terminal Material	Copper Alloy
Terminal Plating	Gold

Electrical Properties
I_R	400 mA
V_R	42 V (DC)
Contact Resistance Initial	80 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	25000 Steps
Actuator Type	Arrow Type

General Information
Operating Temperature	-60 °C up to +125 °C
Washable	Yes
Ingress Protection Code	IP67

Packaging Properties
Packaging	Tape and Reel

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Number of Position (Value)	Code	Ingress Protection Code	Vaporphase process	Actuator Color	Design Kit
428542320810	10, Real Code, IP67	Downloads6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB KIC KiCad_WS-ROSV (rev26a).zip \| 1.6 MB CAD files ZIP IGS 428542320810 (rev1).igs \| 3.7 MB STP 428542320810 (rev1).stp \| 959 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Position10	CodeReal Code	Ingress Protection CodeIP67	Vaporphase processYes	Actuator ColorRed	Design Kit 499001
428542320811	10, Complement Code, IP67	Downloads6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB KIC KiCad_WS-ROSV (rev26a).zip \| 1.6 MB CAD files ZIP IGS 428542320811 (rev1).igs \| 3.7 MB STP 428542320811 (rev1).stp \| 959 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Position10	CodeComplement Code	Ingress Protection CodeIP67	Vaporphase processYes	Actuator ColorOrange	Design Kit 499001
428542320816	16, Real Code, IP67	Downloads6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB KIC KiCad_WS-ROSV (rev26a).zip \| 1.6 MB CAD files ZIP IGS 428542320816 (rev1).igs \| 4 MB STP 428542320816 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Position16	CodeReal Code	Ingress Protection CodeIP67	Vaporphase processYes	Actuator ColorGrey	Design Kit 499001
428542320817	16, Complement Code, IP67	Downloads6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB KIC KiCad_WS-ROSV (rev26a).zip \| 1.6 MB CAD files ZIP IGS 428542320817 (rev1).igs \| 4 MB STP 428542320817 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Position16	CodeComplement Code	Ingress Protection CodeIP67	Vaporphase processYes	Actuator ColorIvory	Design Kit 499001

Switches for IP applications

Würth Elektronik offers IP67 classified rotary switches as well as tact switches. Tested according to IEC61058 and IEC60068, these components are ideally designed for use in harsh industrial environments.If you would like to know more about the IP certified products, your Würth Elektronik field sales will be happy to provide you with advice and support.
