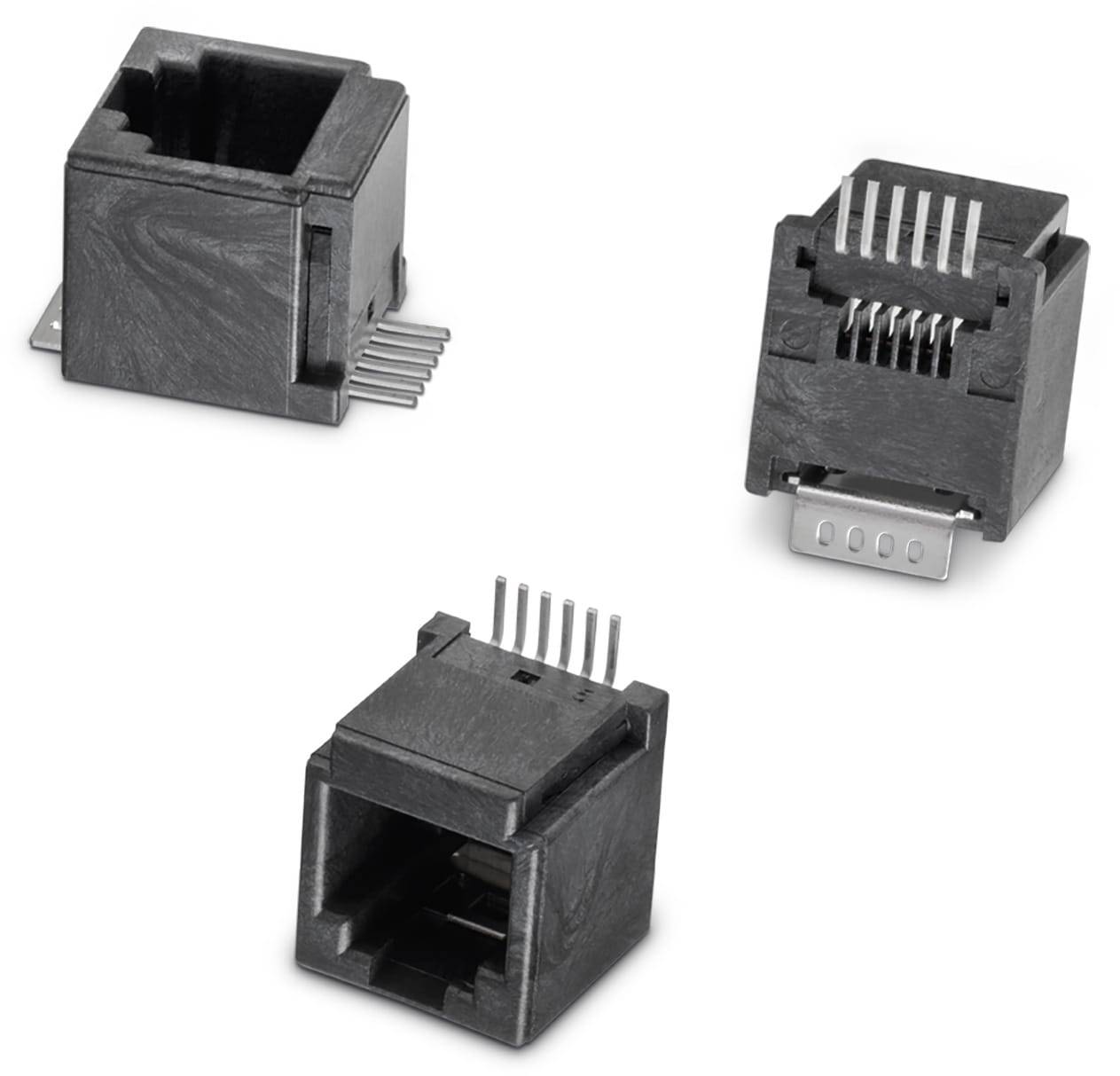

WR-MJ Modular Jack SMT Vertical Plastic 6P6C Top Entry

General Information
Operating Temperature-40 °C up to +85 °C
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Electrical Properties
Working Voltage120 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance20 mΩ
RISO500 MΩ
Packaging Properties
PackagingTape and Reel & Mylar

Products

Order Code Data­sheet DownloadsxPxCTypeMountDesign Kit Samples
634106149621SPEC
7 files 6P6C Vertical SMT615001
Order Code Data­sheet
634106149621SPEC
Samples
Order Code Data­sheet DownloadsxPxCTypeMountDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
