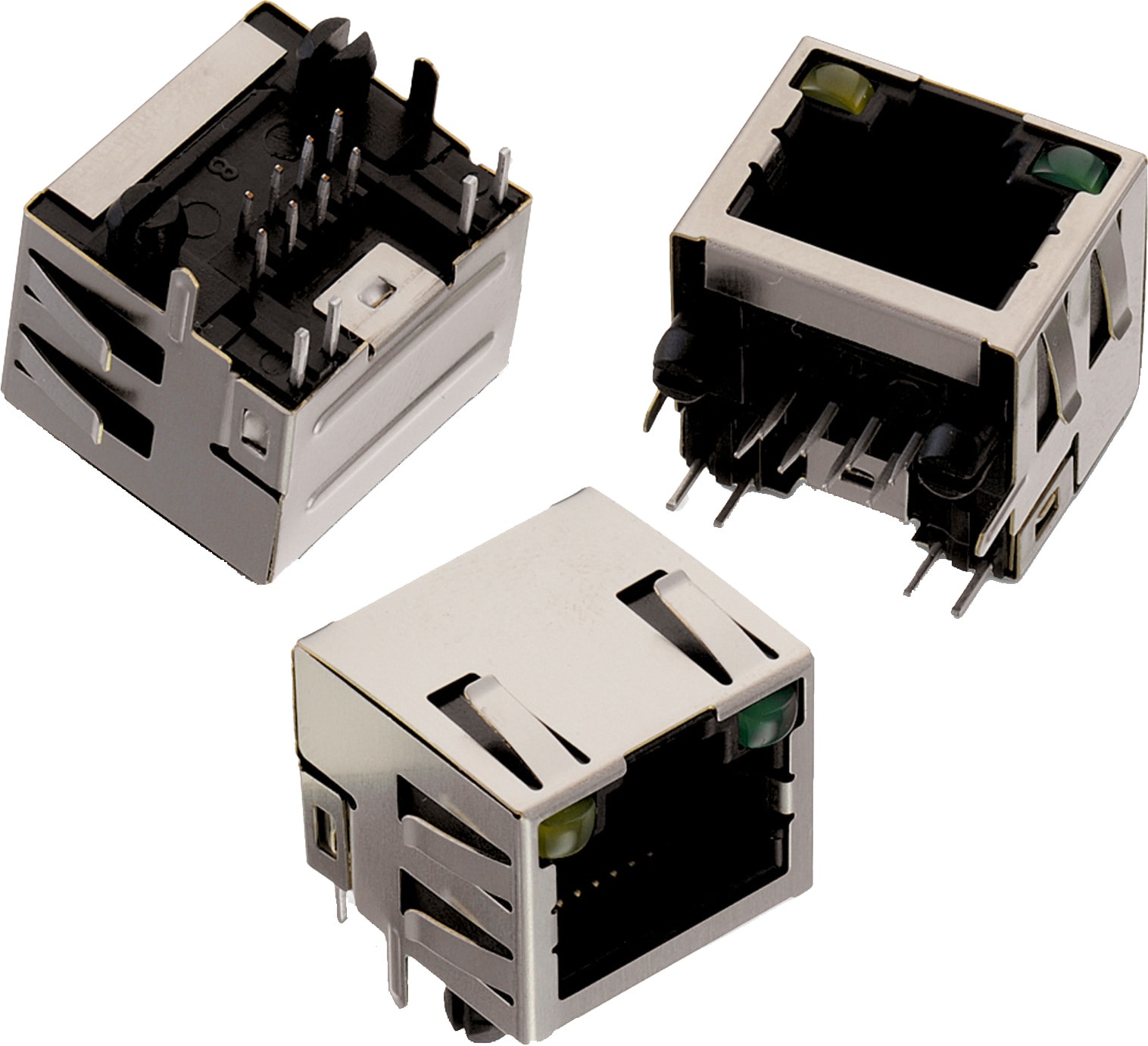

WR-MJ Modular Jack Tab Up

General Information
Operating Temperature	-40 °C up to +85 °C
LED	2xBipolar Y/G; yellow-green

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Bronze
Shielding Plating	Nickel (Ni)

Electrical Properties
Working Voltage	120 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	20 mΩ
R_ISO	500 MΩ

Packaging Properties
Packaging	Tray

Application Notes

ANP116 Gigabit Ethernet interface from an EMC perspective
PDF

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	xPxC	Tab	EMI	LED	Mount	Application System	Design Kit
615008137421	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 08/07/2025 SPEC Datasheet valid from 09/07/2025	7 files EDA models: Components ZIP ALT 615008137421 (rev16a).IntLib \| 18.3 MB ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev25a).lbr \| 522.8 KB CAD files ZIP 3D 615008137421_1 (rev1).pdf \| 56.8 KB IGS 615008137421 (rev1).igs \| 7.2 MB STP 615008137421 (rev1).stp \| 2.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	8P8C	Up	Yes	yellow-green	THT	CAT 3	615001
615008142121	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 08/07/2025 SPEC Datasheet valid from 09/07/2025	7 files EDA models: Components ZIP ALT 615008142121 (rev16a).IntLib \| 18.3 MB ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev25a).lbr \| 522.8 KB CAD files ZIP 3D 615008142121_1 (rev1).pdf \| 573.3 KB IGS 615008142121 (rev1).igs \| 7 MB STP 615008142121 (rev1).stp \| 2.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	8P8C	Up	Yes	2xBipolar Y/G	THT	CAT 3	615001
615008141321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 31/12/2029 SPEC Datasheet valid from 01/01/2030	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev25a).lbr \| 522.8 KB CAD files ZIP 3D 3D_615008141321 (rev1).pdf \| 580.9 KB IGS Download_IGS_615008141321 (rev1).igs \| 7.2 MB STP Download_STP_615008141321 (rev1).stp \| 2.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	8P8C	Up	Yes	2xBipolar Y/G	THT	CAT 3	615001 749615
