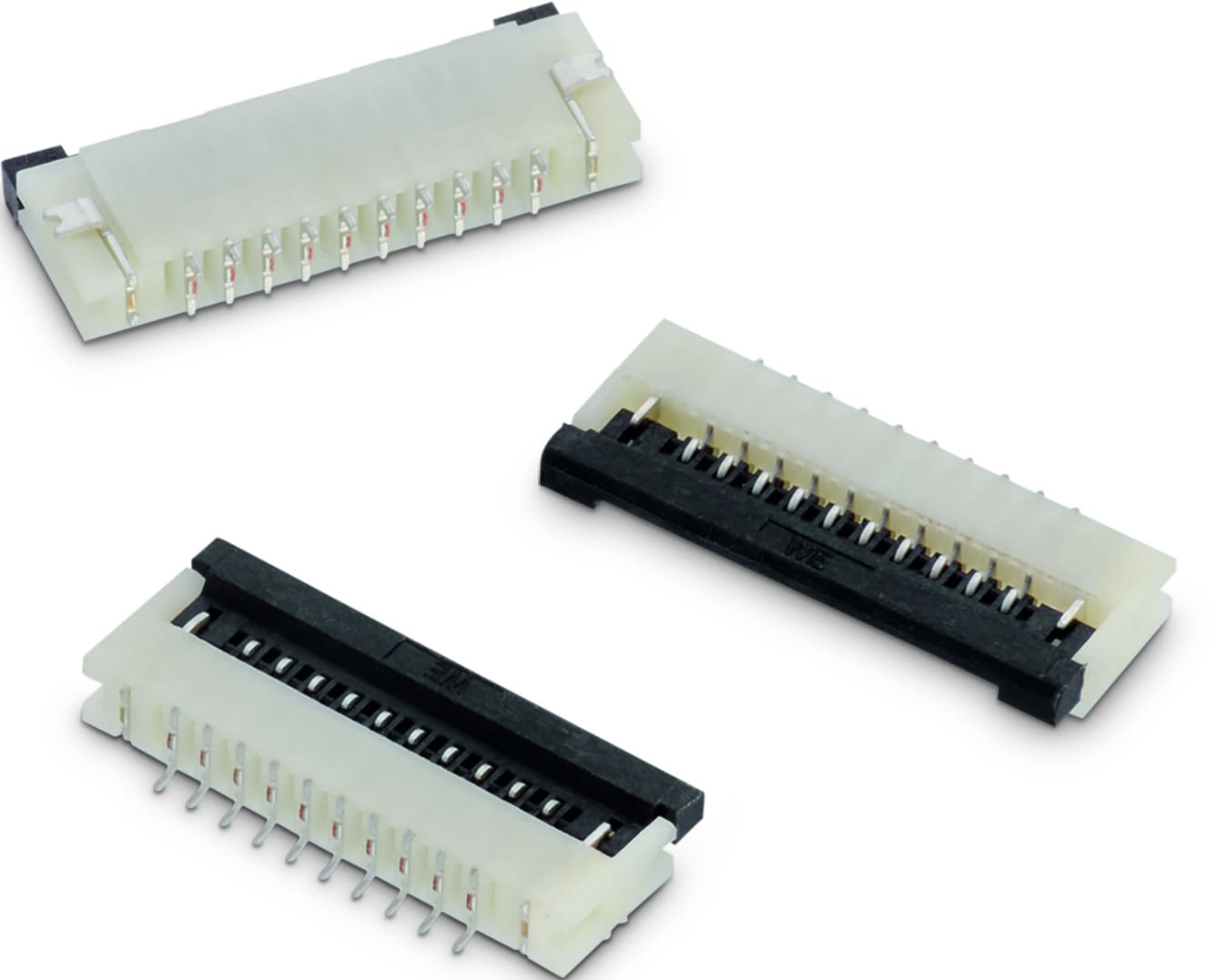

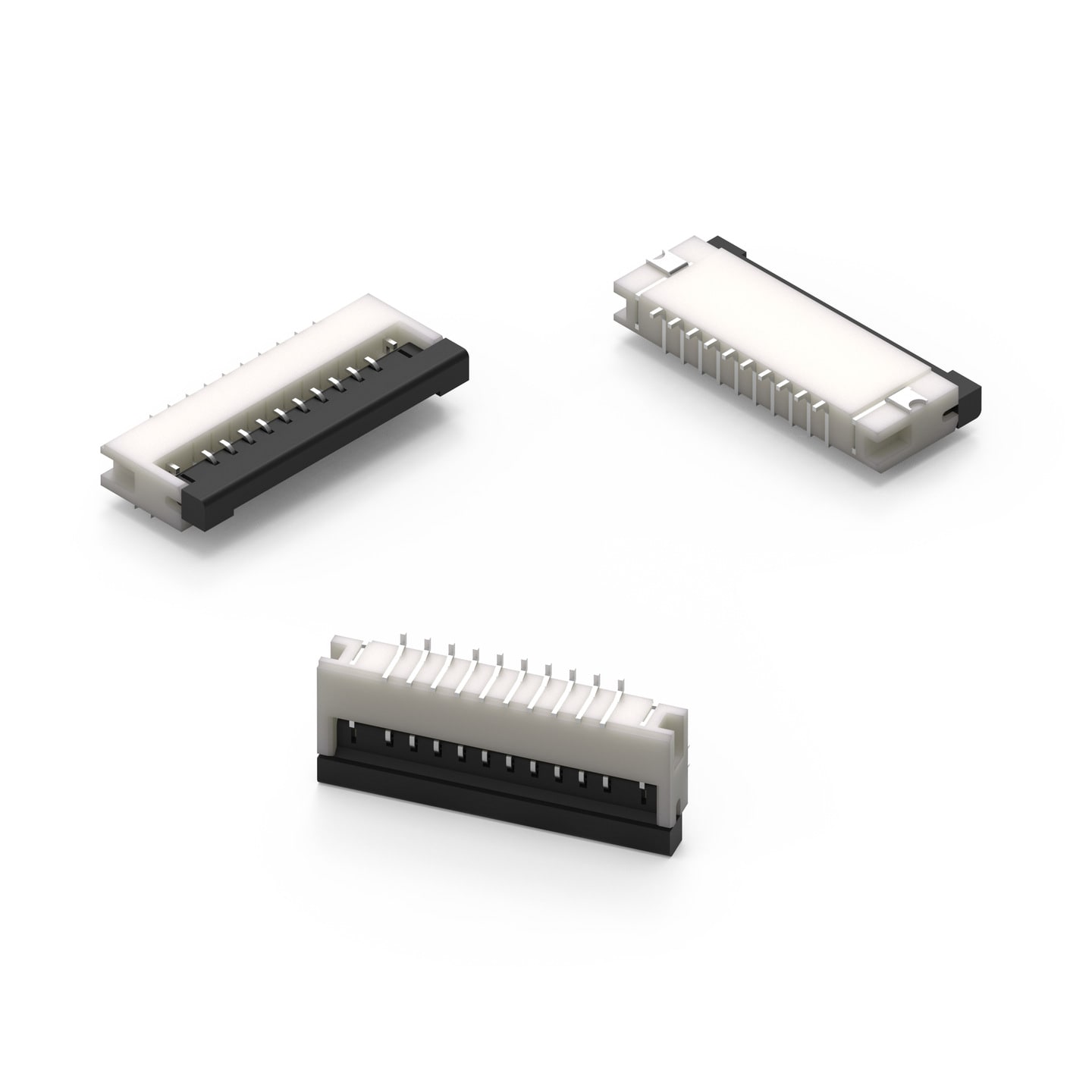

WR-FPC 1.00 mm SMT ZIF Horizontal - Bottom Contact - Hinge Type | Electromechanical Components | Würth Elektronik Product Catalog

: Products Reference Designs Application Guide

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyFPC Connector and FFC Cable Product sub-familyZIF Connectors (Zero Insertion Force)Product seriesWR-FPC 1.00 mm SMT ZIF Horizontal - Bottom Contact - Hinge Type

Kind Properties
Pitch	1 mm

Material Properties
Insulator Material	PA6T
Contact Material	Phosphor Bronze
Contact Plating	120 (µ") Tin over 50 (µ") Nickel
Contact Type	Stamped
Solder Tabs	Brass

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples
686104148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686104148922 (rev1).pdf \| 91.5 KB IGS 686104148922 (rev1).igs \| 1.4 MB STP 686104148922 (rev1).stp \| 558 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	4	1	Horizontal	8.6	1	100	Tape and Reel	50	max.	687001
686106148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686106148922 (rev1).pdf \| 99.1 KB IGS 686106148922 (rev1).igs \| 1.6 MB STP 686106148922 (rev1).stp \| 619.1 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	6	1	Horizontal	10.6	1	100	Tape and Reel	50	max.	687001
686108148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686108148922 (rev1).pdf \| 107.1 KB IGS 686108148922 (rev1).igs \| 1.7 MB STP 686108148922 (rev1).stp \| 681.1 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	8	1	Horizontal	12.6	1	100	Tape and Reel	50	max.	687001
686110148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686110148922 (rev1).pdf \| 115.6 KB IGS 686110148922 (rev1).igs \| 1.9 MB STP 686110148922 (rev1).stp \| 743.1 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	10	1	Horizontal	14.6	1	100	Tape and Reel	50	max.	687001
686112148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686112148922 (rev1).pdf \| 123.6 KB IGS 686112148922 (rev1).igs \| 2 MB STP 686112148922 (rev1).stp \| 805.2 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	12	1	Horizontal	16.6	1	100	Tape and Reel	50	max.	687001
686114148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686114148922 (rev1).pdf \| 131.3 KB IGS 686114148922 (rev1).igs \| 2.2 MB STP 686114148922 (rev1).stp \| 867.3 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	14	1	Horizontal	18.6	1	100	Tape and Reel	50	max.	687001
686115148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686115148922 (rev1).pdf \| 135.6 KB IGS 686115148922 (rev1).igs \| 2.3 MB STP 686115148922 (rev1).stp \| 898.5 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	15	1	Horizontal	19.6	1	100	Tape and Reel	50	max.	687001
686116148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686116148922 (rev1).pdf \| 139.4 KB IGS 686116148922 (rev1).igs \| 2.3 MB STP 686116148922 (rev1).stp \| 929.7 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	16	1	Horizontal	20.6	1	100	Tape and Reel	50	max.	687001
686118148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686118148922 (rev1).pdf \| 147.8 KB IGS 686118148922 (rev1).igs \| 2.5 MB STP 686118148922 (rev1).stp \| 992.3 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	18	1	Horizontal	22.6	1	100	Tape and Reel	50	max.	687001
686120148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686120148922 (rev1).pdf \| 155.9 KB IGS 686120148922 (rev1).igs \| 2.6 MB STP 686120148922 (rev1).stp \| 1 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	20	1	Horizontal	24.6	1	100	Tape and Reel	50	max.	687001
686122148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686122148922 (rev1).pdf \| 164.1 KB IGS 686122148922 (rev1).igs \| 2.8 MB STP 686122148922 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	22	1	Horizontal	26.6	1	100	Tape and Reel	50	max.	687001
686124148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686124148922 (rev1).pdf \| 172.2 KB IGS 686124148922 (rev1).igs \| 3 MB STP 686124148922 (rev1).stp \| 1.2 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	24	1	Horizontal	28.6	1	100	Tape and Reel	50	max.	687001
686126148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686126148922 (rev1).pdf \| 180.4 KB IGS 686126148922 (rev1).igs \| 3.1 MB STP 686126148922 (rev1).stp \| 1.2 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	26	1	Horizontal	30.6	1	100	Tape and Reel	50	max.	687001
686128148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686128148922 (rev1).pdf \| 188.6 KB IGS 686128148922 (rev1).igs \| 3.3 MB STP 686128148922 (rev1).stp \| 1.3 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	28	1	Horizontal	32.6	1	100	Tape and Reel	50	max.	687001
686130148922	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 686130148922 (rev1).pdf \| 196.8 KB IGS 686130148922 (rev1).igs \| 3.5 MB STP 686130148922 (rev1).stp \| 1.3 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	30	1	Horizontal	34.6	1	100	Tape and Reel	50	max.	687001

Order Code	Datasheet
686104148922	SPEC
686106148922	SPEC
686108148922	SPEC
686110148922	SPEC
686112148922	SPEC
686114148922	SPEC
686115148922	SPEC
686116148922	SPEC
686118148922	SPEC
686120148922	SPEC
686122148922	SPEC
686124148922	SPEC
686126148922	SPEC
686128148922	SPEC
686130148922	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples

Use with

WR-FFC 1.00 mm Flat Flexible Cable Type 1 (Contacts on same side)

WR-FFC 1.00 mm Flat Flexible Cable Type 2 (Contacts opposite)

Suitable for

WR-FFC 1.00 mm Folding Flat Flexible Cable

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-FPC ZIF Connectors & Flat Flexible Cables
