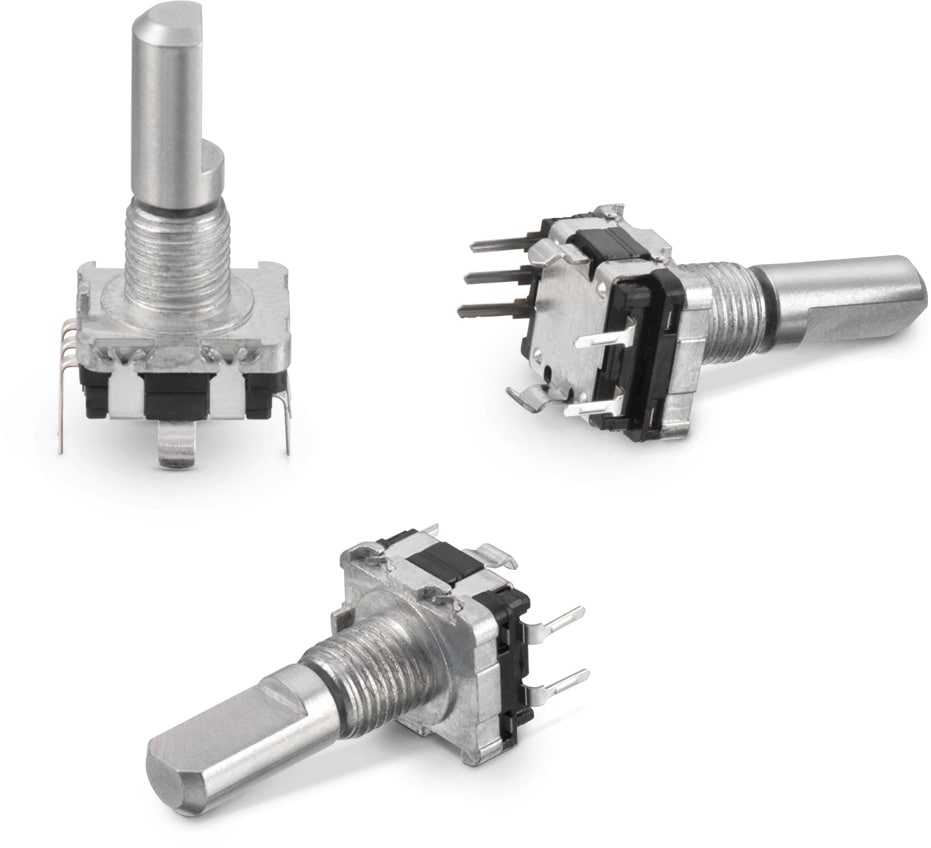

WS-ENTV Mechanical Incremental Encoder Switch 11.7x13.75mm Metal Shaft with bushing

Material Properties
Actuator Material	Aluminium Alloy
Frame Material	PBT
Frame Flammability Rating	UL94 HB
Contact Material	Copper Alloy
Contact Plating	Silver
Frame Color	Black
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
I_R	10 mA
V_R	5 V (DC)
Contact Resistance Initial	100 mΩ
Contact Resistance After Life Test	300 mΩ
R_ISO	100 MΩ
Withstanding Voltage	300 V (AC)

Mechanical Properties
Electrical Life Encoder	15000 Cycles
Electrical Life Switch	20000 Cycles
Detent	16 Positions; 20 Positions; 30 Positions
Torque Encoder	20 mN*m
Operation Force	600 g
Travel	0.5 mm

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Information
Packaging	Tray

Packaging Properties
Packaging	Tray

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

	Order Code	Datasheet	Downloads	Status	Resolution (Value) (Pulse/360°)	Detent (Positions)	Electrical Life Encoder (Cycles)	Electrical Life Switch (Cycles)	Samples
	482009514001	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ENTV (rev23a).IntLib \| 397.5 KB CDS Cadence_WS-ENTV (rev23a).zip \| 2 MB EAG Eagle_WS-ENTV (rev23a).lbr \| 71.6 KB CAD files ZIP 3D 3D_4820xx514001 (rev1).pdf \| 246.3 KB IGS Download_IGS-4820xx514001 (rev1).igs \| 2.3 MB STP Download_STEP_4820xx514001 (rev1).stp \| 518.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	16	15000	20000
	482016514001	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ENTV (rev23a).IntLib \| 397.5 KB CDS Cadence_WS-ENTV (rev23a).zip \| 2 MB EAG Eagle_WS-ENTV (rev23a).lbr \| 71.6 KB CAD files ZIP 3D 3D_4820xx514001 (rev1).pdf \| 246.3 KB IGS Download_IGS-4820xx514001 (rev1).igs \| 2.3 MB STP Download_STEP_4820xx514001 (rev1).stp \| 518.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	30	15000	20000
	482020514001	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ENTV (rev23a).IntLib \| 397.5 KB CDS Cadence_WS-ENTV (rev23a).zip \| 2 MB EAG Eagle_WS-ENTV (rev23a).lbr \| 71.6 KB CAD files ZIP 3D 3D_4820xx514001 (rev1).pdf \| 246.3 KB IGS Download_IGS-4820xx514001 (rev1).igs \| 2.3 MB STP Download_STEP_4820xx514001 (rev1).stp \| 518.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	20	15000	20000

	Order Code	Datasheet
	482009514001	SPEC
	482016514001	SPEC
	482020514001	SPEC
