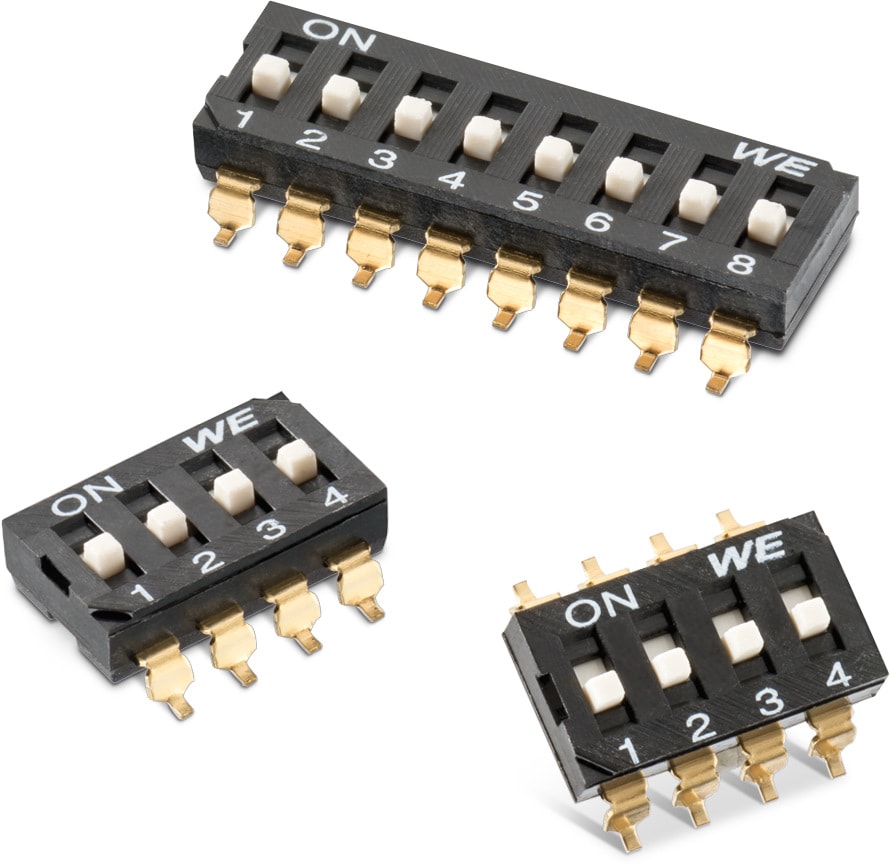

WS-DISV Small Compact SMT with Raised Actuator 2.54 mm

Material Properties
Cover Material	PA9T
Cover Flammability Rating	UL94 V-0
Base Material	PA9T
Base Flammability Rating	UL94 V-0
Actuator Material	PA46
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Electrical Properties
I_R	100 mA
V_R	50 V (DC)
Contact Resistance Initial	50 mΩ
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Operation Force	600 g
Electrical Life	2000 Cycles
Actuator Type	Raise Type
Switch Position	Off

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	No

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Status	Poles	L (mm)	Vaporphase process	Design Kit	Samples
418121270801	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270801 (rev1).pdf \| 105.6 KB IGS 418121270801 (rev1).igs \| 1.3 MB STP 418121270801 (rev1).stp \| 505.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	3.48	not specified	–
418121270802	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270802 (rev1).pdf \| 146.2 KB IGS Download_IGES_418121270802 (rev1).iges \| 738 KB STP 418121270802 (rev1).stp \| 683.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	6.02	not specified	499001
418121270803	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270803 (rev1).pdf \| 171.2 KB IGS IGS_SwDISV_418121270803 (rev1).igs \| 2 MB STP 418121270803 (rev1).stp \| 518.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	8.56	not specified	–
418121270804	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270804 (rev1).pdf \| 192.1 KB IGS Download_IGES_418121270804 (rev1).iges \| 1 MB STP 418121270804 (rev1).stp \| 1010.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	11.1	not specified	499001
418121270805	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270805 (rev1).pdf \| 208.8 KB IGS Download_IGES_418121270805 (rev1).iges \| 1.1 MB STP 418121270805 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	13.64	not specified	–
418121270806	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270806 (rev1).pdf \| 231.9 KB IGS Download_IGES_418121270806 (rev1).iges \| 1.3 MB STP 418121270806 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	16.18	not specified	499001
418121270807	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270807 (rev1).pdf \| 247 KB IGS Download_IGES_418121270807 (rev1).iges \| 1.4 MB STP 418121270807 (rev1).stp \| 1.3 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	18.72	not specified	–
418121270808	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270808 (rev1).pdf \| 271 KB IGS Download_IGES_418121270808 (rev1).iges \| 1.5 MB STP 418121270808 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	21.26	not specified	499001
418121270809	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270809 (rev1).pdf \| 292.7 KB IGS Download_IGES_418121270809 (rev1).iges \| 1.6 MB STP 418121270809 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	23.8	not specified	–
418121270810	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270810 (rev1).pdf \| 312.6 KB IGS Download_IGES_418121270810 (rev1).iges \| 1.7 MB STP 418121270810 (rev1).stp \| 1.7 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	26.34	not specified	499001
418121270812	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_418121270812 (rev1).pdf \| 353.5 KB IGS Download_IGES_418121270812 (rev1).iges \| 2 MB STP 418121270812 (rev1).stp \| 2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	31.42	not specified	–

Order Code	Datasheet
418121270801	SPEC
418121270802	SPEC
418121270803	SPEC
418121270804	SPEC
418121270805	SPEC
418121270806	SPEC
418121270807	SPEC
418121270808	SPEC
418121270809	SPEC
418121270810	SPEC
418121270812	SPEC
