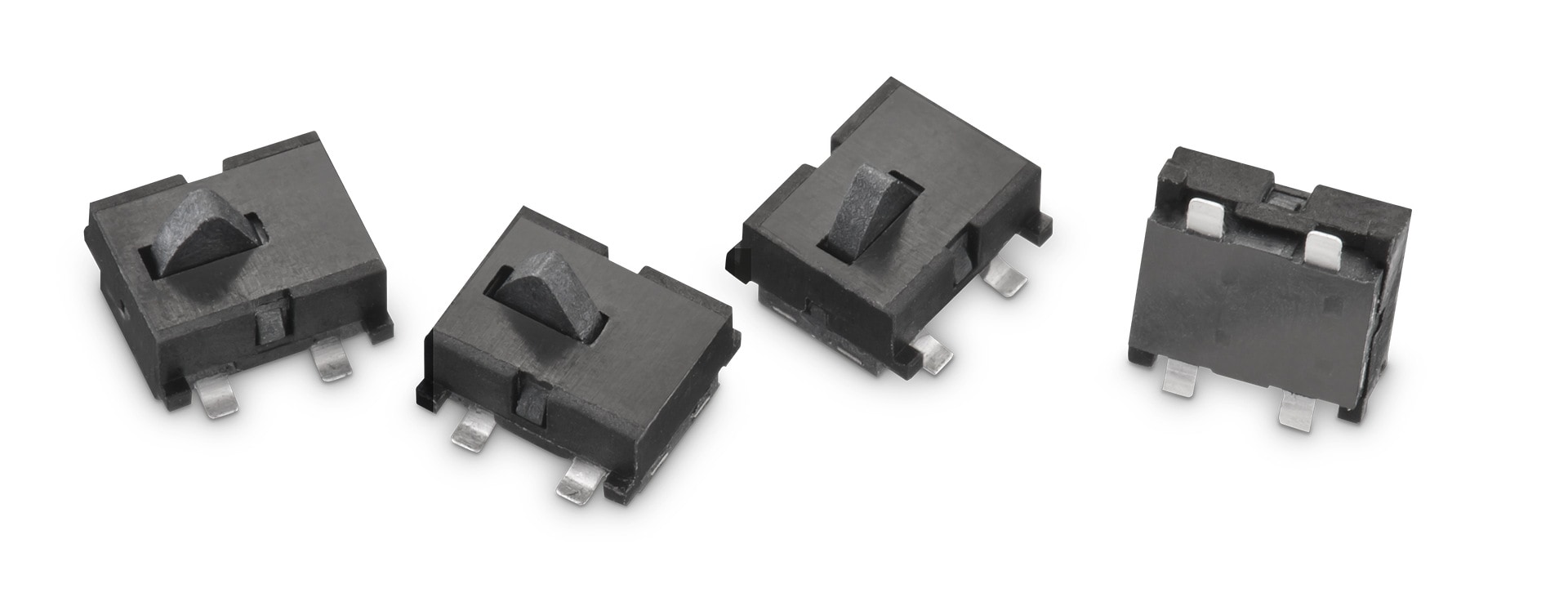

WS-DESV SMT Detector Switch 4.7x3.8 mm

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Material	Stainless Steel
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
Contact Resistance Initial	500 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	100000 Cycles
Schematic	SPST-NO

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

	Order Code	Datasheet	Downloads	Status	Operation Force (g)	Schematic	Design Kit	Samples
	461011220101	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-DESV (rev22a).IntLib \| 94.5 KB CDS Cadence_WS-DESV (rev18a).zip \| 272.6 KB EAG Eagle_WS-DESV (rev20a).lbr \| 14.4 KB CAD files ZIP IGS 461011220101 (rev1).igs \| 1.2 MB STP 461011220101 (rev1).stp \| 512.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	60	SPST-NO	499001

	Order Code	Datasheet
	461011220101	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Operation Force (g)	Schematic	Design Kit	Samples
