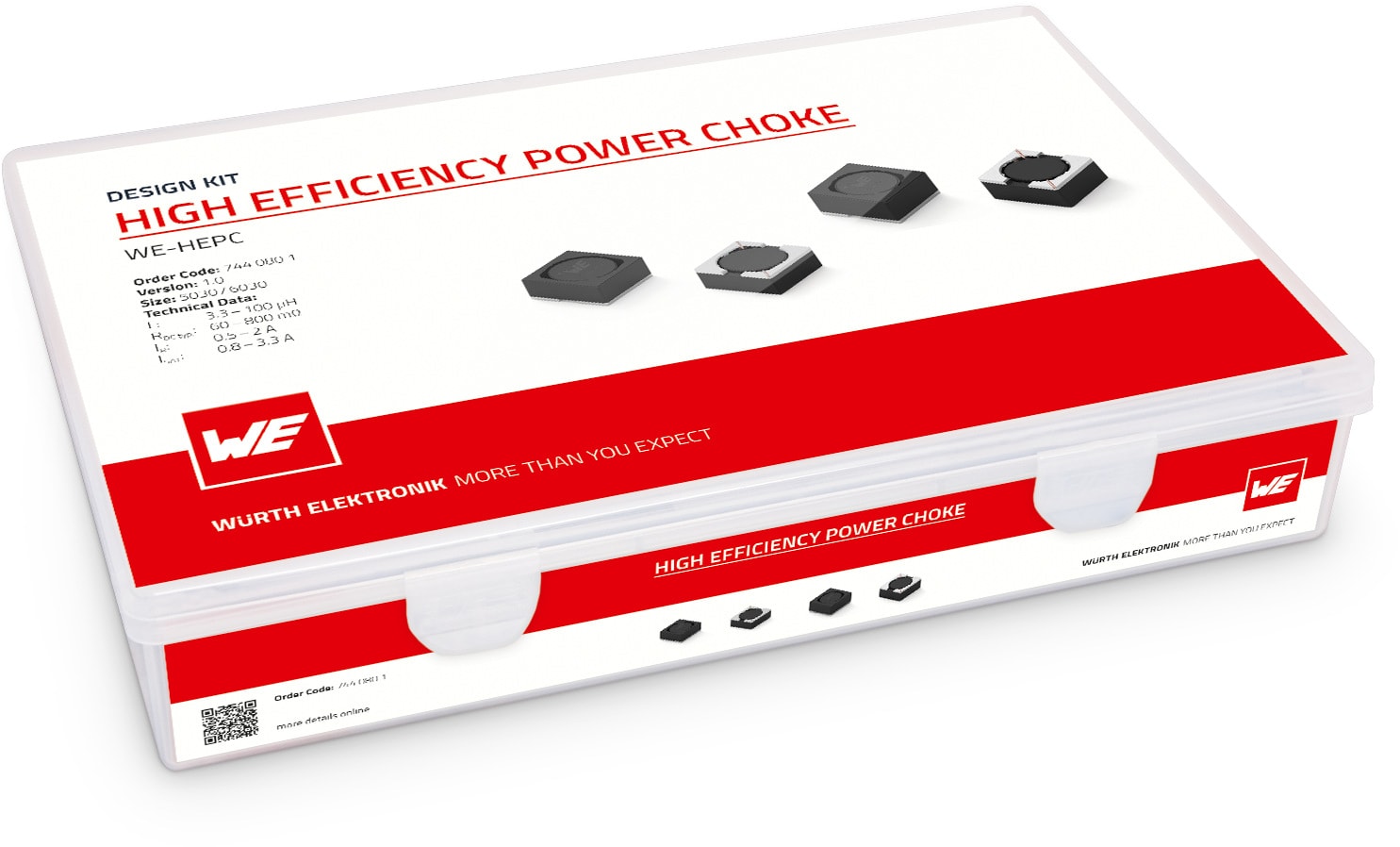

Design Kit WE-HEPC High Efificiency Power Choke

Applications

DC/DC converter
Compact designs
Embedded laptops and PCs
Filter applications

Products

Order Code	Datasheet	Downloads	Status	Product series	L (µH)	I_R (A)	R_{DC max.} (mΩ)	f_res (MHz)	Size	Samples
74408053003	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408053xxx (rev1).pdf \| 1.1 MB IGS Downloads_IGS_74408053xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	3.3	2	75	100	5030
74408063004	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408063xxx (rev1).pdf \| 1.7 MB IGS Downloads_IGS_74408063xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408063xxx (rev1).stp \| 814.4 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	4.7	2	90	75	6030
74408053004	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408053xxx (rev1).pdf \| 1.1 MB IGS Downloads_IGS_74408053xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	4.7	1.4	100	85	5030
74408063006	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408063xxx (rev1).pdf \| 1.7 MB IGS Downloads_IGS_74408063xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408063xxx (rev1).stp \| 814.4 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	6.8	1.8	100	40	6030
74408053006	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408053xxx (rev1).pdf \| 1.1 MB IGS Downloads_IGS_74408053xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	6.8	1.3	125	60	5030
74408063100	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408063xxx (rev1).pdf \| 1.7 MB IGS Downloads_IGS_74408063xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408063xxx (rev1).stp \| 814.4 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	10	1.35	140	27	6030
74408053100	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408053xxx (rev1).pdf \| 1.1 MB IGS Downloads_IGS_74408053xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	10	1.2	140	37	5030
74408063150	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408063xxx (rev1).pdf \| 1.7 MB IGS Downloads_IGS_74408063xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408063xxx (rev1).stp \| 814.4 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	15	1.2	180	20	6030
74408053150	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408053xxx (rev1).pdf \| 1.1 MB IGS Downloads_IGS_74408053xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	15	1.1	200	22	5030
74408063220	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408063xxx (rev1).pdf \| 1.7 MB IGS Downloads_IGS_74408063xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408063xxx (rev1).stp \| 814.4 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	22	1	220	18	6030
74408053220	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408053xxx (rev1).pdf \| 1.1 MB IGS Downloads_IGS_74408053xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	22	0.9	270	20	5030
74408053330	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408053xxx (rev1).pdf \| 1.1 MB IGS Downloads_IGS_74408053xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408053xxx (rev1).stp \| 805.9 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	33	0.8	415	15	–
74408063330	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408063xxx (rev1).pdf \| 1.7 MB IGS Downloads_IGS_74408063xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408063xxx (rev1).stp \| 814.4 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	33	0.9	285	15	6030
74408063470	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408063xxx (rev1).pdf \| 1.7 MB IGS Downloads_IGS_74408063xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408063xxx (rev1).stp \| 814.4 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	47	0.8	385	11	6030
74408063680	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408063xxx (rev1).pdf \| 1.7 MB IGS Downloads_IGS_74408063xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408063xxx (rev1).stp \| 814.4 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	68	0.6	535	9	6030
74408063101	SPEC	9 files EDA models: Components ZIP ALT Altium_WE-HEPC (rev24a).IntLib \| 802.5 KB CDS Cadence_WE-HEPC (rev24a).zip \| 1.8 MB EAG Eagle_WE-HEPC (rev24a).lbr \| 25.4 KB KIC KiCad_WE-HEPC (rev25a).zip \| 10.5 MB CAD files ZIP 3D Downloads_3D_74408063xxx (rev1).pdf \| 1.7 MB IGS Downloads_IGS_74408063xxx (rev1).igs \| 1.8 MB STP Downloads_STP_74408063xxx (rev1).stp \| 814.4 KB Electric models ZIP PSP PSpice_WE-HEPC (rev22a).zip \| 5.1 KB SCS Spectre_WE-HEPC (rev24a).mod \| 4.9 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-HEPC SMT Power Inductor	100	0.5	850	8	6030

Order Code	Datasheet
74408053003	SPEC
74408063004	SPEC
74408053004	SPEC
74408063006	SPEC
74408053006	SPEC
74408063100	SPEC
74408053100	SPEC
74408063150	SPEC
74408053150	SPEC
74408063220	SPEC
74408053220	SPEC
74408053330	SPEC
74408063330	SPEC
74408063470	SPEC
74408063680	SPEC
74408063101	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Product series	L (µH)	I_R (A)	R_{DC max.} (mΩ)	f_res (MHz)	Size	Samples
