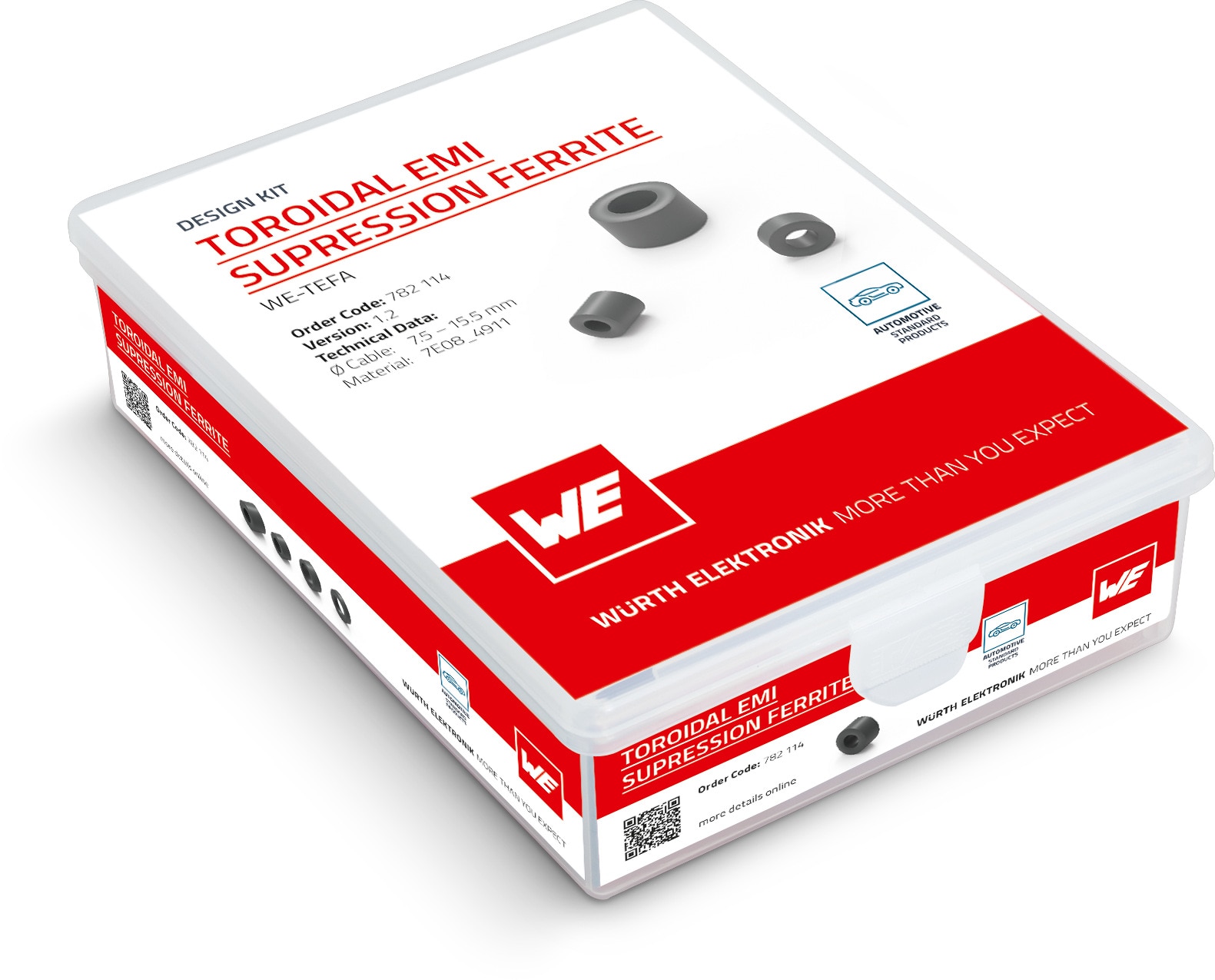

Design Kit WE-TEFA Toroidal EMI Suppression Ferrite
Order Code 782114
Characteristics
- In general for: Wires, coaxial cables, wire-wrapping cables, multiconductor wires
- Data and signal lines
- On board power supply line
- Multimedia cable interfaces
- Various, other cable interfaces
- Automotive approved
Products
Filter by
show in
article in 0 product lines
Reset allOrder Code | Datasheet | Downloads | Status | Product series | Z @ 1 MHz 1 turn(Ω) | Z @ 1 MHz 2 turns(Ω) | Z @ 100 MHz 1 turn(Ω) | Z @ 100 MHz 2 turns(Ω) | Z @ 25 MHz 1 turn(Ω) | Z @ 25 MHz 2 turns(Ω) | Ø Cable max.(mm) | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WE-TEFA Toroidal EMI MgZn Suppression Ferrite, 2 Ω, 8.4 Ω | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TEFA Toroidal EMI MgZn Suppression Ferrite | Impedance @ 1 MHz 1 turn2 Ω | Impedance @ 1 MHz 2 turns8.4 Ω | Impedance @ 100 MHz 1 turn40 Ω | Impedance @ 100 MHz 2 turns175 Ω | Impedance @ 25 MHz 1 turn22 Ω | Impedance @ 25 MHz 2 turns89 Ω | Cable Diameter Max.9.6 mm | |||
| WE-TEFA Toroidal EMI MgZn Suppression Ferrite, 2.2 Ω, 9 Ω | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TEFA Toroidal EMI MgZn Suppression Ferrite | Impedance @ 1 MHz 1 turn2.2 Ω | Impedance @ 1 MHz 2 turns9 Ω | Impedance @ 100 MHz 1 turn45 Ω | Impedance @ 100 MHz 2 turns201 Ω | Impedance @ 25 MHz 1 turn25 Ω | Impedance @ 25 MHz 2 turns102 Ω | Cable Diameter Max.13.3 mm | |||
| WE-TEFA Toroidal EMI MgZn Suppression Ferrite, 2.5 Ω, 10 Ω | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TEFA Toroidal EMI MgZn Suppression Ferrite | Impedance @ 1 MHz 1 turn2.5 Ω | Impedance @ 1 MHz 2 turns10 Ω | Impedance @ 100 MHz 1 turn42 Ω | Impedance @ 100 MHz 2 turns168 Ω | Impedance @ 25 MHz 1 turn22 Ω | Impedance @ 25 MHz 2 turns85 Ω | Cable Diameter Max.7.5 mm | |||
| WE-TEFA Toroidal EMI MgZn Suppression Ferrite, 4.3 Ω, 17 Ω | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TEFA Toroidal EMI MgZn Suppression Ferrite | Impedance @ 1 MHz 1 turn4.3 Ω | Impedance @ 1 MHz 2 turns17 Ω | Impedance @ 100 MHz 1 turn85 Ω | Impedance @ 100 MHz 2 turns358 Ω | Impedance @ 25 MHz 1 turn50 Ω | Impedance @ 25 MHz 2 turns203 Ω | Cable Diameter Max.9.5 mm | |||
| WE-TEFA Toroidal EMI MgZn Suppression Ferrite, 5.1 Ω, 20 Ω | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TEFA Toroidal EMI MgZn Suppression Ferrite | Impedance @ 1 MHz 1 turn5.1 Ω | Impedance @ 1 MHz 2 turns20 Ω | Impedance @ 100 MHz 1 turn92 Ω | Impedance @ 100 MHz 2 turns393 Ω | Impedance @ 25 MHz 1 turn53 Ω | Impedance @ 25 MHz 2 turns216 Ω | Cable Diameter Max.15.5 mm | |||
| WE-TEFA Toroidal EMI MgZn Suppression Ferrite, 6.8 Ω, 27 Ω | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TEFA Toroidal EMI MgZn Suppression Ferrite | Impedance @ 1 MHz 1 turn6.8 Ω | Impedance @ 1 MHz 2 turns27 Ω | Impedance @ 100 MHz 1 turn107 Ω | Impedance @ 100 MHz 2 turns457 Ω | Impedance @ 25 MHz 1 turn67 Ω | Impedance @ 25 MHz 2 turns274 Ω | Cable Diameter Max.7.6 mm | |||
| WE-TEFA Toroidal EMI MgZn Suppression Ferrite, 8.3 Ω, 33.2 Ω | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TEFA Toroidal EMI MgZn Suppression Ferrite | Impedance @ 1 MHz 1 turn8.3 Ω | Impedance @ 1 MHz 2 turns33.2 Ω | Impedance @ 100 MHz 1 turn131 Ω | Impedance @ 100 MHz 2 turns564 Ω | Impedance @ 25 MHz 1 turn83 Ω | Impedance @ 25 MHz 2 turns342 Ω | Cable Diameter Max.7.6 mm | |||
| WE-TEFA Toroidal EMI MgZn Suppression Ferrite, 9 Ω, 35.5 Ω | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TEFA Toroidal EMI MgZn Suppression Ferrite | Impedance @ 1 MHz 1 turn9 Ω | Impedance @ 1 MHz 2 turns35.5 Ω | Impedance @ 100 MHz 1 turn125 Ω | Impedance @ 100 MHz 2 turns588 Ω | Impedance @ 25 MHz 1 turn74 Ω | Impedance @ 25 MHz 2 turns313 Ω | Cable Diameter Max.15.5 mm |
