WE-D-SUB Filter Bent 90° THT

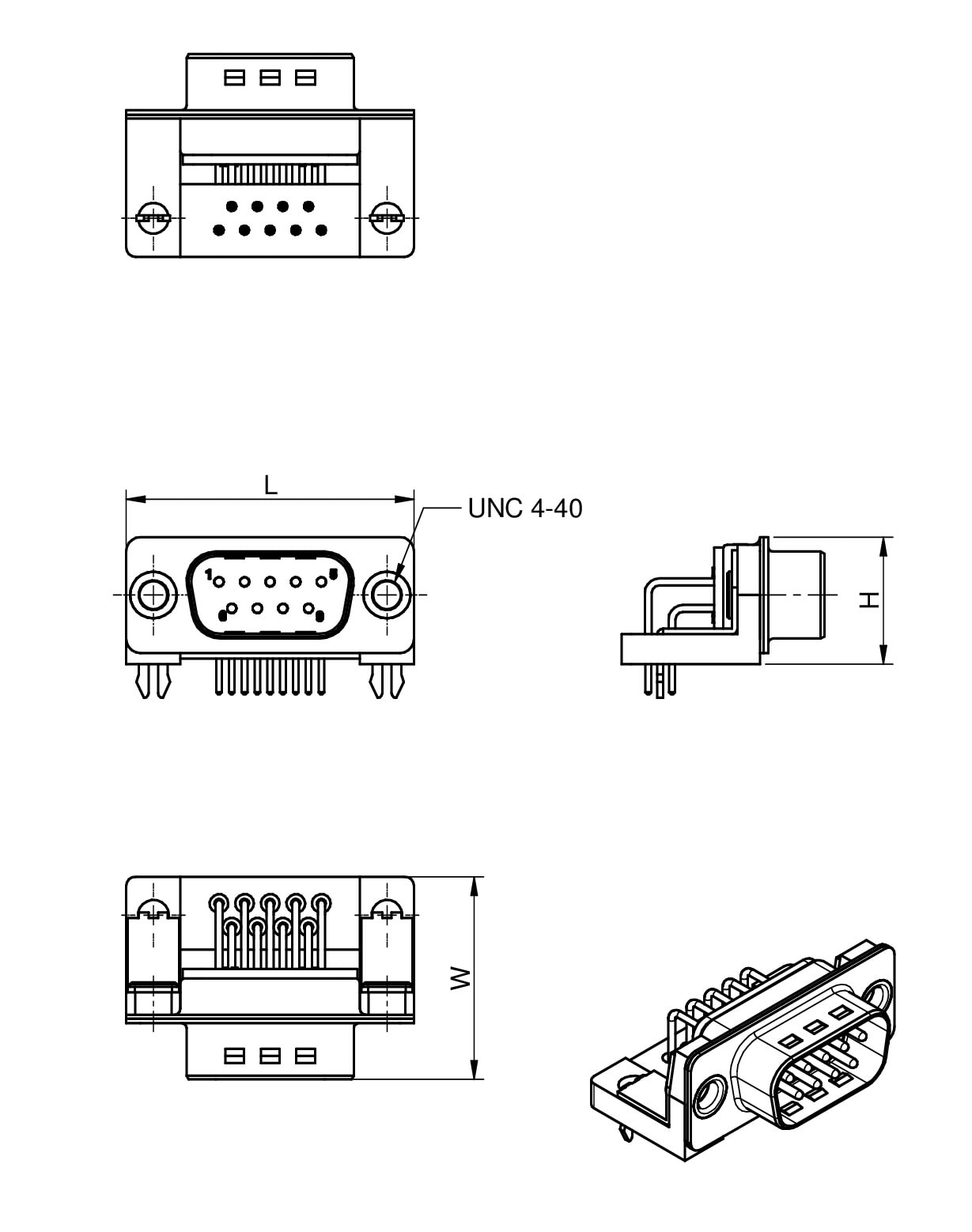

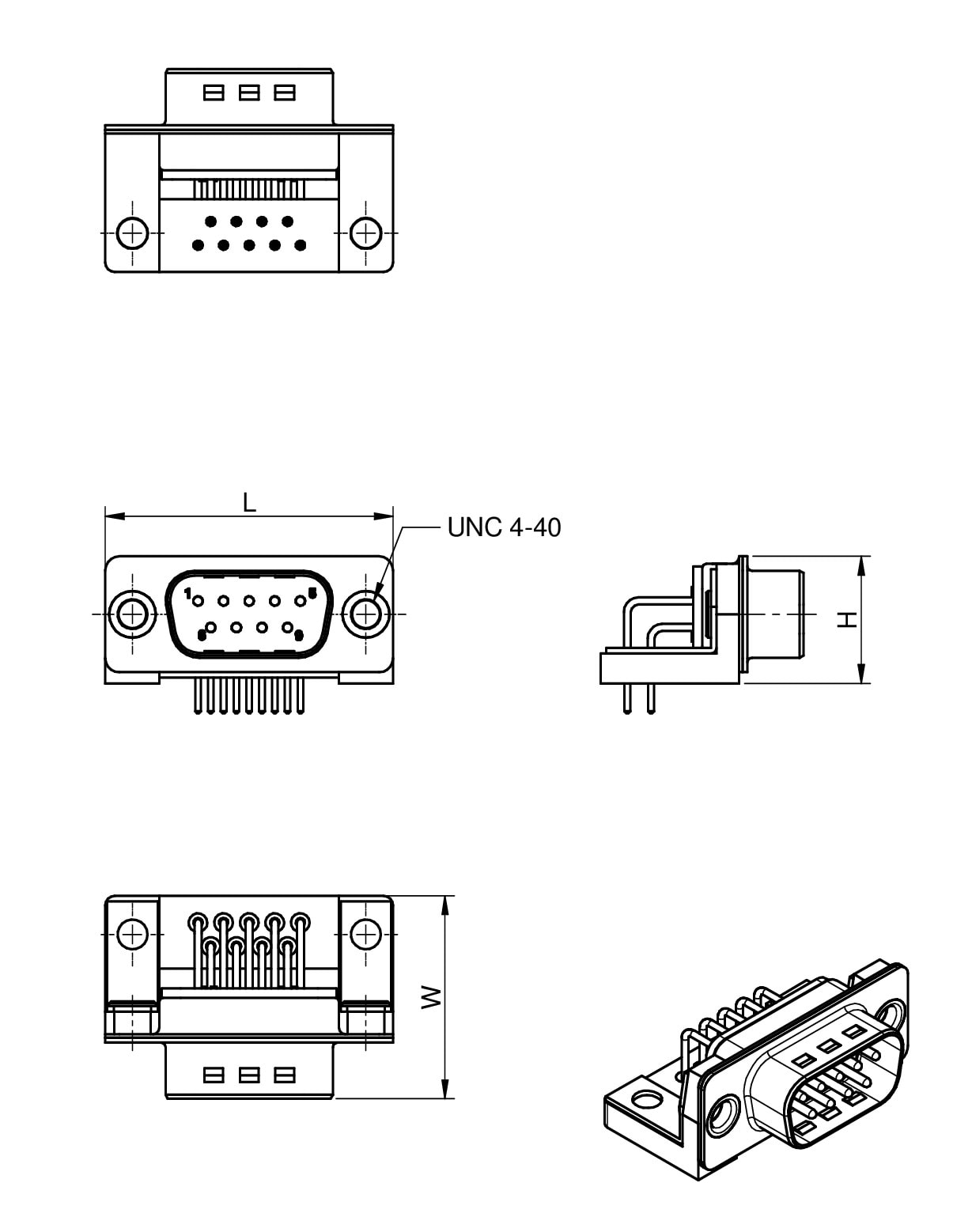

Size	Dimensions	W (mm)	H (mm)	Material
Metal Sheet		21.7	12.4	Steel with Tin
Earthing Clip		21.7	12.4	Steel with Tin

Characteristics

Standardized filter with 1000 pF (other values possible on request)
High attenuation of more than 40 dB @ 180 MHz
Rated current @ 20 ºC: 7.5 A
Insulation resistance: min. 1 GΩ
Operating temperature: –55 ºC to +125 ºC
Choice of metal sheet or earthing clip
Working voltage: 100 VDC
Testing voltage: 250 VRMS

Applications

Filtering of interfaces
External connection to
– printer
– sensor
– display

Products

All

Metal Sheet

Earthing Clip

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Number of Poles	Gender	L(mm)	W(mm)	H(mm)	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	210112043	SPEC9, Male, 30.8 mm PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 27/09/2026 SPEC Datasheet valid from 28/09/2026 PCN PCN document	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 210112043 (rev1).igs \| 13.8 MB STP 210112043 (rev1).stp \| 1.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles9	GenderMale	Length30.8 mm	Width21.7 mm	Height12.4 mm	–Check availability
	210612043	SPEC9, Female, 30.8 mm PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 27/09/2026 SPEC Datasheet valid from 28/09/2026 PCN PCN document	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 210612043 (rev1).igs \| 16.9 MB STP 210612043 (rev1).stp \| 1.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles9	GenderFemale	Length30.8 mm	Width21.7 mm	Height12.4 mm	–Check availability
	210112013	SPEC9, Male, 30.8 mm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 210112013 (rev1).igs \| 14.1 MB STP 210112013 (rev1).stp \| 1.7 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles9	GenderMale	Length30.8 mm	Width21.7 mm	Height12.4 mm	–Check availability
	210612013	SPEC9, Female, 30.8 mm PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 27/09/2026 SPEC Datasheet valid from 28/09/2026 PCN PCN document	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 210612013 (rev1).igs \| 17.1 MB STP 210612013 (rev1).stp \| 1.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles9	GenderFemale	Length30.8 mm	Width21.7 mm	Height12.4 mm	–Check availability
	212112043	SPEC15, Male, 39.2 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 212112043 (rev1).igs \| 21.4 MB STP 212112043 (rev1).stp \| 1.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles15	GenderMale	Length39.2 mm	Width21.7 mm	Height12.4 mm	–Check availability
	212612043	SPEC15, Female, 39.2 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 212612043 (rev1).igs \| 26.3 MB STP 212612043 (rev1).stp \| 2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles15	GenderFemale	Length39.2 mm	Width21.7 mm	Height12.4 mm	–Check availability
	212112013	SPEC15, Male, 39.2 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 212112013 (rev1).igs \| 21.6 MB STP 212112013 (rev1).stp \| 2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles15	GenderMale	Length39.2 mm	Width21.7 mm	Height12.4 mm	–Check availability
	212612013	SPEC15, Female, 39.2 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 212612013 (rev1).igs \| 26.5 MB STP 212612013 (rev1).stp \| 2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles15	GenderFemale	Length39.2 mm	Width21.7 mm	Height12.4 mm	–Check availability
	214112043	SPEC25, Male, 53.1 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 214112043 (rev1).igs \| 34.9 MB STP 214112043 (rev1).stp \| 2.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles25	GenderMale	Length53.1 mm	Width21.7 mm	Height12.4 mm	–Check availability
	214612043	SPEC25, Female, 53.1 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Downloads_IGS_214612043 (rev1).igs \| 9.8 MB STP Download_STP_214612043 (rev1).stp \| 2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles25	GenderFemale	Length53.1 mm	Width21.7 mm	Height12.4 mm	–Check availability
	214112013	SPEC25, Male, 53.1 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 214112013 (rev1).igs \| 35.1 MB STP 214112013 (rev1).stp \| 2.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles25	GenderMale	Length53.1 mm	Width21.7 mm	Height12.4 mm	–Check availability
	214612013	SPEC25, Female, 53.1 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_214612013 (rev1).igs \| 9.9 MB STP Download_STP_214612013 (rev1).stp \| 2.1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles25	GenderFemale	Length53.1 mm	Width21.7 mm	Height12.4 mm	–Check availability
	216112043	SPEC37, Male, 69.5 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_216112043 (rev1).igs \| 10.8 MB STP Download_STP_216112043 (rev1).stp \| 2.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles37	GenderMale	Length69.5 mm	Width21.7 mm	Height12.4 mm	–Check availability
	216612043	SPEC37, Female, 69.5 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_216612043 (rev1).igs \| 11.3 MB STP Download_STP_216612043 (rev1).stp \| 2.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles37	GenderFemale	Length69.5 mm	Width21.7 mm	Height12.4 mm	–Check availability
	216112013	SPEC37, Male, 69.5 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_216112013 (rev1).igs \| 10.9 MB STP Download_STP_216112013 (rev1).stp \| 2.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles37	GenderMale	Length69.5 mm	Width21.7 mm	Height12.4 mm	–Check availability
	216612013	SPEC37, Female, 69.5 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_216612013 (rev1).igs \| 11.4 MB STP Download_STP_216612013 (rev1).stp \| 2.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles37	GenderFemale	Length69.5 mm	Width21.7 mm	Height12.4 mm	–Check availability
