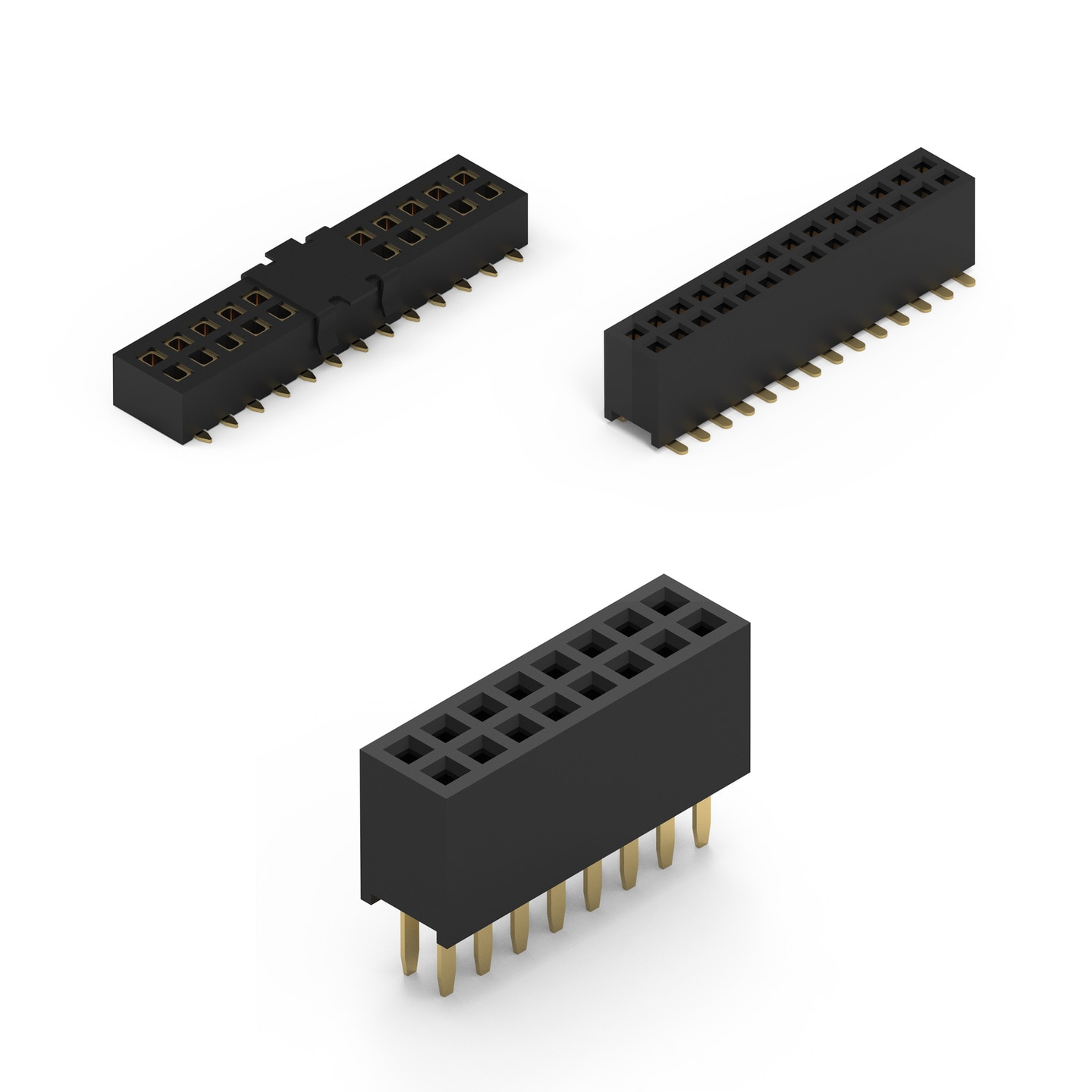

WR-PHD Socket Header

WR-PHD Socket Header
SizeDimen­sionsMount
Dual - THT Straight
 THT
Dual - SMT Straight
 SMT
Dual - SMT Bottom Entry
 SMT

Characteristics

  • Pitch: 1.27 mm
  • Reference Designs
  • RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Products

All
Dual - THT Straight
Dual - SMT Straight
Dual - SMT Bottom Entry
Reset all
Filter article data
Filter by
Delete all
 show  article in 3 product lines
 article in 3 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
Pins
Type
Mount
L(mm)
IR(A)
Working Voltage(V (AC))
Operating Temperature
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WR-PHD Socket Header
62200421821
SPEC4, Straight, THT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins4
TypeStraight
MountTHT
Length2.54 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
62300421021
SPEC4, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins4
TypeStraight
MountSMT
Length2.94 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62330421021
SPEC4, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins4
TypeStraight
MountSMT
Length2.94 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62200821821
SPEC8, Straight, THT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins8
TypeStraight
MountTHT
Length5.08 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
62300821021
SPEC8, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins8
TypeStraight
MountSMT
Length5.48 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62330821021
SPEC8, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins8
TypeStraight
MountSMT
Length5.48 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
62201021821
SPEC10, Straight, THT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins10
TypeStraight
MountTHT
Length6.35 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
62301021021
SPEC10, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins10
TypeStraight
MountSMT
Length6.75 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62331021021
SPEC10, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins10
TypeStraight
MountSMT
Length6.75 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
623310235321
SPEC10, Bottom Entry, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins10
TypeBottom Entry
MountSMT
Length6.75 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
612690613001
–Check availability
WR-PHD Socket Header
62201421821
SPEC14, Straight, THT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins14
TypeStraight
MountTHT
Length8.89 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
62301421021
SPEC14, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins14
TypeStraight
MountSMT
Length9.29 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62331421021
SPEC14, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins14
TypeStraight
MountSMT
Length9.29 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62201621821
SPEC16, Straight, THT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins16
TypeStraight
MountTHT
Length10.16 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
62301621021
SPEC16, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins16
TypeStraight
MountSMT
Length10.56 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62331621021
SPEC16, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins16
TypeStraight
MountSMT
Length10.56 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62202021821
SPEC20, Straight, THT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins20
TypeStraight
MountTHT
Length12.7 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
62302021021
–
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins20
TypeStraight
MountSMT
Length13.1 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62332021021
SPEC20, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins20
TypeStraight
MountSMT
Length13.1 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
623326235321
SPEC26, Bottom Entry, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins26
TypeBottom Entry
MountSMT
Length16.91 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
62202821821
SPEC28, Straight, THT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins28
TypeStraight
MountTHT
Length17.78 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
62302821021
SPEC28, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins28
TypeStraight
MountSMT
Length18.18 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit –
–Check availability
WR-PHD Socket Header
62332821021
SPEC28, Straight, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins28
TypeStraight
MountSMT
Length18.18 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability
WR-PHD Socket Header
623350235321
SPEC50, Bottom Entry, SMT
Availability
–
Downloads7 files

Status Activei| Production is active. Expected lifetime: >10 years.
Pins50
TypeBottom Entry
MountSMT
Length32.15 mm
Rated Current1 A
Working Voltage100 V (AC)
Operating Temperature -40 °C up to +105 °C
Design Kit
613001
–Check availability

Mates with

WR-PHD Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions
Design Kit WR-PHD Pin & Socket Header
