WRIS-PSMC Metal Plate Resistors

High Power Current Sensing

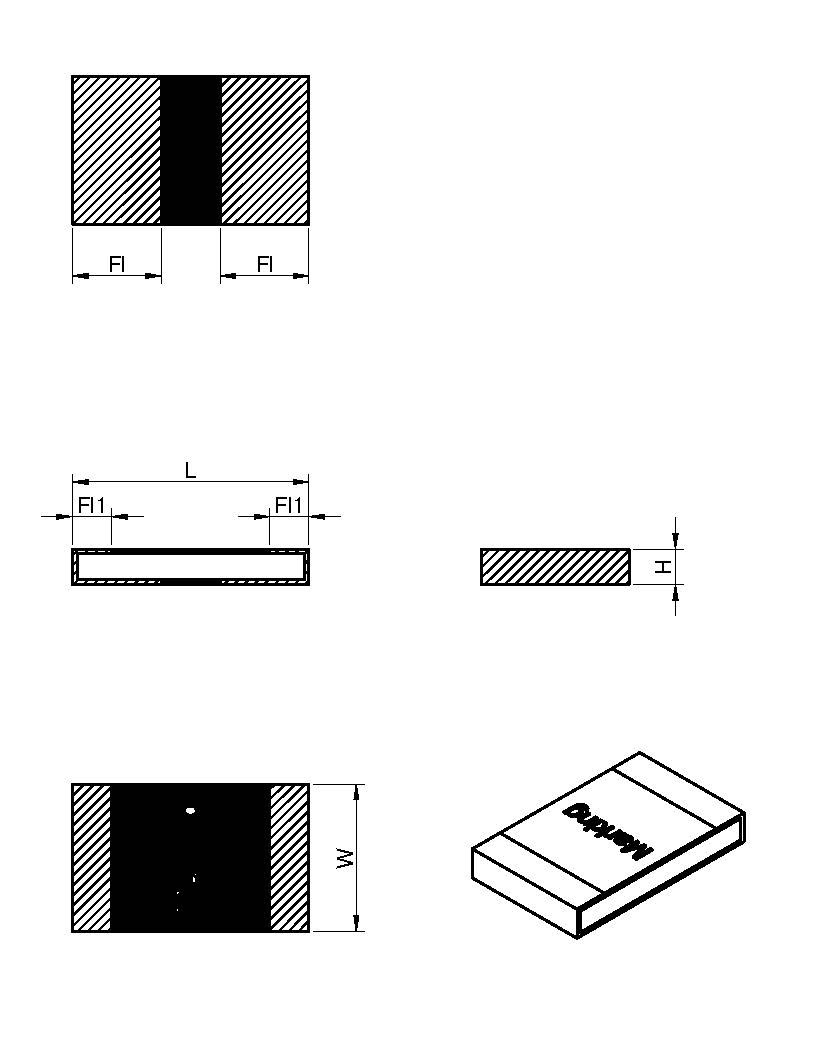

Size L
(mm)
W
(mm)
2512 6.3 3.1

Characteristics

  • Product series for high power current sensing up to 2 W
  • Mounting style: SMT-Chip (standard terminal)
  • Resistance range: 2 mΩ ‒ 10 mΩ
  • Resistance tolerance: ±1%; ±5%
  • Rated Power: 2 W
  • TCR: ±100 ppm/°C
  • Operating temperature: -55°C up to +155°C
  • Size: 2512
  • Recommended soldering: Reflow soldering

Applications

  • Ignition coil & igniter
  • Motor control
  • Inverter
  • Battery pack

Products

2512
Order Code SPEC Downloads R
(mΩ)
Tol. R PRated
(W)
TCR
(ppm/ °C)
TCR
(ppm/ °C)
IR
(A)
L
(mm)
W
(mm)
H
(mm)
Technical Reference Samples
580070763001
ALT EAG CAD 2 ±1% 2 100 -100 31.62 6.3 3.1 0.58 MC2512R002F201KAATE0000
580070763021
ALT EAG CAD 2 ±5% 2 100 100 31.62 6.3 3.1 0.58 MC2512R002J201KAATE0000
580070763005
ALT EAG CAD 5 ±1% 2 100 -100 20 6.3 3.1 0.51 MC2512R005F201KAATE0000
580070763010
ALT EAG CAD 10 ±1% 2 100 -100 14.14 6.3 3.1 0.35 MC2512R010F201KAATE0000
Order Code SPEC
580070763001
580070763021
580070763005
580070763010
