WE-TFC Common Mode Power Line Choke

Size L
(mm)
W
(mm)
H
(mm)
Mount

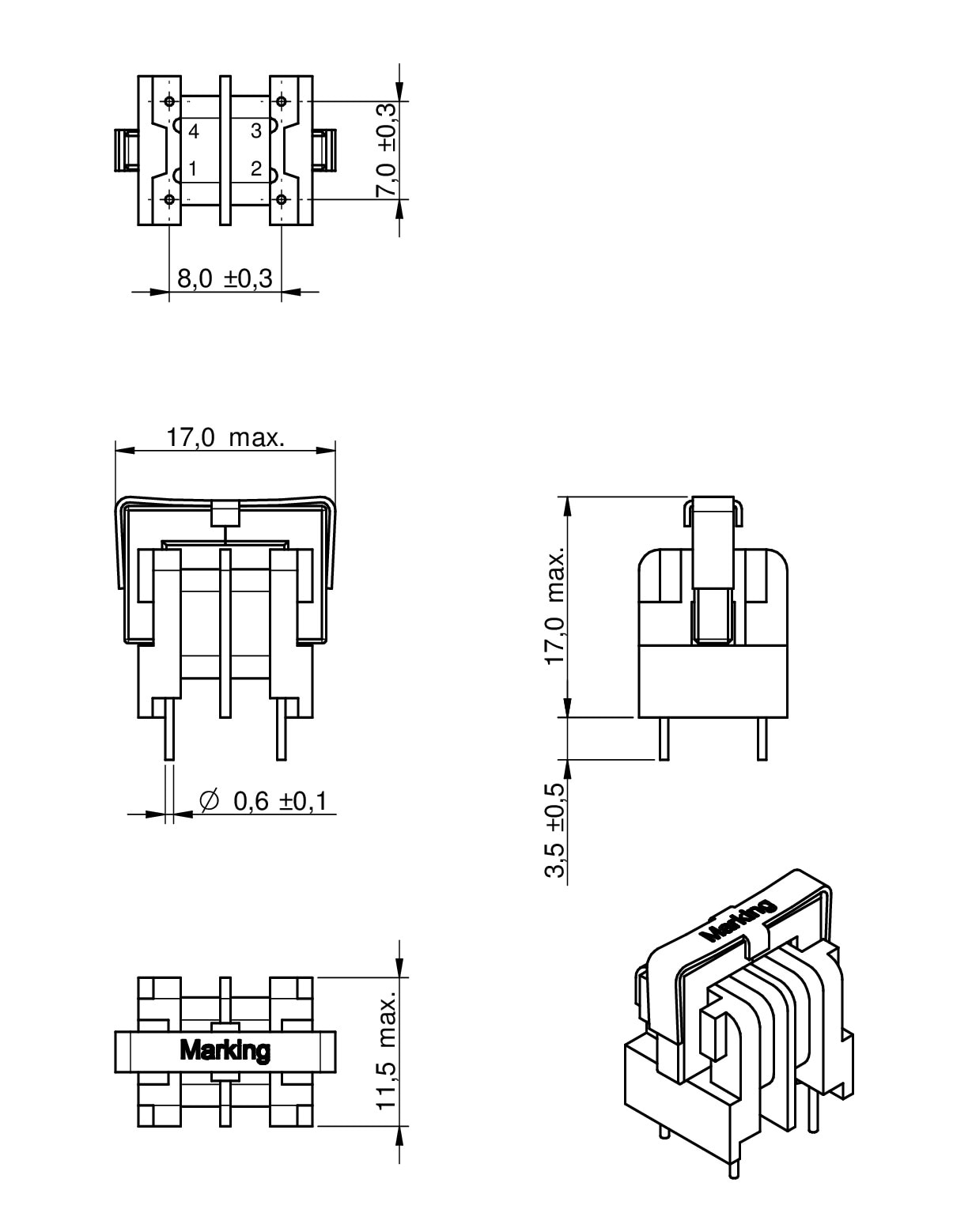

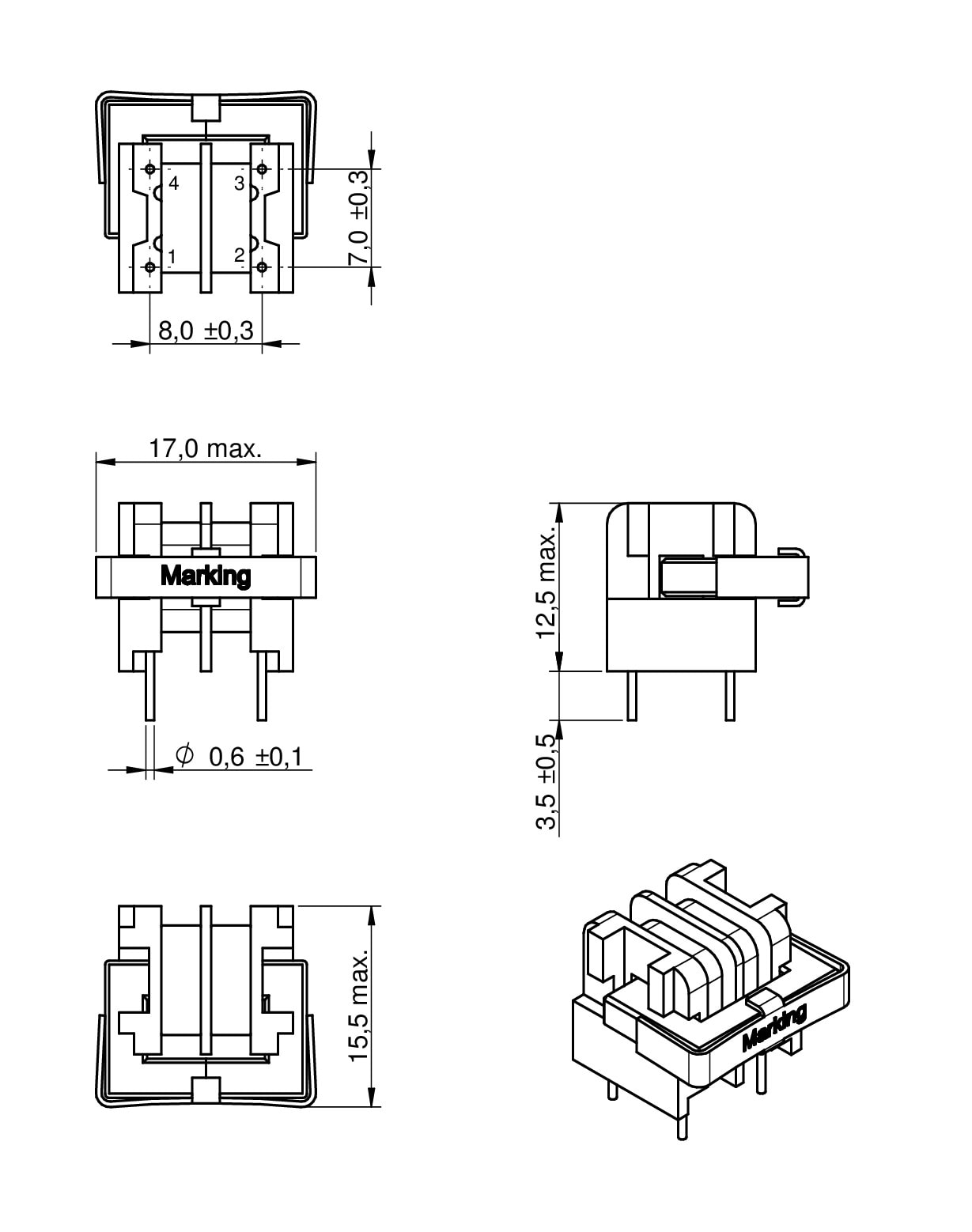

Type UU 17 11 17 THT

Characteristics

  • Approximate 1% stray inductance for symmetrical interference suppression
  • At least 4 mm creepage distance
  • High isolation between windings
  • Flammability corresponding to UL 94 V-0
  • Climatic category 40/125/21

Applications

  • Mains filter
  • Compact switched mode power supplies
  • Electronic ballast applications (LED Bulb)
  • Lighting
  • White goods

Products

Type UU
Order Code SPEC Simu­lation Downloads IR 1
(A)
L1
(mH)
RDC1 max.
(Ω)
VR
(V (AC))
VT
(V (AC))
Samples
744862018
STE ALT EAG CAD LTS PSP IGS CAD SPA 1 1.8 0.31 400 3000
744862033
STE ALT EAG CAD LTS PSP IGS CAD SPA 0.8 3.3 0.51 400 3000
744862056
STE ALT EAG CAD LTS PSP IGS CAD SPA 0.6 5.6 0.83 400 3000
744862082
STE ALT EAG CAD LTS PSP IGS CAD SPA 0.5 8.2 1.3 400 3000
744862100
STE ALT EAG CAD LTS PSP IGS CAD SPA 0.45 10 1.65 400 3000
744862120
STE ALT EAG CAD LTS PSP IGS CAD SPA 0.4 12 2 400 3000
744862180
STE ALT EAG CAD LTS PSP IGS CAD SPA 0.3 18 3.1 400 3000
744862250
STE ALT EAG CAD LTS PSP IGS CAD SPA 0.25 25 3.6 400 3000
