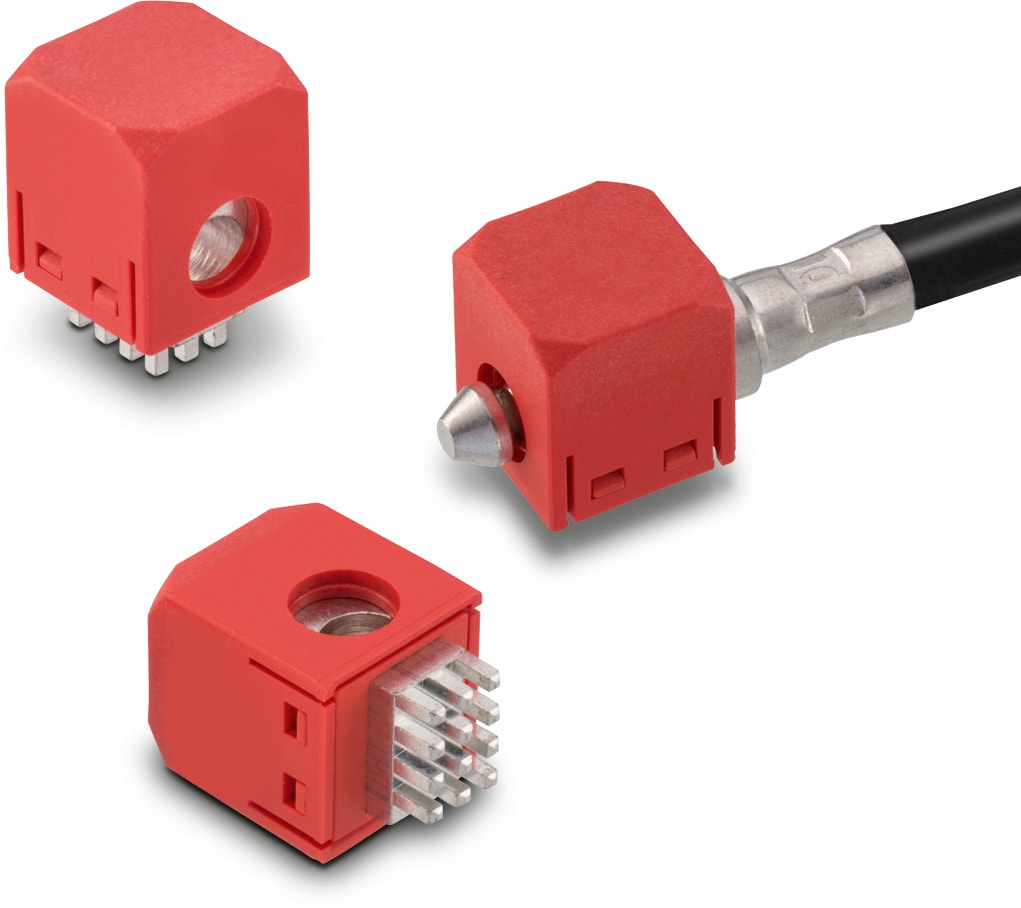

REDCUBE Direct Plug Terminal

Applications

  • Reversible high current Wire-to-Board connections
  • Tool-free and screwless connections
  • Mounting in very tight spaces
  • Mounting areas with difficult access
  • Battery charger
Properties
Color Black; Red
Insulator Material PBT
Contact Material Copper Alloy
Contact Plating Tin
Plastic Housing Flammability Rating UL94 V-0
Execution Press-Fit
Pins 12
Contact Resistance 1 mΩ
General Information
Operating Temperature -45 up to +125 °C
Electrical Properties
IR 1 120 A
Packaging Properties
Packaging Bulk

4power!

REDCUBE Terminals are the most reliable high-power contact on PCB level. Low contact resistance guarantees minimum self-heating.

Product video, applications and more

Products

Order Code SPEC Downloads Color IR 1
(A)
Pins Design Kit Samples
7464100
STE 3D ALT EAG IGS CAD Black 120 12
7464000
STE 3D ALT EAG IGS CAD Red 120 12 746701
Order Code SPEC
7464100
7464000
Samples
Order Code SPEC Downloads Color IR 1
(A)
Pins Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
