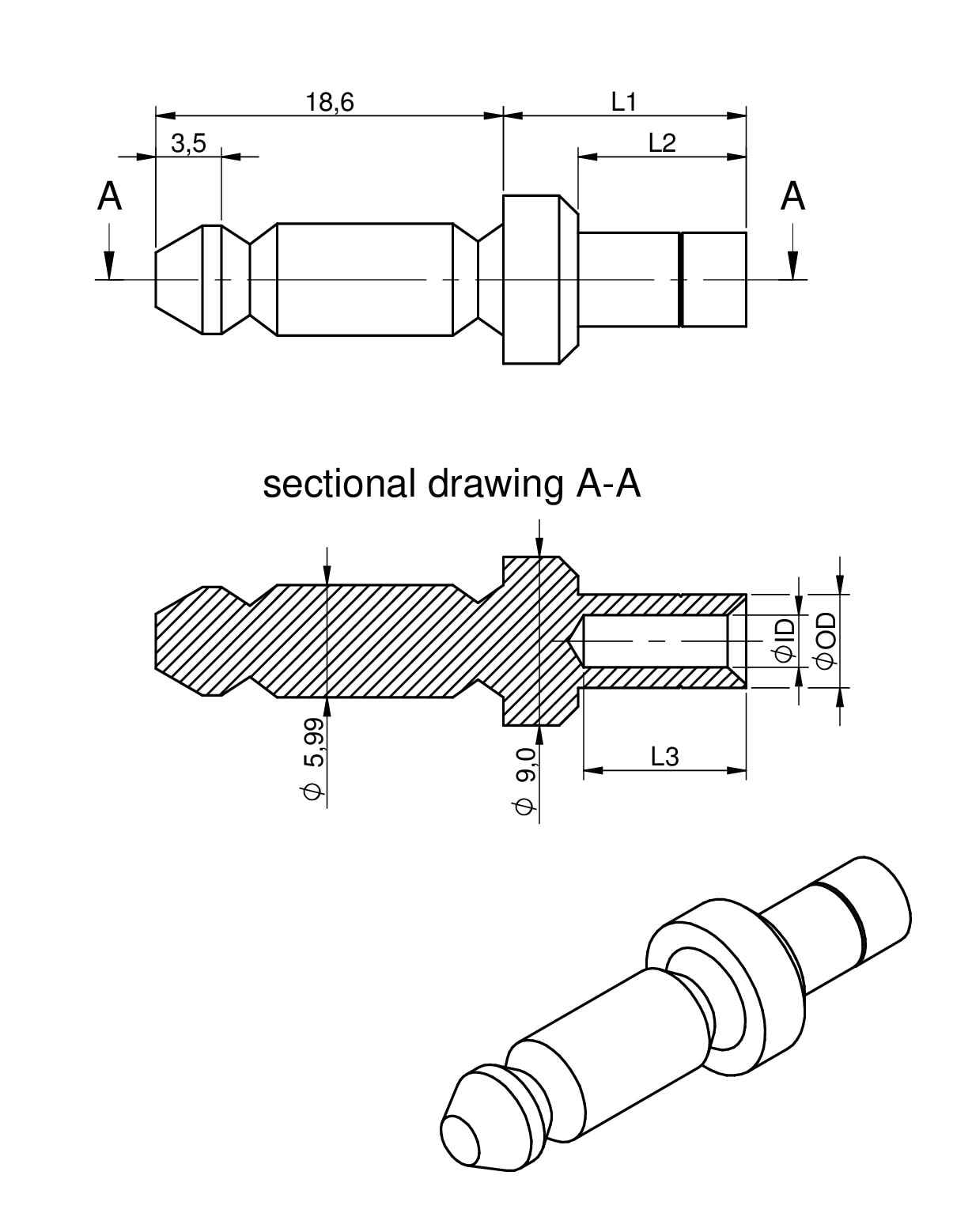

WP-PLUG REDCUBE Cable Connector for Direct PLUG Terminal

WP-PLUG REDCUBE Cable Connector for Direct PLUG Terminal

Applications

  • Reversible high current Wire-to-Board connections
  • Tool-free and screwless connections
  • Mounting in very tight spaces
  • Mounting areas with difficult access
  • Battery charger
  • Processable with hexagonal crimptools according to general market standard
General Information
Operating Temperature-55 °C up to +150 °C
MaterialCopper Alloy
SurfaceTin
Electrical Properties
IR50 A; 60 A; 80 A; 120 A
Packaging Properties
PackagingBulk

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
IR(A)
Wire Cross Section(mm²)
Design Kit
Samples

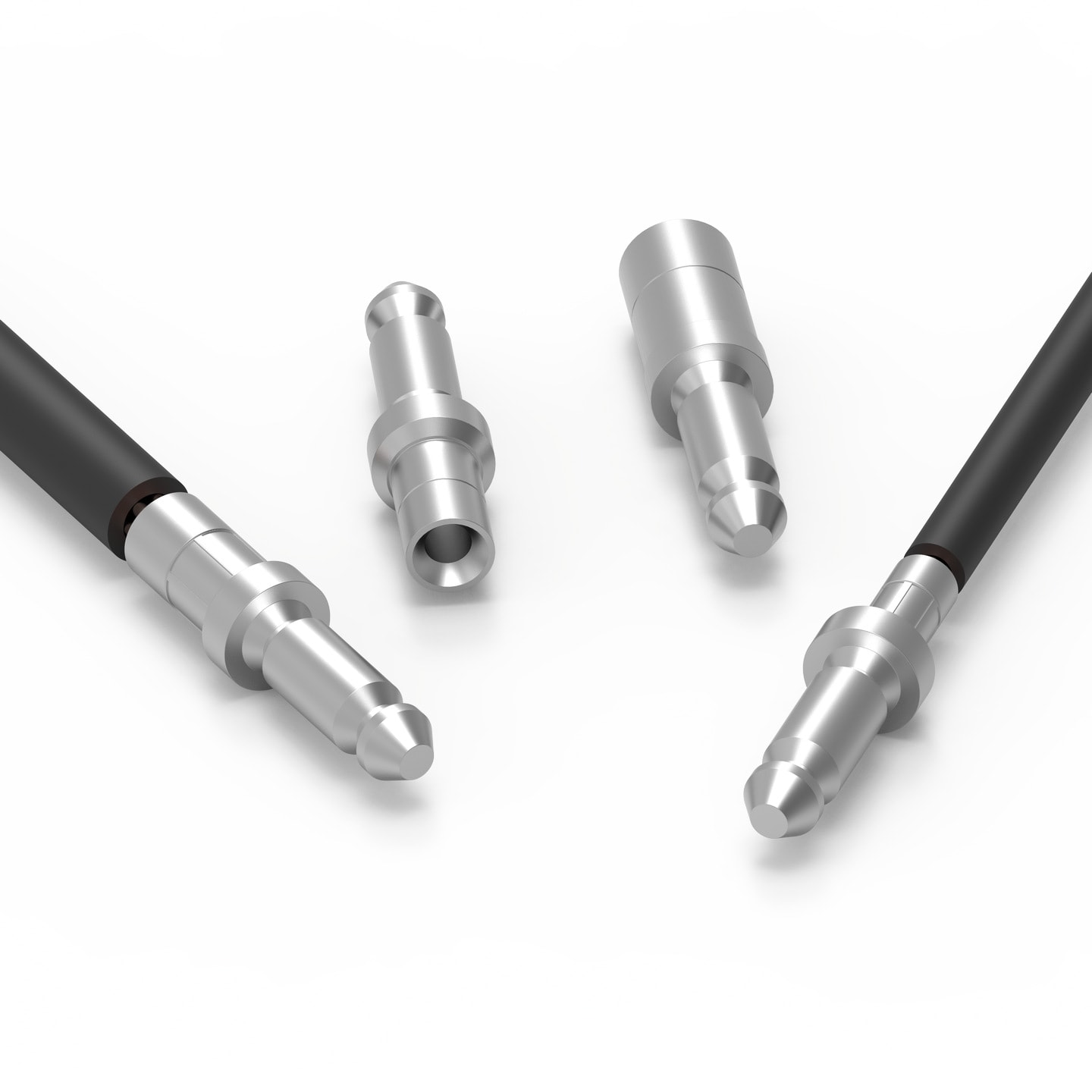

WP-PLUG REDCUBE Cable Connector for Direct PLUG Terminal
7464004
50 A, 4 mm²
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current50 A
Wire Cross Section4 mm²
Design Kit
746701
WP-PLUG REDCUBE Cable Connector for Direct PLUG Terminal
7464006
60 A, 6 mm²
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current60 A
Wire Cross Section6 mm²
Design Kit –
WP-PLUG REDCUBE Cable Connector for Direct PLUG Terminal
74640010
80 A, 10 mm²
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current80 A
Wire Cross Section10 mm²
Design Kit –
WP-PLUG REDCUBE Cable Connector for Direct PLUG Terminal
74640016
120 A, 16 mm²
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current120 A
Wire Cross Section16 mm²
Design Kit
746701

REDCUBE Terminals - 4power!

REDCUBE Terminals - 4power!

REDCUBE terminals are the most reliable high-power contacts on the PCB level. Low contact resistance guarantees minimum self-heating. Four different designs cover all leading processing technologies and offer a wide range of applications.



Characteristic:

  • Flexibility in processing and connection technologies
  • Highest current ratings up to 500 A
  • Board-to-Board and Wire-to-Board solutions
  • Extremely low self-heating
  • Robust mechanical connection

REDCUBE PLUG

Ampacity up to 120 A
Plugging instead of Screwing
Heat Resistance up to +125 °C
Automated Locking Function
Cross Sections: 4, 6, 10 & 16 mm²
Crimp Connection

Applications, Features & Processing

Applications

The new quick and easy pluggable solution REDCUBE PLUG offers all press-fit advantages; it is a multiple times pluggable solution for high-current applications.

  • High current and reversible Wire-to-Board connections
  • Battery charger
  • Multiple times pluggable solutions
  • Mounting in very tight spaces
  • Mounting areas with difficult access

Outstanding Features

REDCUBE PLUG consists of a REDCUBE Terminal, surrounded by a glass fiber-reinforced plastic housing. Pushing on the top of the housing allows mating the corresponding cable connector. After actuating, the spring returns to its initial position and locks the cable connector automatically into the housing.

  • Quick and easy assembling
  • Tool-free and screwless mounting
  • Multiple times pluggable
  • Press-Fit advantages

Simple Processing

REDCUBE PLUG uses standard tools for the press-fit process. A general hexagonal crimper is used to install the contact on the wire. A special post treatment technology and specific plating of the cable connector guarantee optimal crimpingresults.

  • Standard hexagonal crimping tools
  • Gastight and strong crimp connection
  • Special plating for optimal crimping results

Use with

WP-PLUG REDCUBE Direct Plug Terminal

Assortments

Articles from this product series can be found in the following assortments:

Design Kit REDCUBE
