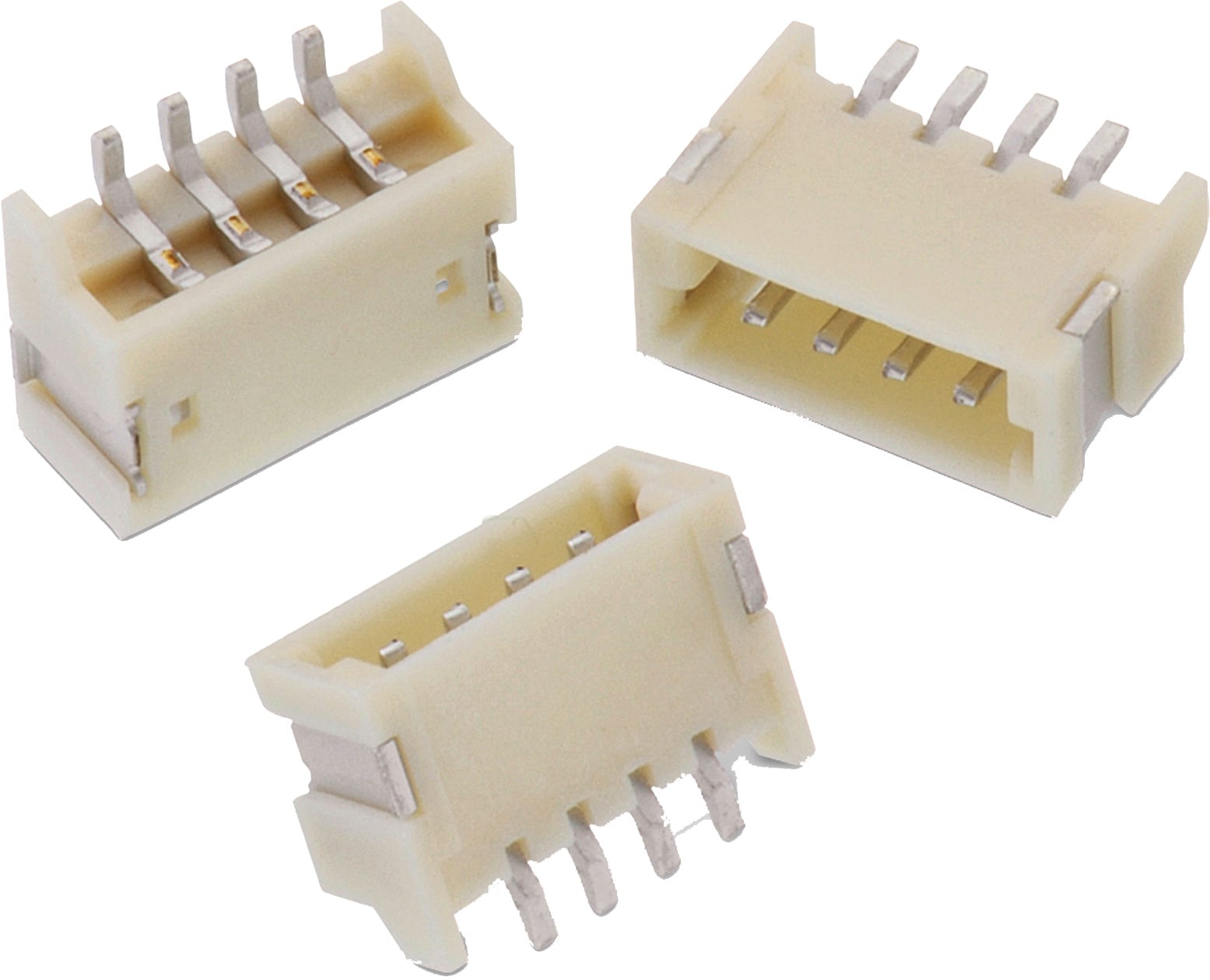

WR-WTB 1.50 mm SMT Male Horizontal Shrouded Header

Kind Properties
Pitch 1.5 mm
Gender Male
Material Properties
Insulator Material PA6T
Insulator Flammability Rating UL94 V-0
Color Ivory
Contact Material Copper Alloy
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -25 up to +85 °C
Compliance RoHS
Working Voltage 50 V (AC)
Withstanding Voltage 500 V (AC)
Contact Resistance 20 mΩ
RISO 500 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Tape and Reel

Products

Order Code Data­sheet Downloads Pins Pitch
(mm)
Gender Type Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples
648102131822
STE 3D ALT EAG IGS CAD 2 1.5 Male Horizontal SMT 1 50 PCB 20 max. 6 Tape and Reel 645001
648103131822
STE 3D ALT EAG IGS CAD 3 1.5 Male Horizontal SMT 1 50 PCB 20 max. 7.5 Tape and Reel 645001
648104131822
STE 3D ALT EAG IGS CAD 4 1.5 Male Horizontal SMT 1 50 PCB 20 max. 9 Tape and Reel 645001
648105131822
STE 3D ALT EAG IGS CAD 5 1.5 Male Horizontal SMT 1 50 PCB 20 max. 10.5 Tape and Reel 645001
648106131822
STE 3D ALT EAG IGS CAD 6 1.5 Male Horizontal SMT 1 50 PCB 20 max. 12 Tape and Reel 645001
648107131822
STE 3D ALT EAG IGS CAD 7 1.5 Male Horizontal SMT 1 50 PCB 20 max. 13.5 Tape and Reel 645001
648108131822
STE 3D ALT EAG IGS CAD 8 1.5 Male Horizontal SMT 1 50 PCB 20 max. 15 Tape and Reel 645001
648109131822
STE 3D ALT EAG IGS CAD 9 1.5 Male Horizontal SMT 1 50 PCB 20 max. 16.5 Tape and Reel 645001
648110131822
STE 3D ALT EAG IGS CAD 10 1.5 Male Horizontal SMT 1 50 PCB 20 max. 18 Tape and Reel 612690
645001
Order Code Data­sheet
648102131822
648103131822
648104131822
648105131822
648106131822
648107131822
648108131822
648109131822
648110131822
Samples
Order Code Data­sheet Downloads Pins Pitch
(mm)
Gender Type Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
