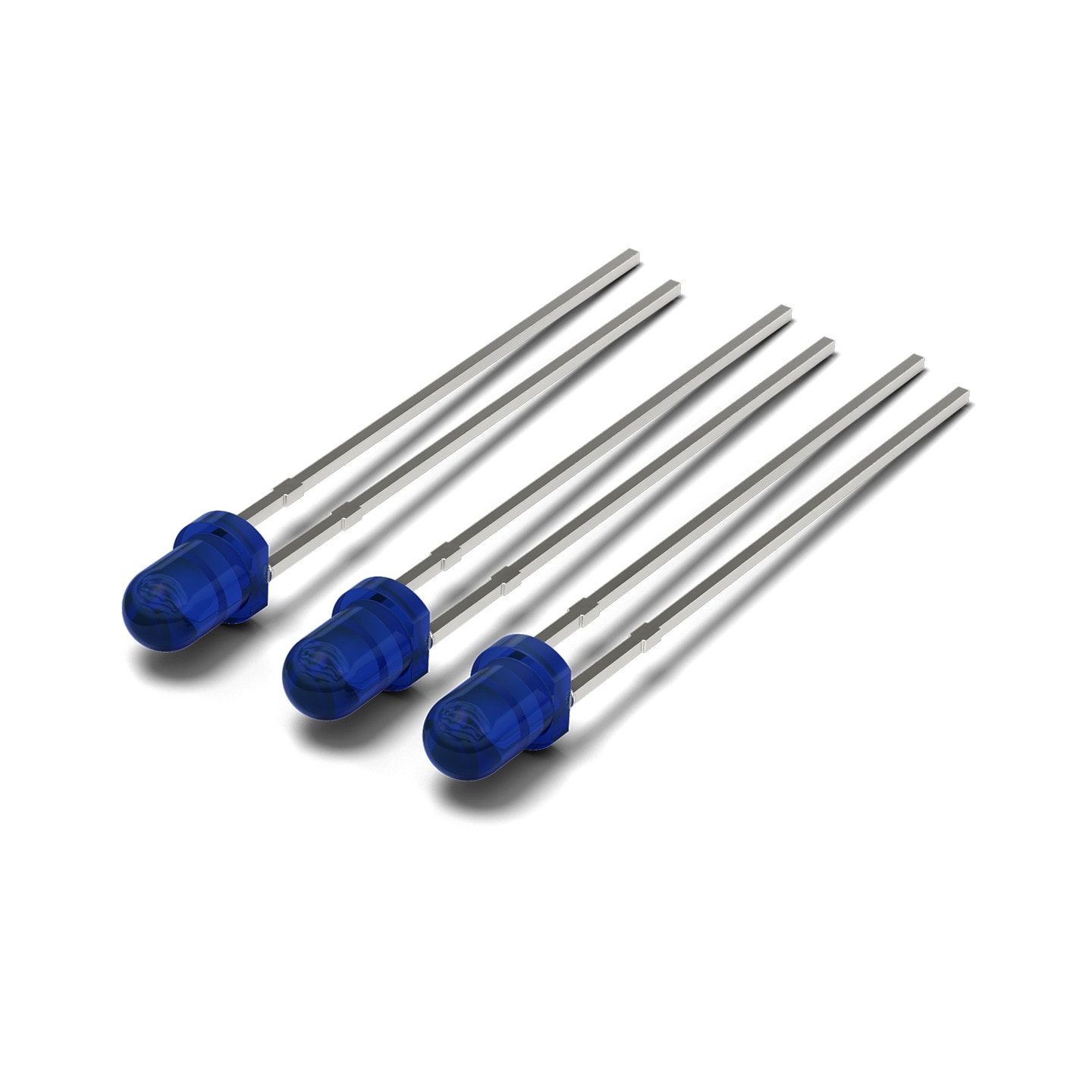

WL-TIRC THT Infrared Round Color

Size Dimen­sionsMount

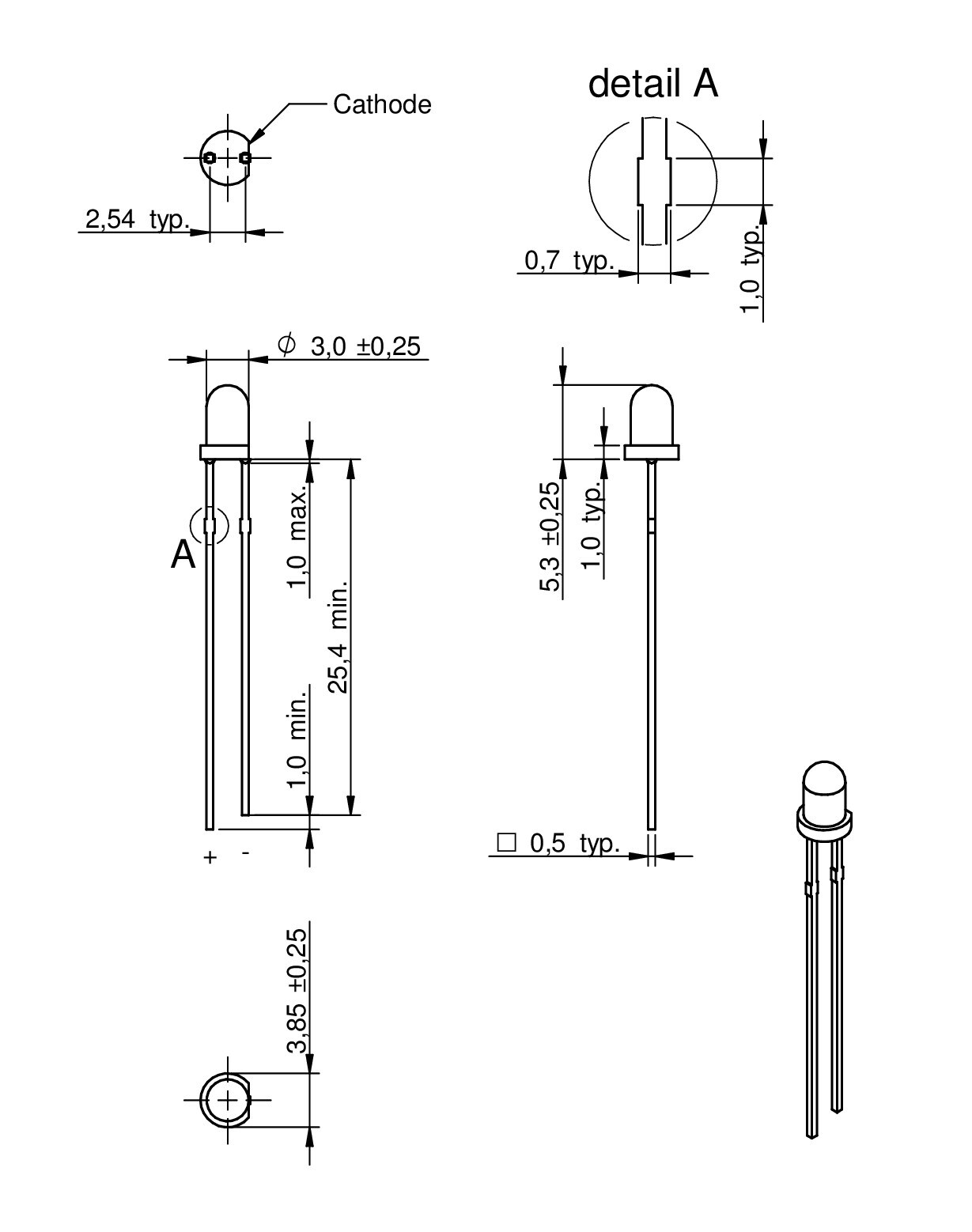

3 mm THT

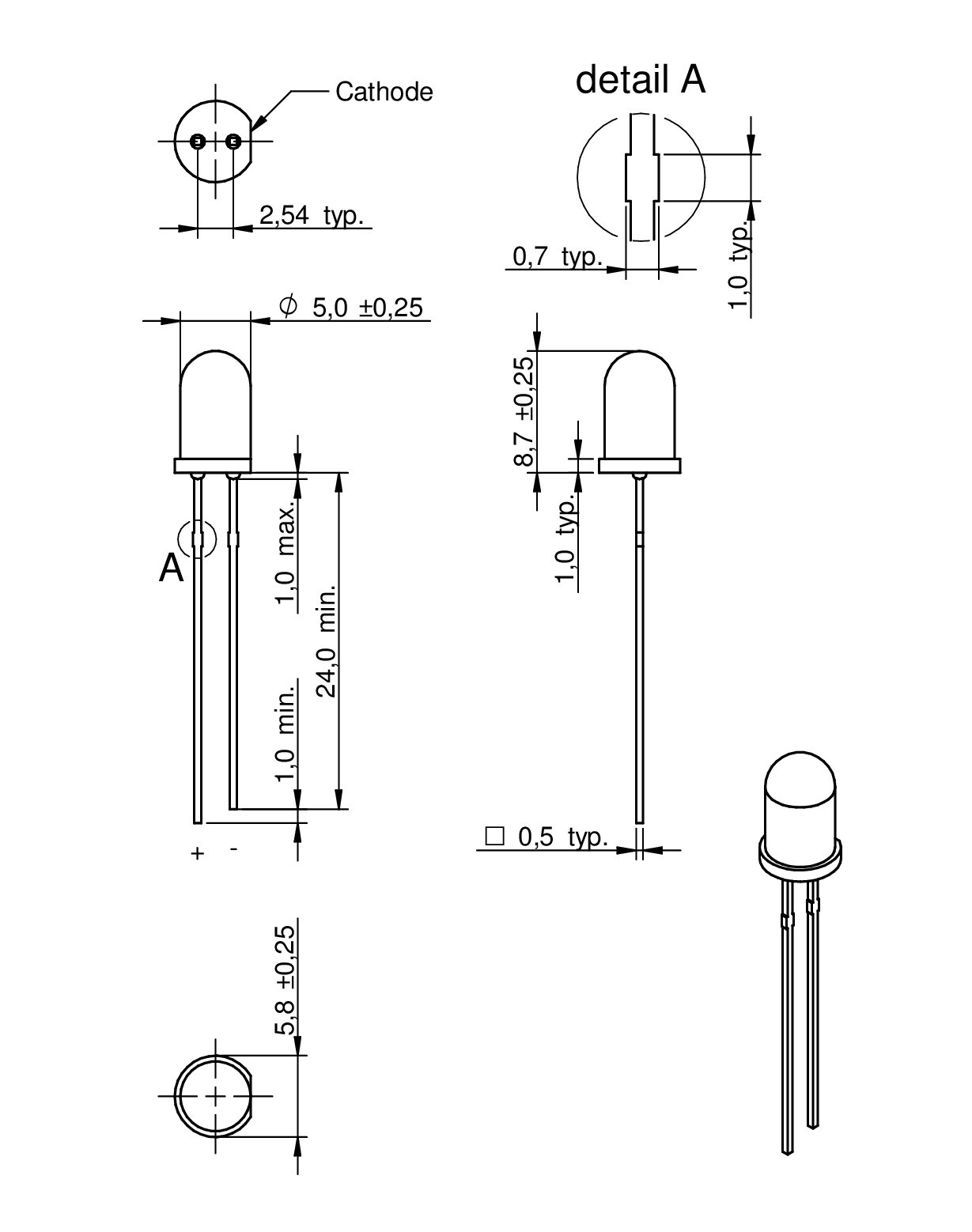

5 mm THT

Characteristics

  • Infrared emitter
  • Very high radiant intensity
  • Standard sizes 3 mm and 5 mm
  • Fast switching

Applications

  • Sensor technology
  • Distance measurement
  • Remote control
  • Smoke detectors
  • Data transmission

Products

All
3 mm
5 mm
Order Code Data­sheet DownloadsλCentroid max.Ie typ.
(mW/sr)
VF typ.
(V)
50% typ.
(°)
Chip TechnologyEmitting ColorLens Type Samples
15400385F3590SPEC
6 files 845.0 60 1.5 30 AlGaAs Infrared Blue
15400585F3590SPEC
6 files 845.0 85 1.5 30 AlGaAs Infrared Blue
15400394F3590SPEC
6 files 940.0 30 1.3 30 AlGaAs Infrared Blue
15400594F3590SPEC
6 files 940.0 30 1.3 30 AlGaAs Infrared Blue
Order Code Data­sheet
15400385F3590SPEC
15400585F3590SPEC
15400394F3590SPEC
15400594F3590SPEC
Samples
Order Code Data­sheet DownloadsλCentroid max.Ie typ.
(mW/sr)
VF typ.
(V)
50% typ.
(°)
Chip TechnologyEmitting ColorLens Type Samples
