WL-SFTD SMT Full-color Top LED Diffused

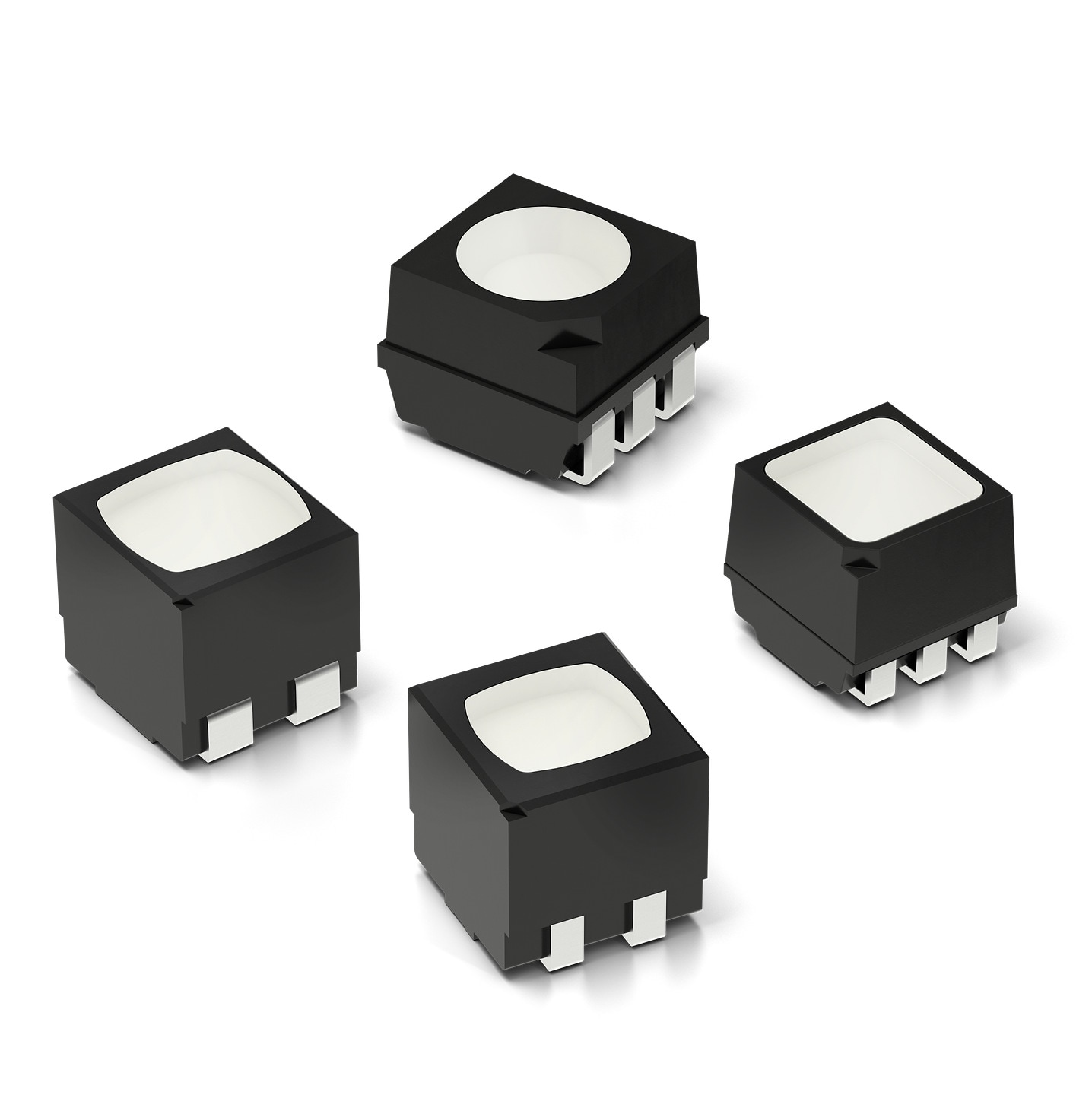

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1616		1.6	1.6	1.6	SMT
2022		2	2.2	1.9	SMT
2828		2.8	2.8	-	SMT

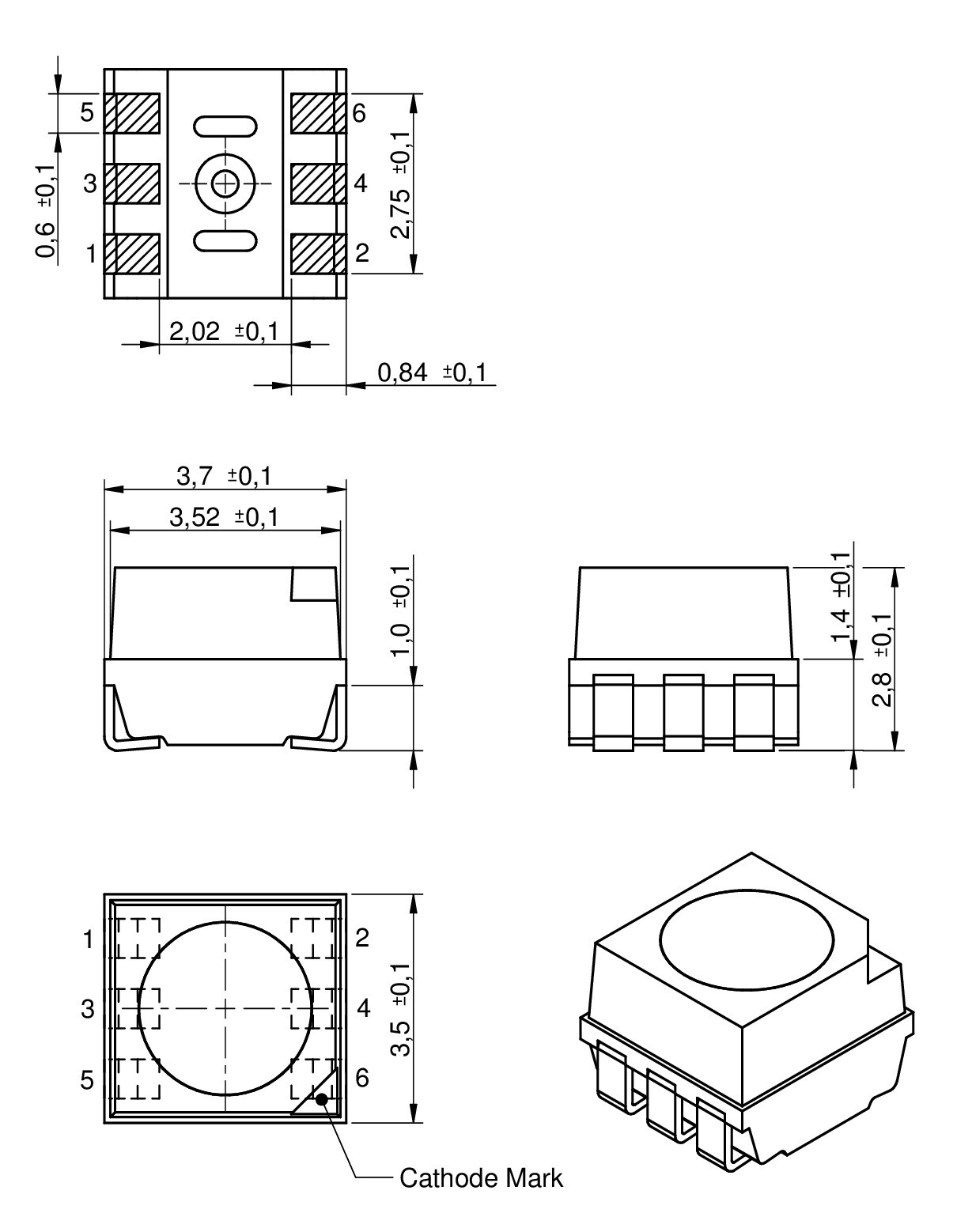

3535		3.7	3.5	2.8	SMT

LTSpice files

LT
LTSpice_WL-SFTD (rev25a).zip
|
5.2 KB

Characteristics

Industry standard size 3535
Matte and non-reflective surface
High reliability
Low energy consumption
Low current requirement
MSL 5a
Water-resistant IPx8 LED

Applications

Outdoor Full-Color Video Screen
Decorative lighting
Entertainment
LED display screen
Indicator
Backlight

Products

All

1616

2022

2828

3535

Filter article data

show articles in 4 product lines

articles in 4 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.}(nm)	λ_{Peak G typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Dom B typ.}(nm)	λ_{Dom G typ.}(nm)	λ_{Dom R typ.}(nm)	I_{V B typ.}(mcd)	I_{V G typ.}(mcd)	I_{V R typ.}(mcd)	V_{F B typ.}(V)	V_{F G typ.}(V)	V_{F R typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Demoboard	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	150353M153300	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads8 files ALT Altium_WL-SFTD (rev25a).IntLib \| 245 KB CDS Cadence_WL-SFTD (rev25a).zip \| 1.2 MB EAG Eagle_WL-SFTD (rev25a).lbr \| 52.8 KB KIC KiCad_WL-SFTD (rev26a).zip \| 271.2 KB 3D 3D_WL-SFTD_150353M153300 (rev1).pdf \| 111.9 KB IGS Download_IGS_150353M153300 (rev1).igs \| 1.3 MB STP Download_STP_150353M153300 (rev1).stp \| 503 KB PSP PSpice_WL-SFTD (rev25a).zip \| 4.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]635 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]520 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]400 mcd	Luminous Intensity (Green) [typ.]1900 mcd	Luminous Intensity (Red) [typ.]800 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + GaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit 150151	–Check availability
	150282M153310	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads26 files ALT Altium_WL-SFTD (rev25a).IntLib \| 245 KB CDS Cadence_WL-SFTD (rev25a).zip \| 1.2 MB EAG Eagle_WL-SFTD (rev25a).lbr \| 52.8 KB KIC KiCad_WL-SFTD (rev26a).zip \| 271.2 KB IGS Download_IGS_150282M153310 (rev1).igs \| 1.2 MB STP Download_STEP_150282M153310 (rev1).stp \| 263.7 KB PSP PSpice_WL-SFTD (rev25a).zip \| 4.6 KB RAY files ASA ASAP-and-APEX_dis_150282M153310_5M (rev1p0).zip \| 361.2 MB COD CodeV_ray_150282M153310_5M (rev1p0).zip \| 361.2 MB FRE Fred_dat_150282M153310_5M (rev1p0).zip \| 361.2 MB FRE Fred_txt_150282M153310_5M (rev1p0).zip \| 564.3 MB LIG LightTools_ray_150282M153310_5M (rev1p0).zip \| 361.2 MB LIG LightTools_txt_150282M153310_5M (rev1p0).zip \| 564.4 MB LUC LucidShape_ray_150282M153310_5M (rev1p0).zip \| 361.2 MB LUC LucidShape_txt_150282M153310_5M (rev1p0).zip \| 564.3 MB OPT OpTaliX_txt_150282M153310_5M (rev1p0).zip \| 564.4 MB OPT OptiCAD_dat_150282M153310_5M (rev1p0).zip \| 361.2 MB OPT OptiCAD_txt_150282M153310_5M (rev1p0).zip \| 564.3 MB OPT optalix_DIS_150282M153310_5M (rev1p0).zip \| 361.2 MB RIR Photopia_rir_150282M153310_5M (rev1p0).zip \| 361.2 MB SIM Simulux_ray_150282M153310_5M (rev1p0).zip \| 361.2 MB SPE Speos_ray_150282M153310_5M (rev1p0).zip \| 374.1 MB SRC Lucaray-maker_src_150282M153310_5M (rev1p0).zip \| 361.2 MB TRA TracePro_txt_150282M153310_5M (rev1p0).zip \| 564.3 MB ZEM ZemaxBin_dat_150282M153310_5M (rev1p0).zip \| 361.2 MB ZEM Zemax_dat_150282M153310_5M (rev1p0).zip \| 564.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]635 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]520 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]400 mcd	Luminous Intensity (Green) [typ.]1900 mcd	Luminous Intensity (Red) [typ.]800 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + GaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit –	–Check availability
	150202M153130	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads26 files ALT Altium_WL-SFTD (rev25a).IntLib \| 245 KB CDS Cadence_WL-SFTD (rev25a).zip \| 1.2 MB EAG Eagle_WL-SFTD (rev25a).lbr \| 52.8 KB KIC KiCad_WL-SFTD (rev26a).zip \| 271.2 KB IGS Download_IGS_150202M153130 (rev1).igs \| 715.1 KB STP Download_STEP_150202M153130 (rev1).stp \| 143.2 KB PSP PSpice_WL-SFTD (rev25a).zip \| 4.6 KB RAY files ASA ASAP-and-APEX_dis_150202M153130_5M (rev1p0).zip \| 361.5 MB COD CodeV_ray_150202M153130_5M (rev1p0).zip \| 361.5 MB FRE Fred_dat_150202M153130_5M (rev1p0).zip \| 361.5 MB FRE Fred_txt_150202M153130_5M (rev1p0).zip \| 565.1 MB LIG LightTools_ray_150202M153130_5M (rev1p0).zip \| 361.5 MB LIG LightTools_txt_150202M153130_5M (rev1p0).zip \| 565.1 MB LUC LucidShape_ray_150202M153130_5M (rev1p0).zip \| 361.5 MB LUC LucidShape_txt_150202M153130_5M (rev1p0).zip \| 565.1 MB OPT OpTaliX_txt_150202M153130_5M (rev1p0).zip \| 565.1 MB OPT OptiCAD_dat_150202M153130_5M (rev1p0).zip \| 361.5 MB OPT OptiCAD_txt_150202M153130_5M (rev1p0).zip \| 565.1 MB OPT optalix_DIS_150202M153130_5M (rev1p0).zip \| 361.5 MB RIR Photopia_rir_150202M153130_5M (rev1p0).zip \| 361.5 MB SIM Simulux_ray_150202M153130_5M (rev1p0).zip \| 361.5 MB SPE Speos_ray_150202M153130_5M (rev1p0).zip \| 373.5 MB SRC Lucaray-maker_src_150202M153130_5M (rev1p0).zip \| 361.5 MB TRA TracePro_txt_150202M153130_5M (rev1p0).zip \| 565.1 MB ZEM ZemaxBin_dat_150202M153130_5M (rev1p0).zip \| 361.5 MB ZEM Zemax_dat_150202M153130_5M (rev1p0).zip \| 565.1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]635 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]520 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]120 mcd	Luminous Intensity (Green) [typ.]750 mcd	Luminous Intensity (Red) [typ.]350 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + GaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit –	–Check availability
	150161M153130	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads26 files ALT Altium_WL-SFTD (rev25a).IntLib \| 245 KB CDS Cadence_WL-SFTD (rev25a).zip \| 1.2 MB EAG Eagle_WL-SFTD (rev25a).lbr \| 52.8 KB KIC KiCad_WL-SFTD (rev26a).zip \| 271.2 KB IGS Download_IGS_150161M153130 (rev1).igs \| 1.2 MB STP Download_STEP_150161M153130 (rev1).stp \| 247.4 KB PSP PSpice_WL-SFTD (rev25a).zip \| 4.6 KB RAY files ASA ASAP-and-APEX_dis_150161M153130_5M (rev1p0).zip \| 361.8 MB COD CodeV_ray_150161M153130_5M (rev1p0).zip \| 361.8 MB FRE Fred_dat_150161M153130_5M (rev1p0).zip \| 361.8 MB FRE Fred_txt_150161M153130_5M (rev1p0).zip \| 566.6 MB LIG LightTools_ray_150161M153130_5M (rev1p0).zip \| 361.8 MB LIG LightTools_txt_150161M153130_5M (rev1p0).zip \| 566.7 MB LUC LucidShape_ray_150161M153130_5M (rev1p0).zip \| 361.8 MB LUC LucidShape_txt_150161M153130_5M (rev1p0).zip \| 566.6 MB OPT OpTaliX_txt_150161M153130_5M (rev1p0).zip \| 566.7 MB OPT OptiCAD_dat_150161M153130_5M (rev1p0).zip \| 361.8 MB OPT OptiCAD_txt_150161M153130_5M (rev1p0).zip \| 566.6 MB OPT optalix_DIS_150161M153130_5M (rev1p0).zip \| 361.8 MB RIR Photopia_rir_150161M153130_5M (rev1p0).zip \| 361.8 MB SIM Simulux_ray_150161M153130_5M (rev1p0).zip \| 361.8 MB SPE Speos_ray_150161M153130_5M (rev1p0).zip \| 374.1 MB SRC Lucaray-maker_src_150161M153130_5M (rev1p0).zip \| 362.4 MB TRA TracePro_txt_150161M153130_5M (rev1p0).zip \| 566.7 MB ZEM ZemaxBin_dat_150161M153130_5M (rev1p0).zip \| 361.8 MB ZEM Zemax_dat_150161M153130_5M (rev1p0).zip \| 527.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]635 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]520 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]60 mcd	Luminous Intensity (Green) [typ.]400 mcd	Luminous Intensity (Red) [typ.]200 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + GaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit –	–Check availability
	150282M167310	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads8 files ALT Altium_WL-SFTD (rev25a).IntLib \| 245 KB CDS Cadence_WL-SFTD (rev25a).zip \| 1.2 MB EAG Eagle_WL-SFTD (rev25a).lbr \| 52.8 KB KIC KiCad_WL-SFTD (rev26a).zip \| 271.2 KB 3D 3D_150282M167310 (rev1).pdf \| 133.4 KB IGS IGS_150282M167310 (rev1).igs \| 894.5 KB STP STP_150282M167310 (rev1).stp \| 220.2 KB PSP PSpice_WL-SFTD (rev25a).zip \| 4.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]635 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]530 nm	Dominant Wavelength (Red) [typ.]620 nm	Luminous Intensity (Blue) [typ.]600 mcd	Luminous Intensity (Green) [typ.]3000 mcd	Luminous Intensity (Red) [typ.]1200 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + GaN	Viewing Angle Phi 0° [typ.]70 °	Demoboard –	Design Kit –	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit PLCC, THT and Ceramic LEDs

Demoboard Visible LEDs

Learn more

LED Application Guide - Learn more about handling, storage and much more
PDF
