OverviewAll product unitsProduct unitOptoelectronic ComponentsProduct groupLEDsProduct familySignal LEDsTypeChip LEDProduct seriesWL-SFCW SMT Full-color Chip LED Waterclear

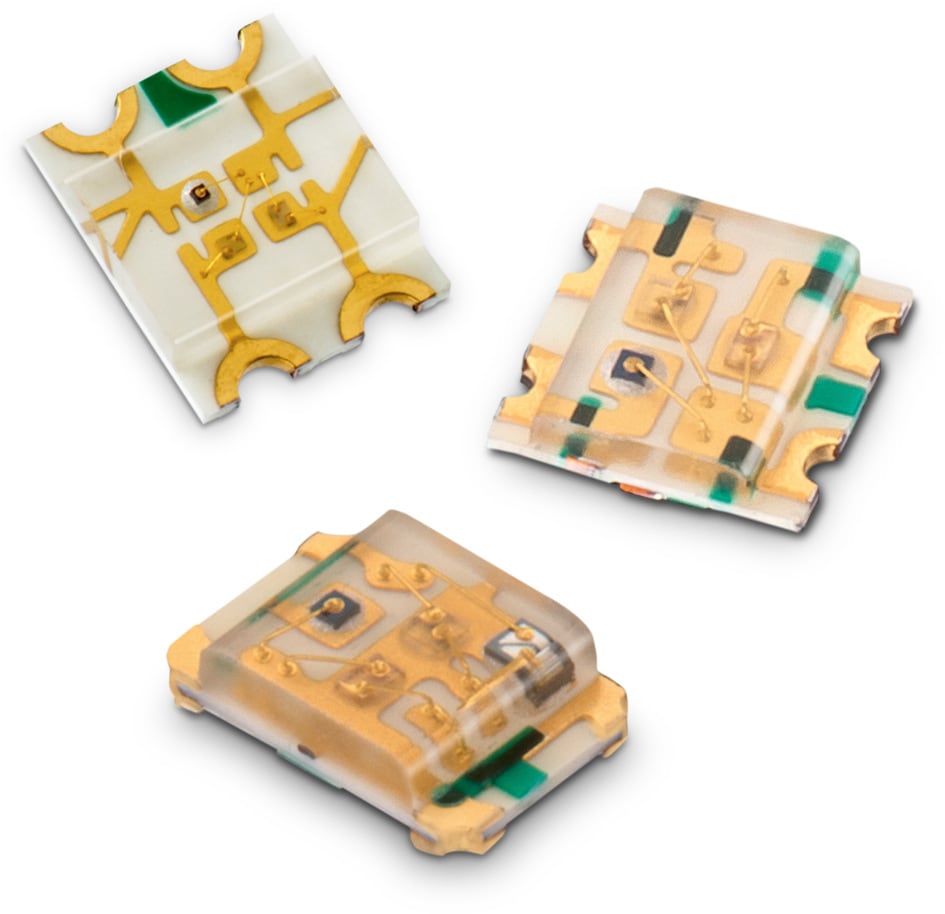

WL-SFCW SMT Full-color Chip LED Waterclear

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount
0606 1.6 1.6 0.4 SMT
0805 2 1.3 0.5 SMT
1206 3.2 1.6 0.7 -
1206 dome 3.2 1.6 1.1 -
1210 3.2 2.7 1.1 SMT

Characteristics

  • Industry standard footprint
  • High efficiency
  • Low power consumption
  • Wide viewing angle
  • Small LED package for exceptional brightness
  • Compatible with automatic placement machine

Applications

  • Backlighting applications
  • Status indicator
  • LED Front panel indicators
  • Backlighting for keypad, symbol and switch button
  • Indicator
  • General lighting

Products

All
0606
0805
1206
1206 dome
1210
Order Code Data­sheet DownloadsEmitting ColorλPeak B typ.
(nm)
λPeak G typ.
(nm)
λPeak R typ.
(nm)
λDom B typ.
(nm)
λDom G typ.
(nm)
λDom R typ.
(nm)
IV B typ.
(mcd)
IV G typ.
(mcd)
IV R typ.
(mcd)
VF B typ.
(V)
VF G typ.
(V)
VF R typ.
(V)
Chip Technology50% typ.
(°)
Design KitDemoboard Samples

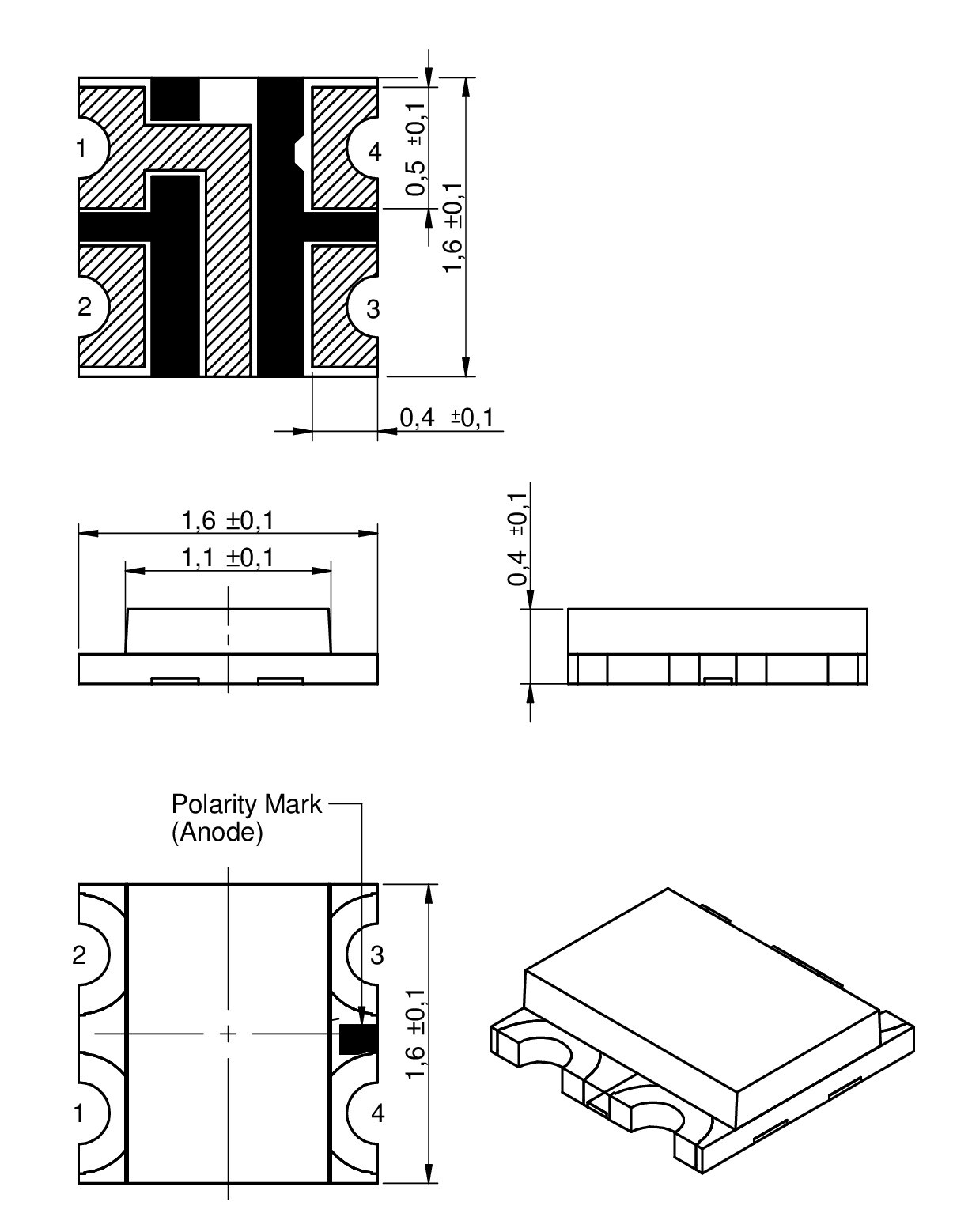

150066M173000SPEC
25 files Red & Green & Blue 520 470 527 622 80 360 70 3.3 3.3 1.9 AlInGaP + InGaN 120150155
9999003

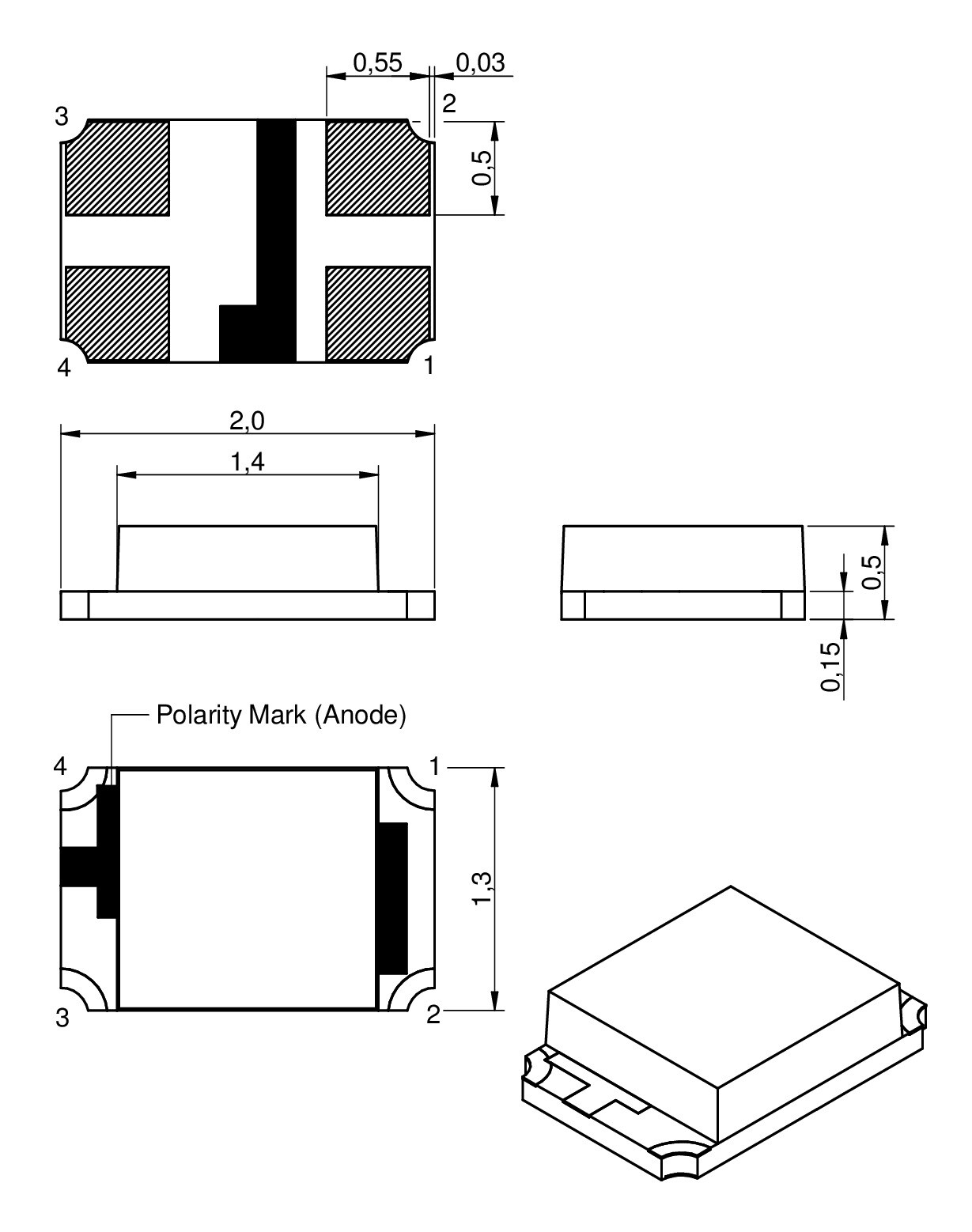

150080M173000SPEC
25 files Red & Green & Blue 468 520 632 470 525 624 70 285 112 3.3 3.3 2 AlInGaP + InGaN 120150155
9999003

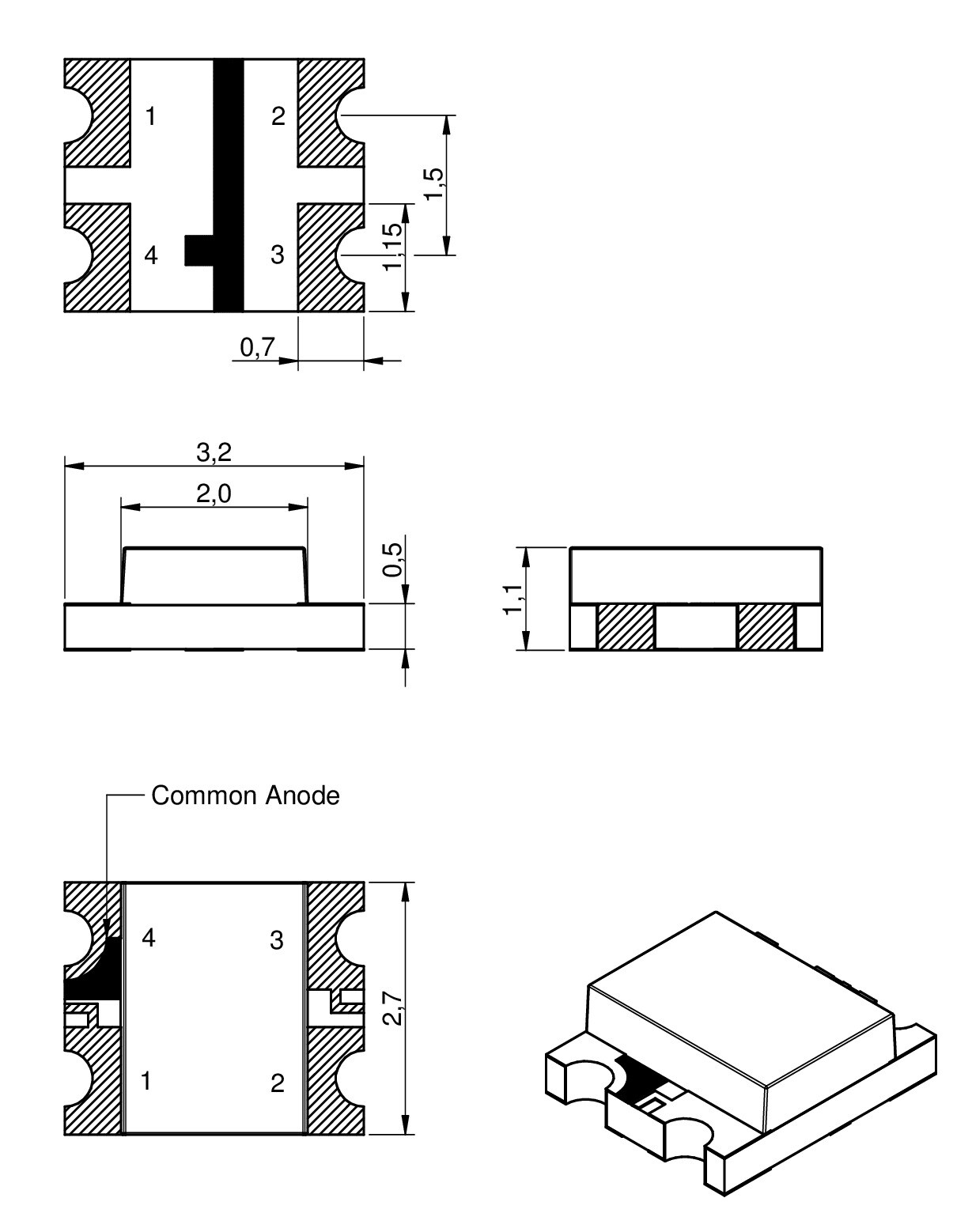

150121M173000SPEC
6 files Red & Green & Blue 520 470 525 624 80 285 70 3.3 3.3 2 AlInGaP + InGaN 120150155
9999003
150120M173000SPEC
6 files Red & Green & Blue 520 470 525 624 350 1000 360 3.3 3.3 2 AlInGaP + InGaN 120
150120M183000SPEC
7 files Red & Green & Blue 465 520 630 470 525 625 280 1000 300 3.2 3 2 AlInGaP + InGaN 30
Order Code Data­sheet
150066M173000SPEC
150080M173000SPEC
150121M173000SPEC
150120M173000SPEC
150120M183000SPEC
Samples
Order Code Data­sheet DownloadsEmitting ColorλPeak B typ.
(nm)
λPeak G typ.
(nm)
λPeak R typ.
(nm)
λDom B typ.
(nm)
λDom G typ.
(nm)
λDom R typ.
(nm)
IV B typ.
(mcd)
IV G typ.
(mcd)
IV R typ.
(mcd)
VF B typ.
(V)
VF G typ.
(V)
VF R typ.
(V)
Chip Technology50% typ.
(°)
Design KitDemoboard Samples
