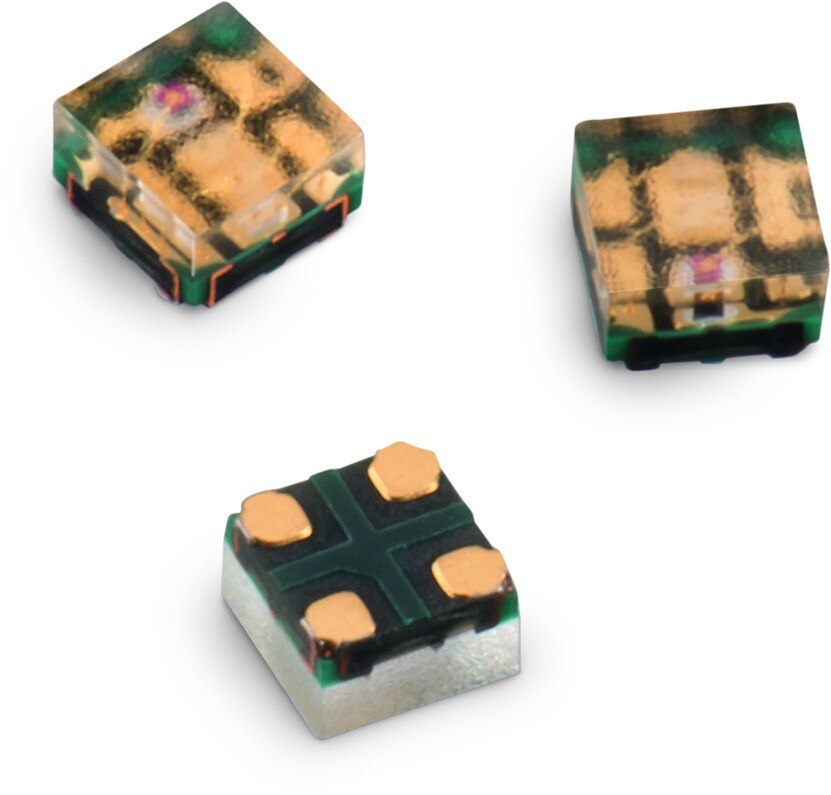

WL-SFCC SMT Full-color Chip LED Compact

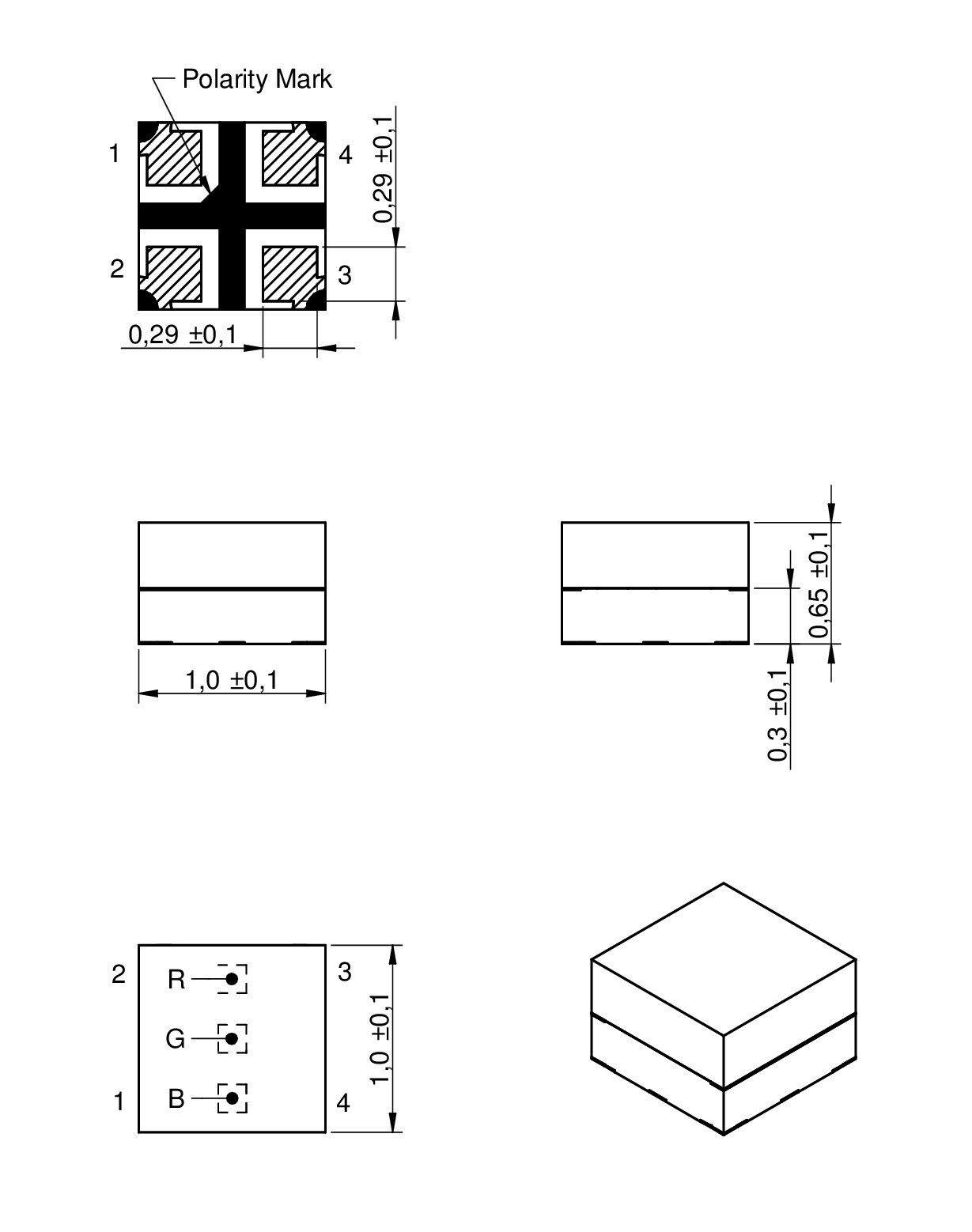

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
0404		1	1	0.65	SMT
0404 Super Flat		1	1	0.25	SMT

LTSpice files

LT
LTSpice_WL-SFCC (rev22b).zip
|
2.8 KB

Characteristics

Anti-reflection surface
Smallest RGB package
Very wide viewing angle

Applications

Full-color display
Indoor video walls
Backlighting
Indicator
Front panel indicator
Home and smart appliances
Wearable and portable devices
Healthcare applications
Signal control system

Products

All

0404

0404 Super Flat

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.} (nm)	λ_{Peak G typ.} (nm)	λ_{Peak R typ.} (nm)	λ_{Dom B typ.} (nm)	λ_{Dom G typ.} (nm)	λ_{Dom R typ.} (nm)	I_{V B typ.} (mcd)	I_{V G typ.} (mcd)	I_{V R typ.} (mcd)	V_{F B typ.} (V)	V_{F G typ.} (V)	V_{F R typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Design Kit	Samples
	150044M155260	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	25 files EDA models: Components ZIP ALT Altium_WL-SFCC (rev22c).IntLib \| 646 KB CDS Cadence_WL-SFCC (rev22a).zip \| 396.9 KB EAG Eagle_WL-SFCC (rev25a).lbr \| 25.4 KB CAD files ZIP IGS Download_IGS_WL-SFCC_150044M175200 (rev1).igs \| 1.2 MB STP Download_STP_WL-SFCC_150044M175200 (rev1).stp \| 374.9 KB Electric models ZIP PSP PSpice_WL-SFCC (rev22b).zip \| 3.6 KB RAY files ASA ASAP-and-APEX_dis_150044M155260_5M (rev1p0).zip \| 361.4 MB COD CodeV_ray_150044M155260_5M (rev1p0).zip \| 361.4 MB FRE Fred_dat_150044M155260_5M (rev1p0).zip \| 361.4 MB FRE Fred_txt_150044M155260_5M (rev1p0).zip \| 566 MB LIG LightTools_ray_150044M155260_5M (rev1p0).zip \| 361.4 MB LIG LightTools_txt_150044M155260_5M (rev1p0).zip \| 565.9 MB LUC LucidShape_ray_150044M155260_5M (rev1p0).zip \| 361.4 MB LUC LucidShape_txt_150044M155260_5M (rev1p0).zip \| 566 MB OPT OpTaliX_txt_150044M155260_5M (rev1p0).zip \| 565.9 MB OPT OptiCAD_dat_150044M155260_5M (rev1p0).zip \| 361.4 MB OPT OptiCAD_txt_150044M155260_5M (rev1p0).zip \| 566 MB OPT optalix_DIS_150044M155260_5M (rev1p0).zip \| 361.4 MB RIR Photopia_rir_150044M155260_5M (rev1p0).zip \| 361.4 MB SIM Simulux_ray_150044M155260_5M (rev1p0).zip \| 361.4 MB SPE Speos_ray_150044M155260_5M (rev1p0).zip \| 374 MB SRC Lucaray-maker_src_150044M155260_5M (rev1p0).zip \| 361.4 MB TRA TracePro_txt_150044M155260_5M (rev1p0).zip \| 566 MB ZEM ZemaxBin_dat_150044M155260_5M (rev1p0).zip \| 361.4 MB ZEM Zemax_dat_150044M155260_5M (rev1p0).zip \| 566 MB	Active i\| Production is active. Expected lifetime: >10 years.	Red & Green & Blue	465	522	625	470	530	621	50	180	80	2.8	2.7	2	AlInGaP + InGaN	140	150155
	150044M155220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WL-SFCC (rev22c).IntLib \| 646 KB CDS Cadence_WL-SFCC (rev22a).zip \| 396.9 KB EAG Eagle_WL-SFCC (rev25a).lbr \| 25.4 KB CAD files ZIP 3D 150044M155220_3D (rev1).pdf \| 57.4 KB IGS 150044M155220_IGS (rev1).igs \| 772 KB STP 150044M155220_STP (rev1).stp \| 183.3 KB Electric models ZIP PSP PSpice_WL-SFCC (rev22b).zip \| 3.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Red & Green & Blue	460	520	630	465	525	623	110	500	200	3	3	2	AlInGaP + InGaN	–	–

	Order Code	Datasheet
	150044M155260	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
	150044M155220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.} (nm)	λ_{Peak G typ.} (nm)	λ_{Peak R typ.} (nm)	λ_{Dom B typ.} (nm)	λ_{Dom G typ.} (nm)	λ_{Dom R typ.} (nm)	I_{V B typ.} (mcd)	I_{V G typ.} (mcd)	I_{V R typ.} (mcd)	V_{F B typ.} (V)	V_{F G typ.} (V)	V_{F R typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED – Top View

Learn more

LED Application Guide - Learn more about handling, storage and much more
PDF

Online Evaluations
