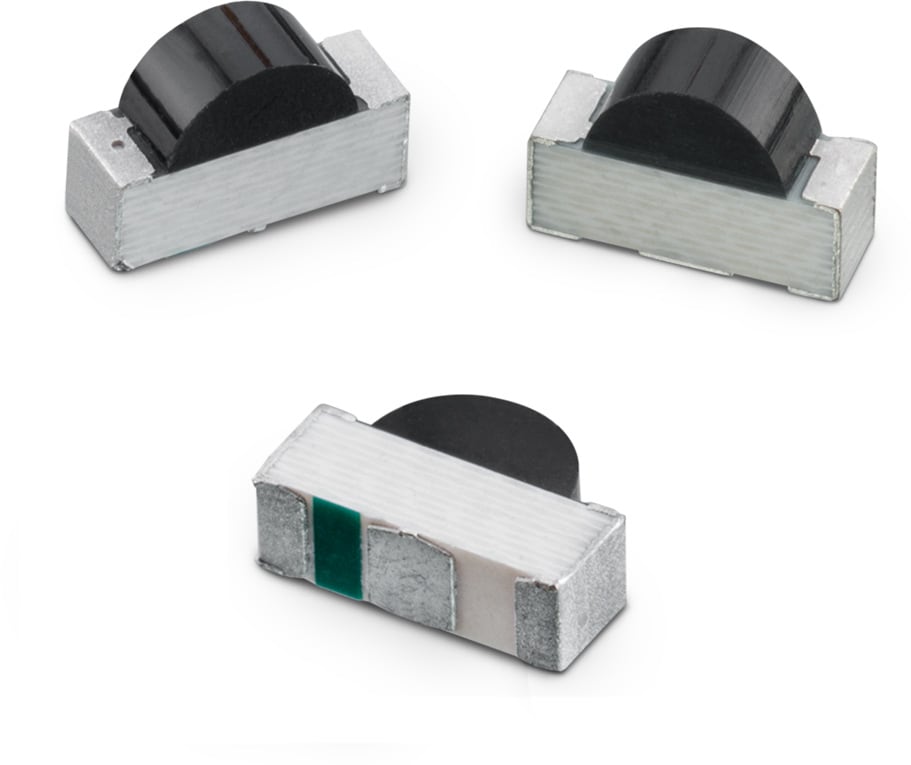

WL-SDSB SMT Photodiode Sideview Black

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1002		2.4	0.6	1.4	-
1104		3	1	2	SMT

Characteristics

Sideview package
High Sensitivity
Small package size
High Reliability
Wide Viewing Angle

Applications

Infrared remote control
Light barrier
Infrared Sensor
Infrared data transmission
Infrared touch panels

Application Notes

ANO014 Signal transmission using IR diodes and photodetectors
PDF

Products

All

1002

1104

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_min.(nm)	λ_max.(nm)	I_{P typ.}(µA)	I_{D max.}(nA)	2θ_{50% typ.}(°)	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN

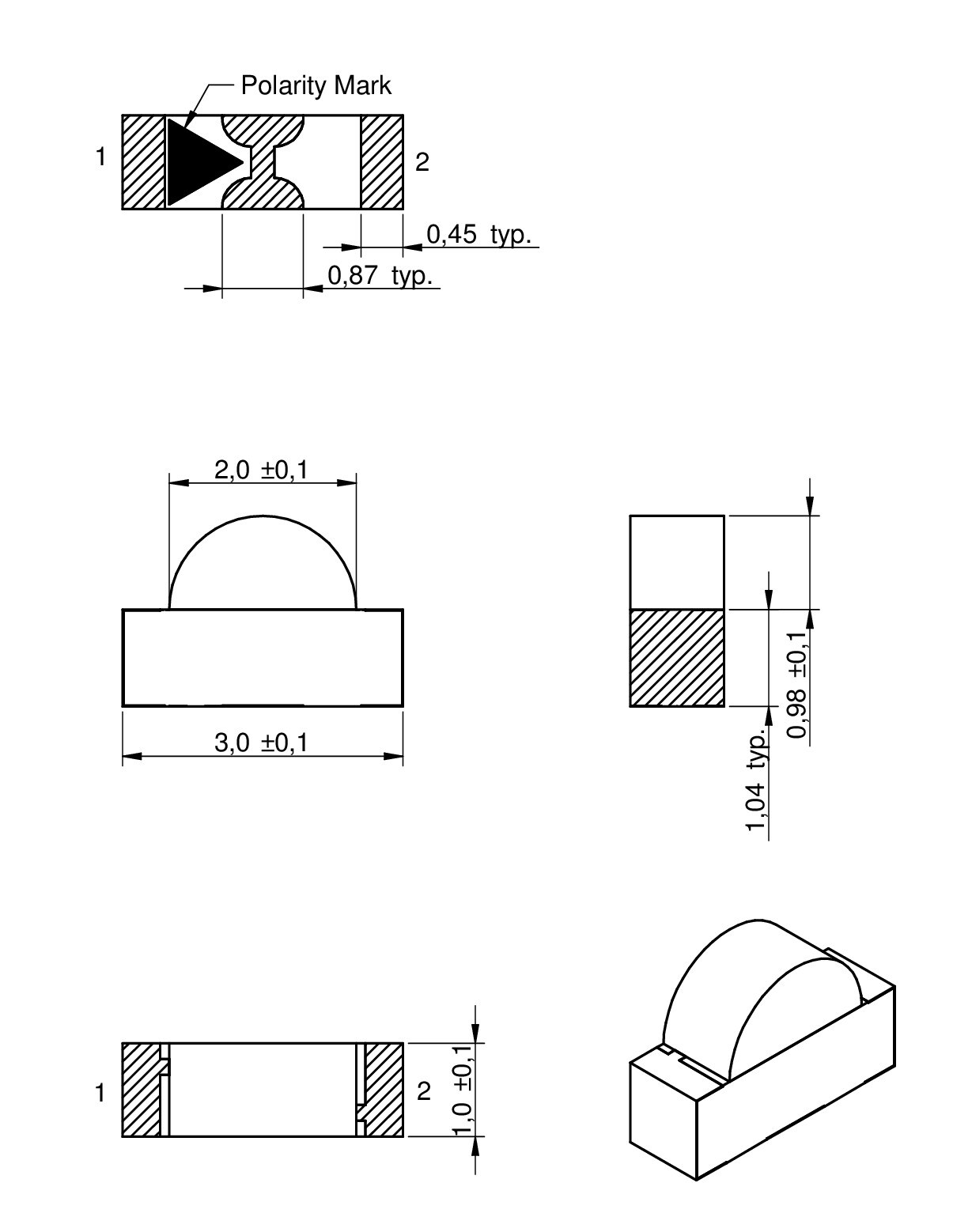

	1541141ECA570	SPEC940 nm, 700 nm, 1100 nm	Simulation	Availability –	Downloads6 files ALT Altium_WL-SDSB (rev22b).IntLib \| 69.5 KB CDS Cadence_WL-SDSB (rev19a).zip \| 250.7 KB EAG Eagle_WL-SDSB (rev21a).lbr \| 18.2 KB KIC KiCad_WL-SDSB (rev26a).zip \| 62.1 KB IGS Download_IGS_1541141ECA570 (rev1).igs \| 476.8 KB STP Download_STP_1541141ECA570 (rev1).stp \| 109 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]700 nm	Range of Spectral Bandwidth [max.]1100 nm	Photo Current [typ.]2.5 µA	Dark Current [max.]10 nA	Viewing Angle Phi 0° [typ.]150 °	–Check availability

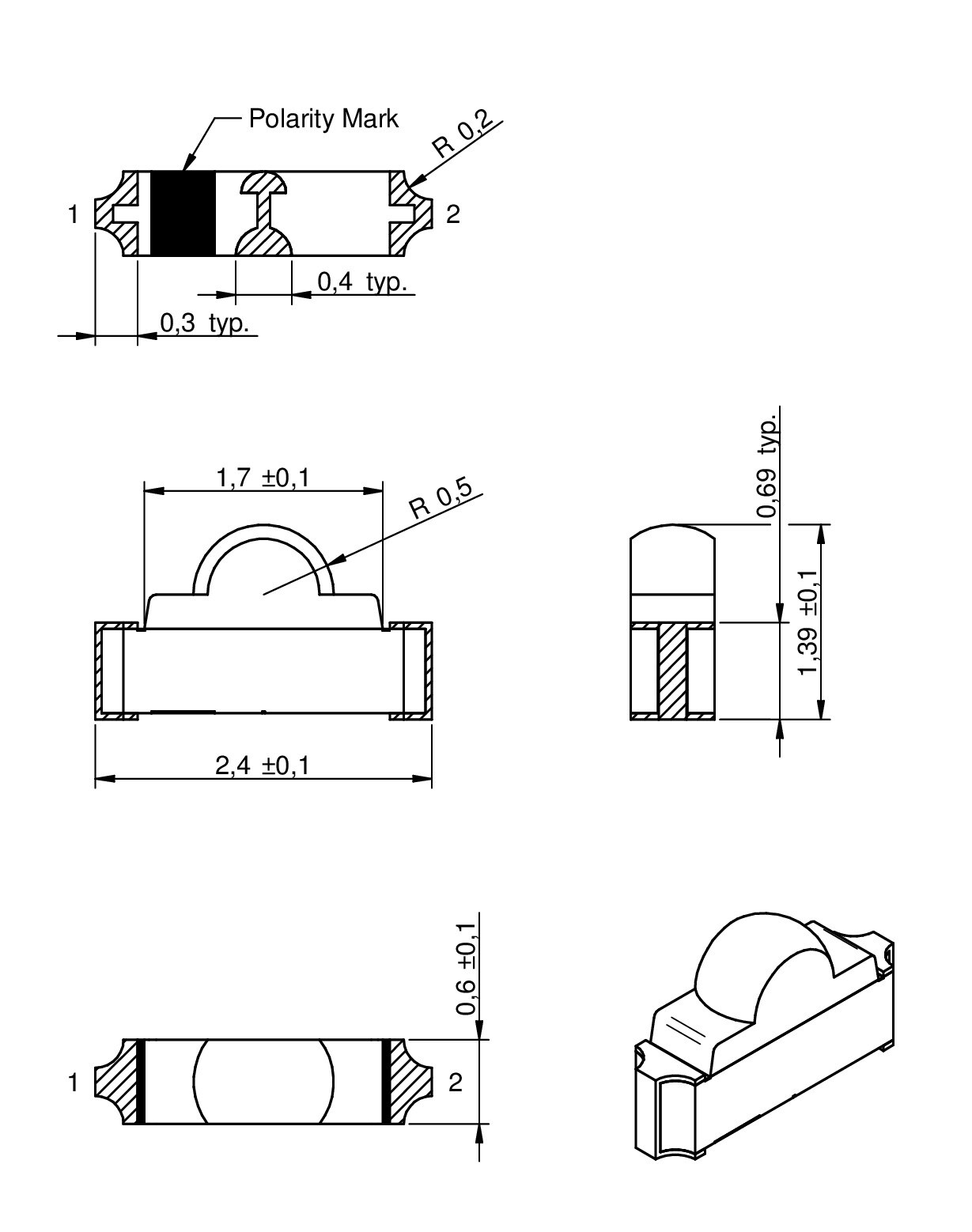

	1541021ECA170	SPEC940 nm, 700 nm, 1100 nm	Simulation	Availability –	Downloads6 files ALT Altium_WL-SDSB (rev22b).IntLib \| 69.5 KB CDS Cadence_WL-SDSB (rev19a).zip \| 250.7 KB EAG Eagle_WL-SDSB (rev21a).lbr \| 18.2 KB KIC KiCad_WL-SDSB (rev26a).zip \| 62.1 KB IGS Download_IGS_1541021ECA170 (rev1).igs \| 605.6 KB STP Downloads_STEP_1541021ECA170 (rev1).stp \| 142.4 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]700 nm	Range of Spectral Bandwidth [max.]1100 nm	Photo Current [typ.]2 µA	Dark Current [max.]10 nA	Viewing Angle Phi 0° [typ.]110 °	–Check availability

Suitable for

WL-SISW SMT Infrared Sideview LED Waterclear
