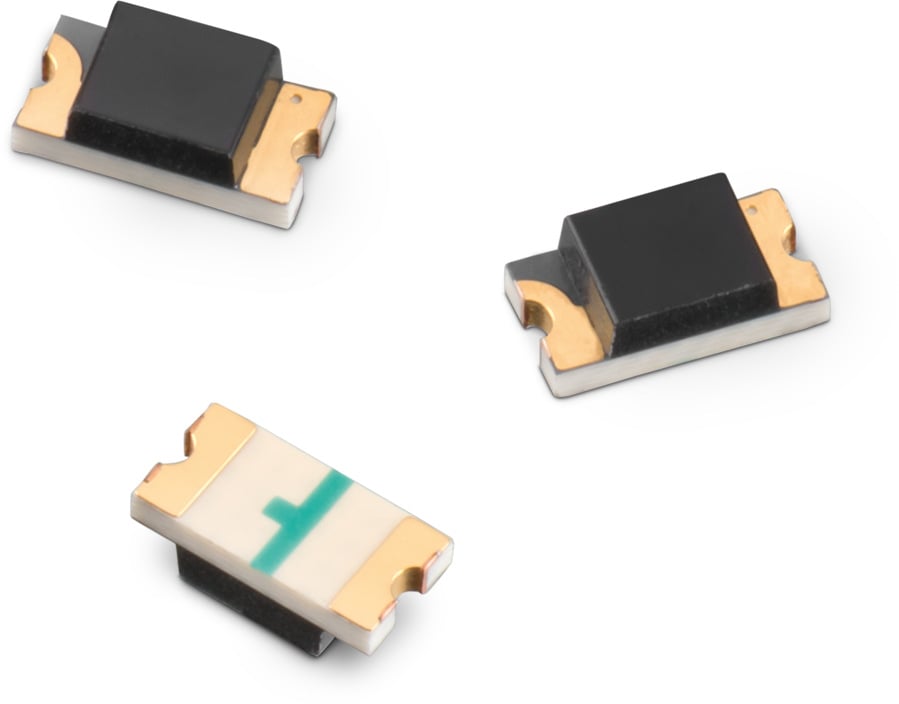

OverviewAll product units Product unitOptoelectronic Components Product groupInfrared Product familyPhotodiodes Product seriesWL-SDCB SMT Photodiode Chip Black

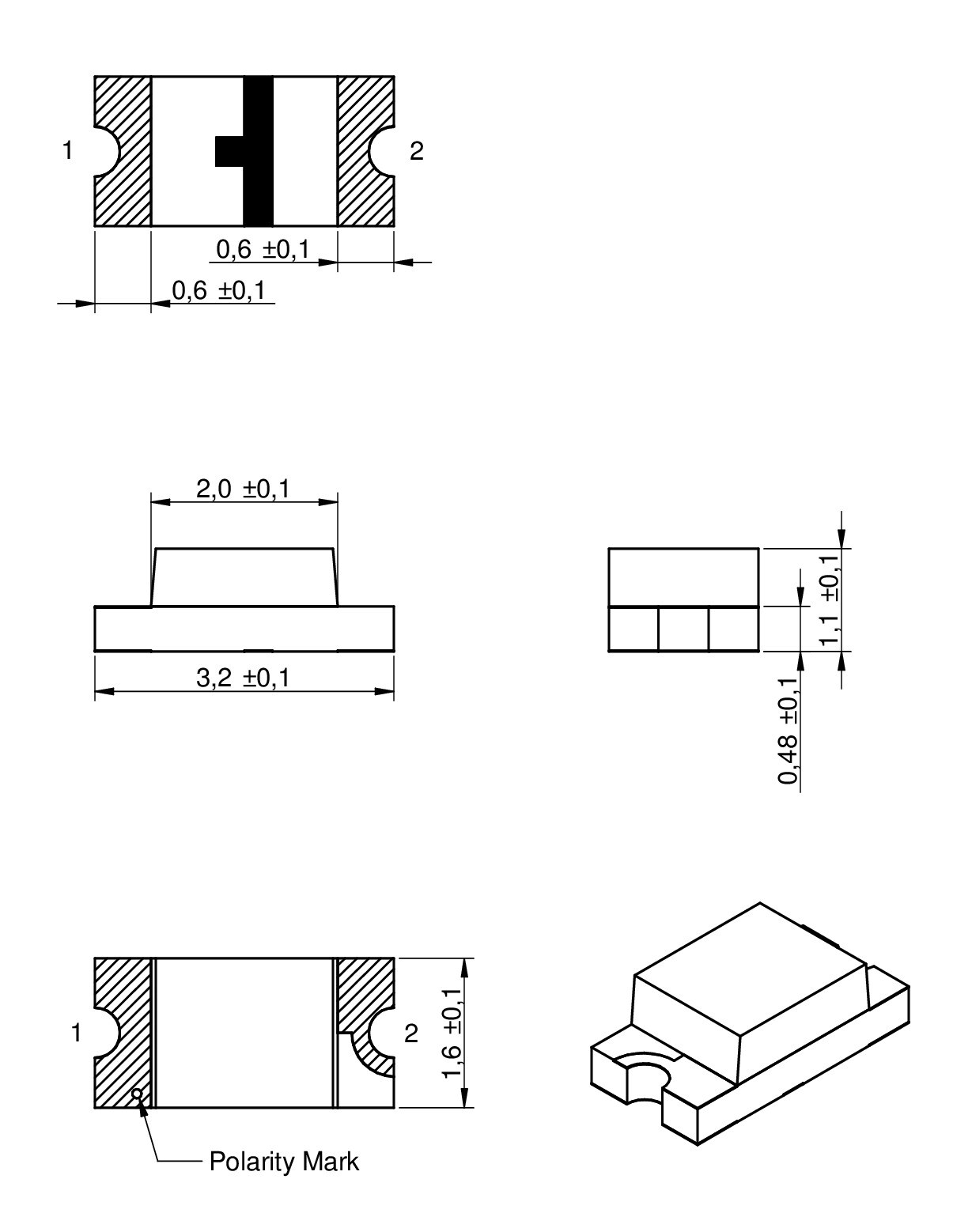

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
0805		2	1.3	0.8	-
1206		3.2	1.6	1.1	SMT

Characteristics

Standard package size
Wide viewing angle
Fast response time
High photo sensitivity

Applications

IR Data transmission
Touch Screen
Copier
Game machine
Security systems

Products

All

0805

1206

	Order Code	Datasheet	Simulation	Downloads	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	I_{P typ.} (µA)	I_{D max.} (nA)	2θ_{50% typ.} (°)	Samples
	1541201EEA400	SPEC		5 files EDA models: Components ZIP ALT Altium_WL-SDCB (rev22b).IntLib \| 65.5 KB CDS Cadence_WL-SDCB (rev19a).zip \| 213.4 KB EAG Eagle_WL-SDCB (rev20b).lbr \| 17.9 KB CAD files ZIP IGS Download_IGS_1541201EEA400 (rev1).igs \| 443.3 KB STP Download_STP_1541201EEA400 (rev1).stp \| 104.7 KB Download all 5 files as zip archive ZIP	940	700	1100	1.8	10	140
	1540801EEA300	SPEC		5 files EDA models: Components ZIP ALT Altium_WL-SDCB (rev22b).IntLib \| 65.5 KB CDS Cadence_WL-SDCB (rev19a).zip \| 213.4 KB EAG Eagle_WL-SDCB (rev20b).lbr \| 17.9 KB CAD files ZIP IGS Download_IGS_1540801EEA300 (rev1).igs \| 559.4 KB STP Download_STEP_1540801EEA300 (rev1).stp \| 122.9 KB Download all 5 files as zip archive ZIP	940	700	1100	1	10	130

	Order Code	Datasheet	Simulation
	1541201EEA400	SPEC
	1540801EEA300	SPEC

Samples

	Order Code	Datasheet	Simulation	Downloads	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	I_{P typ.} (µA)	I_{D max.} (nA)	2θ_{50% typ.} (°)	Samples

Suitable for

WL-SICW SMT Chip LED Infrared Waterclear
