OverviewAll product unitsProduct unitPassive ComponentsProduct groupPower MagneticsProduct familyShielded Power InductorsProduct seriesWE-XHMI SMT Power Inductor

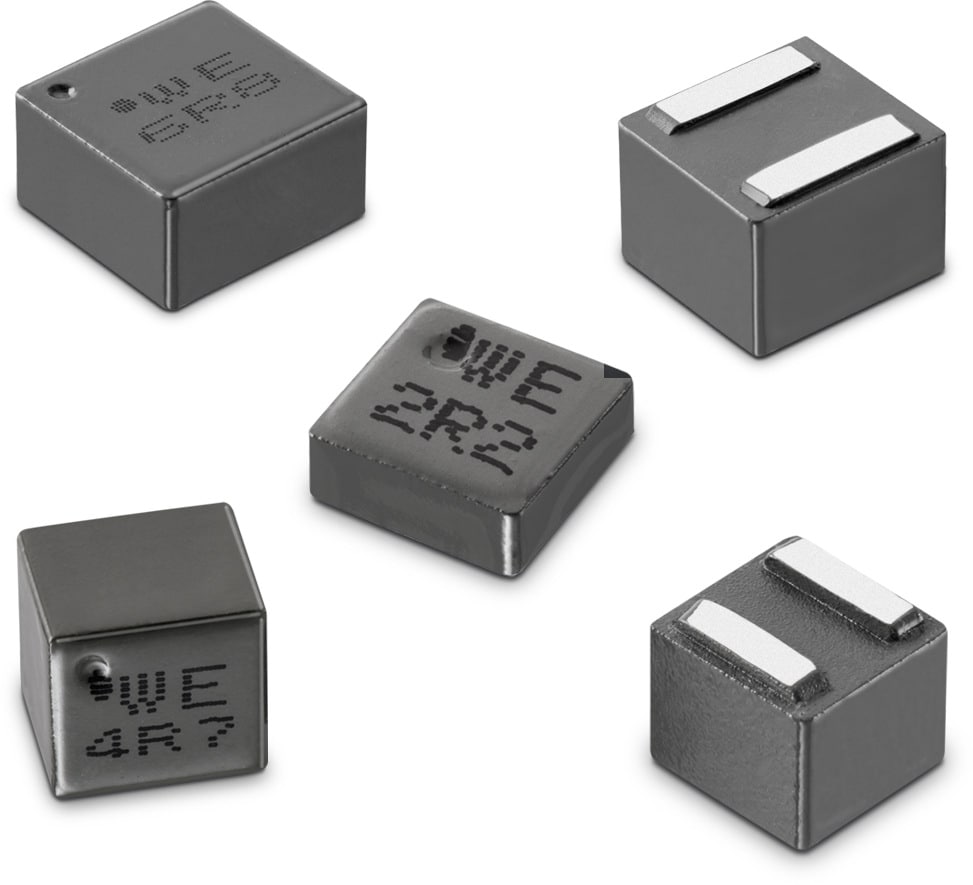

WE-XHMI SMT Power Inductor EXTENDED

Shielded

 Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount

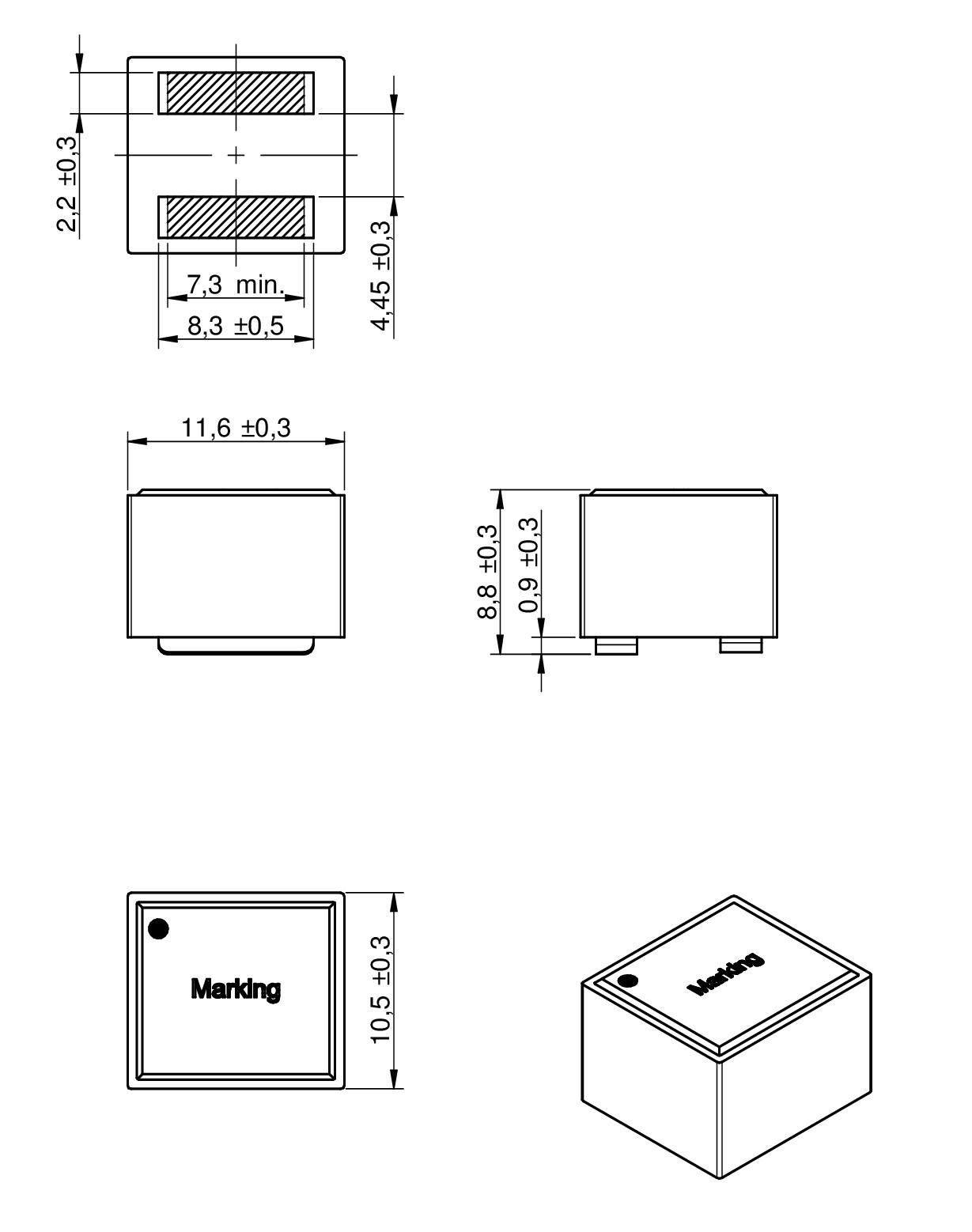

1090 11.6 10.5 9.1 SMT

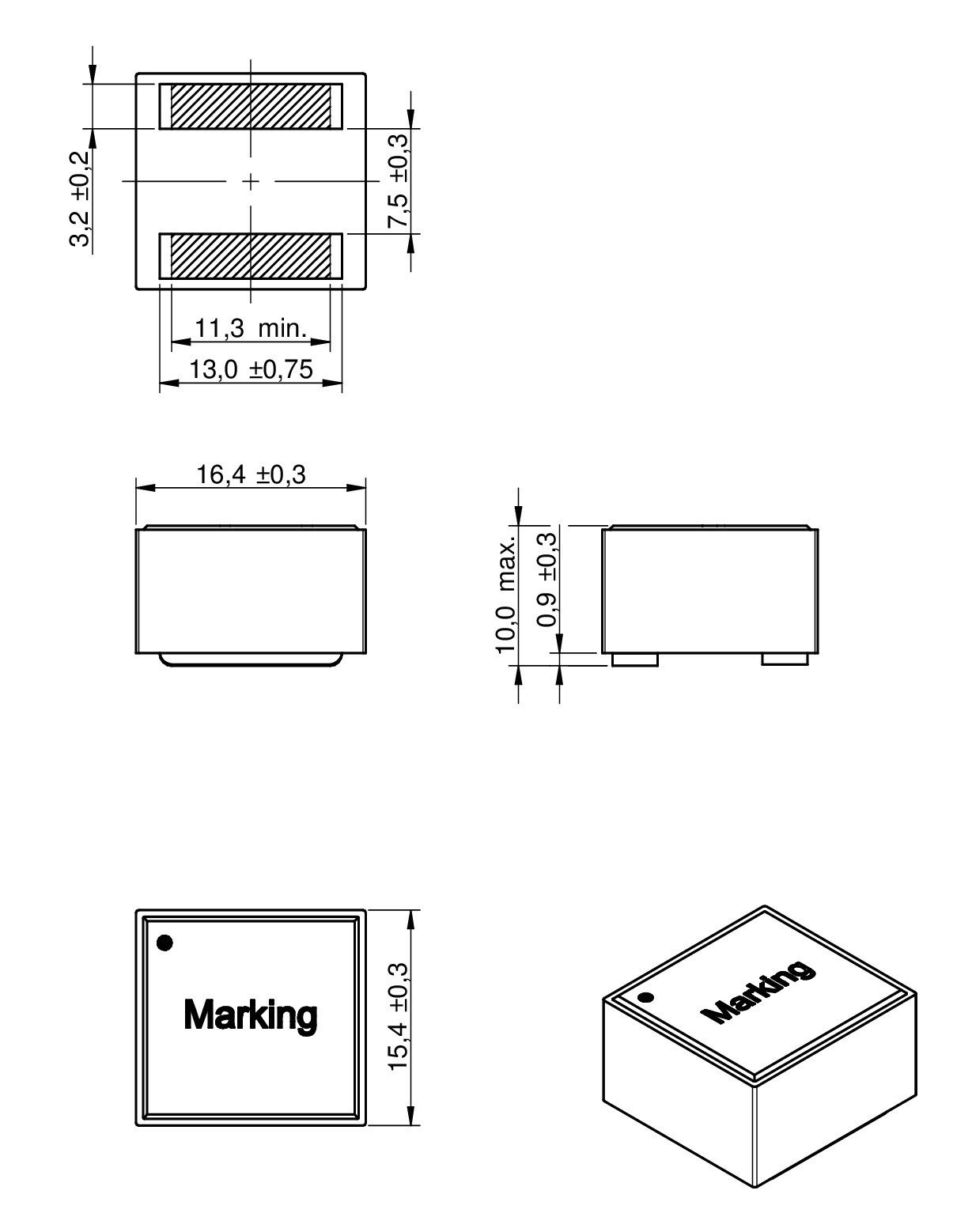

1510 16.4 15.4 10 SMT
NEW 4020 4.3 4.3 2 SMT
NEW 4030 4.3 4.3 3 SMT
NEW 4040 4.3 4.3 4.1 SMT
NEW 5020 5.55 5.35 2 SMT
NEW 5030 5.55 5.35 3 SMT
NEW 5050 5.55 5.35 5.1 SMT

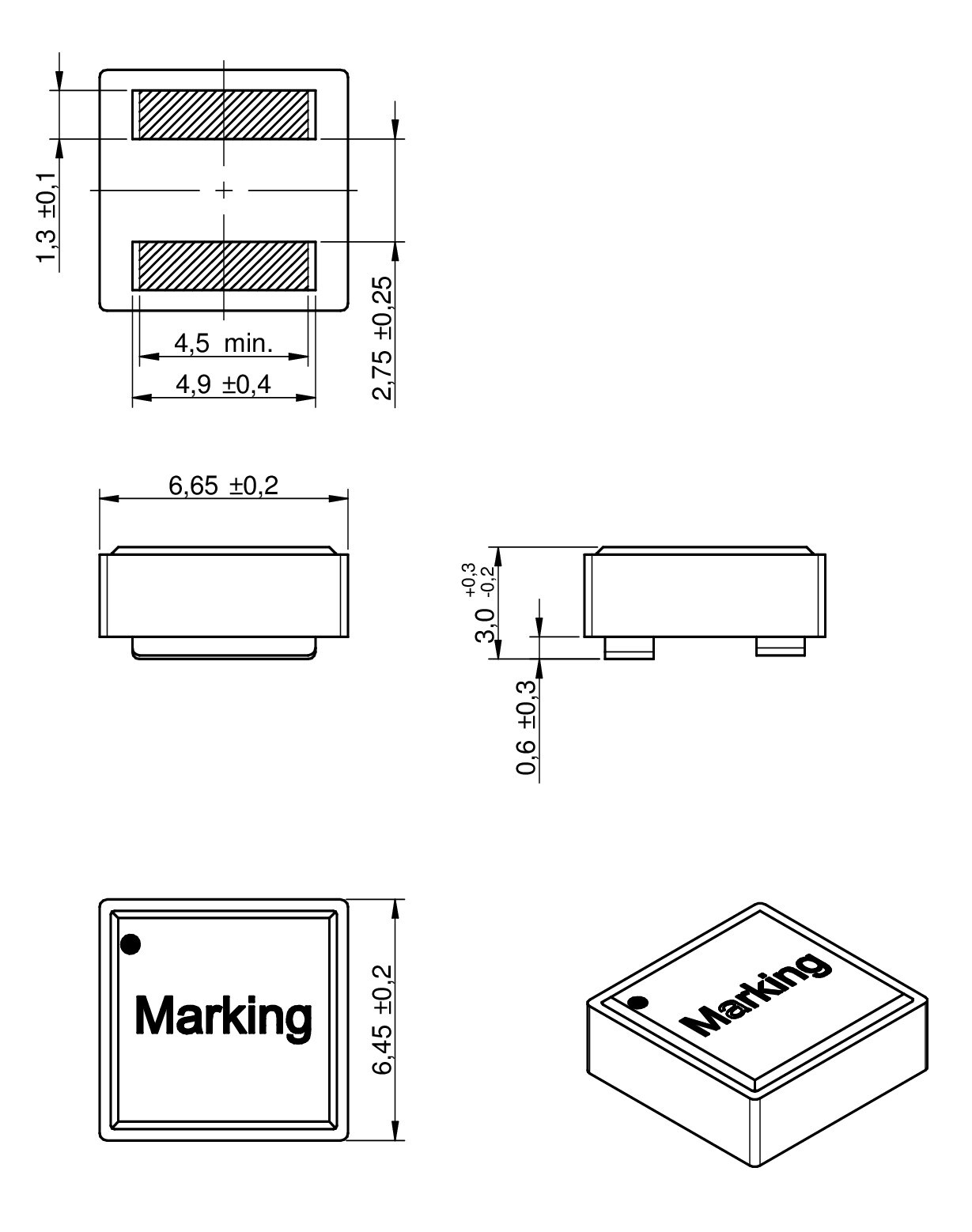

6030 6.65 6.45 3.3 SMT

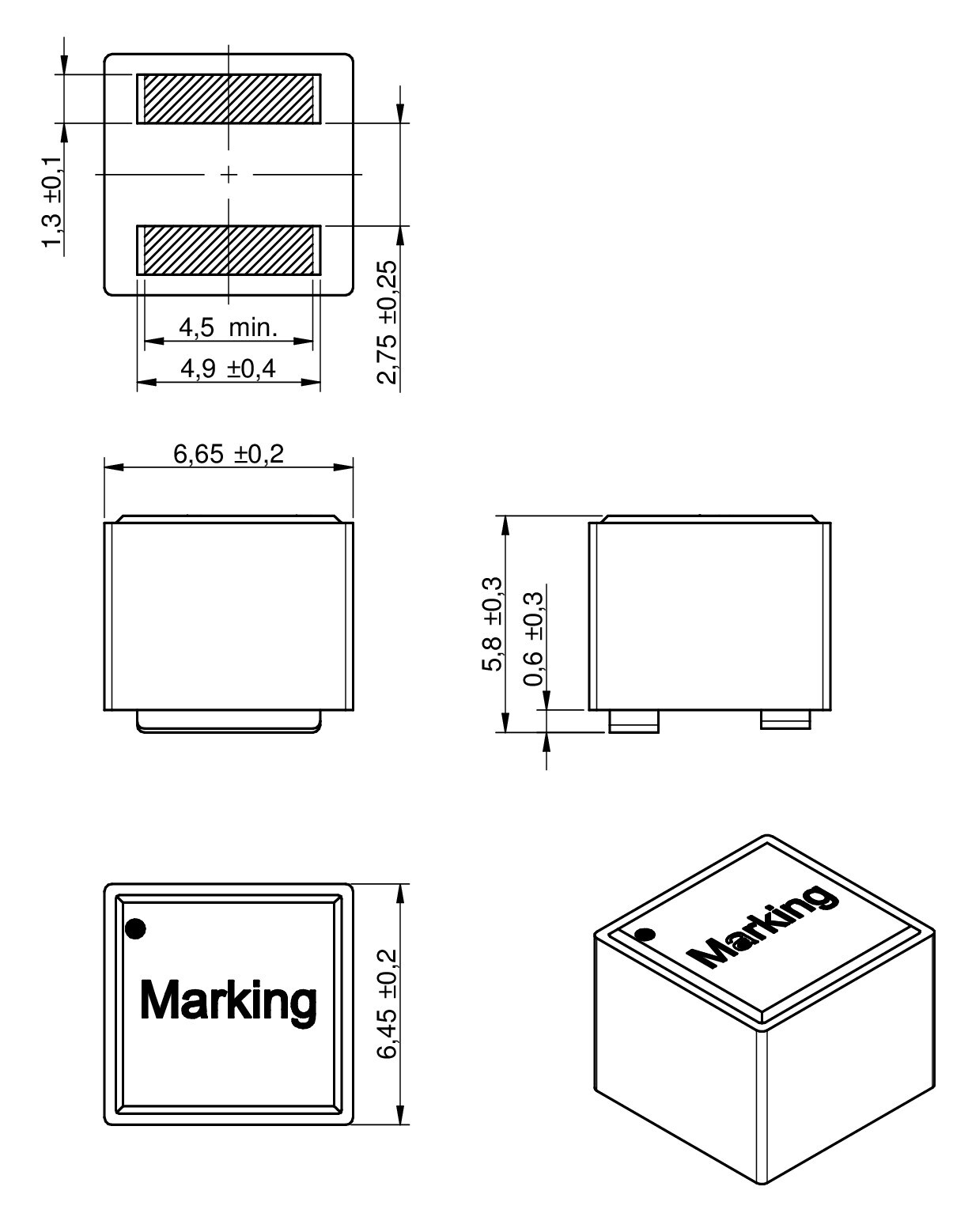

6060 6.65 6.45 6.1 SMT
NEW 7030 7.9 7.6 3 SMT
NEW 7070 7.9 7.6 7.1 SMT
8080 8.8 8.3 8 SMT

Characteristics

  • Flat wire coil for low copper losses
  • Composite core material allows high saturation currents
  • Compact design
  • Magnetically shielded
  • High current capability and handles high transient current spikes
  • Low leakage flux noise
  • Operating temperature: -40°C up to +125°C

Applications

  • DC/DC-converter for high current power supplies
  • DC/DC-converter for Field Programmable Gate Array (FPGA)
  • Power supplies for mobile devices
  • POL-converters
  • Mainboards/ graphic cards
  • Battery powered devices
  • Wireless communication devices
  • Filter

Products

All
1090
1510
4020
4030
4040
5020
5030
5050
6030
6060
7030
7070
8080
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IRP,40K
(A)
ISAT,30%
(A)
RDC
(mΩ)
RDC typ.
(mΩ)
fres
(MHz)
MountDesign Kit Samples
744393440015SPEC
7 files 0.15 37 56 1.24 191 SMT
NEW744393330016SPEC
7 files 0.16 24.7 41.5 2.2 190 SMT
744393440018SPEC
8 files 0.18 35.65 50.6 1.32 169 SMT7443934
NEW744393230022SPEC
7 files 0.22 20 24.2 3.05 160 SMT
744393440033SPEC
8 files 0.33 27.35 42.9 2.1 113 SMT7443934
NEW744393330033SPEC
7 files 0.33 20.8 27 3 105 SMT
NEW744393340033SPEC
7 files 0.33 21.2 33.3 3.01 105 SMT
NEW744393230047SPEC
7 files 0.47 14.5 12.8 5.25 95 SMT
NEW744393240047SPEC
7 files 0.47 17.1 19.2 3.9 105 SMT
744393440056SPEC
8 files 0.56 22.75 30.8 2.9 77 SMT7443934
NEW744393230056SPEC
7 files 0.56 12.7 12 6.3 85 SMT
NEW744393330056SPEC
7 files 0.56 15.4 21.6 5.2 90 SMT
NEW744393340056SPEC
7 files 0.56 18.3 24.4 3.99 75 SMT
NEW744393240064SPEC
7 files 0.64 15.2 17 4.8 90 SMT
744393580068SPEC
8 files 0.68 38 52.2 1.41 62 SMT
NEW744393230068SPEC
7 files 0.68 12.6 11.8 6.6 80 SMT
NEW744393330068SPEC
7 files 0.68 13.3 17.2 6.7 75 SMT
NEW744393340068SPEC
7 files 0.68 15.7 17.7 4.09 62 SMT
NEW744393230082SPEC
7 files 0.82 10.8 11.6 9.3 70 SMT
NEW744393240090SPEC
7 files 0.9 14 15.6 6.1 60 SMT
74439358010SPEC
8 files 1 30.25 38.15 2.1 53 SMT7443934
74439344010SPEC
8 files 1 15.75 24.95 5.5 59 SMT7443934
74439346010SPEC
7 files 1 20.95 24 3.39 60 SMT
NEW74439323010SPEC
7 files 1 10 10.2 10.7 60 SMT
NEW74439324010SPEC
7 files 1 11.1 12 8.7 55 SMT
NEW74439333010SPEC
7 files 1 11.4 14.4 9.5 55 SMT
NEW74439334010SPEC
7 files 1 14.7 13.4 6.3 48 SMT
NEW74439384010SPEC
7 files 1 23.7 25 3.9 45 SMT
74439344012SPEC
8 files 1.2 14.45 21.6 6.4 53 SMT7443934
74439346012SPEC
7 files 1.2 20.5 20 3.65 50 SMT
NEW74439323012SPEC
7 files 1.2 8.9 8.6 12.5 55 SMT
NEW74439324012SPEC
7 files 1.2 10.9 11.8 8.9 52 SMT
NEW74439333012SPEC
7 files 1.2 10.7 11.6 10.8 50 SMT
NEW74439334012SPEC
7 files 1.2 13.6 13.3 6.6 46 SMT
NEW74439384012SPEC
7 files 1.2 23.6 21.9 4.2 38 SMT
74439369015SPEC
7 files 1.5 40.6 38.55 1.46 31 SMT
74439346015SPEC
7 files 1.5 19.35 20.5 3.9 44 SMT
74439358015SPEC
8 files 1.5 25.1 32 2.91 37 SMT
NEW74439323015SPEC
7 files 1.5 7.8 8.4 16.3 53 SMT
NEW74439324015SPEC
7 files 1.5 10.6 11.6 10.1 48 SMT
NEW74439334015SPEC
7 files 1.5 12 13 8 42 SMT
NEW74439384015SPEC
7 files 1.5 20.1 18.8 5.1 36 SMT
74439346018SPEC
7 files 1.8 17.35 18.3 4.7 42 SMT
74439358022SPEC
8 files 2.2 21.85 26.45 3.7 33 SMT7443934
74439369022SPEC
8 files 2.2 32.05 32.1 2.2 28 SMT7443936
74439344022SPEC
8 files 2.2 10.85 16.25 10.5 37 SMT7443934
74439346022SPEC
7 files 2.2 15.75 19.5 5.58 37 SMT
NEW74439323022SPEC
7 files 2.2 7.2 6.3 20.2 37 SMT
NEW74439324022SPEC
7 files 2.2 7.8 10.5 16.6 40 SMT
NEW74439334022SPEC
7 files 2.2 10.3 12.8 11.3 35 SMT
NEW74439384022SPEC
7 files 2.2 16.7 13.8 7.9 27 SMT
74439369033SPEC
8 files 3.3 24.95 34 3.4 23 SMT7443936
74439344033SPEC
8 files 3.3 7.65 14.5 19.2 31 SMT7443934
74439387033SPEC
7 files 3.3 18.2 18.6 6.4 23 SMT
74439346033SPEC
7 files 3.3 10.7 15 10.83 31 SMT
NEW74439324033SPEC
7 files 3.3 7.1 8.2 20.2 30 SMT
NEW74439325033SPEC
7 files 3.3 7.2 7.9 20.4 30 SMT
NEW74439334033SPEC
7 files 3.3 8.2 8 16.3 25 SMT
NEW74439384033SPEC
7 files 3.3 11.4 13.6 14.4 25 SMT
74439358047SPEC
8 files 4.7 13.35 16.65 8.65 22 SMT7443934
74439369047SPEC
8 files 4.7 20 28.05 5 21 SMT7443936
74439370047SPEC
8 files 4.7 29.7 47.4 3.1 16 SMT7443936
74439346047SPEC
8 files 4.7 9.6 13 13 28 SMT7443934
74439387047SPEC
7 files 4.7 15 16 9.2 20 SMT
74439344047SPEC
8 files 4.7 5.8 10.5 31 28 SMT
NEW74439324047SPEC
7 files 4.7 5.3 5.8 31.3 28 SMT
NEW74439325047SPEC
7 files 4.7 5.7 5.7 26.5 25 SMT
NEW74439334047SPEC
7 files 4.7 6.8 7.5 22.9 22 SMT
NEW74439384047SPEC
7 files 4.7 9.5 11 19.8 18 SMT
74439369056SPEC
8 files 5.6 18.15 24.45 5.9 18 SMT7443936
74439346056SPEC
8 files 5.6 8.9 12.1 15 25 SMT7443934
74439387056SPEC
7 files 5.6 14.8 13.9 12.4 15 SMT
NEW74439325056SPEC
7 files 5.6 5.1 5.5 34.2 23 SMT
NEW744393305056SPEC
7 files 5.6 6.7 9.7 21.8 21 SMT
74439358068SPEC
8 files 6.8 10.55 17.6 13 22 SMT7443934
74439369068SPEC
8 files 6.8 16.3 23.25 7.16 16 SMT7443936
74439370068SPEC
8 files 6.8 25.3 40.05 4.1 14 SMT7443936
74439346068SPEC
8 files 6.8 8.1 11.3 17.6 22 SMT7443934
74439387068SPEC
7 files 6.8 12.5 13.7 12.4 15 SMT
NEW74439325068SPEC
7 files 6.8 4.1 4.9 42.3 23 SMT
NEW744393305068SPEC
7 files 6.8 6.6 6.9 23.7 18 SMT
74439370082SPEC
8 files 8.2 21.35 36.4 5.5 11 SMT7443936
74439346082SPEC
8 files 8.2 6.95 9.3 23 19 SMT7443934
74439369082SPEC
8 files 8.2 13.4 20.45 10 16 SMT
NEW744393305082SPEC
7 files 8.2 5.9 6.2 29.3 16 SMT
NEW74439387082SPEC
6 files 8.2 11.2 12.7 14.5 14 SMT
74439358100SPEC
8 files 10 8.5 13.5 19 17 SMT7443934
74439370100SPEC
8 files 10 19.6 31.2 6.4 9 SMT7443936
74439346100SPEC
8 files 10 6.4 9.7 26.5 18 SMT7443934
74439369100SPEC
8 files 10 12.7 20.3 11 14 SMT
NEW744393305100SPEC
7 files 10 5 6 35.4 14 SMT
NEW74439387100SPEC
6 files 10 9.6 12.6 19 13 SMT
74439370150SPEC
8 files 15 14.7 26.1 10.5 8 SMT7443936
74439346150SPEC
6 files 15 4.9 7.4 42 14 SMT
74439369150SPEC
8 files 15 10.75 16.95 14.8 11 SMT
74439358150SPEC
8 files 15 7.25 10.7 25 12 SMT
NEW744393305150SPEC
7 files 15 4 4.9 56.8 12 SMT
74439370220SPEC
8 files 22 13.35 22.35 12.5 7 SMT7443936
NEW744393305220SPEC
7 files 22 3.5 4 75 10 SMT
74439370330SPEC
8 files 33 10.8 18.15 18 5 SMT
Order Code Data­sheet Simu­lation
744393440015SPEC
NEW744393330016SPEC
744393440018SPEC
NEW744393230022SPEC
744393440033SPEC
NEW744393330033SPEC
NEW744393340033SPEC
NEW744393230047SPEC
NEW744393240047SPEC
744393440056SPEC
NEW744393230056SPEC
NEW744393330056SPEC
NEW744393340056SPEC
NEW744393240064SPEC
744393580068SPEC
NEW744393230068SPEC
NEW744393330068SPEC
NEW744393340068SPEC
NEW744393230082SPEC
NEW744393240090SPEC
74439358010SPEC
74439344010SPEC
74439346010SPEC
NEW74439323010SPEC
NEW74439324010SPEC
NEW74439333010SPEC
NEW74439334010SPEC
NEW74439384010SPEC
74439344012SPEC
74439346012SPEC
NEW74439323012SPEC
NEW74439324012SPEC
NEW74439333012SPEC
NEW74439334012SPEC
NEW74439384012SPEC
74439369015SPEC
74439346015SPEC
74439358015SPEC
NEW74439323015SPEC
NEW74439324015SPEC
NEW74439334015SPEC
NEW74439384015SPEC
74439346018SPEC
74439358022SPEC
74439369022SPEC
74439344022SPEC
74439346022SPEC
NEW74439323022SPEC
NEW74439324022SPEC
NEW74439334022SPEC
NEW74439384022SPEC
74439369033SPEC
74439344033SPEC
74439387033SPEC
74439346033SPEC
NEW74439324033SPEC
NEW74439325033SPEC
NEW74439334033SPEC
NEW74439384033SPEC
74439358047SPEC
74439369047SPEC
74439370047SPEC
74439346047SPEC
74439387047SPEC
74439344047SPEC
NEW74439324047SPEC
NEW74439325047SPEC
NEW74439334047SPEC
NEW74439384047SPEC
74439369056SPEC
74439346056SPEC
74439387056SPEC
NEW74439325056SPEC
NEW744393305056SPEC
74439358068SPEC
74439369068SPEC
74439370068SPEC
74439346068SPEC
74439387068SPEC
NEW74439325068SPEC
NEW744393305068SPEC
74439370082SPEC
74439346082SPEC
74439369082SPEC
NEW744393305082SPEC
NEW74439387082SPEC
74439358100SPEC
74439370100SPEC
74439346100SPEC
74439369100SPEC
NEW744393305100SPEC
NEW74439387100SPEC
74439370150SPEC
74439346150SPEC
74439369150SPEC
74439358150SPEC
NEW744393305150SPEC
74439370220SPEC
NEW744393305220SPEC
74439370330SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IRP,40K
(A)
ISAT,30%
(A)
RDC
(mΩ)
RDC typ.
(mΩ)
fres
(MHz)
MountDesign Kit Samples

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.

Flat Wire Inductor

Designed For Efficiency!

Electronic devices are getting more efficient and smaller. Therefore it is important that electronic components are designed accordingly. To fulfill these requirements WE inductors are using optimized core materials and suitable wire shapes like flat wire. The WE-XHMI series features an extremely high current capability of up to 56 A saturation current and the ability to handle high current transient peaks. Its design with flat wire coil and a composite core material ensures low AC copper losses and stable behavior under temperature fluctuations.

The size difference between WE-XHMI and a conventional standard shielded power inductor

Using flat wire is space saving and requires less space on the PCB than an equivalent round wire inductor in terms of volume. When comparing 1:1 sizes, flat wire inductors offer better rated currents than an equivalent round wire inductors and therefore can be operated at higher currents.
