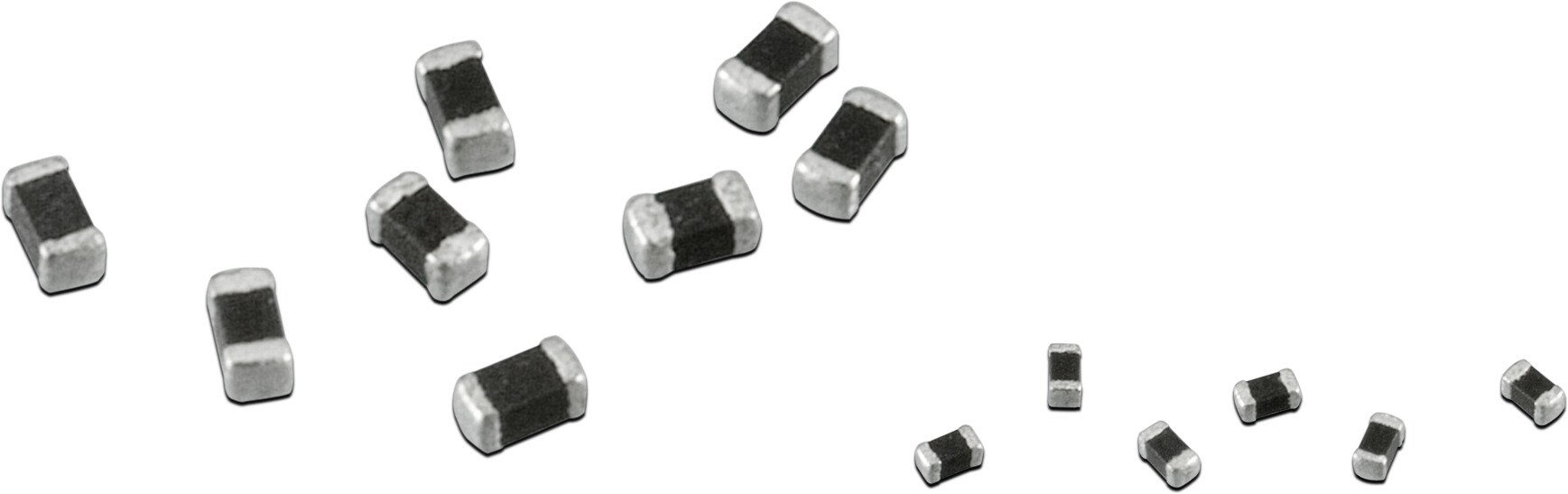

WE-VE ESD Suppressor

WE-VS SMT Varistor. Fast response time. Nickel barrier for leadfree soldering.

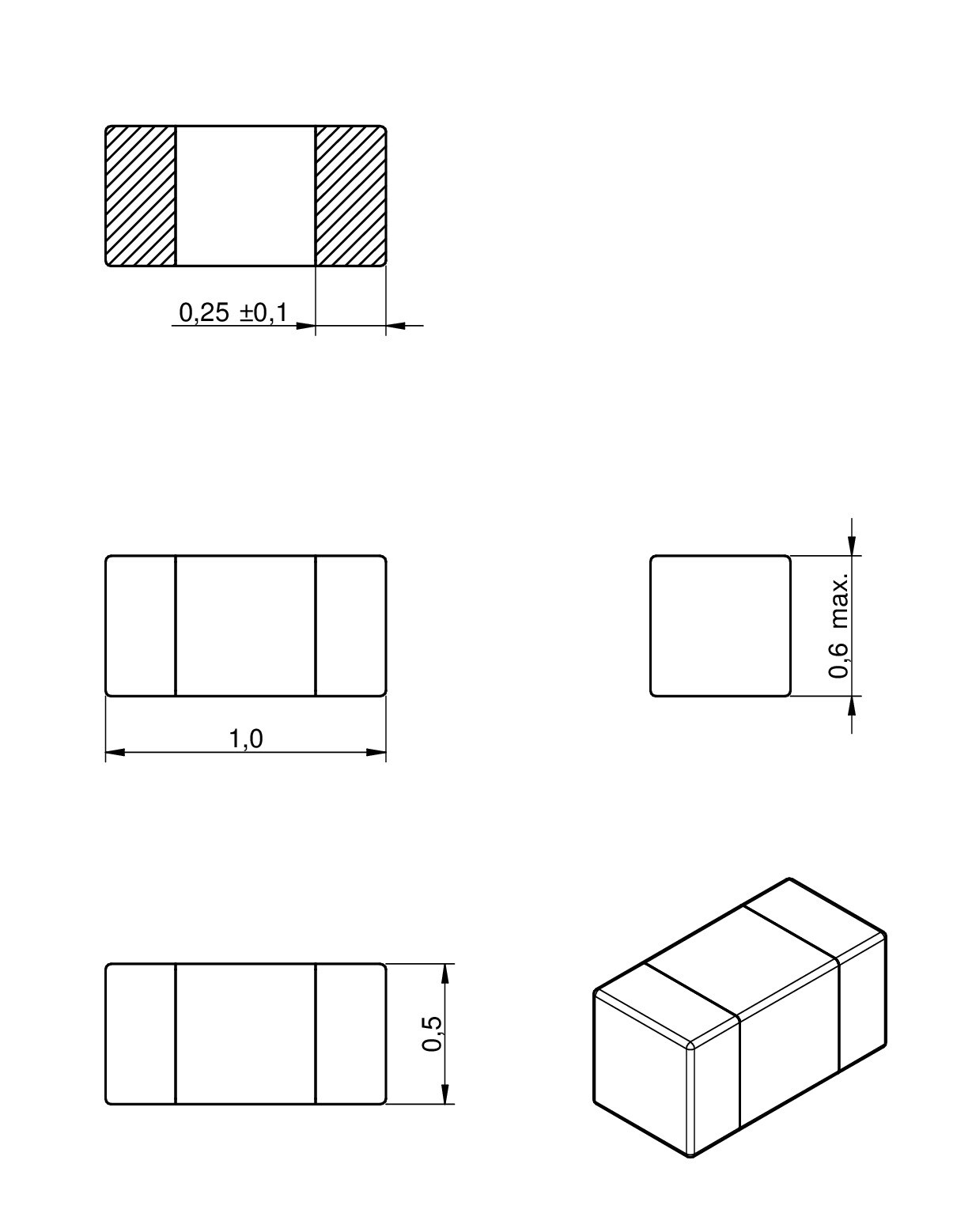

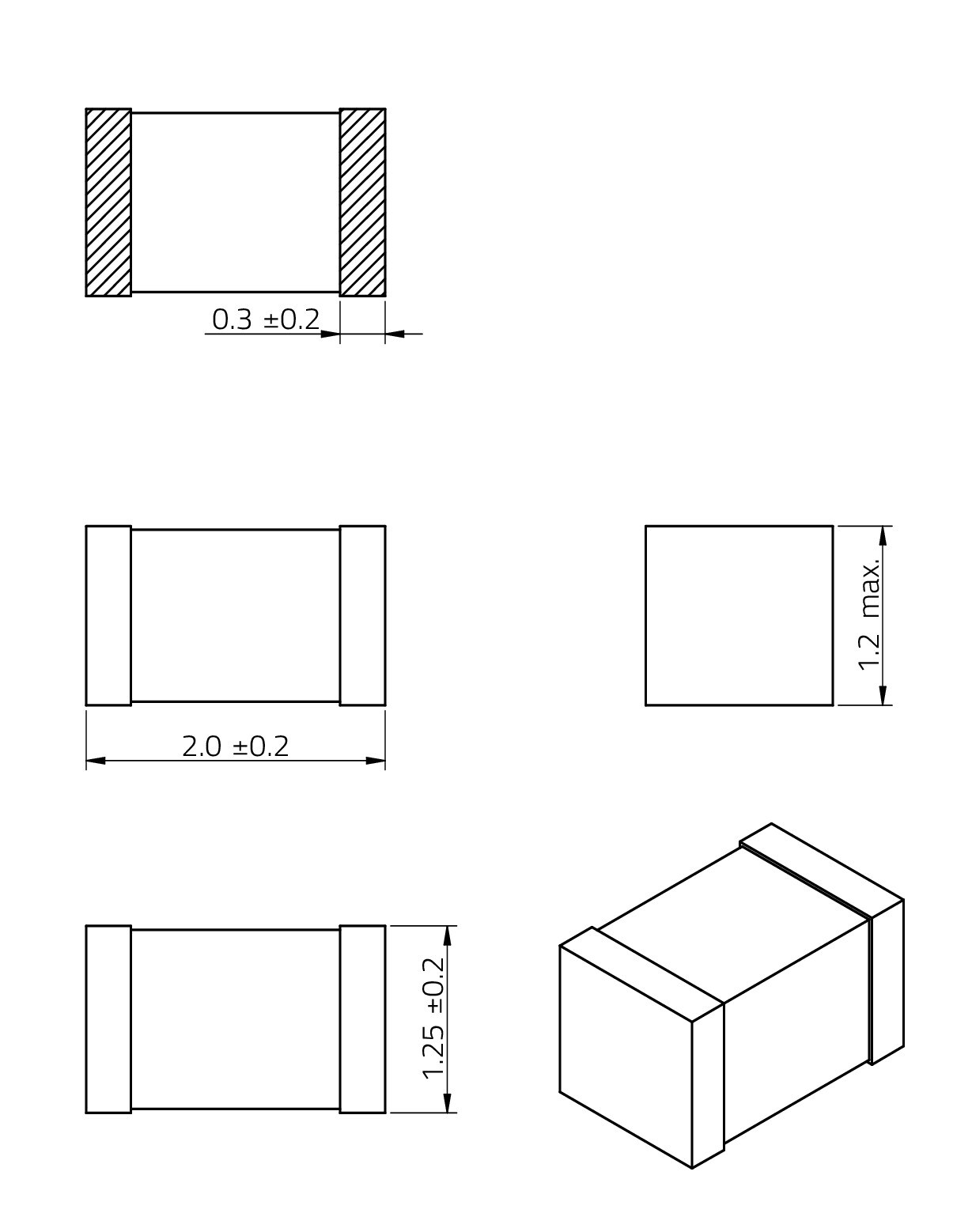

Size	L (mm)	W (mm)	H (mm)	Fl (mm)	Mount
0402	1	0.5	0.6	0.25	SMT
0603	1.6	0.8	0.9	0.3	SMT
0805	2	1.25	1.2	0.3	SMT

LTSpice files

LT
LTspice_WE-VE (rev25a).zip
|
5.4 KB

Characteristics

Fast response time
No leakage current
Low clamping voltage
Almost no energy consumption in stand-by mode
Excellent absorption for ESD-impulses
Operating temperature: –40 ºC to +85 ºC
Nickel barrier

Applications

Protection of data lines
Protection of bus systems
Protection of semiconductors
ESD protection in accordance with EN 61000-4-2:
– 8 kV contact discharge
– 15 kV air discharge

Application Notes

Products

All

0402

0603

0805

Order Code	Datasheet	Downloads	Status	Channels	C_{Ch typ.} (pF)	C_{Ch max.} (pF)	V_{Ch min.} (V)	V_{Ch max.} (V)	V_{Clamp typ.} (V)	V_{ESD Contact} (kV)	Size	Application	Filter Stick	Filter Bag	Design Kit
82357050100	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0402_VE (rev1).igs \| 157.9 KB STP WE-VE_0402_VE (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	10	13	-5	5	–	8	0402	USB 1.1 RS-232 LAN 10 Mbit	–	–	–
82357050220	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0402_VE (rev1).igs \| 157.9 KB STP WE-VE_0402_VE (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	22	28.6	-5	5	–	8	0402	–	–	–	–
82357050330	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0402_VE (rev1).igs \| 157.9 KB STP WE-VE_0402_VE (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	33	42.9	-5	5	–	8	0402	RS-422	–	–	–
82357050560	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0402_VE (rev1).igs \| 157.9 KB STP WE-VE_0402_VE (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	56	72.8	-5	5	55	8	0402	RS-485 IrDA 1.0	8294851	829485	823999
82357120050	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0402_VE (rev1).igs \| 157.9 KB STP WE-VE_0402_VE (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	5	9	-12	12	–	8	0402	USB 1.1 USB 2.0	–	–	–
82357120100	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0402_VE (rev1).igs \| 157.9 KB STP WE-VE_0402_VE (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	10	13	-12	12	–	8	0402	USB 1.1 RS-232 LAN 10 Mbit	–	–	–
82357120220	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0402_VE (rev1).igs \| 157.9 KB STP WE-VE_0402_VE (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	22	28.6	-12	12	–	8	0402	–	–	–	–
82357240010	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0402_VE (rev1).igs \| 157.9 KB STP WE-VE_0402_VE (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	1	1.5	-24	24	–	8	0402	–	–	–	–
82356050050	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	5	9	-5	5	–	8	0603	USB 1.1 USB 2.0	–	–	823999
82356050100	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	10	13	-5	5	–	8	0603	–	–	–	–
82356050220	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	22	28.6	-5	5	–	8	0603	–	–	–	823999
82356050560	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	56	72.8	-5	5	–	8	0603	–	–	–	–
82356050101	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	100	130	-5	5	–	8	0603	RS-485, Sensors	–	–	823999
82356120050	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	5	9	-12	12	–	8	0603	–	–	–	–
82356120100	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	10	13	-12	12	–	8	0603	USB 1.1 RS-232 LAN 10 Mbit	–	–	823999
82356120220	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	22	28.6	-12	12	–	8	0603	–	–	–	–
82356120330	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	33	42.9	-12	12	–	8	0603	–	–	–	–
82356240030	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0603_VE (rev1).igs \| 83.6 KB STP WE-VE_0603_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	3	4.5	-24	24	–	8	0603	USB 2.0 LAN 100 Mbit	–	–	823999
82350120560	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0805_VE (rev1).igs \| 83.1 KB STP WE-VE_0805_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	56	72.8	-12	12	–	8	0805	RS-232	–	–	823999
82350120101	SPEC	8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25b).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0805_VE (rev1).igs \| 83.1 KB STP WE-VE_0805_VE (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	100	130	-12	12	–	8	0805	RS-232, Sensors	–	–	823999

Order Code	Datasheet	Simulation
82357050100	SPEC
82357050220	SPEC
82357050330	SPEC
82357050560	SPEC
82357120050	SPEC
82357120100	SPEC
82357120220	SPEC
82357240010	SPEC
82356050050	SPEC
82356050100	SPEC
82356050220	SPEC
82356050560	SPEC
82356050101	SPEC
82356120050	SPEC
82356120100	SPEC
82356120220	SPEC
82356120330	SPEC
82356240030	SPEC
82350120560	SPEC
82350120101	SPEC
