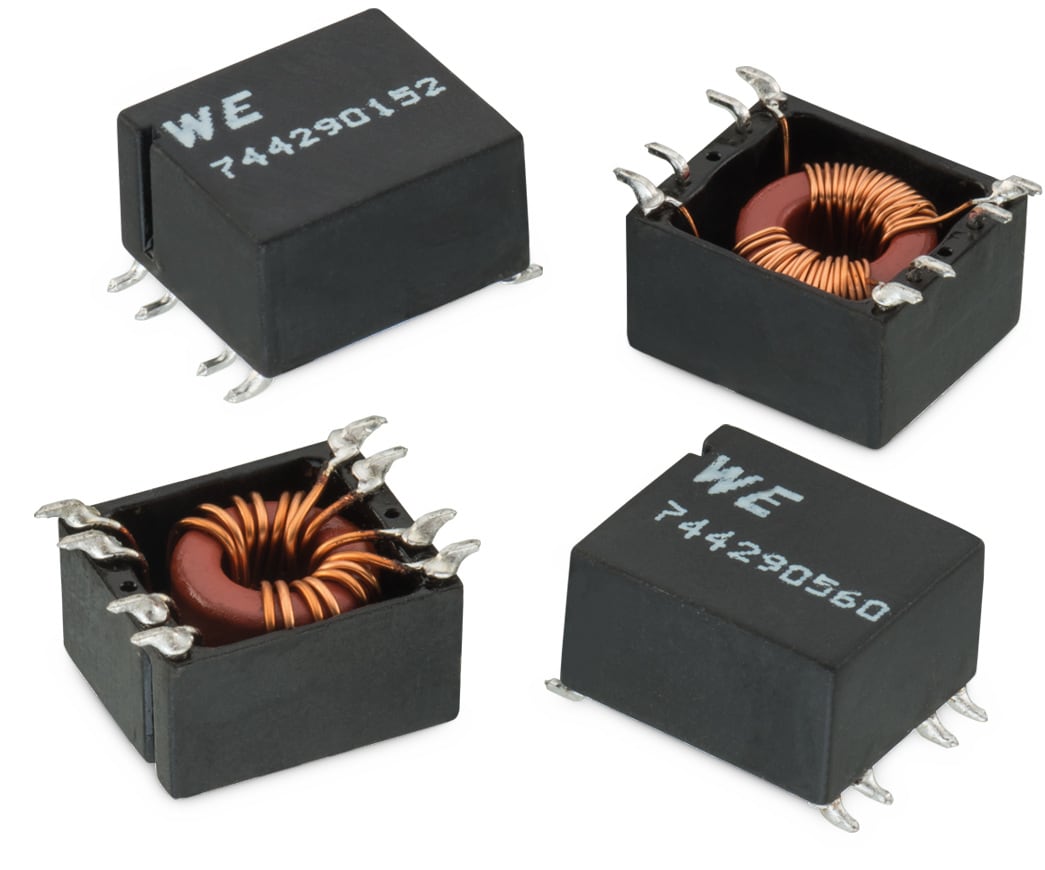

WE-UCF SMT Common Mode Line Filter

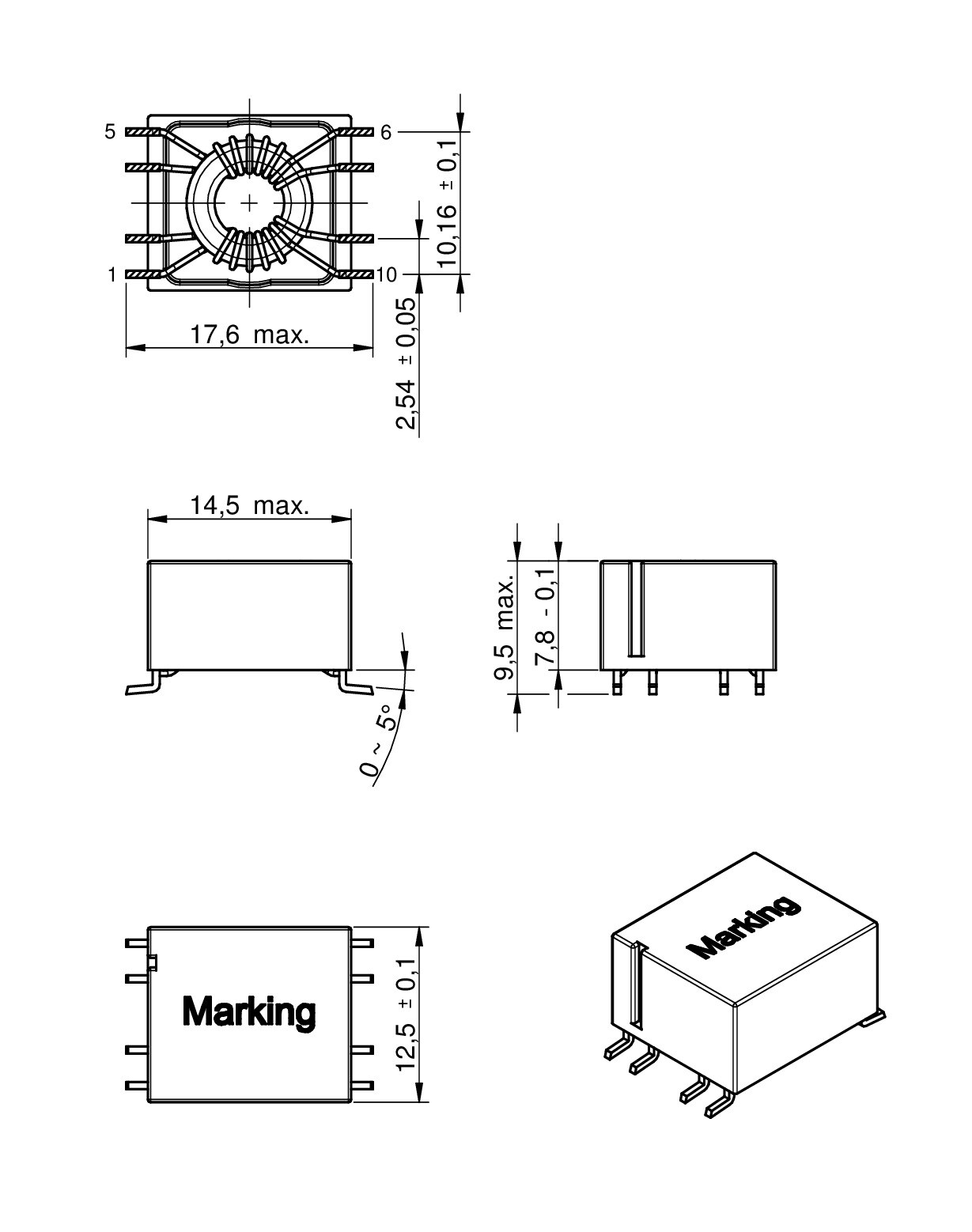

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
WE-UCF		16.6	12.5	9.3	SMT

LTSpice files

LT
LTSpice_WE-UCF (rev22a).zip
|
3.6 KB

Characteristics

High inductance range
High current range
Small package
Low profile
Surface mount technology
Wide range of filtering spectrum
Climatic category 40/125/21
Flammability corresponding to UL 94 V-0

Applications

Filtering
DC power lines
Buck-/ Boost Converter filtering
Data lines with low bitrate
Heavily influenced lines

Products

WE-UCF

Reset all

Filter article data

show article in 1 product lines

article in 1 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	Winding Style	L(mH)	L_S(nH)	I_R(A)	R_{DC max.}(Ω)	V_R(V)	V_T(V (AC))	Design Kit
744290130	sectional, 0.013 mH, 110 nH	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290130 (rev1).igs \| 3.5 MB STP 744290130 (rev1).stp \| 1.2 MB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB S S-PARAMETER_WE-UCF (rev19a).zip \| 608 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance0.013 mH	Leakage Inductance110 nH	Rated Current10 A	DC Resistance0.0027 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit 744725
744290560	sectional, 0.056 mH, 330 nH	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290560 (rev1).igs \| 3.5 MB STP 744290560 (rev1).stp \| 1.2 MB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB S S-PARAMETER_WE-UCF (rev19a).zip \| 608 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance0.056 mH	Leakage Inductance330 nH	Rated Current7 A	DC Resistance0.0047 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit –
744290121	sectional, 0.12 mH, 680 nH	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290121 (rev1).igs \| 3.5 MB STP 744290121 (rev1).stp \| 1.2 MB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB S S-PARAMETER_WE-UCF (rev19a).zip \| 608 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance0.12 mH	Leakage Inductance680 nH	Rated Current5.5 A	DC Resistance0.0105 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit –
744290321	sectional, 0.32 mH, 2200 nH	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290321 (rev1).igs \| 2.2 MB STP 744290321 (rev1).stp \| 765.2 KB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB S S-PARAMETER_WE-UCF (rev19a).zip \| 608 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance0.32 mH	Leakage Inductance2200 nH	Rated Current3.25 A	DC Resistance0.029 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit 744725
744290152	sectional, 1.5 mH, 13000 nH	Simulation	Downloads9 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290152 (rev1).igs \| 2.2 MB STP 744290152 (rev1).stp \| 765.2 KB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB S S-PARAMETER_WE-UCF (rev19a).zip \| 608 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance1.5 mH	Leakage Inductance13000 nH	Rated Current1.5 A	DC Resistance0.12 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit 744725
744290472	sectional, 4.7 mH, 25000 nH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290472 (rev1).igs \| 2.2 MB STP 744290472 (rev1).stp \| 765.2 KB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance4.7 mH	Leakage Inductance25000 nH	Rated Current0.75 A	DC Resistance0.52 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit –
744290103	sectional, 10 mH, 83000 nH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290103 (rev1).igs \| 2.2 MB STP 744290103 (rev1).stp \| 765.2 KB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance10 mH	Leakage Inductance83000 nH	Rated Current0.5 A	DC Resistance0.92 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit 744725
744290283	sectional, 28 mH, 220000 nH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290283 (rev1).igs \| 2.2 MB STP 744290283 (rev1).stp \| 765.2 KB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance28 mH	Leakage Inductance220000 nH	Rated Current0.3 A	DC Resistance2.8 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit –
744290473	sectional, 47 mH, 460000 nH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290473 (rev1).igs \| 2.2 MB STP 744290473 (rev1).stp \| 765.2 KB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance47 mH	Leakage Inductance460000 nH	Rated Current0.25 A	DC Resistance4 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit –
744290683	sectional, 68 mH, 960000 nH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290683 (rev1).igs \| 2.2 MB STP 744290683 (rev1).stp \| 765.2 KB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance68 mH	Leakage Inductance960000 nH	Rated Current0.2 A	DC Resistance5 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit –
744290104	sectional, 100 mH, 780000 nH	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-UCF (rev22a).IntLib \| 200 KB CDS Cadence_WE-UCF (rev22a).zip \| 1 MB EAG Eagle_WE-UCF (rev21a).lbr \| 22.4 KB KIC KiCad_WE-UCF (rev25b).zip \| 243.8 KB ZUK Cadstar_WE-UCF (rev19a).zip \| 6.2 KB CAD files ZIP IGS 744290104 (rev1).igs \| 2.2 MB STP 744290104 (rev1).stp \| 765.2 KB Electric models ZIP PSP PSpice_WE-UCF (rev22a).zip \| 6.5 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Winding Stylesectional	Inductance100 mH	Leakage Inductance780000 nH	Rated Current0.15 A	DC Resistance8.5 Ω	Rated Voltage80 V	Insulation Test Voltage500 V (AC)	Design Kit 744725

Assortments

Articles from this product series can be found in the following assortments:

Design Kit SMT Common Mode Filters for Data Line Chokes
