WE-TVSP Power TVS Diode

SizeL
(mm)
W
(mm)
H
(mm)
Mount

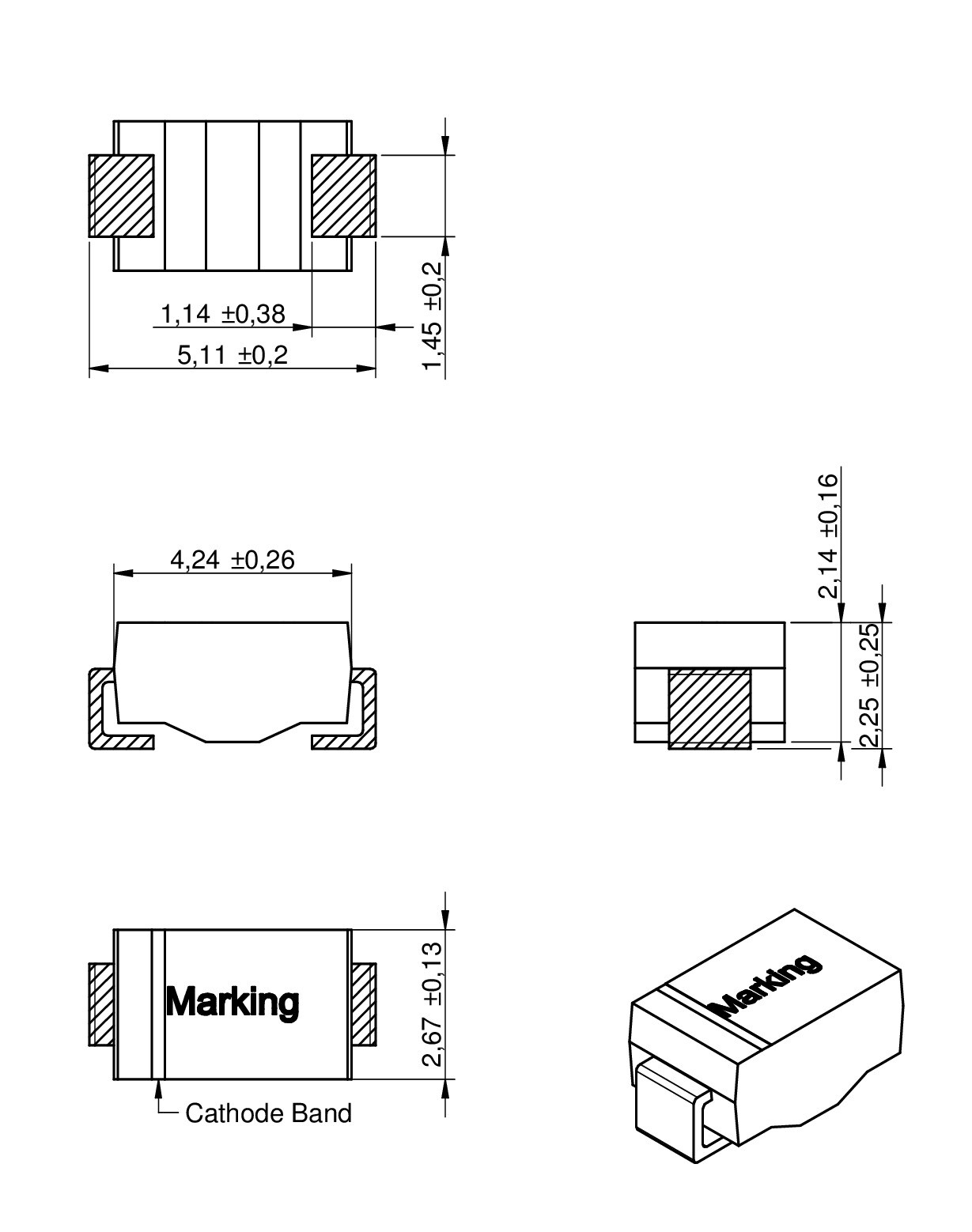

DO-214AC 400W Unidirectional 4.24 2.67 2.25 SMT

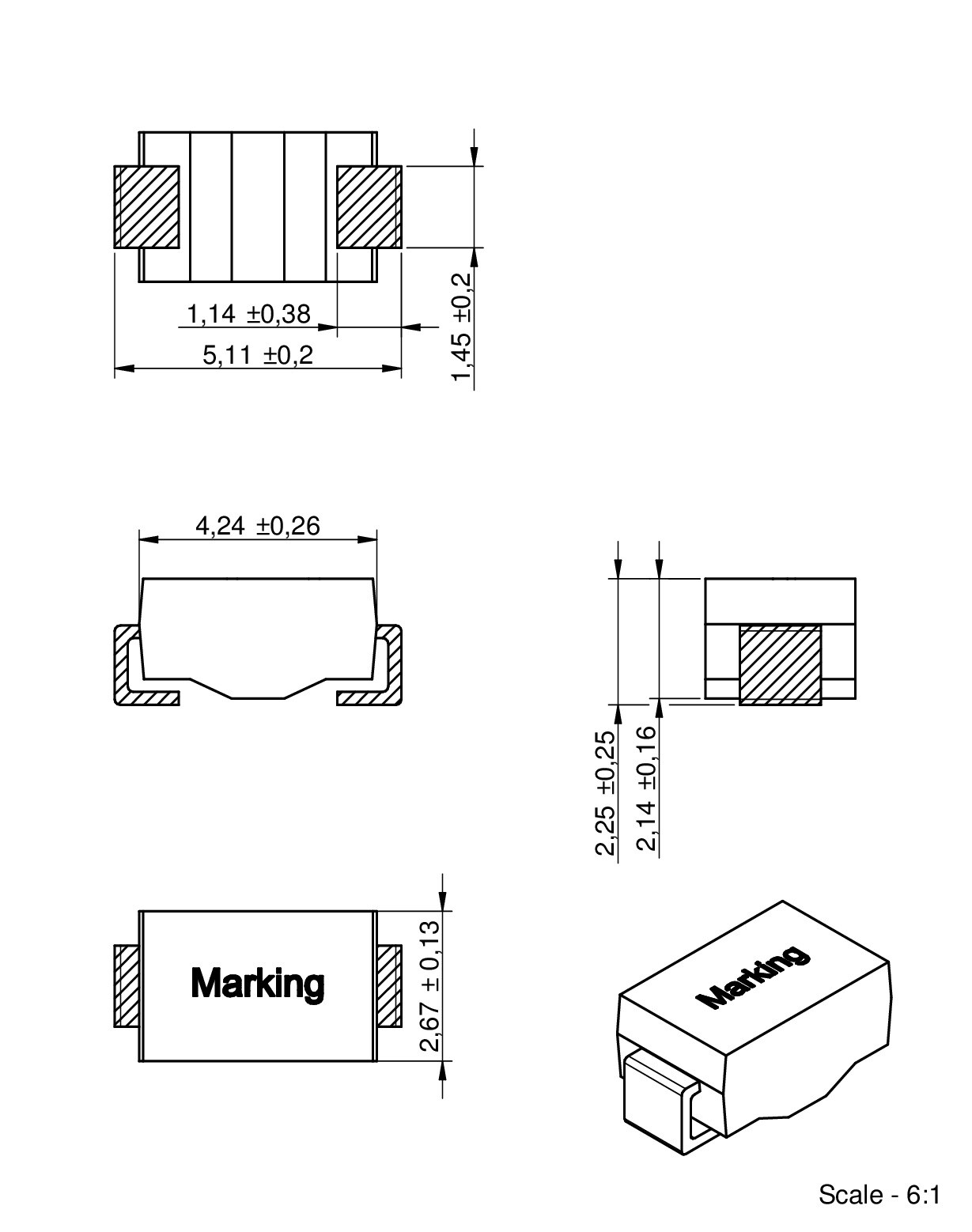

DO-214AC 400W Bidirectional 4.24 2.67 2.25 SMT

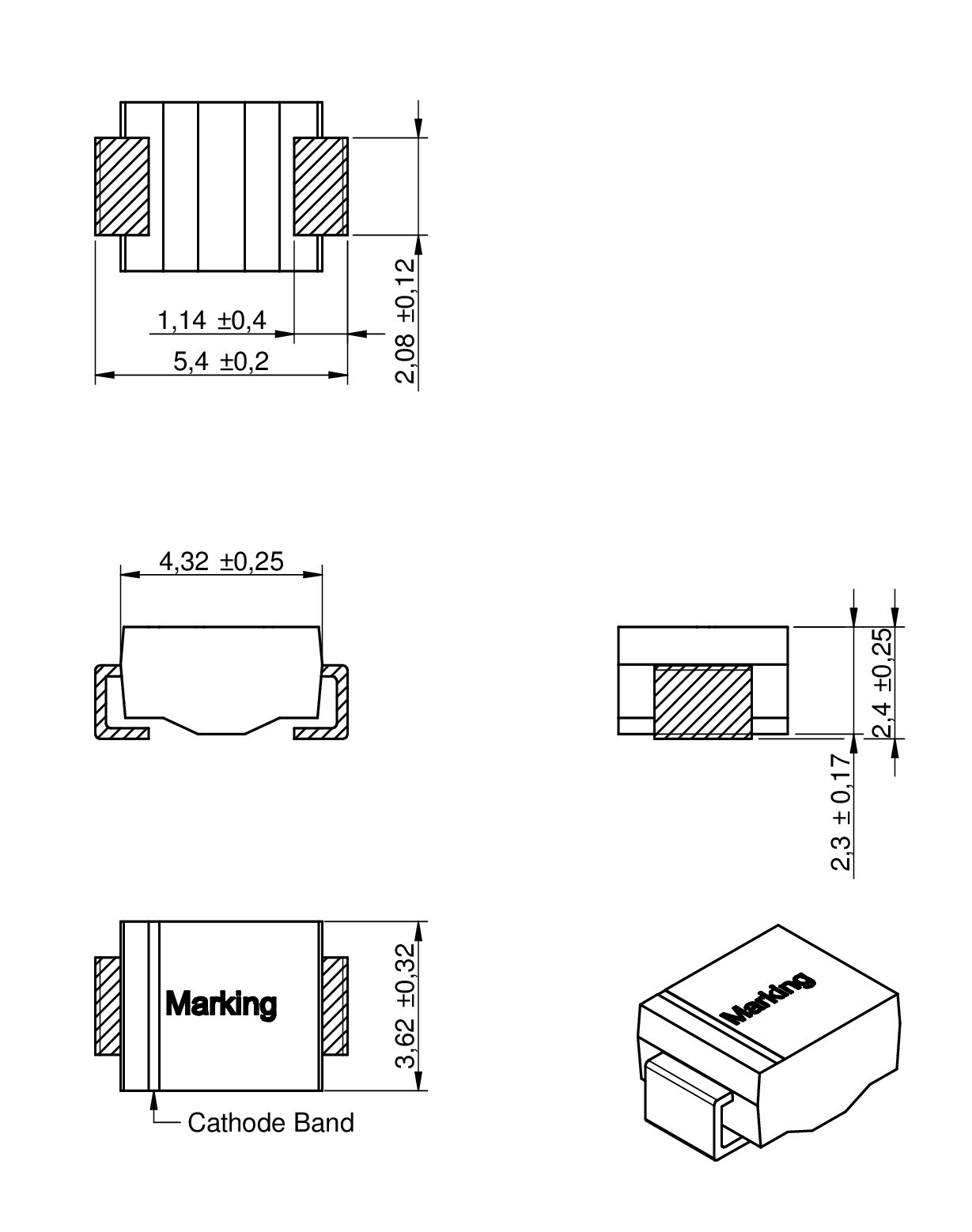

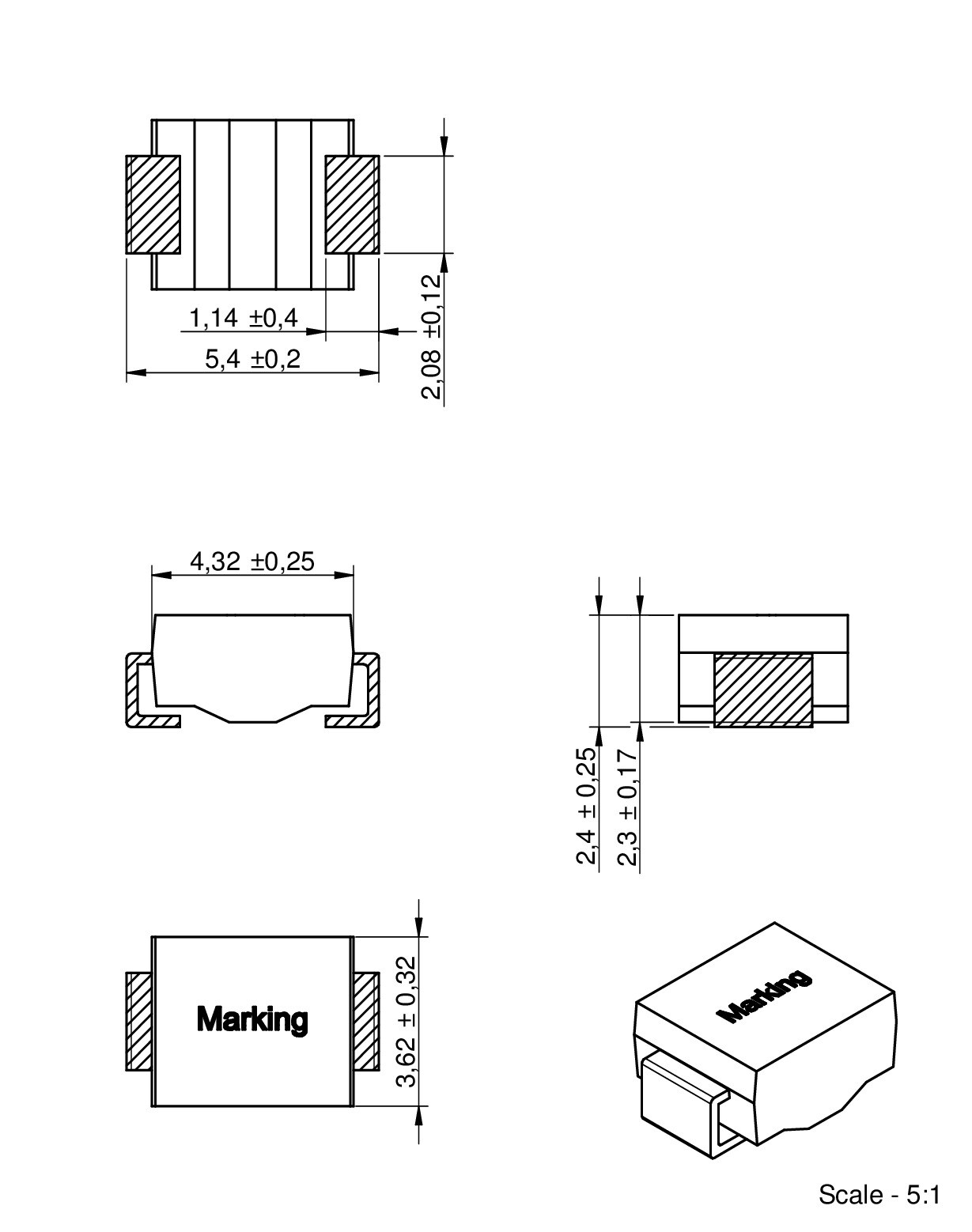

DO-214AA 600W Unidirectional 4.32 3.62 2.4 SMT
DO-214AA 600W Bidirectional 4.32 3.62 2.4 SMT

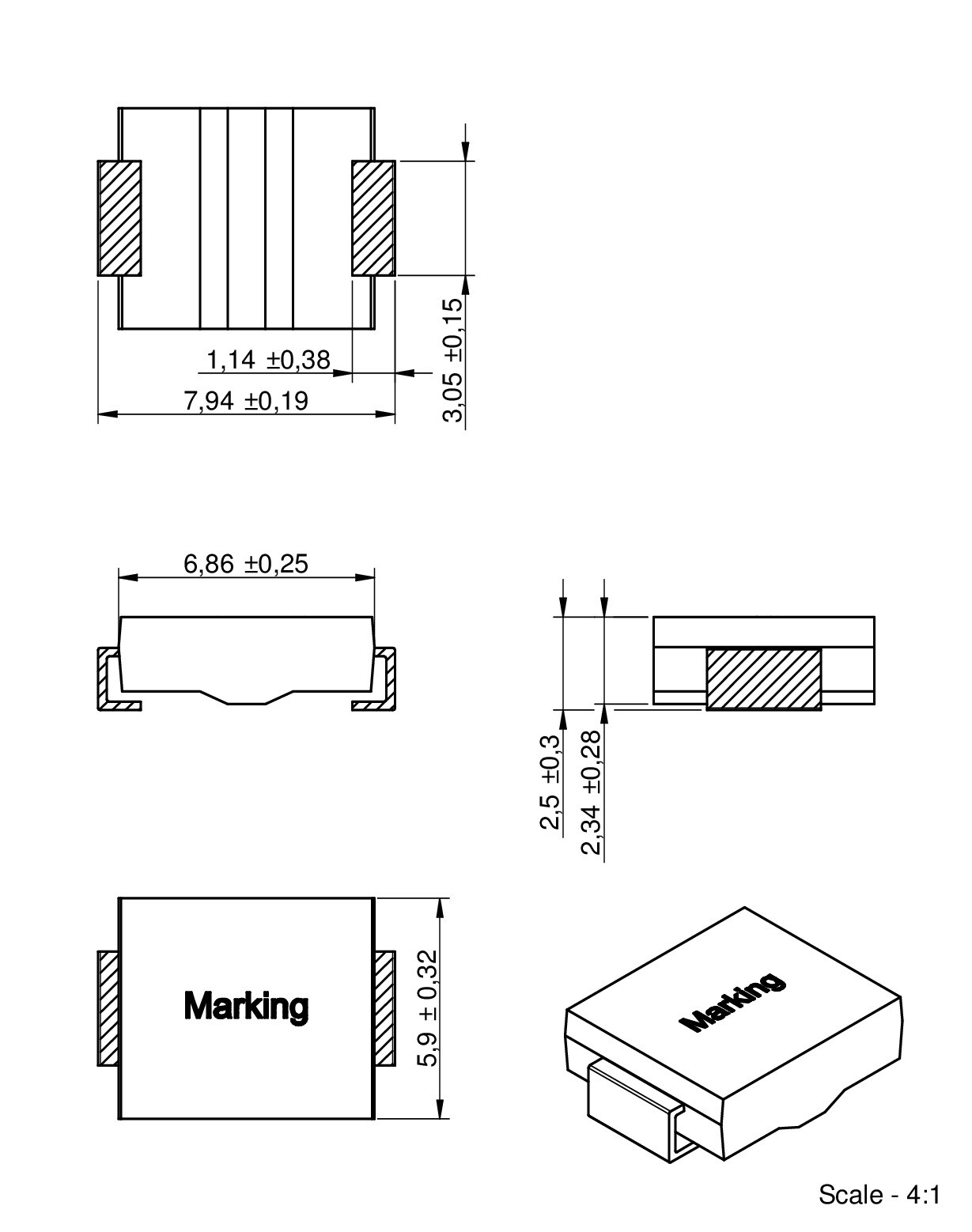

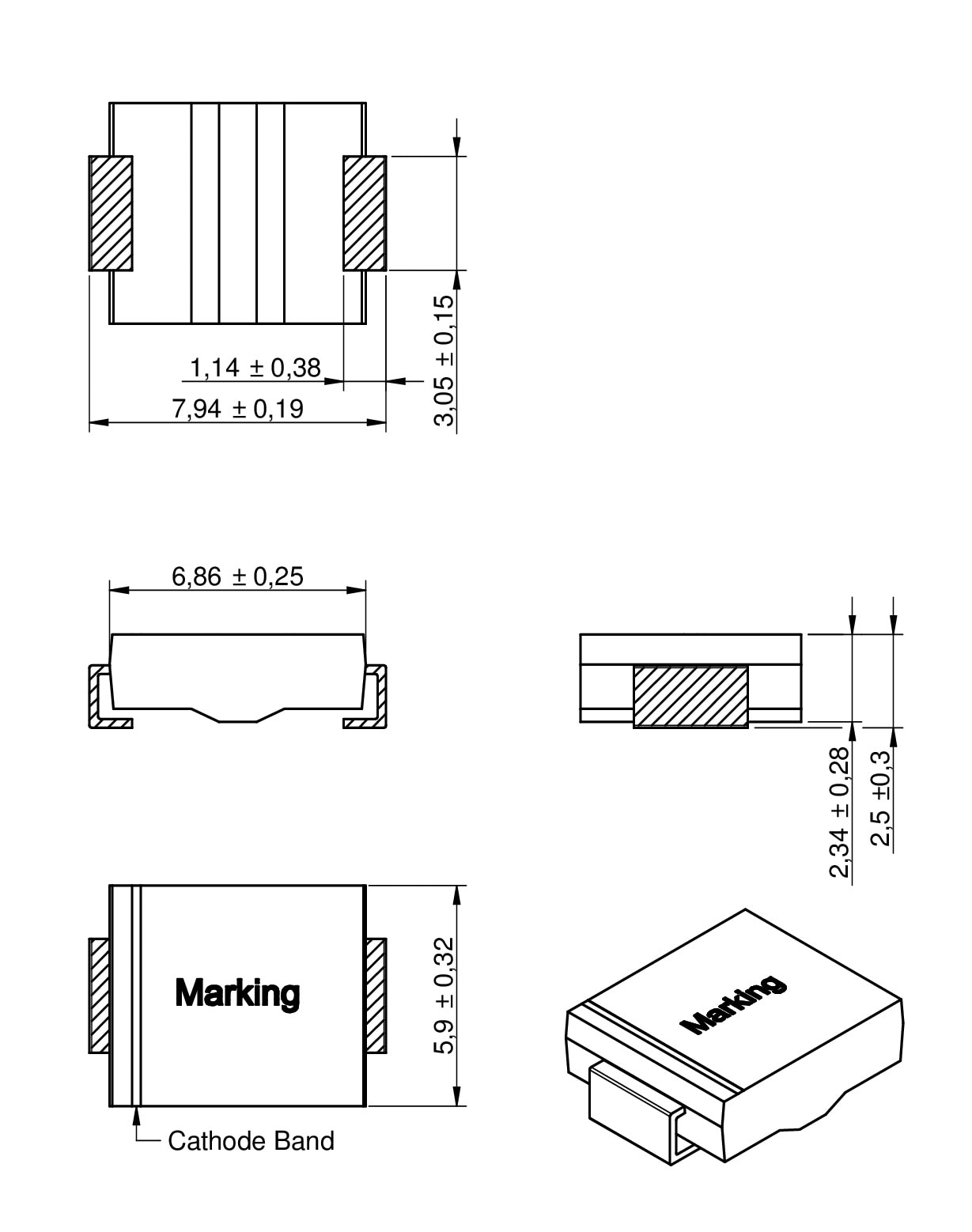

DO-214AB 1500W Unidirectional 6.86 5.91 2.5 SMT
DO-214AB 1500W Bidirectional 6.86 5.91 2.5 SMT
DO-214AB 3000W Unidirectional 6.86 5.91 2.5 SMT
DO-214AB 3000W Bidirectional 6.86 5.91 2.5 SMT

Characteristics

  • Low Profile Package
  • Glass passivated Juction
  • Excellent clamping capability
  • Fast response time
  • MSL Level 1, per J-STD-020
  • Classification of the plastic case: UL 94 V-0
  • Safety certification UL 497B, E478010

Identical design:
- DO-214AC = SMAJ
- DO-214AA = SMBJ
- DO-214AB = SMCJ/SMDJ

Applications

  • Ideal to protect the I/O Interfaces, Bus Voltage and other circuits of sensitive electronic equipment against voltage transients

Products

All
DO-214AC 400W Unidirectional
DO-214AC 400W Bidirectional
DO-214AA 600W Unidirectional
DO-214AA 600W Bidirectional
DO-214AB 1500W Unidirectional
DO-214AB 1500W Bidirectional
DO-214AB 3000W Unidirectional
DO-214AB 3000W Bidirectional
Order Code Data­sheet DownloadsVDC
(V)
VBR min.
(V)
IPeak
(A)
PDiss
(W)
VClamp max.
(V)
Design Kit Samples
824521500SPEC
6 files 5 6.7 65.3 600 9.2824599
824520500SPEC
6 files 5 6.7 65.3 600 9.2824599
824541500SPEC
6 files 5 6.7 163 1500 9.2824598
824540500SPEC
6 files 5 6.7 163 1500 9.2824598
824551500SPEC
6 files 5 6.7 326.1 3000 9.2824598
824550500SPEC
6 files 5 6.7 326.1 3000 9.2824598
824501500SPEC
6 files 5 6.7 43.5 400 9.2824599
824500500SPEC
6 files 5 6.7 43.5 400 9.2824599
824521600SPEC
6 files 6 7.02 58.3 600 10.3824599
824520600SPEC
6 files 6 7.02 58.3 600 10.3824599
824541600SPEC
6 files 6 7.02 145.7 1500 10.3824598
824540600SPEC
6 files 6 7.02 145.7 1500 10.3824598
824551600SPEC
6 files 6 7.02 291.3 3000 10.3824598
824550600SPEC
6 files 6 7.02 291.3 3000 10.3824598
824501600SPEC
6 files 6 7.02 38.8 400 10.3824599
824500600SPEC
6 files 6 7.02 38.8 400 10.3824599
824521650SPEC
6 files 6.5 7.6 53.6 600 11.2
824520650SPEC
6 files 6.5 7.6 53.6 600 11.2
824541650SPEC
6 files 6.5 7.6 134 1500 11.2
824540650SPEC
6 files 6.5 7.6 134 1500 11.2
824551650SPEC
6 files 6.5 7.6 267.9 3000 11.2
824550650SPEC
6 files 6.5 7.6 267.9 3000 11.2
824501650SPEC
6 files 6.5 7.6 35.7 400 11.2
824500650SPEC
6 files 6.5 7.6 35.7 400 11.2
824521700SPEC
6 files 7 8.19 50 600 12
824520700SPEC
6 files 7 8.19 50 600 12
824541700SPEC
6 files 7 8.19 125 1500 12
824540700SPEC
6 files 7 8.19 125 1500 12
824551700SPEC
6 files 7 8.19 250 3000 12
824550700SPEC
6 files 7 8.19 250 3000 12
824501700SPEC
6 files 7 8.19 33.3 400 12
824500700SPEC
6 files 7 8.19 33.3 400 12
824521750SPEC
6 files 7.5 46.6 600 12.9
824520750SPEC
6 files 7.5 8.77 46.6 600 12.9
824541750SPEC
6 files 7.5 8.77 116.3 1500 12.9
824540750SPEC
6 files 7.5 8.77 116.3 1500 12.9
824551750SPEC
6 files 7.5 8.77 232.6 3000 12.9
824550750SPEC
6 files 7.5 8.77 232.6 3000 12.9
824501750SPEC
6 files 7.5 8.77 31 400 12.9
824500750SPEC
6 files 7.5 8.77 31 400 12.9
824521800SPEC
6 files 8 9.36 44.2 600 13.6
824520800SPEC
6 files 8 9.36 44.2 600 13.6
824541800SPEC
6 files 8 9.36 110.3 1500 13.6
824540800SPEC
6 files 8 9.36 110.3 1500 13.6
824551800SPEC
6 files 8 9.36 220.6 3000 13.6
824550800SPEC
6 files 8 9.36 220.6 3000 13.6
824501800SPEC
6 files 8 9.36 29.4 400 13.6
824500800SPEC
6 files 8 9.36 29.4 400 13.6
824521850SPEC
6 files 8.5 9.92 41.7 600 14.4
824520850SPEC
6 files 8.5 9.92 41.7 600 14.4
824541850SPEC
6 files 8.5 9.92 104.2 1500 14.4
824540850SPEC
6 files 8.5 9.92 104.2 1500 14.4
824551850SPEC
6 files 8.5 9.92 208.3 3000 14.4
824550850SPEC
6 files 8.5 9.92 208.3 3000 14.4
824501850SPEC
6 files 8.5 9.92 27.8 400 14.4
824500850SPEC
6 files 8.5 9.92 27.8 400 14.4
824521900SPEC
6 files 9 10.55 39 600 15.4
824520900SPEC
6 files 9 10.55 39 600 15.4
824541900SPEC
6 files 9 10.55 97.4 1500 15.4
824540900SPEC
6 files 9 10.55 97.4 1500 15.4
824551900SPEC
6 files 9 10.55 194.8 3000 15.4
824550900SPEC
6 files 9 10.55 194.8 3000 15.4
824501900SPEC
6 files 9 10.55 26 400 15.4
824500900SPEC
6 files 9 10.55 26 400 15.4
824521101SPEC
6 files 10 11.7 35.3 600 17
824520101SPEC
6 files 10 11.7 35.3 600 17
824541101SPEC
6 files 10 11.7 88.3 1500 17
824540101SPEC
6 files 10 11.7 88.3 1500 17
824551101SPEC
6 files 10 11.7 176.5 3000 17
824550101SPEC
6 files 10 11.7 176.5 3000 17
824501101SPEC
6 files 10 11.7 23.5 400 17
824500101SPEC
6 files 10 11.7 23.5 400 17
824521111SPEC
6 files 11 12.85 33 600 18.2
824520111SPEC
6 files 11 12.85 33 600 18.2
824541111SPEC
6 files 11 12.85 82.5 1500 18.2
824540111SPEC
6 files 11 12.85 82.5 1500 18.2
824551111SPEC
6 files 11 12.85 164.8 3000 18.2
824550111SPEC
6 files 11 12.85 164.8 3000 18.2
824501111SPEC
6 files 11 12.85 22 400 18.2
824500111SPEC
6 files 11 12.85 22 400 18.2
824521121SPEC
6 files 12 14 30.2 600 19.9824599
824520121SPEC
6 files 12 14 30.2 600 19.9824599
824541121SPEC
6 files 12 14 75.4 1500 19.9824598
824540121SPEC
6 files 12 14 75.4 1500 19.9824598
824551121SPEC
6 files 12 14 150.8 3000 19.9824598
824550121SPEC
6 files 12 14 150.8 3000 19.9824598
824501121SPEC
6 files 12 14 20.1 400 19.9824599
824500121SPEC
6 files 12 14 20.1 400 19.9824599
824521131SPEC
6 files 13 15.15 28 600 21.5
824520131SPEC
6 files 13 15.15 28 600 21.5
824541131SPEC
6 files 13 15.15 69.8 1500 21.5
824540131SPEC
6 files 13 15.15 69.8 1500 21.5
824551131SPEC
6 files 13 15.15 139.5 3000 21.5
824550131SPEC
6 files 13 15.15 139.5 3000 21.5
824501131SPEC
6 files 13 15.15 18.6 400 21.5
824500131SPEC
6 files 13 15.15 18.6 400 21.5
824521141SPEC
6 files 14 16.4 25.9 600 23.2
824520141SPEC
6 files 14 16.4 25.9 600 23.2
824541141SPEC
6 files 14 16.4 64.7 1500 23.2
824540141SPEC
6 files 14 16.4 64.7 1500 23.2
824551141SPEC
6 files 14 16.4 129.3 3000 23.2
824550141SPEC
6 files 14 16.4 129.3 3000 23.2
824501141SPEC
6 files 14 16.4 17.2 400 23.2
824500141SPEC
6 files 14 16.4 17.2 400 23.2
824500151SPEC
6 files 15 17.6 16.4 400 24.2
824501151SPEC
6 files 15 17.6 16.4 400 24.4
824520151SPEC
6 files 15 17.6 24.6 600 24.4
824521151SPEC
6 files 15 17.6 24.6 600 24.4
824540151SPEC
6 files 15 17.6 61.5 1500 24.4
824541151SPEC
6 files 15 17.6 61.5 1500 24.4
824550151SPEC
6 files 15 17.6 123 3000 24.4
824551151SPEC
6 files 15 17.6 123 3000 24.4
824500161SPEC
6 files 16 18.75 15.4 400 26
824501161SPEC
6 files 16 18.75 15.4 400 26
824520161SPEC
6 files 16 18.75 23.1 600 26
824521161SPEC
6 files 16 18.75 23.1 600 26
824540161SPEC
6 files 16 18.75 57.7 1500 26
824541161SPEC
6 files 16 18.75 57.7 1500 26
824550161SPEC
6 files 16 18.75 115.4 3000 26
824551161SPEC
6 files 16 18.75 115.4 3000 26
824500171SPEC
6 files 17 19.9 14.5 400 27.6
824501171SPEC
6 files 17 19.9 14.5 400 27.6
824520171SPEC
6 files 17 19.9 21.8 600 27.6
824521171SPEC
6 files 17 19.9 21.8 600 27.6
824540171SPEC
6 files 17 19.9 54.4 1500 27.6
824541171SPEC
6 files 17 19.9 54.4 1500 27.6
824550171SPEC
6 files 17 19.9 108.7 3000 27.6
824551171SPEC
6 files 17 19.9 108.7 3000 27.6
824500181SPEC
6 files 18 21.05 13.7 400 29.2
824501181SPEC
6 files 18 21.05 13.7 400 29.2
824520181SPEC
6 files 18 21.05 20.6 600 29.2
824521181SPEC
6 files 18 21.05 20.6 29.2
824540181SPEC
6 files 18 21.05 51.4 1500 29.2
824541181SPEC
6 files 18 21.05 51.4 1500 29.2
824550181SPEC
6 files 18 21.05 102.7 3000 29.2
824551181SPEC
6 files 18 21.05 102.7 3000 29.2
824521201SPEC
6 files 20 23.35 18.6 600 32.4
824520201SPEC
6 files 20 23.35 18.6 600 32.4
824541201SPEC
6 files 20 23.35 46.3 1500 32.4
824540201SPEC
6 files 20 23.35 46.3 1500 32.4
824551201SPEC
6 files 20 23.35 92.6 3000 32.4
824550201SPEC
6 files 20 23.35 92.6 3000 32.4
824501201SPEC
6 files 20 23.35 12.3 400 32.4
824500201SPEC
6 files 20 23.35 12.3 400 32.4
824521221SPEC
6 files 22 25.65 16.9 600 35.5
824520221SPEC
6 files 22 25.65 16.9 600 35.5
824541221SPEC
6 files 22 25.65 42.3 1500 35.5
824540221SPEC
6 files 22 25.65 42.3 1500 35.5
824551221SPEC
6 files 22 25.65 84.5 3000 35.5
824550221SPEC
6 files 22 25.65 84.5 3000 35.5
824501221SPEC
6 files 22 25.65 11.3 400 35.5
824500221SPEC
6 files 22 25.65 11.3 400 35.5
824521241SPEC
6 files 24 28.1 15.5 600 38.9824599
824520241SPEC
6 files 24 28.1 15.5 600 38.9824599
824541241SPEC
6 files 24 28.1 38.6 1500 38.9824598
824540241SPEC
6 files 24 28.1 38.6 1500 38.9824598
824551241SPEC
6 files 24 28.1 77.1 3000 38.9824598
824550241SPEC
6 files 24 28.1 77.1 3000 38.9824598
824501241SPEC
6 files 24 28.1 10.3 400 38.9824599
824500241SPEC
6 files 24 28.1 10.3 400 38.9824599
824521261SPEC
6 files 26 30.4 14.3 600 42.1824599
824520261SPEC
6 files 26 30.4 14.3 600 42.1824599
824541261SPEC
6 files 26 30.4 35.7 1500 42.1824598
824540261SPEC
6 files 26 30.4 35.7 1500 42.1824598
824551261SPEC
6 files 26 30.4 71.3 3000 42.1824598
824550261SPEC
6 files 26 30.4 71.3 3000 42.1824598
824501261SPEC
6 files 26 30.4 9.5 400 42.1824599
824500261SPEC
6 files 26 30.4 9.5 400 42.1824599
824521281SPEC
6 files 28 32.75 13.3 600 45.4
824520281SPEC
6 files 28 32.75 13.3 600 45.4
824541281SPEC
6 files 28 32.75 33.1 1500 45.4
824540281SPEC
6 files 28 32.75 33.1 1500 45.4
824551281SPEC
6 files 28 32.75 66.1 3000 45.4
824550281SPEC
6 files 28 32.75 66.1 3000 45.4
824501281SPEC
6 files 28 32.75 8.8 400 45.4
824500281SPEC
6 files 28 32.75 8.8 400 45.4
824521301SPEC
6 files 30 35.05 12.4 600 48.4824599
824520301SPEC
6 files 30 35.05 12.4 600 48.4824599
824541301SPEC
6 files 30 35.05 31 1500 48.4824598
824540301SPEC
6 files 30 35.05 31 1500 48.4824598
824551301SPEC
6 files 30 35.05 62 3000 48.4824598
824550301SPEC
6 files 30 35.05 62 3000 48.4824598
824501301SPEC
6 files 30 35.05 8.3 400 48.4824599
824500301SPEC
6 files 30 35.05 8.3 400 48.4824599
824521331SPEC
6 files 33 38.65 11.3 600 53.3824599
824520331SPEC
6 files 33 38.65 11.3 600 53.3824599
824541331SPEC
6 files
