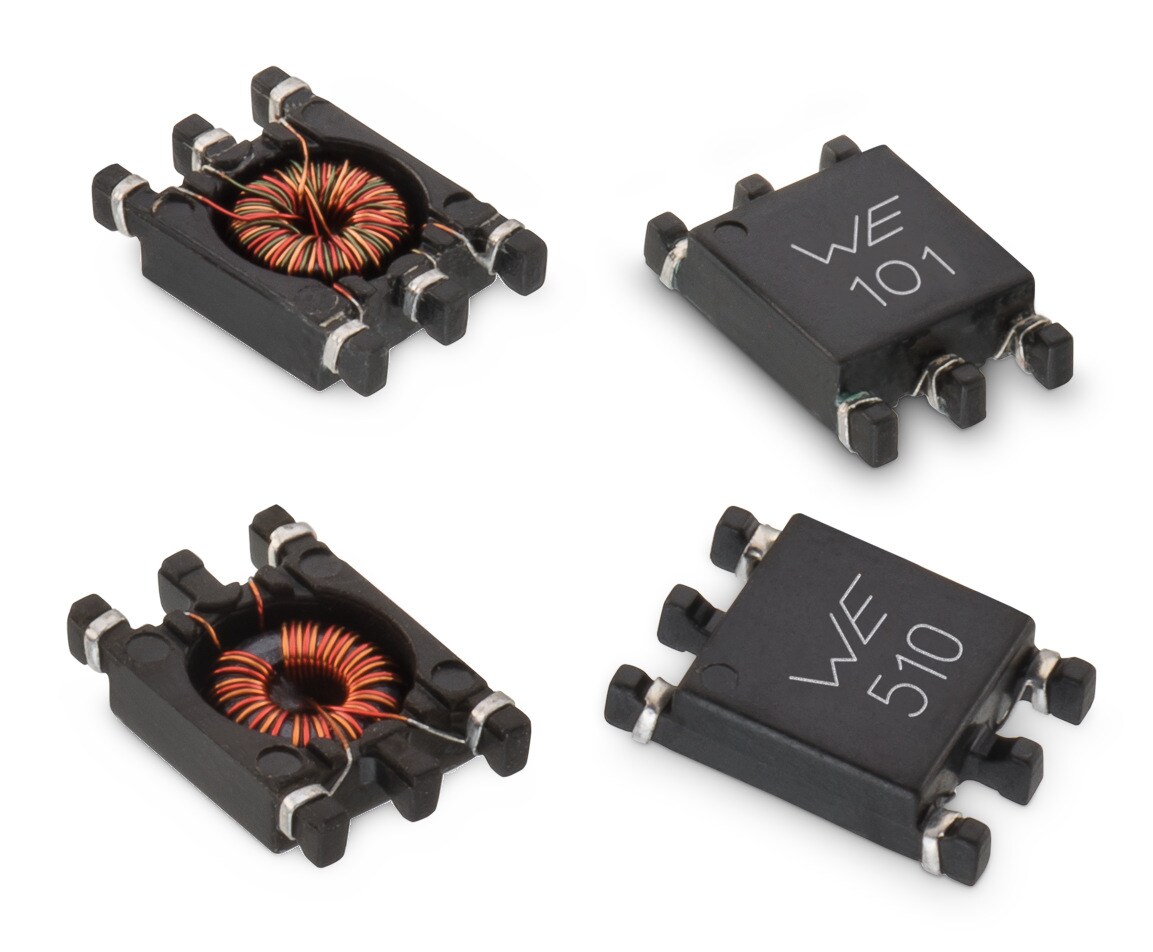

WE-SL3 SMT Common Mode Line Filter

WE-SL3 SMT Common Mode Line Filter

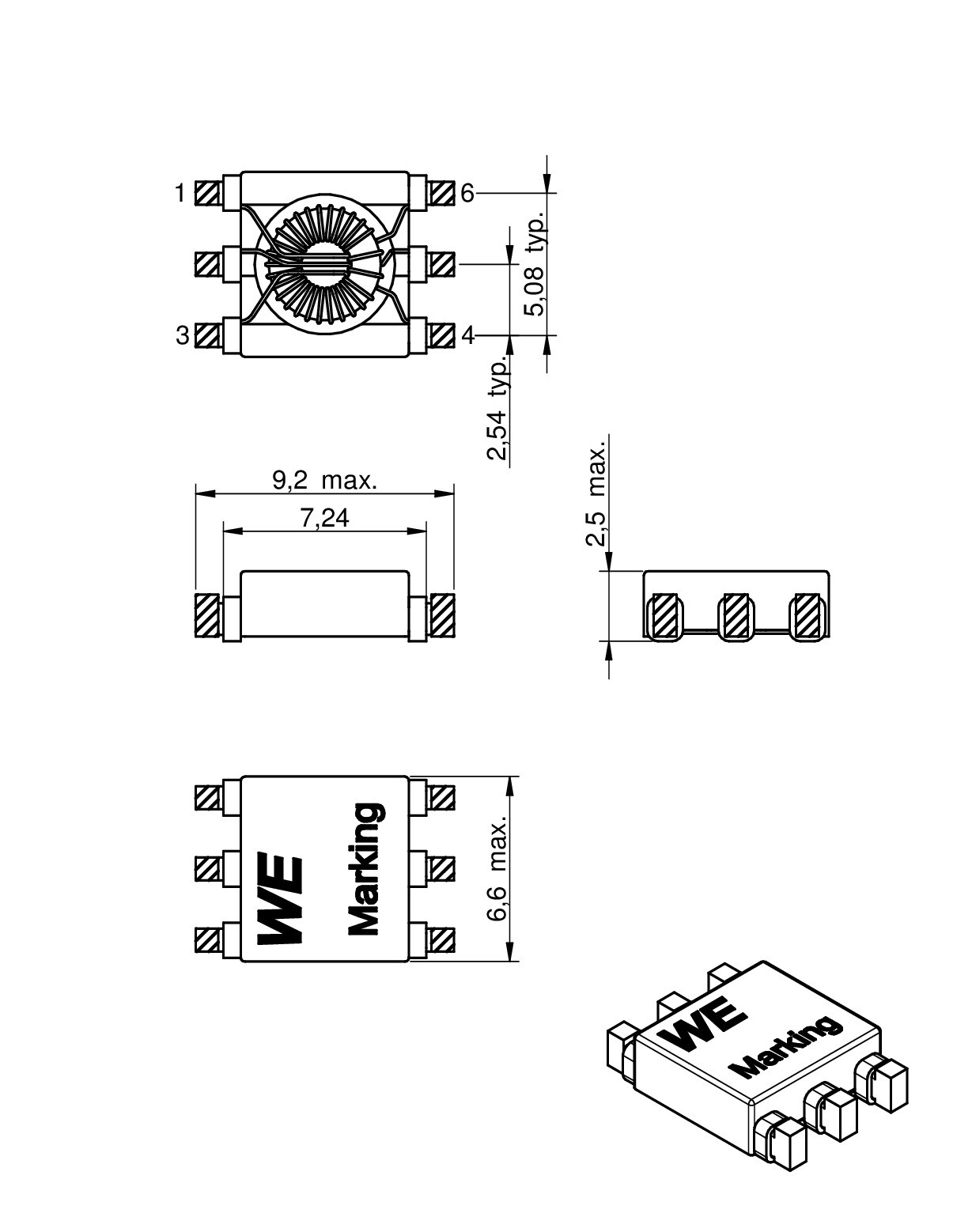

SizeDimen­sionsL
(mm)		W
(mm)		H
(mm)		Mount
WE-SL3
 9.2 6.6 2.5 SMT

LTSpice files

Characteristics

  • Low profile only 2.5 mm
  • High impedance up to 5000 Ω
  • High current up to 700 mA
  • Rated voltage: 80 VDC (42 VAC)
  • Flammability corresponding to UL 94 V-0
  • Climatic category 40/125/21

Applications

  • Current compensated choke for data and signal lines
  • Power supply system
  • Signal and sensor lines
  • CAN
  • Suppression of common mode noise
  • Trifilar version for:
    • Power Over Ethernet (PoE)
    • Audio frequency (AF) noise

Products

WE-SL3
Reset all
Filter article data
Filter by
Delete all
 show  articles in 1 product lines
 articles in 1 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
Winding Style
Number of windings
L1(µH)
Zmax(Ω)
IR(mA)
RDC max.(Ω)
VR(V)
Application
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
744252220
SPECbifilar, 2, 22 µH
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Winding Stylebifilar
Number of windings2
Inductance [1]22 µH
Maximum Impedance1600 Ω
Rated Current700 mA
DC Resistance [1]0.14 Ω
Rated Voltage80 V
–
Design Kit
744725
–Check availability
744252510
SPECbifilar, 2, 51 µH
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Winding Stylebifilar
Number of windings2
Inductance [1]51 µH
Maximum Impedance3300 Ω
Rated Current500 mA
DC Resistance [1]0.25 Ω
Rated Voltage80 V
ApplicationCAN
Design Kit
744725
–Check availability
744252101
SPECbifilar, 2, 100 µH
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Winding Stylebifilar
Number of windings2
Inductance [1]100 µH
Maximum Impedance5000 Ω
Rated Current500 mA
DC Resistance [1]0.28 Ω
Rated Voltage80 V
–
Design Kit –
–Check availability
744253200
SPECtrifilar, 3, 20 µH
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Winding Styletrifilar
Number of windings3
Inductance [1]20 µH
Maximum Impedance1250 Ω
Rated Current500 mA
DC Resistance [1]0.16 Ω
Rated Voltage80 V
ApplicationLAN
Design Kit
744725
–Check availability
744253101
SPECtrifilar, 3, 100 µH
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Winding Styletrifilar
Number of windings3
Inductance [1]100 µH
Maximum Impedance5000 Ω
Rated Current450 mA
DC Resistance [1]0.45 Ω
Rated Voltage80 V
ApplicationLAN
Design Kit
744725
–Check availability
