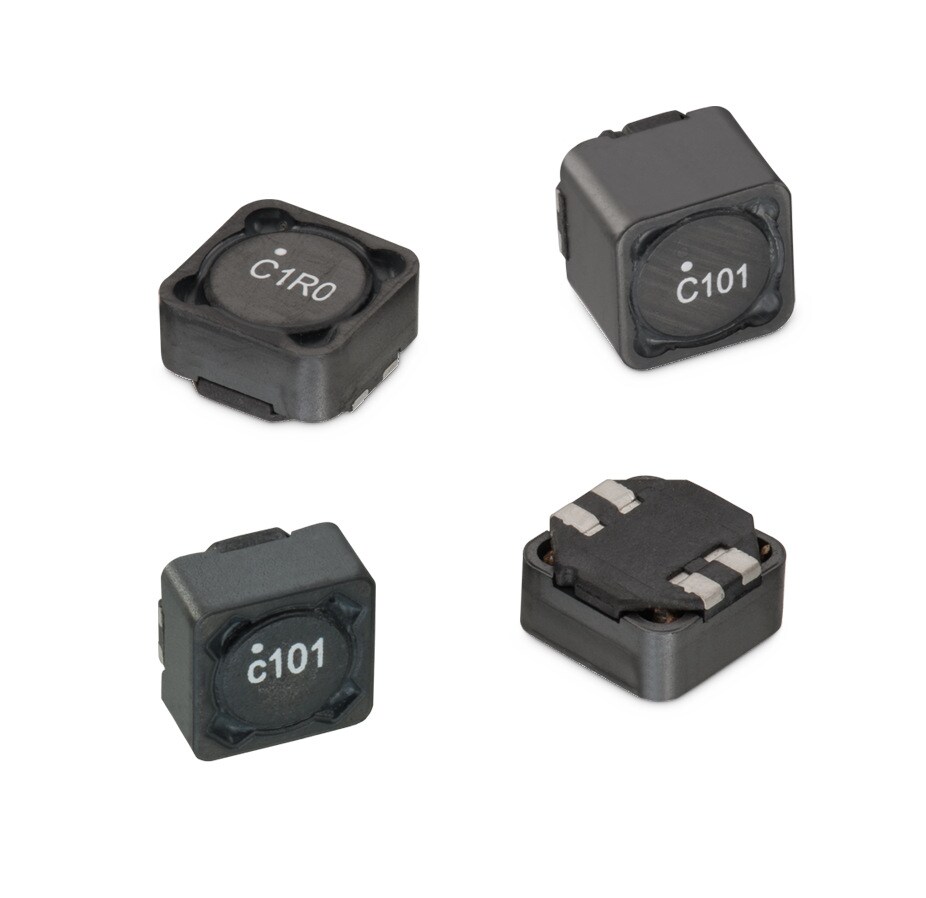

WE-SCC SMT Common Mode Line Filter

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount

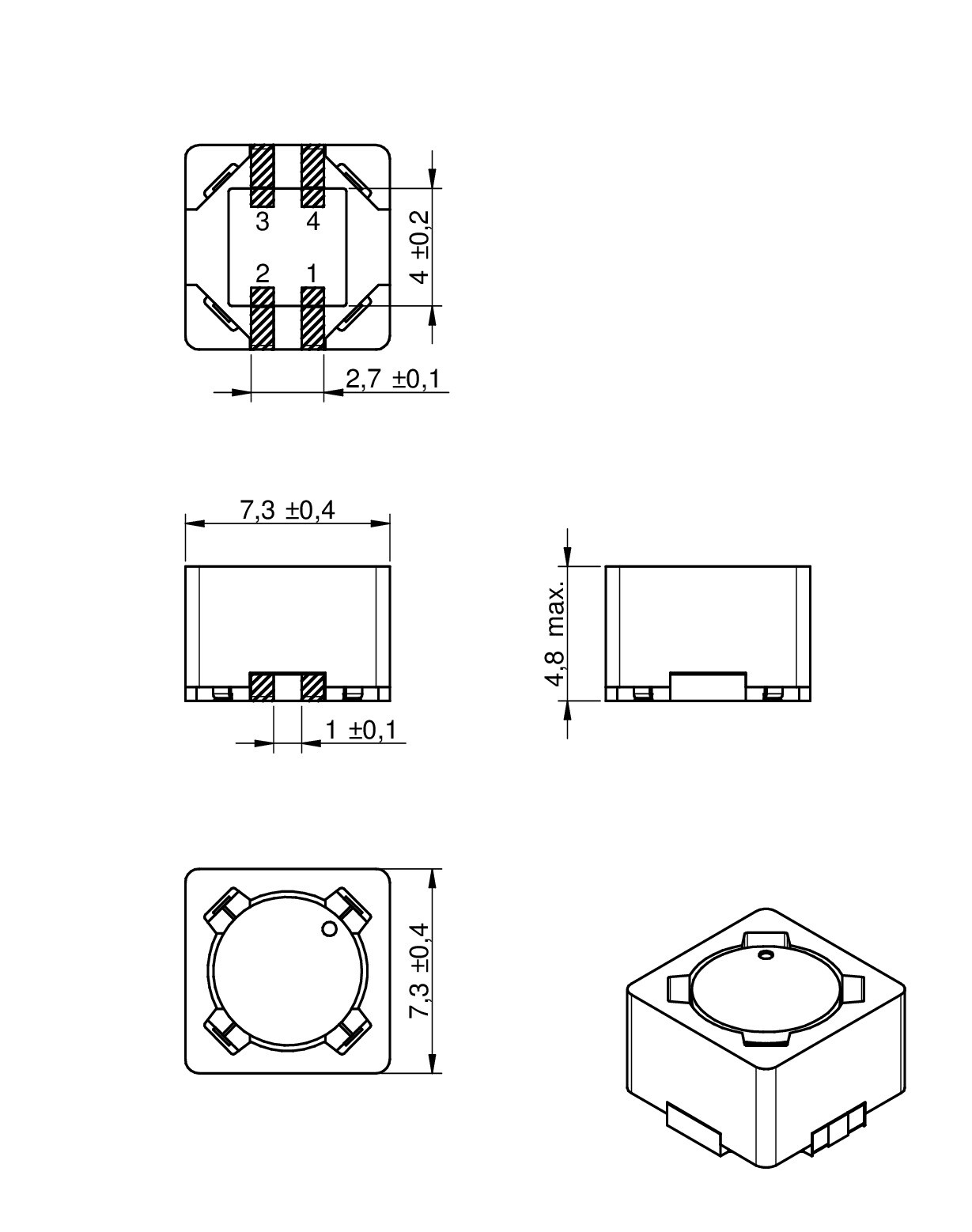

7345 7.3 7.3 4.8 SMT

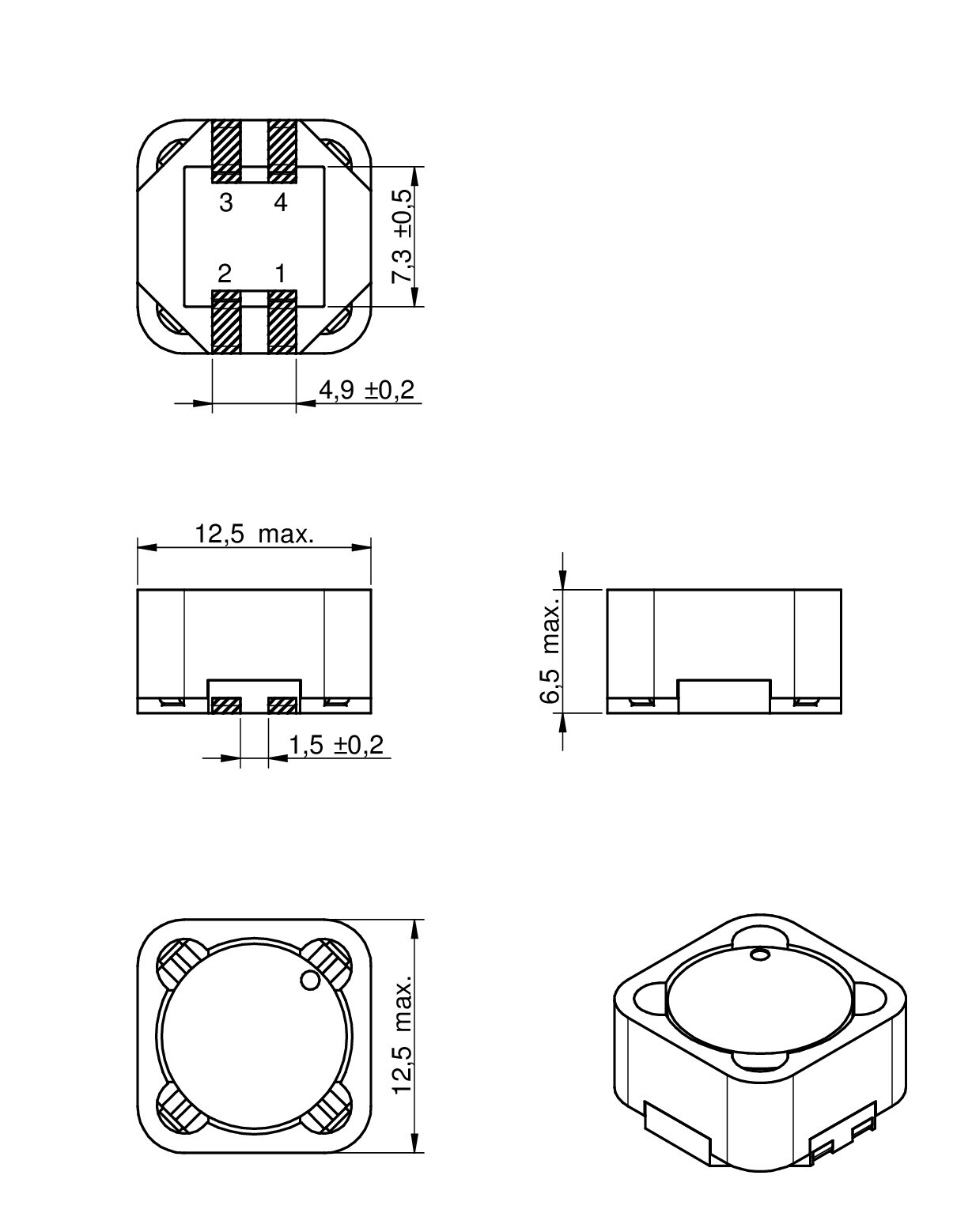

1260 12.5 12.5 6.5 SMT
1210 12.5 12.5 10.5 SMT

Characteristics

  • Enormous common mode impedance Z
  • Small dimensions
  • 1:1 turns ratio
  • High current ratings
  • Climatic category 40/125/21
  • Flammability corresponding to UL 94 V-0

Applications

  • Suppression of common mode noise
  • Power supply system
  • Data lines

Products

All
7345
1260
1210
Order Code Data­sheet Simu­lation DownloadsWinding StyleL1
(µH)
Zmax
(Ω)
IR
(mA)
RDC max.
(Ω)
VR
(V)
VT
(V (AC))
Design Kit Samples
744281100SPEC
7 files bifiliar 10 10000 1100 0.12 80 250744725
744281101SPEC
7 files bifiliar 100 50000 350 0.95 80 250
744281471SPEC
7 files bifiliar 470 100000 150 4.3 80 250744725
744282010SPEC
7 files bifiliar 1 1600 4750 0.01 80 250744725
744282100SPEC
7 files bifiliar 10 9000 2250 0.05 80 250
744282101SPEC
7 files bifiliar 100 40000 900 0.28 80 250
744282102SPEC
7 files bifiliar 1000 160000 250 2.8 80 250744725
744284100SPEC
7 files bifiliar 10 10000 2750 0.04 80 250
744284101SPEC
7 files bifiliar 100 40000 1000 0.28 80 250
744284102SPEC
7 files bifiliar 1000 160000 300 2.5 80 250
Order Code Data­sheet Simu­lation
744281100SPEC
744281101SPEC
744281471SPEC
744282010SPEC
744282100SPEC
744282101SPEC
744282102SPEC
744284100SPEC
744284101SPEC
744284102SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsWinding StyleL1
(µH)
Zmax
(Ω)
IR
(mA)
RDC max.
(Ω)
VR
(V)
VT
(V (AC))
Design Kit Samples
