WE-PF SMT EMI Suppression Power Ferrite

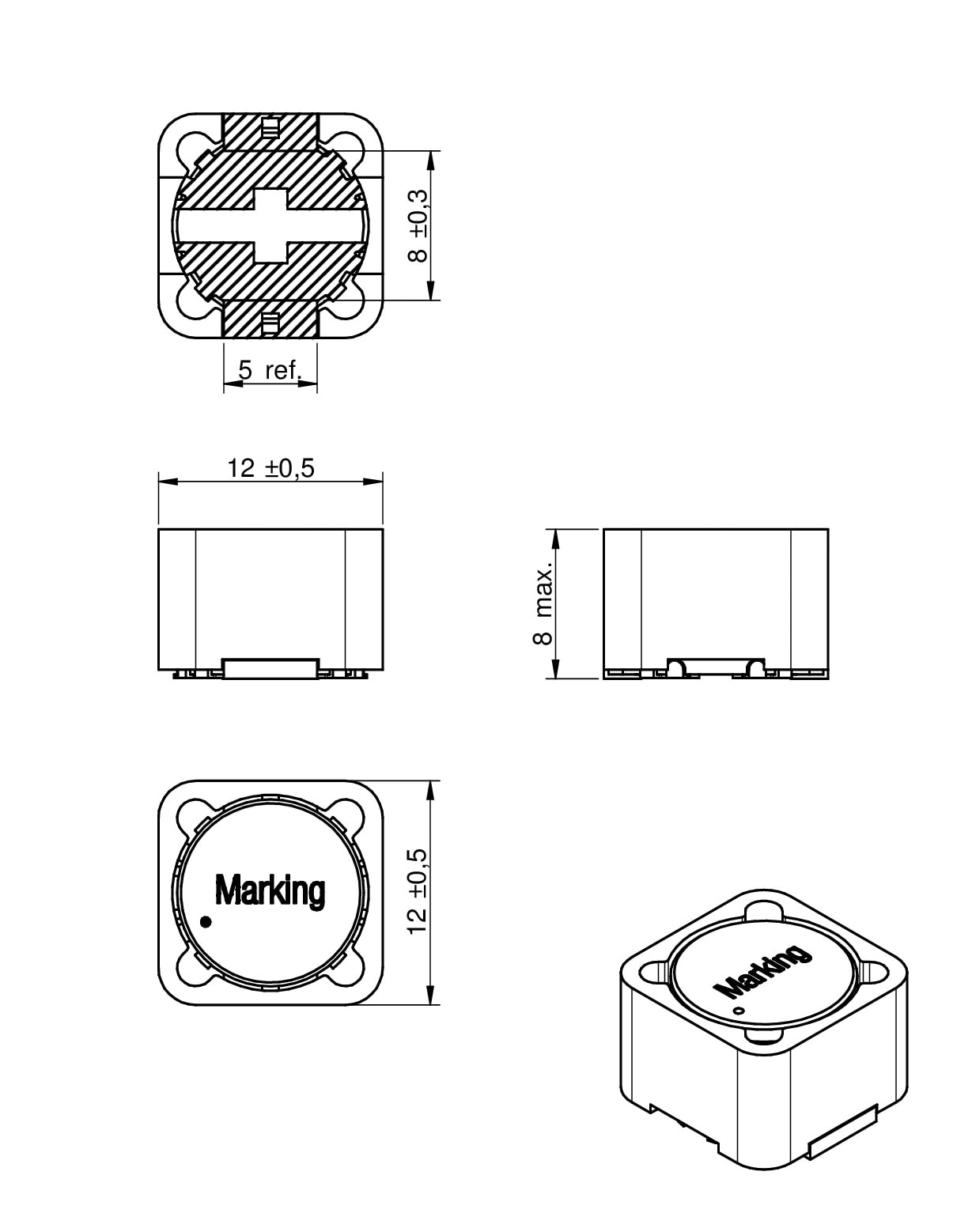

	Size	Dimensions	L (mm)	W (mm)	H (mm)
EXT.	1280		12	12	8

LTSpice files

LT
LTSpice_WE-PF (rev22a).zip
|
1.9 KB

Characteristics

Suitable for applications with high currents up to 10 A
Magnetically shielded version
Core material NiZn for the use in a wide frequency range
Operating temperature: –40 ºC to +125 ºC

Applications

Interference suppression in motors
Switch mode PSUs
Power electronics

Products

1280

	Order Code	Datasheet	Simulation	Downloads	Z_max (Ω)	Test Condition Z_max	I_R (A)	L (mm)	W (mm)	H (mm)	Samples
NEW	742792901	SPEC		7 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	2900	90 MHz	10	12	12	8
NEW	742792902	SPEC		7 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	5000	70 MHz	8	12	12	8
NEW	742792903	SPEC		7 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	6000	37 MHz	10	12	12	8
NEW	742792904	SPEC		7 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	7000	30 MHz	7	12	12	8
NEW	742792907	SPEC		7 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	7500	20 MHz	6	12	12	8
NEW	742792910	SPEC		7 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	8000	20 MHz	5.5	12	12	8
NEW	742792906	SPEC		7 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	9000	25 MHz	6.5	12	12	8
NEW	7427929112	SPEC		7 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	13000	15 MHz	5	12	12	8
NEW	7427929115	SPEC		7 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 7 files as zip archive ZIP	15000	15 MHz	4.5	12	12	8
