WE-PF SMT EMI Suppression Power Ferrite

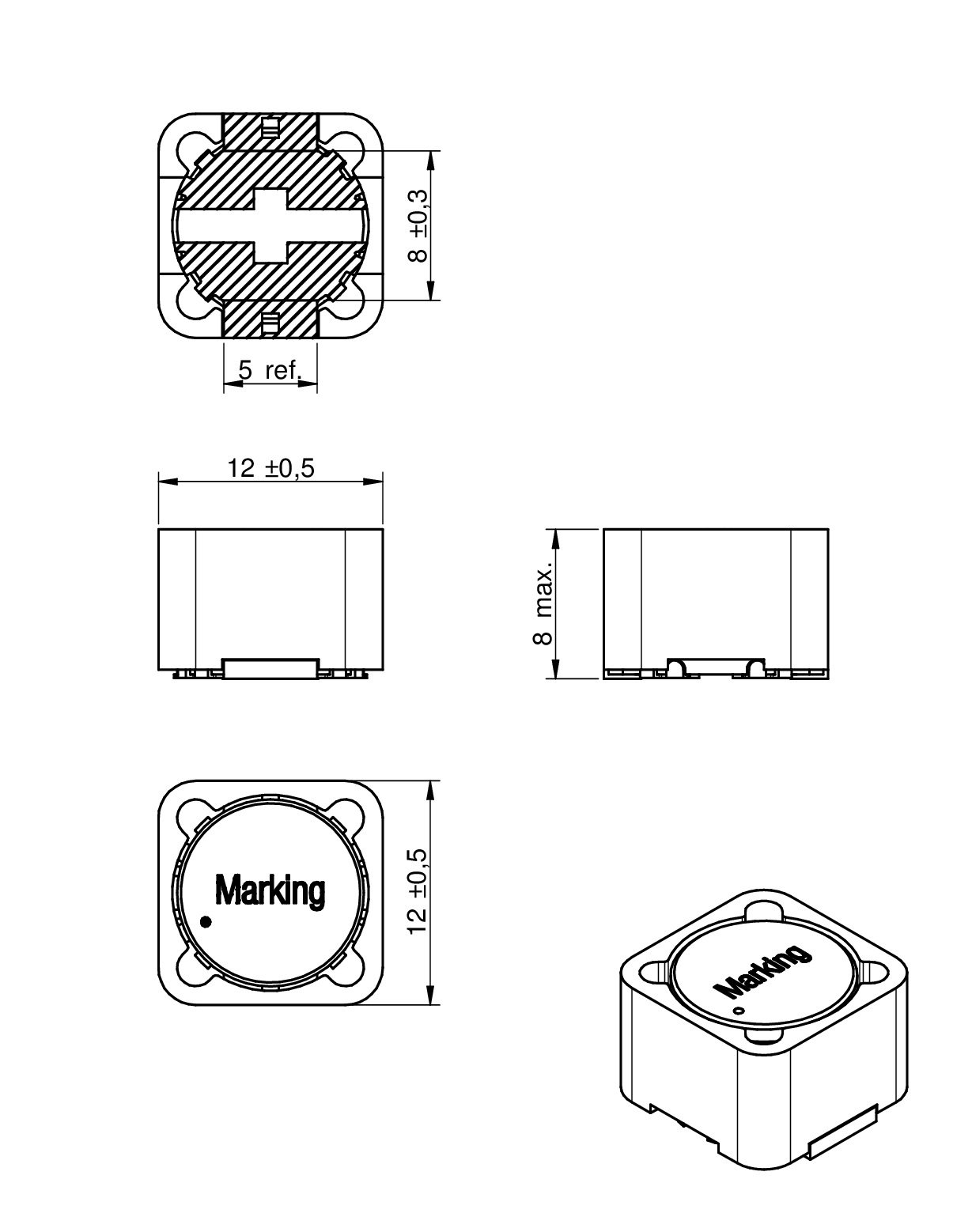

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1280		12	12	8	SMT

LTSpice files

LT
LTSpice_WE-PF (rev22a).zip
|
1.9 KB

Characteristics

Suitable for applications with high currents up to 10 A
Magnetically shielded version
Core material NiZn for the use in a wide frequency range
Operating temperature: –40 ºC to +125 ºC

Applications

Interference suppression in motors
Switch mode PSUs
Power electronics

Products

1280

Filter article data

show article in 1 product lines

article in 1 product lines

Order Code	Datasheet	Simulation	Downloads	Status	Z_max(Ω)	Test Condition Z_max	I_R(A)	R_{DC max.}(Ω)	L(mm)	W(mm)	H(mm)	Samples
742792901	2900 Ω, 90 MHz, 10 A	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB KIC KiCad_WE-PF (rev25b).zip \| 189.5 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Maximum Impedance2900 Ω	Maximum Impedance90 MHz	Rated Current10 A	DC Resistance0.009 Ω	Length12 mm	Width12 mm	Height8 mm
742792902	5000 Ω, 70 MHz, 8 A	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB KIC KiCad_WE-PF (rev25b).zip \| 189.5 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Maximum Impedance5000 Ω	Maximum Impedance70 MHz	Rated Current8 A	DC Resistance0.012 Ω	Length12 mm	Width12 mm	Height8 mm
742792903	6000 Ω, 37 MHz, 10 A	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB KIC KiCad_WE-PF (rev25b).zip \| 189.5 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Maximum Impedance6000 Ω	Maximum Impedance37 MHz	Rated Current10 A	DC Resistance0.009 Ω	Length12 mm	Width12 mm	Height8 mm
742792904	7000 Ω, 30 MHz, 7 A	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB KIC KiCad_WE-PF (rev25b).zip \| 189.5 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Maximum Impedance7000 Ω	Maximum Impedance30 MHz	Rated Current7 A	DC Resistance0.015 Ω	Length12 mm	Width12 mm	Height8 mm
742792907	7500 Ω, 20 MHz, 6 A	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB KIC KiCad_WE-PF (rev25b).zip \| 189.5 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Maximum Impedance7500 Ω	Maximum Impedance20 MHz	Rated Current6 A	DC Resistance0.02 Ω	Length12 mm	Width12 mm	Height8 mm
742792910	8000 Ω, 20 MHz, 5.5 A	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB KIC KiCad_WE-PF (rev25b).zip \| 189.5 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Maximum Impedance8000 Ω	Maximum Impedance20 MHz	Rated Current5.5 A	DC Resistance0.025 Ω	Length12 mm	Width12 mm	Height8 mm
742792906	9000 Ω, 25 MHz, 6.5 A	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB KIC KiCad_WE-PF (rev25b).zip \| 189.5 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Maximum Impedance9000 Ω	Maximum Impedance25 MHz	Rated Current6.5 A	DC Resistance0.02 Ω	Length12 mm	Width12 mm	Height8 mm
7427929112	13000 Ω, 15 MHz, 5 A	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB KIC KiCad_WE-PF (rev25b).zip \| 189.5 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Maximum Impedance13000 Ω	Maximum Impedance15 MHz	Rated Current5 A	DC Resistance0.025 Ω	Length12 mm	Width12 mm	Height8 mm
7427929115	15000 Ω, 15 MHz, 4.5 A	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-PF (rev22c).IntLib \| 192 KB CDS Cadence_WE-PF (rev22a).zip \| 1 MB EAG Eagle_WE-PF (rev19a).lbr \| 16.1 KB KIC KiCad_WE-PF (rev25b).zip \| 189.5 KB ZUK Cadstar_WE-PF (rev19a).zip \| 5.4 KB CAD files ZIP IGS WE-PF_1280_PF (rev1).igs \| 2.6 MB STP WE-PF_1280_PF (rev1).stp \| 1005.1 KB Electric models ZIP PSP PSpice_WE-PF (rev22a).zip \| 4 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Maximum Impedance15000 Ω	Maximum Impedance15 MHz	Rated Current4.5 A	DC Resistance0.03 Ω	Length12 mm	Width12 mm	Height8 mm
