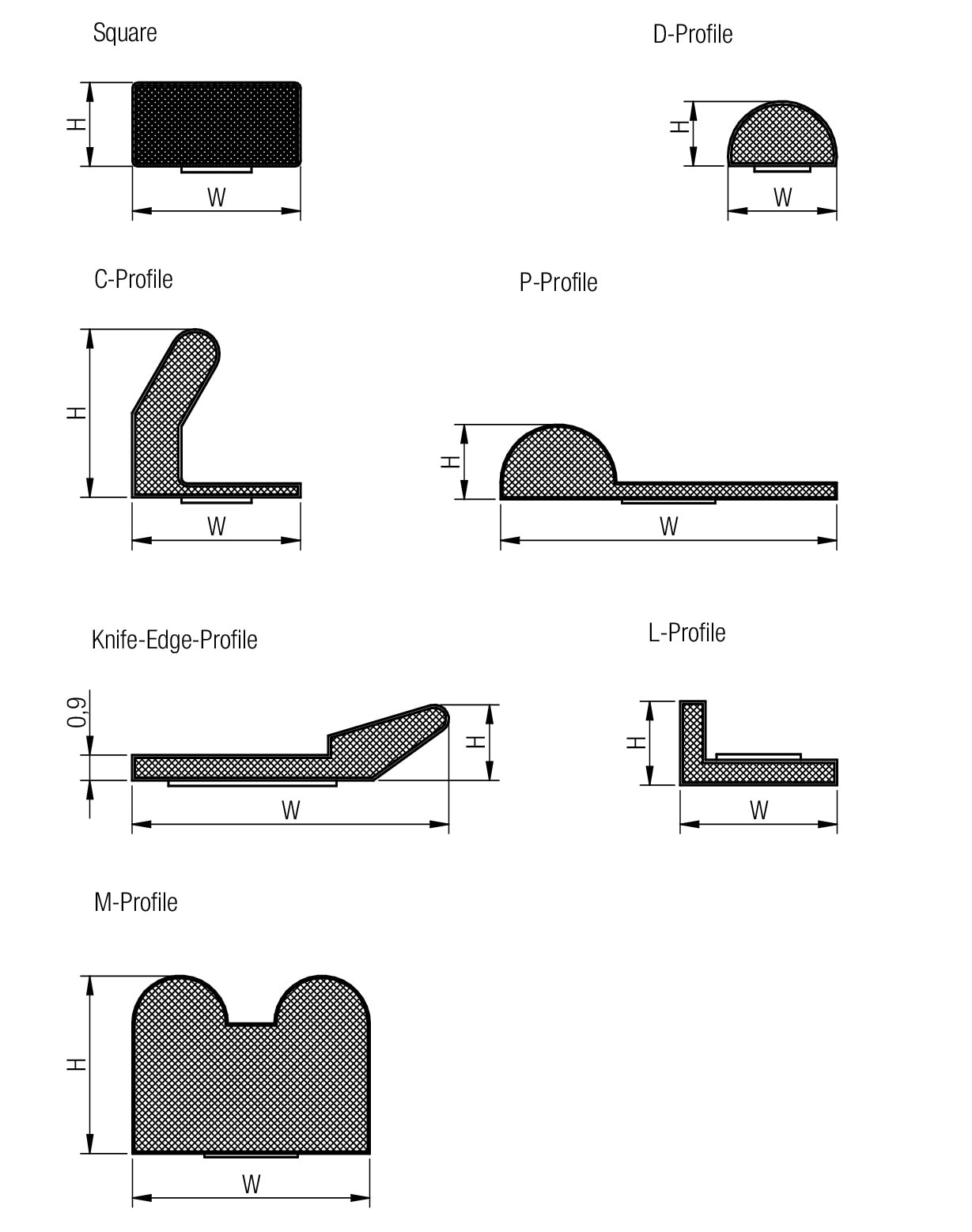

WE-LT Conductive Shielding Gasket

Size L
(mm)
W
(mm)
H
(mm)
Material
Square 1000 - - Polyether Urethane Foam
D-Profile 1000 - - Polyether Urethane Foam
C-Profile 1000 - - Polyether Urethane Foam
P-Profile 1000 - - Polyether Urethane Foam
KnifeEdge-Profile 1000 - - Polyether Urethane Foam
L-Profile 1000 5.6 3 Polyether Urethane Foam
M-Profile 1000 12.7 9.5 Polyether Urethane Foam

Characteristics

  • Customizable Product Series:
    Length
    Shape
  • Conductive fabrics with Ni/Cu-layer. A PU sponge core (elastomer) covered with electro conductive fabric
  • Square profile offers a larger bearing surface and therefore excellent contact
  • Centered, double-sided adhesive tape (non-conductive) for easy mounting
  • Available with adhesive tape (conductive)
  • Operating temperature: –40 ºC to +85 ºC
  • Do you wish an individual offer for WE-LT? Request now! Request for customized components WE-LT

Applications

  • Displays
  • Metal housings
  • Switching cabinets
  • Depending on the application an IP54 protection
    class could be reached, that means by the use of the
    shielding gasket a protection against dust (index 5)
    and protection against splashed water (index 4)
    could be offered

Cut it, fold it, test it. ShielDIY!

Create your own customized Shielding Cabinet for testing. Cut it, fold it and test it, DIY!

Learn more now!

Products

All
Square
D-Profile
C-Profile
P-Profile
KnifeEdge-Profile
L-Profile
M-Profile
Order Code Data­sheet Downloads L
(mm)
W
(mm)
H
(mm)
Shielding
Effectiveness
@ 100 MHz
(dB)
Shielding
Effectiveness
@ 1 GHz
(dB)
RS
(Ω)
Material Alpha-Rack Samples
3020202
STE IGS 1000 2 2 80 86 0.08 Polyether Urethane Foam
3020301
STE IGS 1000 3 1 80 86 0.08 Polyether Urethane Foam
3020302
STE IGS 1000 3 2 80 86 0.08 Polyether Urethane Foam
3020303
STE IGS 1000 3 3 80 86 0.08 Polyether Urethane Foam
3020401
STE IGS 1000 4 1 80 86 0.08 Polyether Urethane Foam
3020402
STE IGS 1000 4 2 80 86 0.08 Polyether Urethane Foam
3020403
STE IGS 1000 4 3 80 86 0.08 Polyether Urethane Foam
30205005
STE IGS 1000 5 0.5 80 86 0.08 Polyether Urethane Foam
3020501
STE IGS 1000 5 1 80 86 0.08 Polyether Urethane Foam
30205015
STE IGS 1000 5 1.5 80 86 0.08 Polyether Urethane Foam
3020502
STE IGS 1000 5 2 80 86 0.08 Polyether Urethane Foam
3020503
STE IGS 1000 5 3 80 86 0.08 Polyether Urethane Foam
3020504
STE IGS 1000 5 4 80 86 0.08 Polyether Urethane Foam
3020505
STE IGS 1000 5 5 80 86 0.08 Polyether Urethane Foam
3020601
STE IGS 1000 6 1 80 86 0.08 Polyether Urethane Foam
3020602
STE IGS 1000 6 2 80 86 0.08 Polyether Urethane Foam
30206025
STE IGS 1000 6 2.5 80 86 0.08 Polyether Urethane Foam
3020603
STE IGS 1000 6 3 80 86 0.08 Polyether Urethane Foam
3020604
STE IGS 1000 6 4 80 86 0.08 Polyether Urethane Foam
3020605
STE IGS 1000 6 5 80 86 0.08 Polyether Urethane Foam
3020606
STE IGS 1000 6 6 80 86 0.08 Polyether Urethane Foam
3020607
STE IGS 1000 6 7 80 86 0.08 Polyether Urethane Foam
3020608
STE IGS 1000 6 8 80 86 0.08 Polyether Urethane Foam
302064032
STE IGS 1000 6.4 3.2 80 86 0.08 Polyether Urethane Foam
302064064
STE IGS 1000 6.4 6.4 80 86 0.08 Polyether Urethane Foam
3020701
STE IGS 1000 7 1 80 86 0.08 Polyether Urethane Foam
3020702
STE IGS 1000 7 2 80 86 0.08 Polyether Urethane Foam
30207032
STE IGS 1000 7 3.2 80 86 0.08 Polyether Urethane Foam
3020705
STE IGS 1000 7 5 80 86 0.08 Polyether Urethane Foam
3020706
STE IGS 1000 7 6 80 86 0.08 Polyether Urethane Foam
3020707
STE IGS 1000 7 7 80 86 0.08 Polyether Urethane Foam
3020802
STE IGS 1000 8 2 80 86 0.0008 Polyether Urethane Foam
3020803
STE IGS 1000 8 3 80 86 0.08 Polyether Urethane Foam
3020804
STE IGS 1000 8 4 80 86 0.08 Polyether Urethane Foam
3020805
STE IGS 1000 8 5 80 86 0.08 Polyether Urethane Foam
3020808
STE IGS 1000 8 8 80 86 0.08 Polyether Urethane Foam
3020812
STE IGS 1000 8 12 80 86 0.08 Polyether Urethane Foam
3020903
STE IGS 1000 9 3 80 86 0.08 Polyether Urethane Foam
3020905
STE IGS 1000 9 5 80 86 0.08 Polyether Urethane Foam
3020906
STE IGS 1000 9 6 80 86 0.08 Polyether Urethane Foam
3020907
STE IGS 1000 9 7 80 86 0.08 Polyether Urethane Foam
3020909
STE IGS 1000 9 9 80 86 0.08 Polyether Urethane Foam
302095032
STE IGS 1000 9.5 3.2 80 86 0.08 Polyether Urethane Foam
3029564
STE IGS 1000 9.5 6.4 80 86 0.08 Polyether Urethane Foam
302095095
STE IGS 1000 9.5 9.5 80 86 0.08 Polyether Urethane Foam
30210005
STE IGS 1000 10 0.5 80 86 0.08 Polyether Urethane Foam
3021001
STE IGS 1000 10 1 80 86 0.08 Polyether Urethane Foam
3021002
STE IGS 1000 10 2 80 86 0.08 Polyether Urethane Foam
3021003
STE IGS 1000 10 3 80 86 0.08 Polyether Urethane Foam
3021004
STE IGS 1000 10 4 80 86 0.08 Polyether Urethane Foam
3021005
STE IGS 1000 10 5 80 86 0.08 Polyether Urethane Foam
3021007
STE IGS 1000 10 7 80 86 0.08 Polyether Urethane Foam 742 707 004
3021008
STE IGS 1000 10 8 80 86 0.08 Polyether Urethane Foam
3021010
STE IGS 1000 10 10 80 86 0.08 Polyether Urethane Foam
3021012
STE IGS 1000 10 12 80 86 0.08 Polyether Urethane Foam
3021013
STE IGS 1000 10 13 80 86 0.08 Polyether Urethane Foam
3021015
STE IGS 1000 10 15 80 86 0.08 Polyether Urethane Foam
3021025
STE IGS 1000 10 25 80 86 0.08 Polyether Urethane Foam
3021030
STE IGS 1000 10 30 80 86 0.08 Polyether Urethane Foam
302105115
STE IGS 1000 10.5 11.5 80 86 0.08 Polyether Urethane Foam
302115105
STE IGS 1000 11.5 10.5 80 86 0.08 Polyether Urethane Foam
30213064
STE IGS 1000 12 6.4 80 86 0.08 Polyether Urethane Foam
30213095
STE IGS 1000 12 9.5 80 86 0.08 Polyether Urethane Foam
3021210
STE IGS 1000 12 10 80 86 0.08 Polyether Urethane Foam
3021313
STE IGS 1000 12.7 12.7 80 86 0.08 Polyether Urethane Foam
3021213
STE IGS 1000 12 13 80 86 0.08 Polyether Urethane Foam
3021301
STE IGS 1000 13 1 80 86 0.08 Polyether Urethane Foam
3021302
STE IGS 1000 13 2 80 86 0.08 Polyether Urethane Foam
3021303
STE IGS 1000 13 3 80 86 0.08 Polyether Urethane Foam
3021305
STE IGS 1000 13 5 80 86 0.08 Polyether Urethane Foam
3021307
STE IGS 1000 13 7 80 86 0.0008 Polyether Urethane Foam
3021310
STE IGS 1000 13 10 80 86 0.08 Polyether Urethane Foam
3021414
STE IGS 1000 14 14 80 86 0.08 Polyether Urethane Foam
3021504
STE IGS 1000 15 4 80 86 0.08 Polyether Urethane Foam
3021508
STE IGS 1000 15 8 80 86 0.08 Polyether Urethane Foam
3021510
STE IGS 1000 15 10 80 86 0.08 Polyether Urethane Foam
3021707
STE IGS 1000 17 7 80 86 0.08 Polyether Urethane Foam
3021717
STE IGS 1000 17 17 80 86 0.08 Polyether Urethane Foam
3022010
STE IGS 1000 20 10 80 86 0.08 Polyether Urethane Foam
3022104
STE IGS 1000 21 4 80 86 0.08 Polyether Urethane Foam
3022202
STE IGS 1000 22 2 80 86 0.08 Polyether Urethane Foam
3022303
STE IGS 1000 23 3 80 86 0.08 Polyether Urethane Foam
30225015
STE IGS 1000 25 1.5 80 86 0.08 Polyether Urethane Foam
3022510
STE IGS 1000 25 10 80 86 0.08 Polyether Urethane Foam
3023002
STE IGS 1000 30 2 80 86 0.08 Polyether Urethane Foam
3023502
STE IGS 1000 35 2 80 86 0.08 Polyether Urethane Foam
3024502
STE IGS 1000 45 2 80 86 0.08 Polyether Urethane Foam
3025602
STE IGS 1000 56 2 80 86 0.08 Polyether Urethane Foam
30302015
STE IGS 1000 2 1.5 80 75 0.08 Polyether Urethane Foam
3030202
STE IGS 1000 2 2 80 75 0.08 Polyether Urethane Foam
30323231
STE IGS 1000 2.3 2.3 80 75 0.08 Polyether Urethane Foam
3030303
STE IGS 1000 3 3 80 75 0.08 Polyether Urethane Foam
303035015
STE IGS 1000 3.5 1.5 80 75 0.08 Polyether Urethane Foam
303038023
STE IGS 1000 3.8 2.3 80 75 0.08 Polyether Urethane Foam
3030403
STE IGS 1000 3.8 3 80 75 0.08 Polyether Urethane Foam
30304031
STE IGS 1000 4 3 80 75 0.08 Polyether Urethane Foam
303045018
STE IGS 1000 4.5 1.8 80 75 0.08 Polyether Urethane Foam
3030602
STE IGS 1000 6 2 80 75 0.08 Polyether Urethane Foam
3030604
STE IGS 1000 6 4 80 75 0.08 Polyether Urethane Foam
3030605
STE IGS 1000 6 5 80 75 0.08 Polyether Urethane Foam
303064032
STE IGS 1000 6.4 3.2 80 75 0.08 Polyether Urethane Foam
30364361
STE IGS 1000 6.4 3.6 80 75 0.08 Polyether Urethane Foam
30307025
STE IGS 1000 7 2.5 80 75 0.08 Polyether Urethane Foam
303076016
STE IGS 1000 7.6 1.6 80 75 0.08 Polyether Urethane Foam
303076048
STE IGS 1000 7.6 4.8 80 75 0.08 Polyether Urethane Foam
3030804
STE IGS 1000 8 4 80 75 0.08 Polyether Urethane Foam
30308055
STE IGS 1000 8 5.5 80 75 0.08 Polyether Urethane Foam
3030806
STE IGS 1000 8 6 80 75 0.08 Polyether Urethane Foam 742 707 004
303085035
STE IGS 1000 8.5 3.5 80 75 0.08 Polyether Urethane Foam
3030903
STE IGS 1000 9 3 80 75 0.08 Polyether Urethane Foam
30395641
STE IGS 1000 9.5 6.4 80 75 0.08 Polyether Urethane Foam
3031004
STE IGS 1000 10 4 80 75 0.08 Polyether Urethane Foam
3031007
STE IGS 1000 10 7 80 75 0.08 Polyether Urethane Foam
3031008
STE IGS 1000 10 8 80 75 0.08 Polyether Urethane Foam
3031010
STE IGS 1000 10 10 80 75 0.08 Polyether Urethane Foam
3031018
STE IGS 1000 10 18 80 75 0.08 Polyether Urethane Foam
3031210
STE IGS 1000 12 10 80 75 0.08 Polyether Urethane Foam
3031313
STE IGS 1000 12.7 12.7 80 75 0.08 Polyether Urethane Foam
30906035
STE IGS 1000 6 3.5 80 86 0.08 Polyether Urethane Foam
3090606
STE IGS 1000 6 6 80 86 0.08 Polyether Urethane Foam
3091010
STE IGS 1000 10 10 80 86 0.08 Polyether Urethane Foam
3091009
STE IGS 1000 10.7 9.8 80 86 0.08 Polyether Urethane Foam
3091111
STE IGS 1000 11 11 80 86 0.08 Polyether Urethane Foam
3091418
STE IGS 1000 14.7 17.9 80 86 0.08 Polyether Urethane Foam
3080803
STE IGS 1000 8 3 80 75 0.08 Polyether Urethane Foam
3081710
STE IGS 1000 17 10 80 75 0.08 Polyether Urethane Foam
3081804
STE IGS 1000 18 4 80 75 0.08 Polyether Urethane Foam
30818045
STE IGS 1000 18 4.5 80 75 0.08 Polyether Urethane Foam
30829048
STE IGS 1000 29 4.8 80 75 0.08 Polyether Urethane Foam
38008027
STE IGS 1000 8 2.7 80 75 0.08 Polyether Urethane Foam
38111023
STE IGS 1000 11.3 2.3 80 75 0.08 Polyether Urethane Foam
38111027
STE IGS 1000 11.3 2.7 80 75 0.08 Polyether Urethane Foam 742 707 004
38205603
STE IGS 1000 5.6 3 80 75 0.08 Polyether Urethane Foam
38313095
STE IGS 1000 12.7 9.5 80 75 0.08 Polyether Urethane Foam
