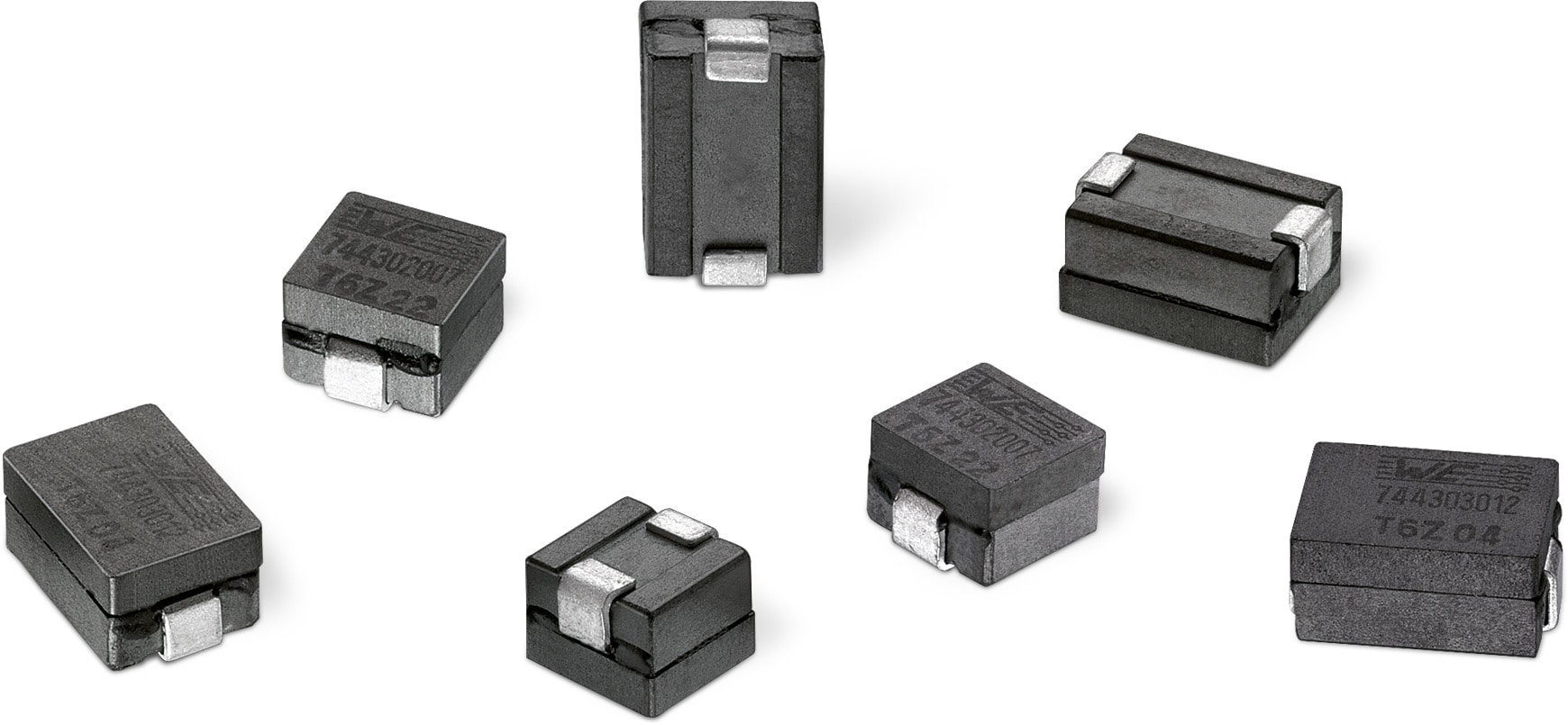

WE-HCM SMT High Current Flat Wire Inductor | Passive Components

	Size	L (mm)	W (mm)	H (mm)	Fl (mm)	Material	Mount
	1012	10	6	12	2.4	MnZn	SMT
	1050	10	7	5	2.5	MnZn	SMT
	1052	10.5	10.3	5	2	MnZn	SMT
	1070	10.1	7	6.8	2.6	MnZn	SMT
	1078	9.4	6.2	7.8	1.8	MnZn	SMT
	1088	10.2	8.1	8	2.5	MnZn	SMT
	1088A	10.2	8.1	8.1	2.5	MnZn	SMT
	1088B	10.8	8.1	8.5	2.8	MnZn	SMT
	1190	11.3	11	8.9	2.2	MnZn	SMT
	1240	11.5	11.8	3.8	1.75	MnZn	SMT
	1323	13	10.5	2.3	6.9	MnZn	SMT
	1350	13.5	13.3	5	2	MnZn	SMT
	1390	14	13	9	1.8	MnZn	SMT
	1411	14.5	13.5	10.7	2.7	MnZn	SMT
	1435	13.5	13.65	3.5	9.6	MnZn	SMT
	1820	16.4	13.6	2	3	MnZn	SMT
NEW	4030	4.1	3.1	3	4.8	MnZn	SMT
NEW	4035	5	3.1	3.5	1.55	MnZn	SMT
	5030	5	3.1	3	5.6	MnZn	SMT
	7050	7.15	7	5	2.5	MnZn	SMT
	7070	7	7	7	2	MnZn	SMT
	9065	8.64	6.35	4.5	2.7	MnZn	SMT

Characteristics

Lowest core losses (MnZn)
High saturation current up to 125 A
Extremely low DCR
Magnetically shielded
Operating temperature: –40 °C to +125 °C
Recommended solder profile: Reflow

Applications

Multiphase switching regulator
CPU/RAM power supply
Power PC
Filter
