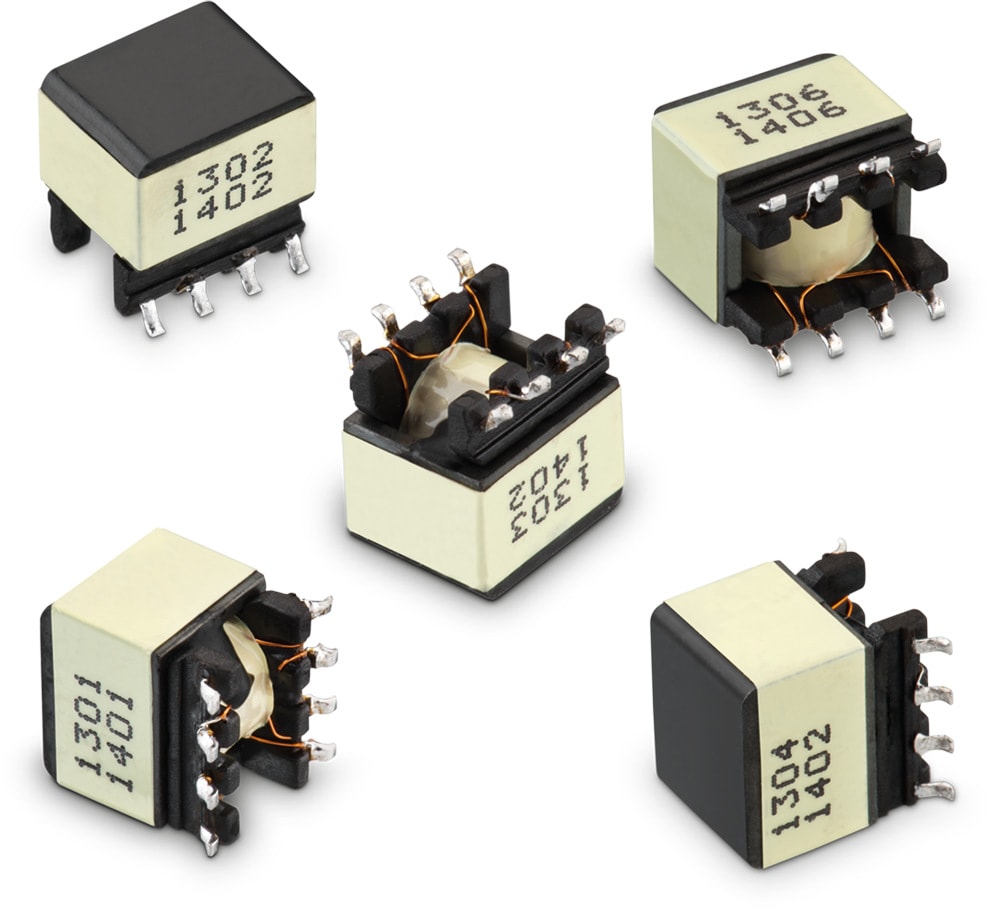

WE-GDTI Gate-Drive-Transformer

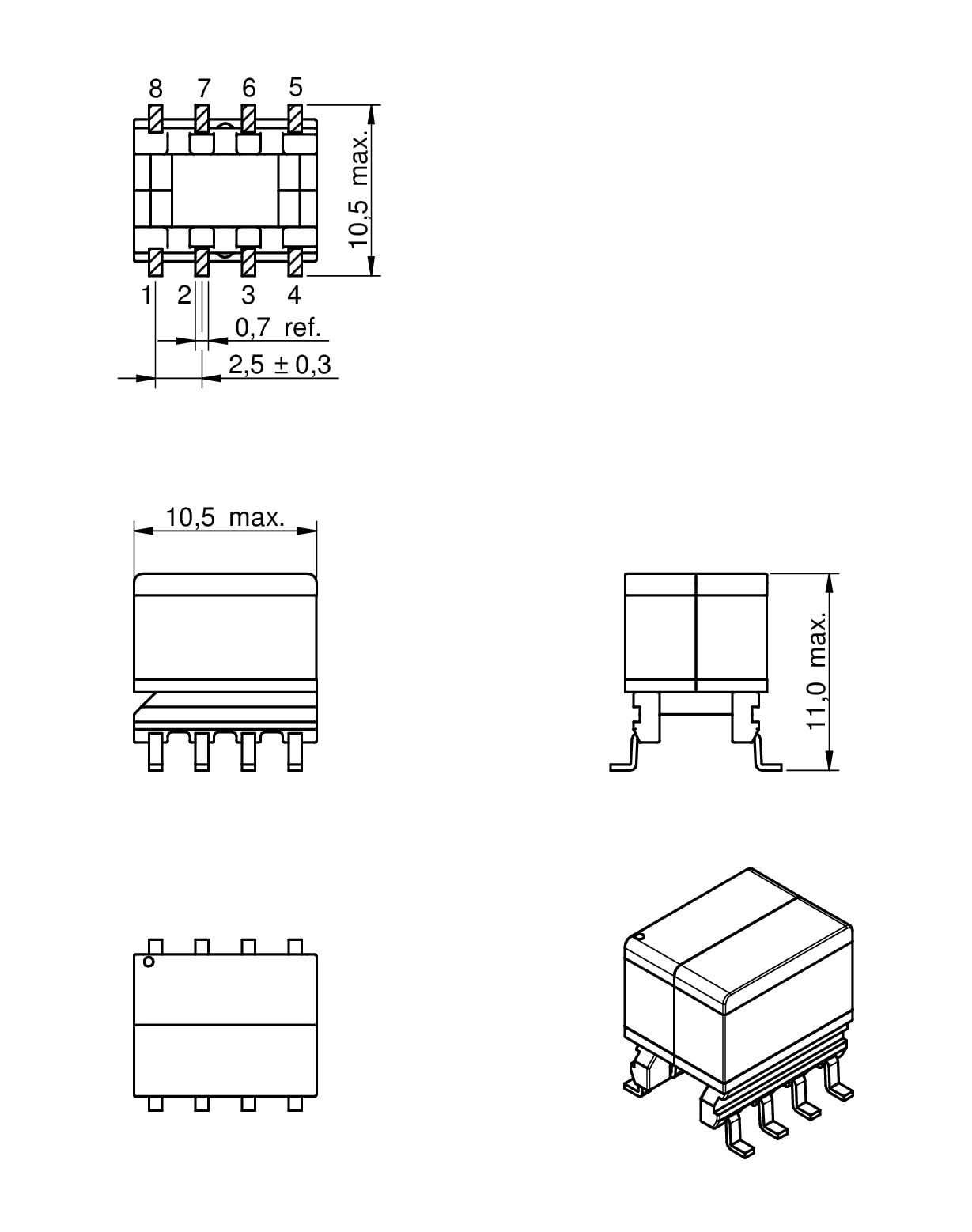

Size Dimen­sions 3DL
(mm)
W
(mm)
H
(mm)
EP7 10.5 10.5 11

Characteristics

  • Excellent performance in small package (EP7)
  • 1 or 2 secondary windings
  • 6 Translations
  • 2500 VAC test voltage
  • Basic insulation for operating voltages up to 250 VRMS

Applications

  • Suitable for signal and power application
  • Designed for gate drive application high efficient SMPS
  • Synchronous Flyback

Products

EP7
Order Code Data­sheet DownloadsRDC 1
(mΩ)
RDC 2
(mΩ)
RDC 3
(mΩ)
n∫Udt
(µVs)
CWW 1
(pF)
VT
(V (AC))
Samples
760301301SPEC
7 files 1100 1300 1300 1:1:1 102 11 2500
760301302SPEC
7 files 1100 1300 1:1 102 11 2500
760301303SPEC
7 files 1100 700 700 2:1:1 102 11 2500
760301304SPEC
7 files 1300 600 600 2.5:1:1 120 11 2500
760301305SPEC
7 files 1000 900 900 1.5:1:1 99 11 2500
760301306SPEC
7 files 1600 650 650 3:1:1 140 11 2500
Order Code Data­sheet
760301301SPEC
760301302SPEC
760301303SPEC
760301304SPEC
760301305SPEC
760301306SPEC
