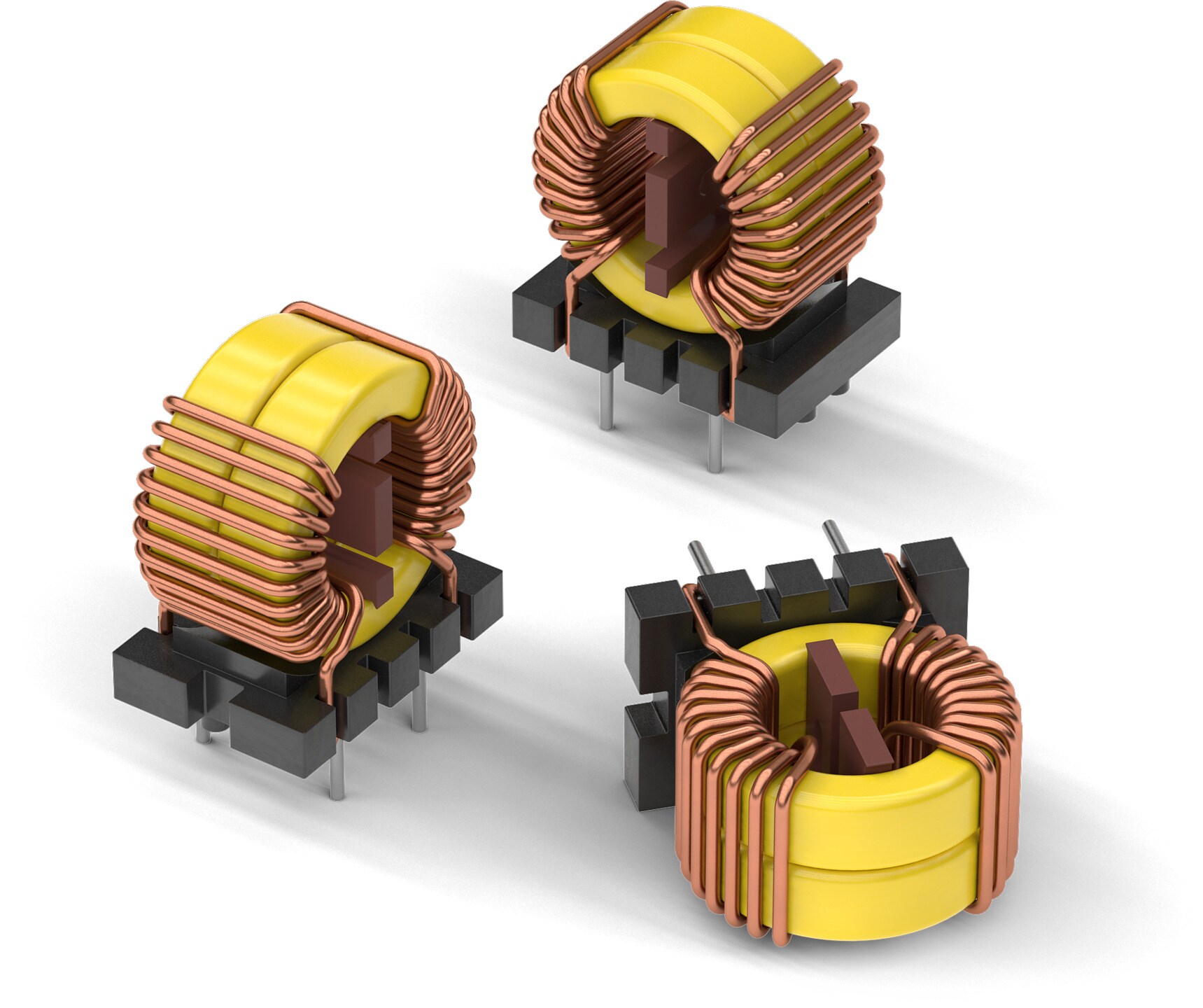

WE-ExB Common Mode Power Line Choke

Size L
(mm)
W
(mm)
H
(mm)
Mount

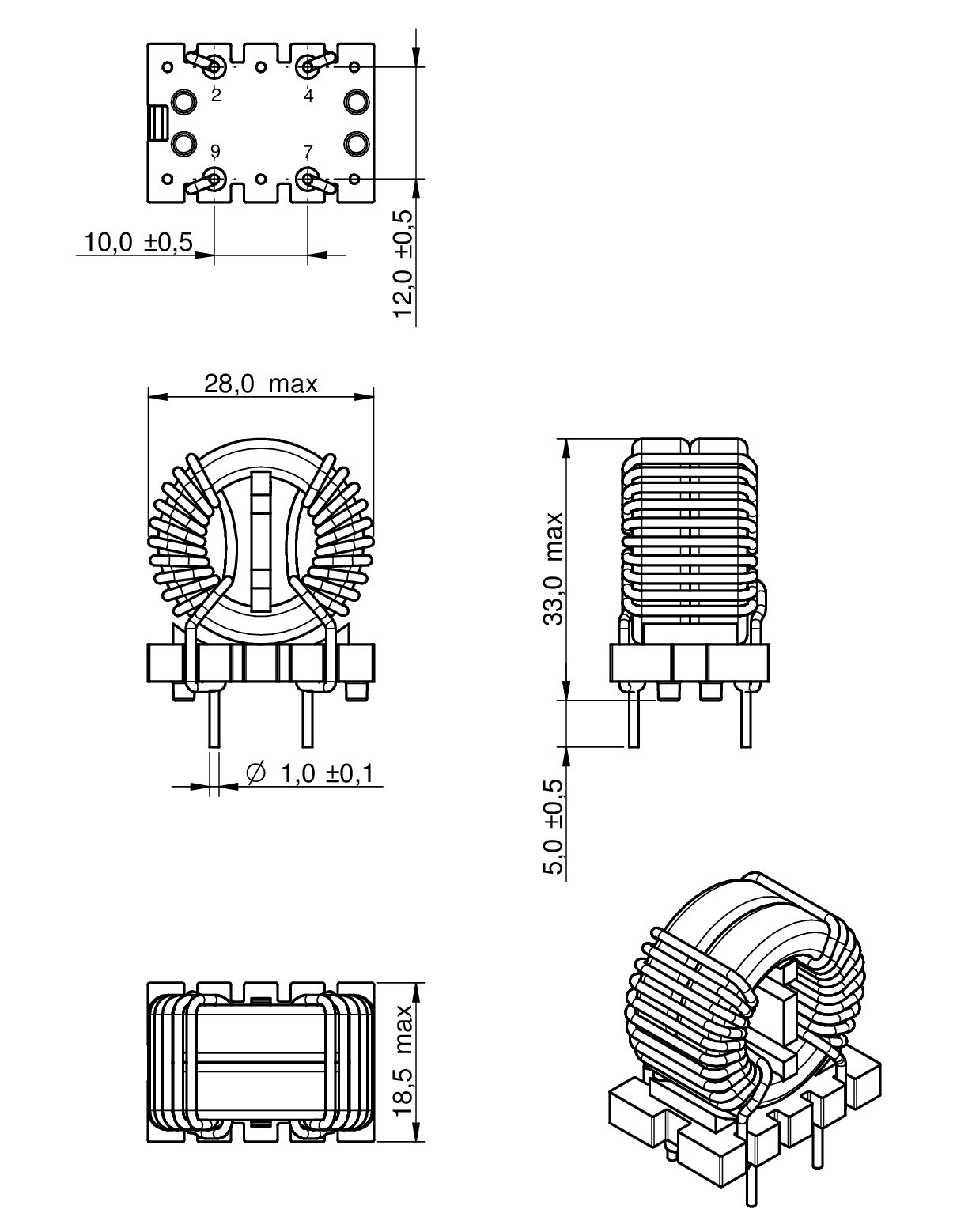

Type L 28 18.5 33 THT

Characteristics

  • MnZn and NiZn core material
  • Suppression of noise in a broad frequency range (100 kHz to 100 MHz)
  • Combined noise and burst filter
  • Increases electromagnetic immunity
  • Climatic category 40/125/21
  • Flammability corresponding to UL 94 V-0

Applications

  • EMC filter
  • Mains line filter
  • Power electronics
  • Interference suppression in motors
  • Common mode filters

Products

Type L
Order Code SPEC Simu­lation Downloads IR 1
(A)
L1
(µH)
RDC1 max.
(mΩ)
VR
(V (AC))
VT
(V (AC))
Design Kit Samples
744844102
ALT EAG CAD LTS PSP CAD CAD 4.5 1000 42 250 1500 744824
744844471
ALT EAG CAD LTS PSP CAD CAD 9 470 16 250 1500 744824
744844221
ALT EAG CAD LTS PSP CAD CAD 12 220 9 250 1500 744824
744844101
ALT EAG CAD LTS PSP CAD CAD 14 100 6 250 1500 744824
744844470
ALT EAG CAD LTS PSP CAD CAD 15 47 4.6 250 1500 744824
Order Code SPEC Simu­lation
744844102
744844471
744844221
744844101
744844470
Samples
Order Code SPEC Simu­lation Downloads IR 1
(A)
L1
(µH)
RDC1 max.
(mΩ)
VR
(V (AC))
VT
(V (AC))
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
