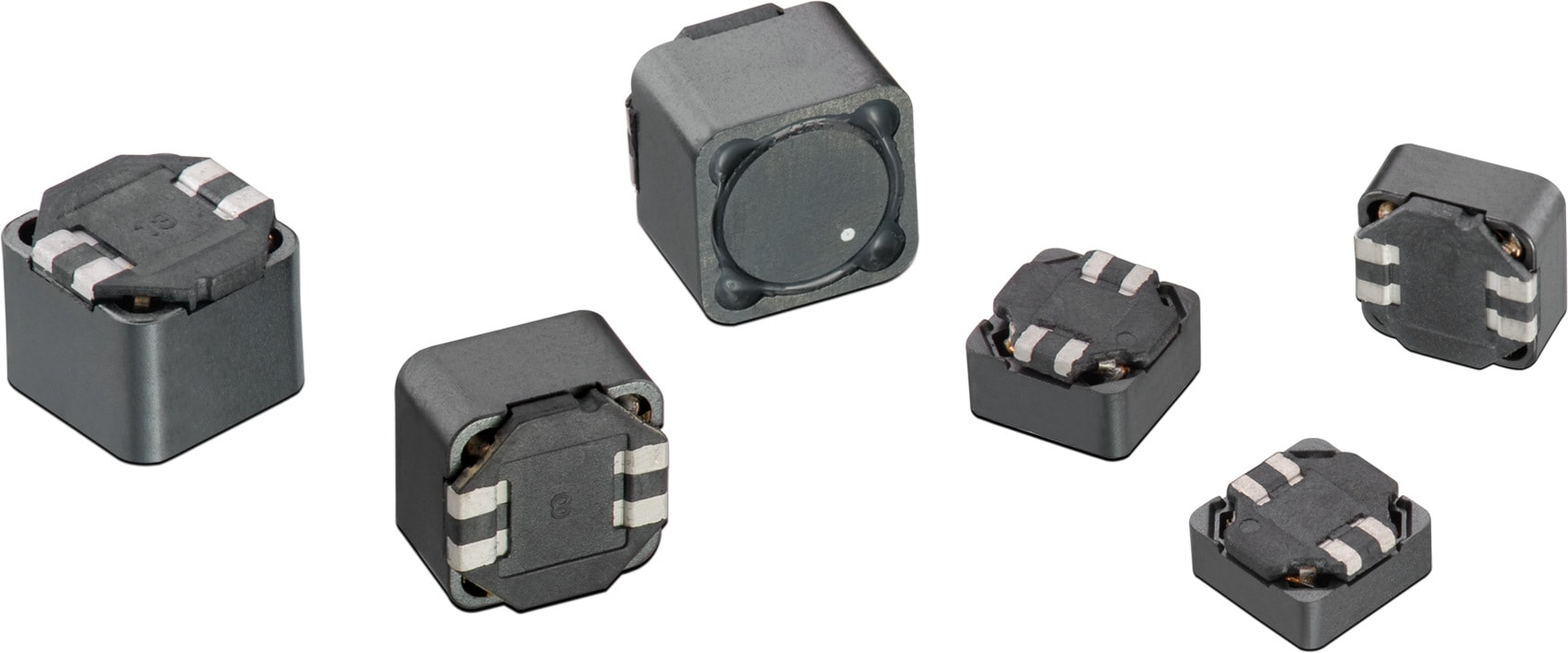

WE-DD SMT Shielded Coupled Inductor

Size L
(mm)
W
(mm)
H
(mm)

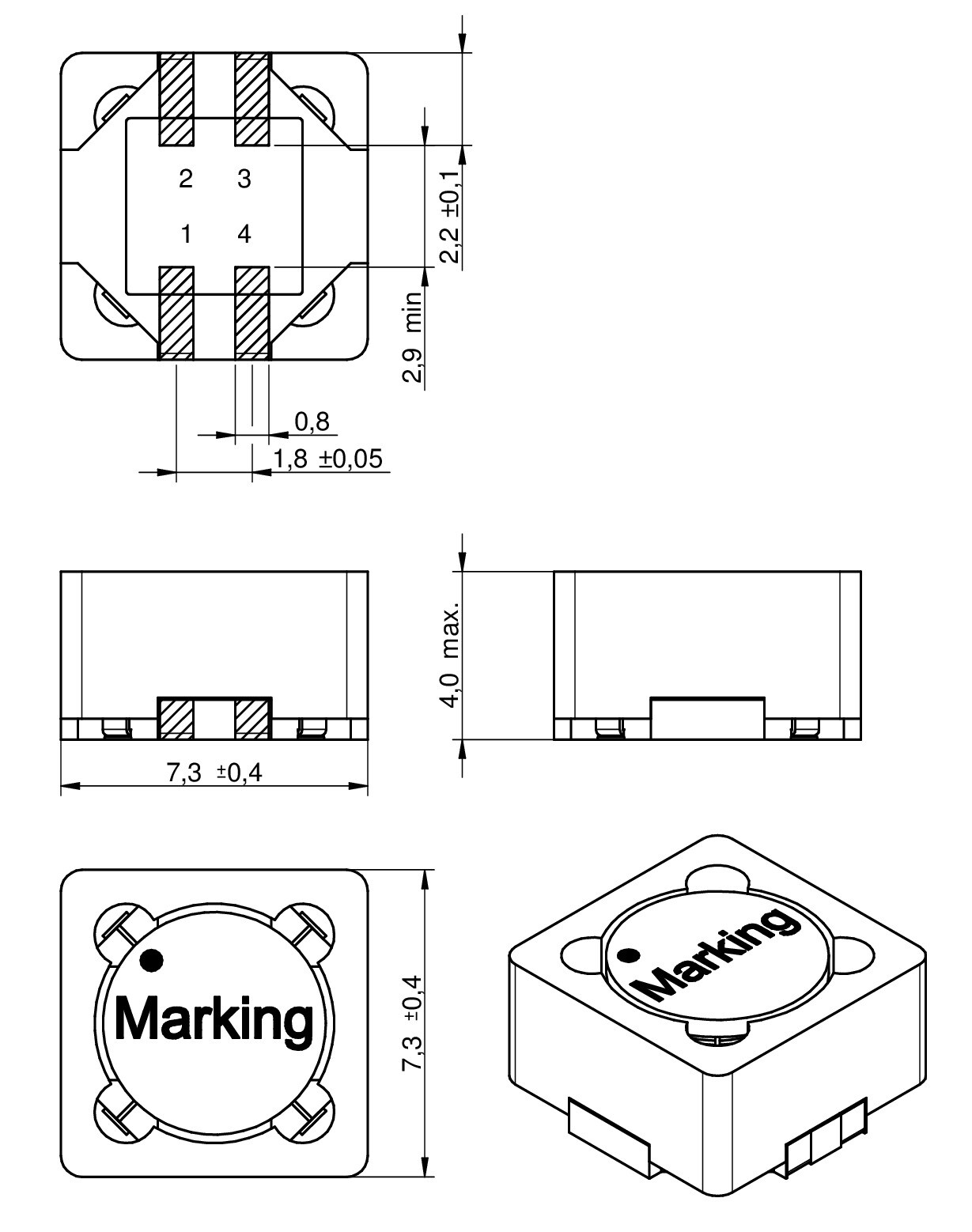

7332 7.3 7.3 4

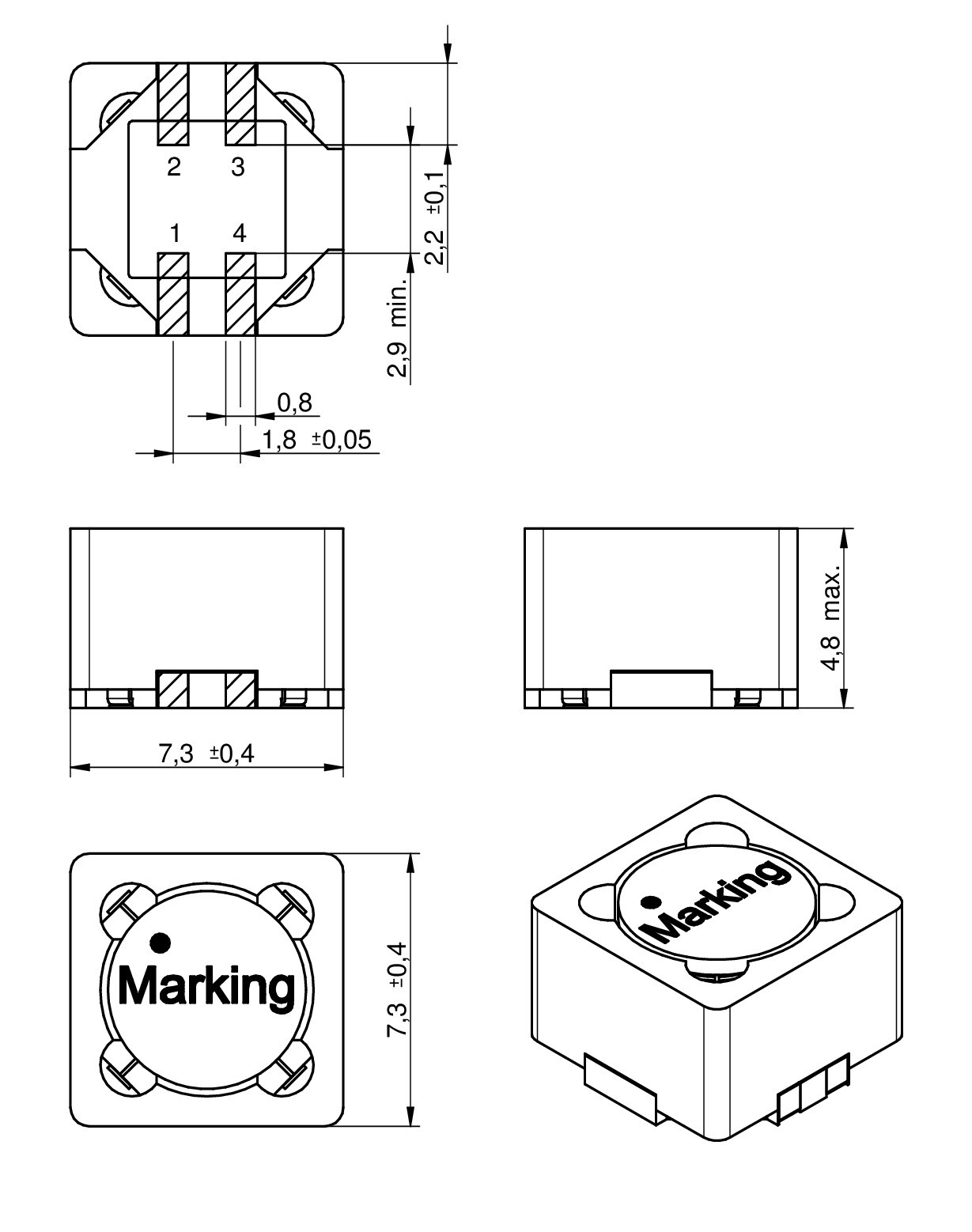

7345 7.3 7.3 4.8

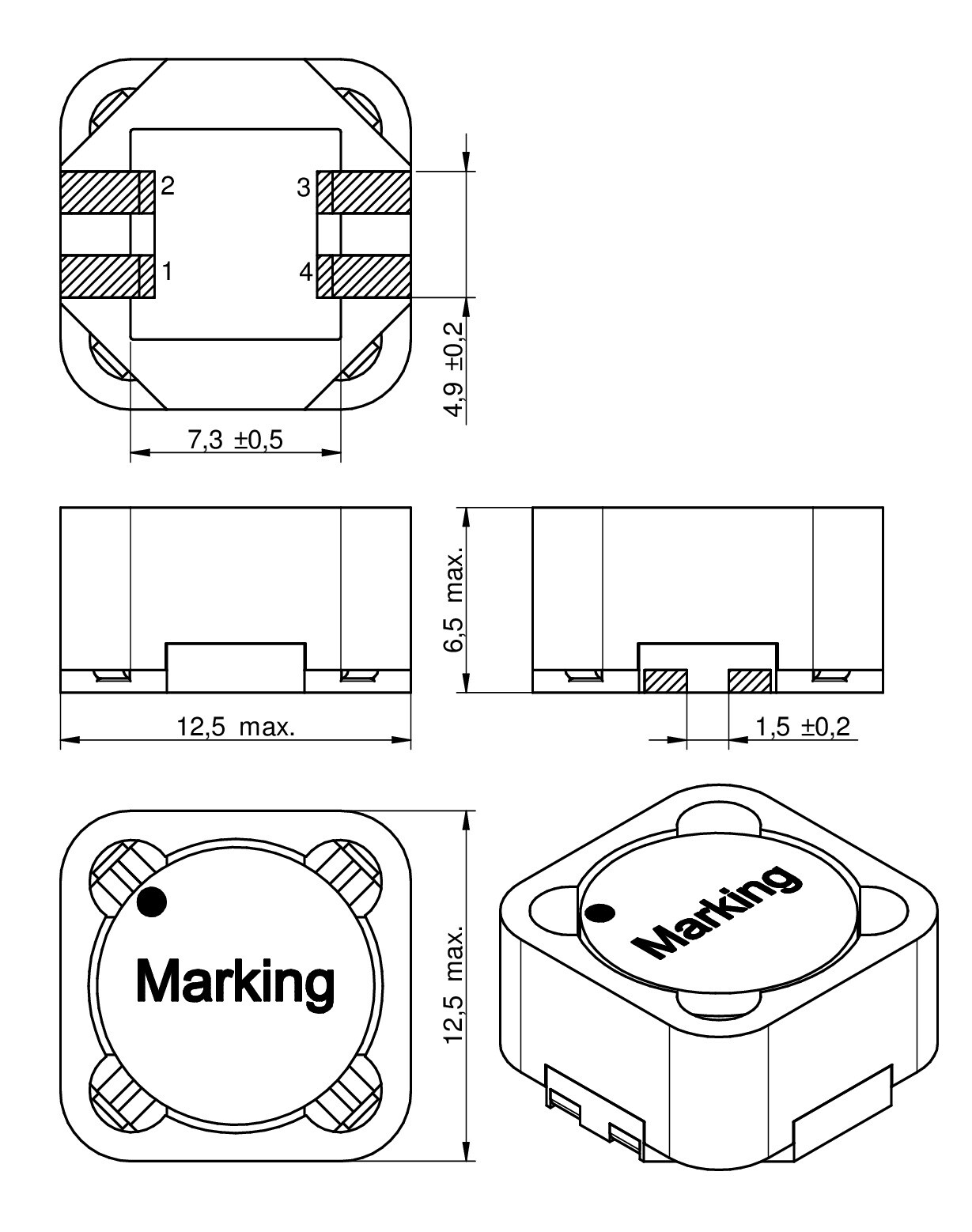

1260 12.5 12.5 6.5

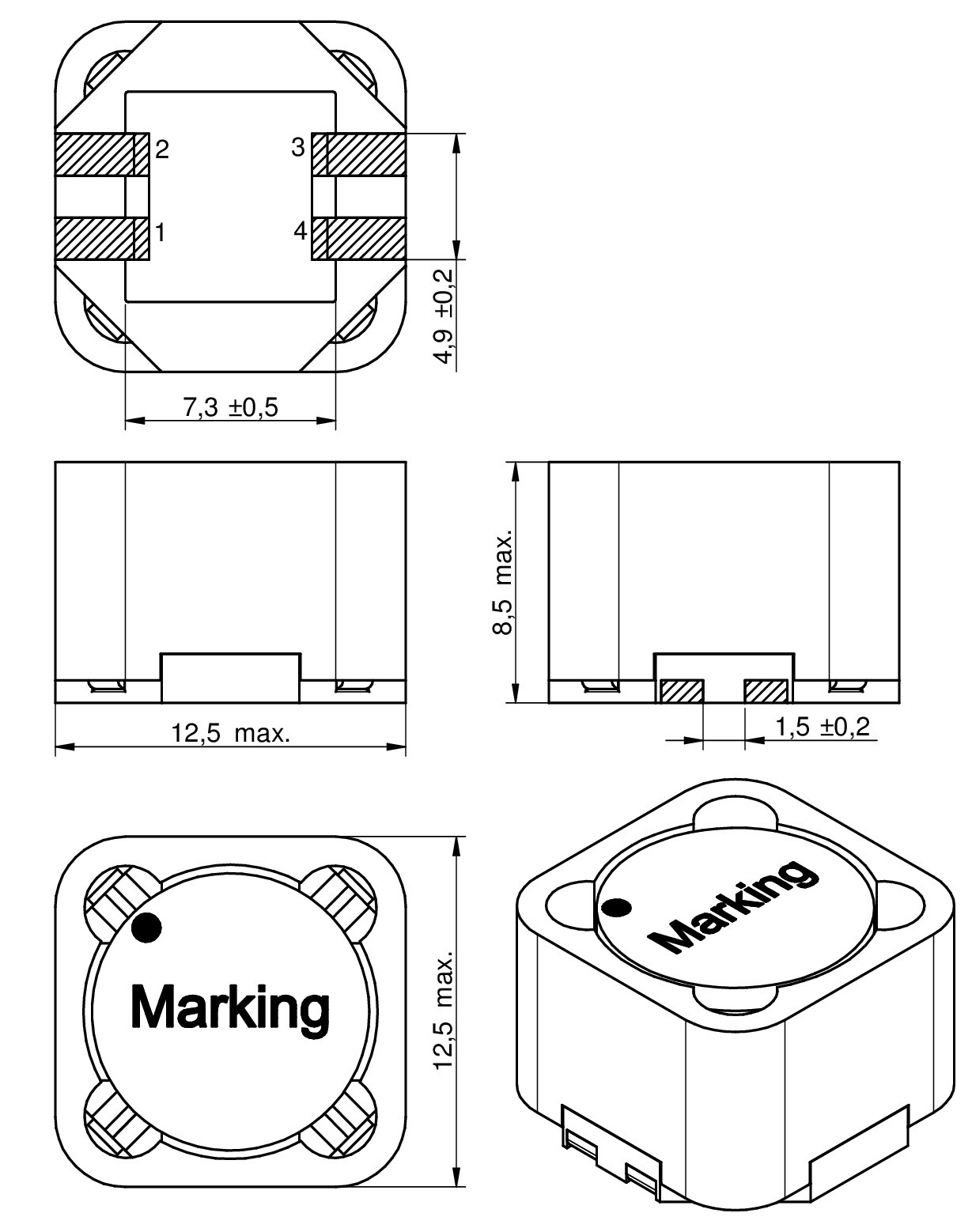

1280 12.5 12.5 8.5
1260 12.5 12.5 6.5
1280 12.5 12.5 8.5

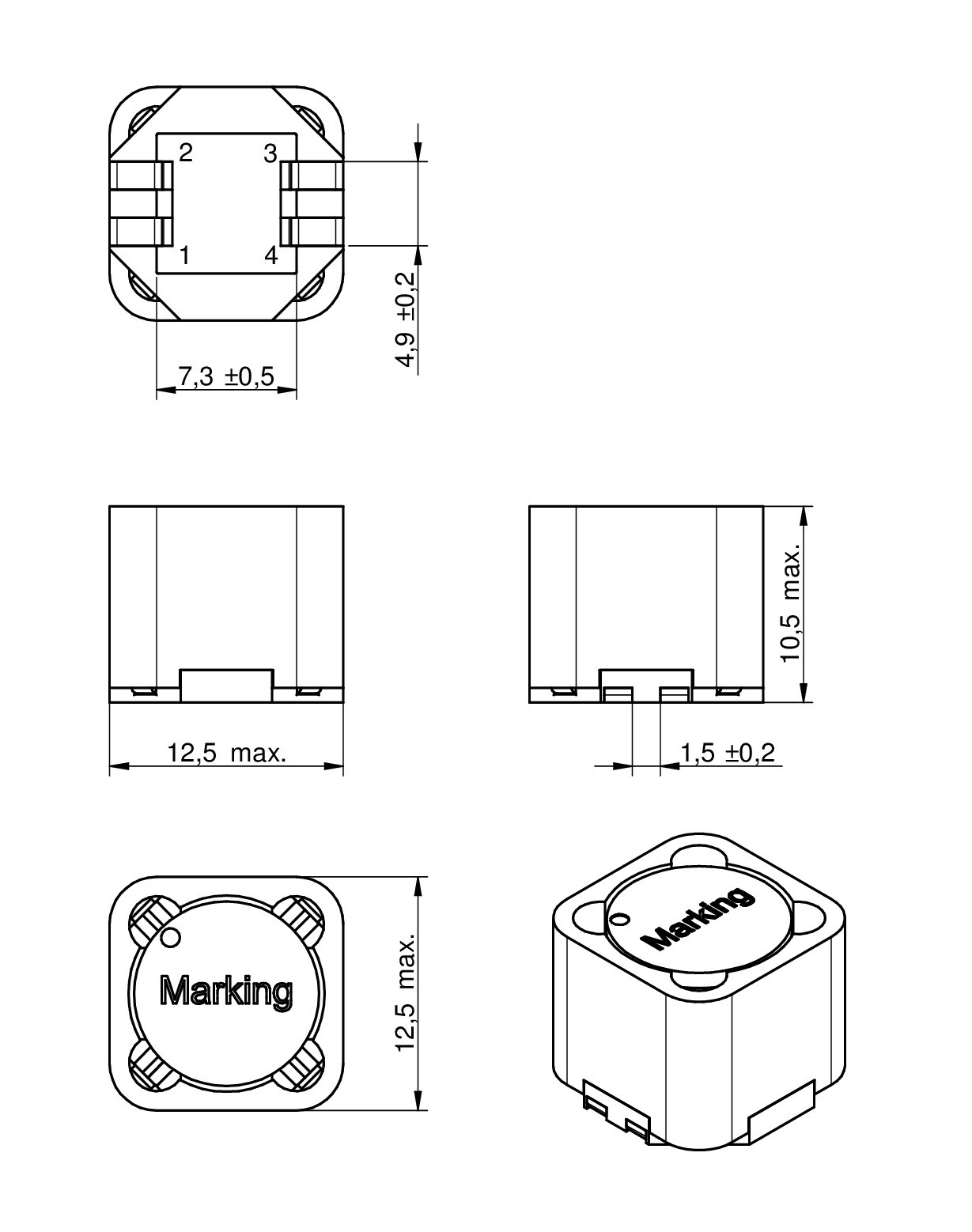

1210 12.5 12.5 10.5

Characteristics

  • 1:1 transformer
  • Double inductor with two identical windings
  • 5 different sizes available
  • Operating temperature: –40 ºC to +125 ºC
  • Recommended solder profile: Reflow
  • Custom designs on request

Applications

  • For SEPIC and CUK topologies
  • Flyback applications
  • Switching regulators with second, unregulated output voltage

An Excellent Duet!

The WE-MCRI is an innovative molded coupled inductor with fully automated bifilar winding process. It offers an almost ideal coupling coefficient up to 0.995.

Product video and more

Products

All
7332
7345
1260
1280
1260
1280
1210
Order Code SPEC Downloads L1
(µH)
L2
(µH)
IR 1
(A)
IR 2
(A)
ISAT 1
(A)
RDC1 typ
(Ω)
RDC2 typ
(Ω)
RDC1 max
(Ω)
RDC2 max
(Ω)
fres 1
(MHz)
Design Kit Samples
744878001
ALT EAG CAD LTS PSP CAD CAD 1.3 1.3 4.4 4.4 6.3 0.027 0.027 0.035 0.035 60 744870
744878002
ALT EAG CAD LTS PSP CAD CAD 2.4 2.4 3.6 3.6 4.8 0.042 0.042 0.052 0.052 53 744870
744878003
ALT EAG CAD LTS PSP CAD CAD 3.3 3.3 3.3 3.3 4 0.052 0.052 0.064 0.064 49
744878004
ALT EAG CAD LTS PSP CAD CAD 4.7 4.7 1.3 1.3 3 0.065 0.065 0.075 0.075 46 744870
744878005
ALT EAG CAD LTS PSP CAD CAD 5.6 5.6 1.5 1.5 3 0.095 0.095 0.12 0.12 26
744878006
ALT EAG CAD LTS PSP CAD CAD 6.8 6.8 1.4 1.4 2.8 0.11 0.11 0.135 0.135 25
744878008
ALT EAG CAD LTS PSP CAD CAD 8.2 8.2 1.3 1.3 2.7 0.115 0.115 0.14 0.14 22
744878100
ALT EAG CAD LTS PSP CAD CAD 10 10 1 1 2 0.125 0.125 0.15 0.15 30 744870
744878220
ALT EAG CAD LTS PSP CAD CAD 22 22 0.7 0.7 1.5 0.245 0.245 0.3 0.3 20
744878470
ALT EAG CAD LTS PSP CAD CAD 47 47 0.9 0.9 1 0.6 0.6 0.75 0.75 8
744878101
ALT EAG CAD LTS PSP CAD CAD 100 100 0.3 0.3 0.7 1.4 1.4 1.73 1.73 4
744877001
ALT EAG CAD LTS PSP CAD CAD 1.8 1.8 4.7 4.7 6.5 0.025 0.025 0.034 0.034 58 744870
744877002
ALT EAG CAD LTS PSP CAD CAD 2.4 2.4 4.2 4.2 5.6 0.031 0.031 0.042 0.042 50 744870
744877003
ALT EAG CAD LTS PSP CAD CAD 3.3 3.3 3.7 3.7 5 0.04 0.04 0.052 0.052 46 744870
744877004
ALT EAG CAD LTS PSP CAD CAD 4.7 4.7 2.55 2.55 4 0.052 0.052 0.064 0.064 42 744870
744877005
ALT EAG CAD LTS PSP CAD CAD 5.6 5.6 1.9 1.9 3.5 0.08 0.08 0.095 0.095 23
744877006
ALT EAG CAD LTS PSP CAD CAD 6.8 6.8 1.8 1.8 3.2 0.085 0.085 0.102 0.102 20
744877008
ALT EAG CAD LTS PSP CAD CAD 8.2 8.2 1.7 1.7 2.9 0.091 0.091 0.11 0.11 17
744877100
ALT EAG CAD LTS PSP CAD CAD 10 10 1.1 1.1 2.8 0.11 0.11 0.12 0.12 27 744870
744877220
ALT EAG CAD LTS PSP CAD CAD 22 22 0.8 0.8 1.8 0.215 0.215 0.26 0.26 16 744870
744877101
ALT EAG CAD LTS PSP CAD CAD 100 100 0.65 0.65 0.9 1.029 1.029 1.3 1.3 4
744877330
ALT EAG CAD LTS PSP CAD CAD 33 33 0.7 0.7 1.5 0.4 0.4 0.5 0.5 8
744874001
ALT EAG CAD LTS PSP CAD CAD 1.5 1.5 5.85 5.85 14 0.012 0.012 0.016 0.016 70
744874002
ALT EAG CAD LTS PSP CAD CAD 2.4 2.4 5.5 5.5 11.5 0.013 0.013 0.017 0.017 54
744874003
ALT EAG CAD LTS PSP CAD CAD 3.3 3.3 4.91 4.91 8.9 0.017 0.017 0.021 0.021 45
744874004
ALT EAG CAD LTS PSP CAD CAD 4.7 4.7 4.22 4.22 8 0.023 0.023 0.028 0.028 39 744870
744874006
ALT EAG CAD LTS PSP CAD CAD 6.8 6.8 3.9 3.9 6.8 0.027 0.027 0.032 0.032 33
744874100
ALT EAG CAD LTS PSP CAD CAD 10 10 3.28 3.28 5.25 0.038 0.038 0.044 0.044 24 744870
744874220
ALT EAG CAD LTS PSP CAD CAD 22 22 2.47 2.47 3.3 0.067 0.067 0.08 0.08 15.5 744870
744874470
ALT EAG CAD LTS PSP CAD CAD 47 47 1.8 1.8 2.75 0.13 0.13 0.15 0.15 11 744870
744874101
ALT EAG CAD LTS PSP CAD CAD 100 100 1.2 1.2 1.7 0.285 0.285 0.32 0.32 6 744870
744871004
ALT EAG CAD LTS PSP CAD CAD 4.7 4.7 3 3 8 0.023 0.023 0.028 0.028 20 744870
744871006
ALT EAG CAD LTS PSP CAD CAD 6.8 6.8 2.8 2.8 6.5 0.035 0.035 0.04 0.04 20
744871100
ALT EAG CAD LTS PSP CAD CAD 10 10 2 2 5 0.044 0.044 0.05 0.05 20 744870
744871220
ALT EAG CAD LTS PSP CAD CAD 22 22 1.85 1.85 3 0.067 0.067 0.09 0.09 14 744870
744871330
ALT EAG CAD LTS PSP CAD CAD 33 33 1.2 1.2 2.8 0.125 0.125 0.17 0.17 6
744871470
ALT EAG CAD LTS PSP CAD CAD 47 47 1.1 1.1 2.4 0.145 0.145 0.18 0.18 5 744870
744871101
ALT EAG CAD LTS PSP CAD CAD 100 100 1.5 1.5 1.8 0.293 0.293 0.36 0.36 4 744870
744873001
ALT EAG CAD LTS PSP CAD CAD 1.5 1.5 6.25 6.25 18 0.011 0.011 0.015 0.015 75
744873002
ALT EAG CAD LTS PSP CAD CAD 2.4 2.4 6 6 14 0.012 0.012 0.016 0.016 54
744873003
ALT EAG CAD LTS PSP CAD CAD 3.3 3.3 5.14 5.14 11 0.017 0.017 0.022 0.022 41
744873004
ALT EAG CAD LTS PSP CAD CAD 4.7 4.7 4.87 4.87 10 0.019 0.019 0.024 0.024 32 744870
744873100
ALT EAG CAD LTS PSP CAD CAD 10 10 4.2 4.2 7.5 0.031 0.031 0.042 0.042 20 744870
744873150
ALT EAG CAD LTS PSP CAD CAD 15 15 3.3 3.3 6.1 0.041 0.041 0.055 0.055 14
744873220
ALT EAG CAD LTS PSP CAD CAD 22 22 2.79 2.79 5 0.058 0.058 0.07 0.07 11.5 744870
744873330
ALT EAG CAD LTS PSP CAD CAD 33 33 2.25 2.25 3.9 0.087 0.087 0.105 0.105 8.9
744873470
ALT EAG CAD LTS PSP CAD CAD 47 47 2.02 2.02 3.1 0.11 0.11 0.12 0.12 7.8 744870
744873680
ALT EAG CAD LTS PSP CAD CAD 68 68 1.66 1.66 2.8 0.163 0.163 0.18 0.18 5.5
744873101
ALT EAG CAD LTS PSP CAD CAD 100 100 1.38 1.38 2.2 0.235 0.235 0.255 0.255 4.4 744870
744873221
ALT EAG CAD LTS PSP CAD CAD 220 220 0.91 0.91 1.6 0.54 0.54 0.58 0.58 2.8 744870
7448700015
ALT EAG CAD LTS PSP CAD CAD 1.5 1.5 8.6 8.6 17.5 0.012 0.012 0.016 0.016 60
744870002
ALT EAG CAD LTS PSP CAD CAD 2.4 2.4 7.8 7.8 15 0.014 0.014 0.018 0.018 40
744870003
ALT EAG CAD LTS PSP CAD CAD 3.3 3.3 7.1 7.1 12 0.016 0.016 0.021 0.021 30
744870004
ALT EAG CAD LTS PSP CAD CAD 4.7 4.7 3.6 3.6 10 0.025 0.025 0.03 0.03 34 744870
744870006
ALT EAG CAD LTS PSP CAD CAD 6.8 6.8 3.2 3.2 8 0.027 0.027 0.035 0.035 18
744870100
ALT EAG CAD LTS PSP CAD CAD 10 10 2.7 2.7 7 0.038 0.038 0.044 0.044 18 744870
744870220
ALT EAG CAD LTS PSP CAD CAD 22 22 2.45 2.45 5.2 0.062 0.062 0.08 0.08 10 744870
744870470
ALT EAG CAD LTS PSP CAD CAD 47 47 1.45 1.45 3.1 0.125 0.125 0.15 0.15 5 744870
744870680
ALT EAG CAD LTS PSP CAD CAD 68 68 1.35 1.35 3 0.17 0.17 0.215 0.215 3.7
744870101
ALT EAG CAD LTS PSP CAD CAD 100 100 1.4 1.4 2 0.23 0.23 0.3 0.3 4 744870
744870151
ALT EAG CAD LTS PSP CAD CAD 150 150 1 1 1.7 0.34 0.34 0.4 0.4 2.3
744870221
ALT EAG CAD LTS PSP CAD CAD 220 220 0.9 0.9 1.4 0.53 0.53 0.65 0.65 2 744870
744870471
ALT EAG CAD LTS PSP CAD CAD 470 470 0.7 0.7 0.9 1 1 1.2 1.2 0.65
7448709022
ALT EAG CAD LTS PSP CAD CAD 2.2 2.2 4.1 4.1 19 0.015 0.015 0.017 0.017 45
7448709033
ALT EAG CAD LTS PSP CAD CAD 3.3 3.3 3.7 3.7 15.5 0.017 0.017 0.02 0.02 35
7448709047
ALT EAG CAD LTS PSP CAD CAD 4.7 4.7 3.6 3.6 13 0.019 0.019 0.023 0.023 30
7448709068
ALT EAG CAD LTS PSP CAD CAD 6.8 6.8 3.3 3.3 11.5 0.026 0.026 0.031 0.031 23
7448709100
ALT EAG CAD LTS PSP CAD CAD 10 10 3.2 3.2 8 0.033 0.033 0.04 0.04 20 744870
7448709220
ALT EAG CAD LTS PSP CAD CAD 22 22 3.5 3.5 5 0.064 0.064 0.08 0.08 10 744870
7448709330
ALT EAG CAD LTS PSP CAD CAD 33 33 2 2 4.4 0.08 0.08 0.1 0.1 6 744870
7448709470
ALT EAG CAD LTS PSP CAD CAD 47 47 1.9 1.9 3.6 0.106 0.106 0.13 0.13 4
