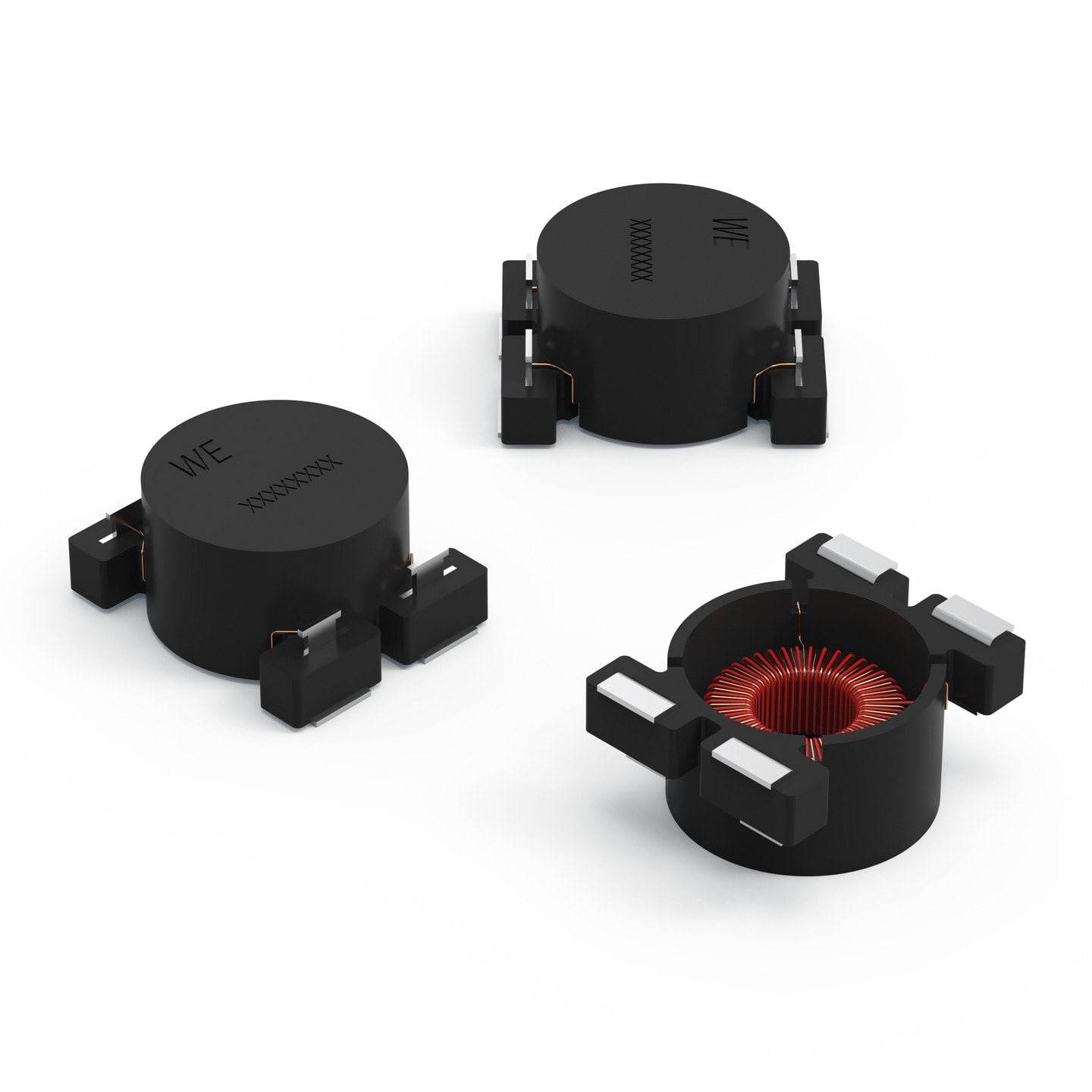

WE-DCT Toroidal Double Power Choke | Passive Components

	Size	Dimensions	L (mm)	W (mm)	H (mm)
EXT.	SH		23	18.5	11.5

LTSpice files

LT
LTSpice_WE-DCT (rev22a).zip
|
2.4 KB

Characteristics

Very low RDC
Very low core losses
Saturation current higher up to 120 A
Low inductance drift over temperature
Operating temperature: –40 °C up to +125 °C
Coupled inductor with two identical windings
More variants due to parallel and series connection
Core material WE-Perm
Low leakage due to bifilar winding

Applications

High power switching regulators
Solar inverter
1:1 flyback converter
Buck, Boost, Sepic and CUK Converter
Switching regulators with second unregulated output voltage

An Excellent Duet!

The WE-MCRI is an innovative molded coupled inductor with fully automated bifilar winding process. It offers an almost ideal coupling coefficient up to 0.995.

Product video and more

Products

	Order Code	Datasheet	Downloads	L₁ (µH)	L₂ (µH)	I_R (A)	I_{R 2} (A)	I_SAT (A)	R_{DC1 typ} (mΩ)	R_{DC2 typ} (mΩ)	R_{DC1 max} (mΩ)	R_{DC2 max} (mΩ)
NEW	7448510091	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	0.091	0.091	14.5	14.5	120	2.8	2.8	3.5	3.5
NEW	744851016	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	0.16	0.16	13.8	13.8	90	3.4	3.4	4.4	4.4
NEW	744851027	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	0.27	0.27	12.3	12.3	65	4	4	5	5
NEW	744851039	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	0.39	0.39	10.6	10.6	50	4.7	4.7	6	6
NEW	744851056	SPEC	6 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Download all 6 files as zip archive ZIP	0.56	0.56	9.8	9.8	40	5.3	5.3	6.7	6.7
NEW	744851100	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	1	1	8.6	8.6	30	7.4	7.4	8.5	8.5
NEW	744851220	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	2.2	2.2	8.6	8.6	17	7.4	7.4	8.5	8.5
NEW	744851330	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	3.3	3.3	7.7	7.7	13.5	9	9	12	12
NEW	744851470	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	4.7	4.7	7.2	7.2	11	10.3	10.3	14	14
NEW	744851101	SPEC	6 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Download all 6 files as zip archive ZIP	10	10	5.3	5.3	8	18.4	18.4	22	22
NEW	744851221	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	22	22	3.5	3.5	2.7	34	34	45	45
NEW	744851331	SPEC	6 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Download all 6 files as zip archive ZIP	33	33	2.5	2.5	2.25	61	61	70	70
NEW	744851471	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	47	47	1.6	1.6	2	130	130	160	160
NEW	744851102	SPEC	7 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Electric models ZIP PSP PSpice_WE-DCT (rev22a).zip \| 5.6 KB Download all 7 files as zip archive ZIP	100	100	1.1	1.1	1.3	265	265	290	290
	744851561	SPEC	6 files EDA models: Components ZIP ALT WE-DCT (rev22b).IntLib \| 1.6 MB ZUK Download_Cadstar_WE-DCT (rev19a).zip \| 9.6 KB CDS Cadence_WE-DCT (rev22a).zip \| 4 MB EAG Eagle_WE-DCT (rev19a).lbr \| 26.6 KB CAD files ZIP IGS WE-DCT_SH_DCT (rev1).igs \| 19.4 MB STP WE-DCT_SH_DCT (rev1).stp \| 5 MB Download all 6 files as zip archive ZIP	56	56	1.5	1.5	8	140	140	170	170

	Order Code	Datasheet
NEW	7448510091	SPEC
NEW	744851016	SPEC
NEW	744851027	SPEC
NEW	744851039	SPEC
NEW	744851056	SPEC
NEW	744851100	SPEC
NEW	744851220	SPEC
NEW	744851330	SPEC
NEW	744851470	SPEC
NEW	744851101	SPEC
NEW	744851221	SPEC
NEW	744851331	SPEC
NEW	744851471	SPEC
NEW	744851102	SPEC
	744851561	SPEC

Samples

	Order Code	Datasheet	Simulation	Downloads	L₁ (µH)	L₂ (µH)	I_R (A)	I_{R 2} (A)	I_SAT (A)	R_{DC1 typ} (mΩ)	R_{DC2 typ} (mΩ)	R_{DC1 max} (mΩ)	R_{DC2 max} (mΩ)	Samples

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.
