| Size | Dimensions | L (mm) | W (mm) | H (mm) | |
|---|---|---|---|---|---|

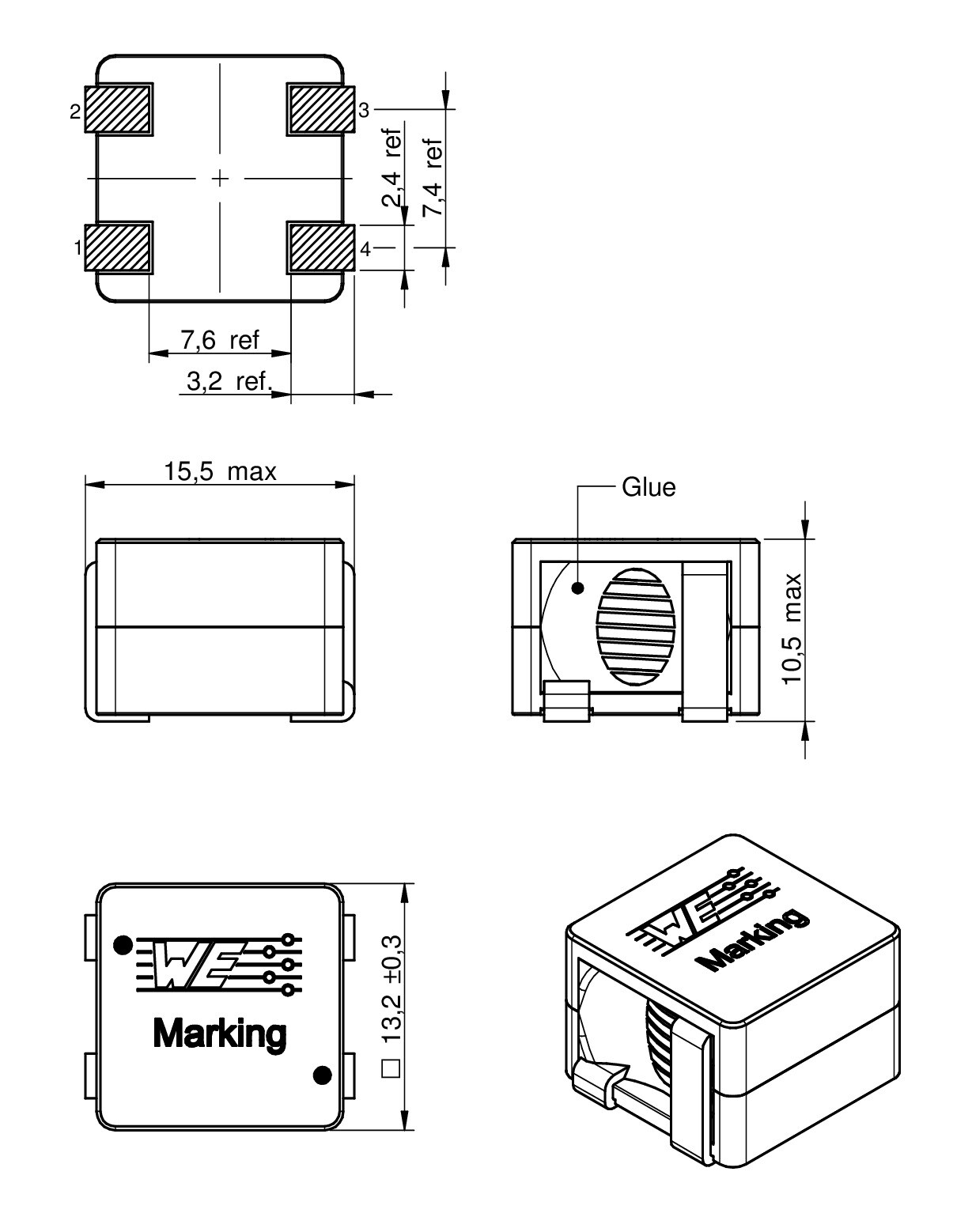

| 1310 | 15.5 | 13.2 | 10.5 | ||

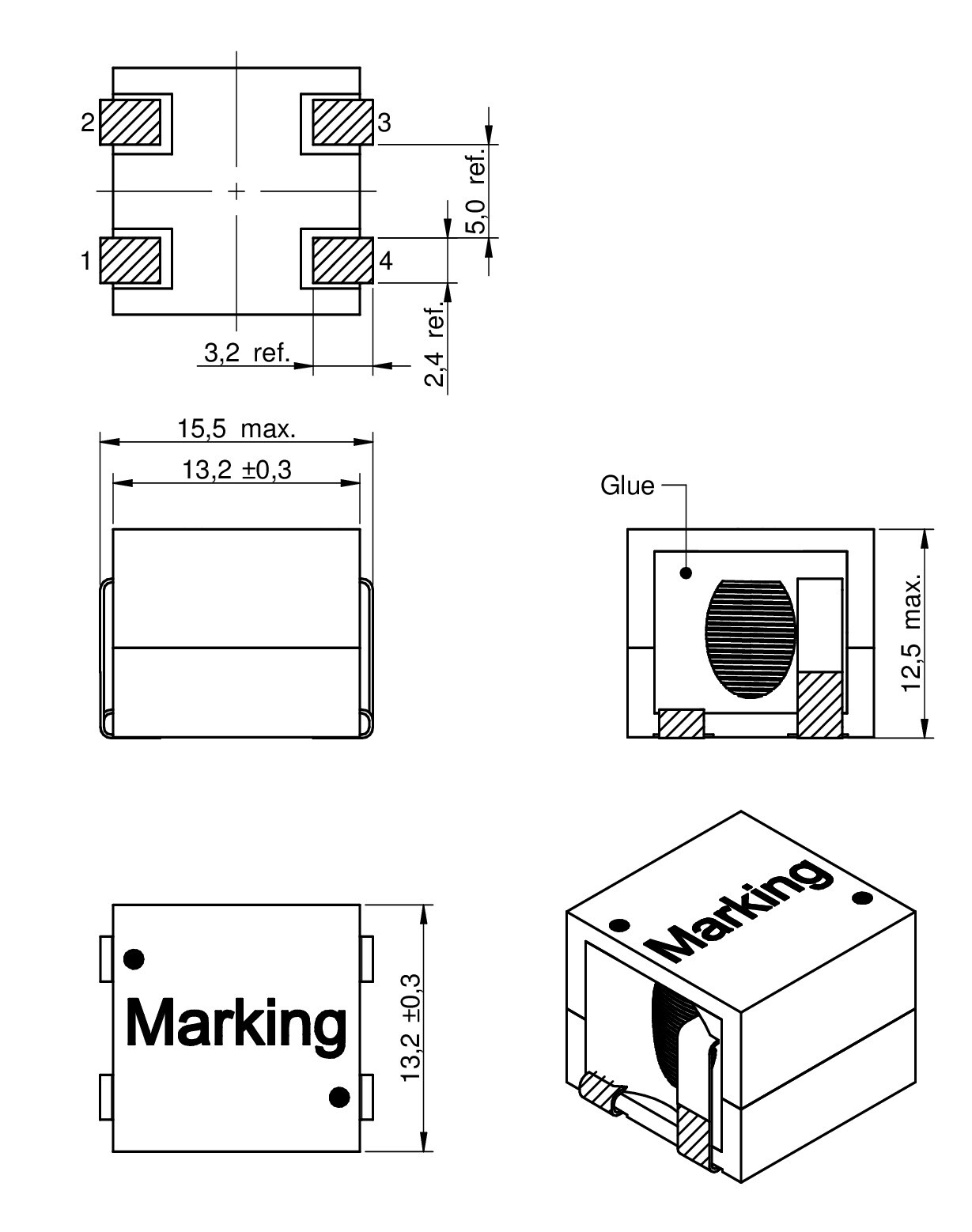

| 1312 | 15.5 | 13.2 | 12.5 | ||

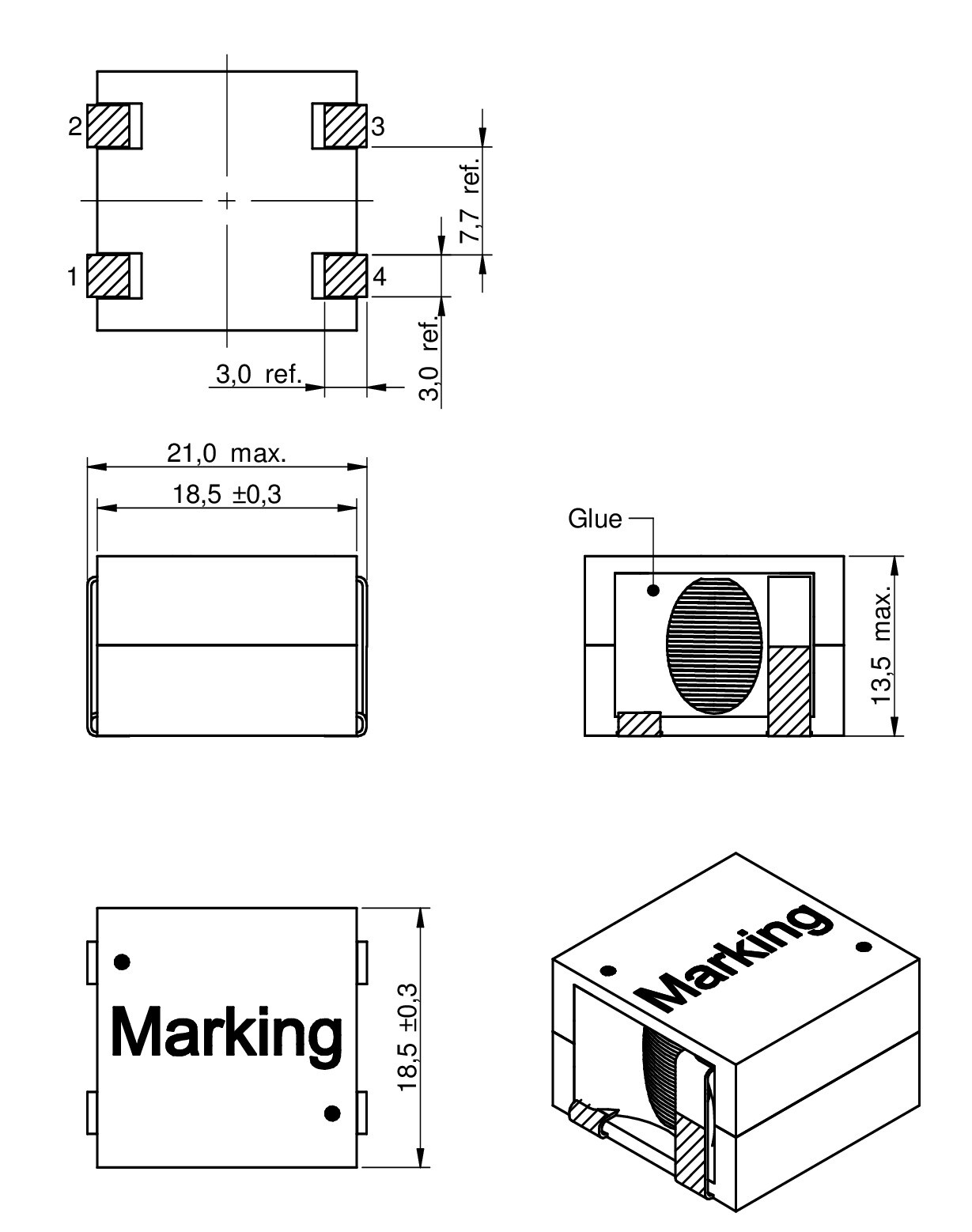

| 1813 | 21 | 18.5 | 13.5 |
LTSpice files

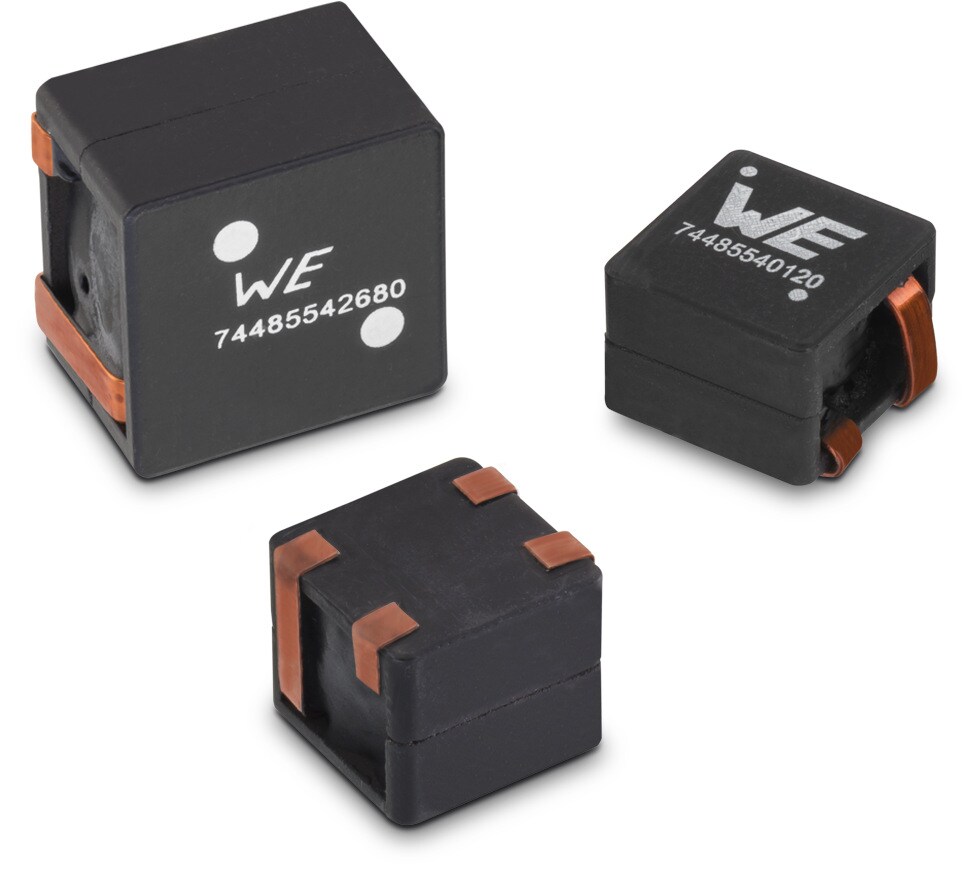

Characteristics
- Very low RDC
- Saturation current higher than 50 A
- Low inductance drift over temperature
- Coupled inductor with two identical windings
- More variants due to parallel and series connection possible
Applications
- High power switching regulators
- 1:1 flyback converter
- Buck, Boost, Sepic and Cuk Converter
- Switching regulators with second unregulated output voltage
- Battery Cell Charging Balancer
Products
All
1310
1312
1813
| Order Code | Datasheet | Simulation | Downloads | Status | L1 (µH) | L2 (µH) | n | IR (A) | IR 2 (A) | ISAT1 (A) | ISAT2 (A) | RDC 1 (mΩ) | RDC 2 (mΩ) | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 74485540080 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 0.8 | 0.8 | 1:1 | 28 | 28 | 62 | 62 | 1.6 | 1.6 | ||
| 74485540120 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 1.2 | 1.2 | 1:1 | 23 | 23 | 47 | 47 | 2.4 | 2.4 | ||
| 74485540170 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 1.7 | 1.7 | 1:1 | 21 | 21 | 39 | 39 | 3.3 | 3.3 | ||
| 74485540220 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 2.2 | 2.2 | 1:1 | 18 | 18 | 35 | 35 | 4.2 | 4.2 | ||
| 74485540290 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 2.9 | 2.9 | 1:1 | 17 | 17 | 29 | 29 | 5.6 | 5.6 | ||
| 74485540350 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 3.5 | 3.5 | 1:1 | 14 | 14 | 27 | 27 | 7.5 | 7.5 | ||
| 74485540440 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 4.4 | 4.4 | 1:1 | 12 | 12 | 24 | 24 | 9.6 | 9.6 | ||
| 74485540680 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 6.8 | 6.8 | 1:1 | 14 | 14 | 16 | 16 | 11.3 | 11.3 | ||
| 74485540820 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 8.2 | 8.2 | 1:1 | 13.5 | 13.5 | 14 | 14 | 13 | 13 | ||
| 74485540101 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 10 | 10 | 1:1 | 13 | 13 | 13.5 | 13.5 | 13.9 | 13.9 | ||
| 74485542680 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 6.8 | 6.8 | 1:1 | 13.5 | 13.5 | 26 | 26 | 6.1 | 6.1 | ||
| 74485542820 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 8.2 | 8.2 | 1:1 | 13 | 13 | 24 | 24 | 8.4 | 8.4 | ||
| 74485542101 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 10 | 10 | 1:1 | 11.5 | 11.5 | 22 | 22 | 11 | 11 |
| Order Code | Datasheet | Simulation |
|---|---|---|
| 74485540080 | SPEC | |
| 74485540120 | SPEC | |
| 74485540170 | SPEC | |
| 74485540220 | SPEC | |
| 74485540290 | SPEC | |
| 74485540350 | SPEC | |
| 74485540440 | SPEC | |
| 74485540680 | SPEC | |
| 74485540820 | SPEC | |
| 74485540101 | SPEC | |
| 74485542680 | SPEC | |
| 74485542820 | SPEC | |
| 74485542101 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Simulation | Downloads | Status | L1 (µH) | L2 (µH) | n | IR (A) | IR 2 (A) | ISAT1 (A) | ISAT2 (A) | RDC 1 (mΩ) | RDC 2 (mΩ) | Samples |
|---|
REDEXPERT loss simulation
Find the best inductor!
REDEXPERT loss simulation
Find the best inductor!
REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.
