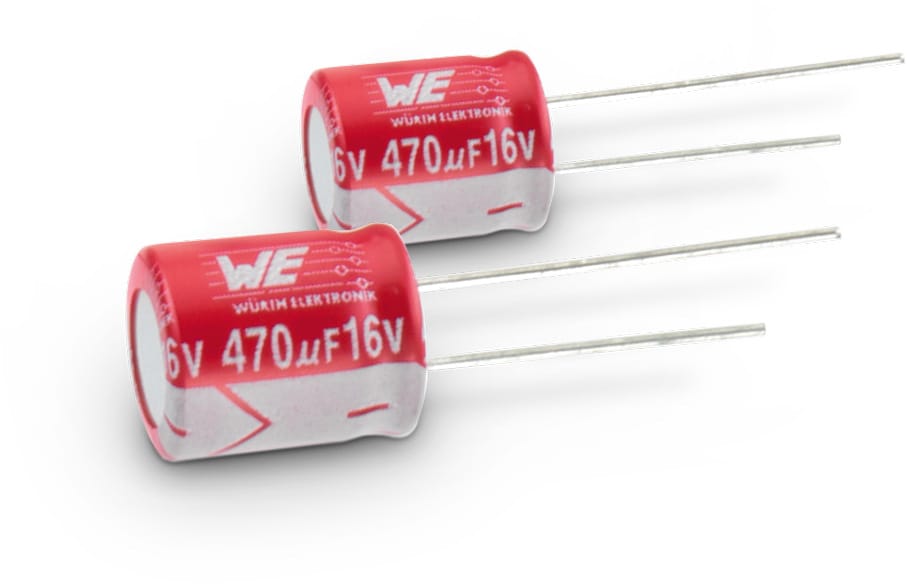

WCAP-PTHT Aluminum Polymer Capacitors

High Temperature +125 °C

WCAP-PTHT Aluminum Polymer Capacitors

LTSpice files

Characteristics

  • High operating temperature product series
  • Low ESR over high frequency range
  • High permissible ripple current
  • Mounting style: THT Radial
  • Recommended soldering: Wave soldering

Applications

  • High operating temperature applications
  • Low ripple voltage at the switching converter
  • Filtering
  • Smoothing
  • Coupling
  • e.g. High-end power supply, industrial computer, VGA card, charger, digital set-top box

Application Notes

Products

All
⌀ 6.3 mm
⌀ 8 mm
⌀ 10 mm
Reset all
Filter article data
Filter by
Delete all
 show  articles in 3 product lines
 articles in 3 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
C
VR(V (DC))
Endurance(h)
IRIPPLE(mA)
IRIPPLE 2(mA)
RESR(mΩ)
ILeak(µA)
DF(%)
Pitch(mm)
Ø D(mm)
L(mm)
Packaging
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
870135774001
SPEC22 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current2500 mA
Ripple Current790 mA
ESR35 mΩ
Leakage Current220 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit –
–Check availability
870135774002
SPEC27 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance27 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current2700 mA
Ripple Current854 mA
ESR32 mΩ
Leakage Current270 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870135775003
SPEC33 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance33 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current3476 mA
Ripple Current1100 mA
ESR30 mΩ
Leakage Current330 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length10 mm
PackagingAmmopack
Design Kit –
–Check availability
870135674001
SPEC39 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance39 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current2600 mA
Ripple Current823 mA
ESR32 mΩ
Leakage Current273 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit –
–Check availability
870135775004
SPEC47 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance47 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current4100 mA
Ripple Current1297 mA
ESR25 mΩ
Leakage Current470 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870135674002
SPEC56 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance56 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current3200 mA
Ripple Current1013 mA
ESR25 mΩ
Leakage Current392 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870135373001
SPEC100 µF, 16 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 µF
Rated Voltage16 V (DC)
Endurance 2000
Ripple Current4800 mA
Ripple Current1518 mA
ESR12 mΩ
Leakage Current160 µA
Dissipation Factor8 %
Pitch2.5 mm
Diameter6.3 mm
Length11 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135675003
SPEC100 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current4000 mA
Ripple Current1266 mA
ESR22 mΩ
Leakage Current700 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870135374002
SPEC180 µF, 16 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance180 µF
Rated Voltage16 V (DC)
Endurance 2000
Ripple Current5600 mA
Ripple Current1771 mA
ESR10 mΩ
Leakage Current288 µA
Dissipation Factor8 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135374003
SPEC220 µF, 16 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance220 µF
Rated Voltage16 V (DC)
Endurance 2000
Ripple Current5600 mA
Ripple Current1771 mA
ESR10 mΩ
Leakage Current352 µA
Dissipation Factor8 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135374004
SPEC270 µF, 16 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance270 µF
Rated Voltage16 V (DC)
Endurance 2000
Ripple Current5600 mA
Ripple Current1771 mA
ESR10 mΩ
Leakage Current432 µA
Dissipation Factor8 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135374005
SPEC330 µF, 16 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance330 µF
Rated Voltage16 V (DC)
Endurance 2000
Ripple Current5600 mA
Ripple Current1771 mA
ESR10 mΩ
Leakage Current528 µA
Dissipation Factor8 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135174001
SPEC390 µF, 6.3 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance390 µF
Rated Voltage6.3 V (DC)
Endurance 2000
Ripple Current6100 mA
Ripple Current1929 mA
ESR9 mΩ
Leakage Current491.4 µA
Dissipation Factor8 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit –
–Check availability
870135375006
SPEC390 µF, 16 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance390 µF
Rated Voltage16 V (DC)
Endurance 2000
Ripple Current6100 mA
Ripple Current1929 mA
ESR10 mΩ
Leakage Current624 µA
Dissipation Factor8 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135174002
SPEC470 µF, 6.3 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 µF
Rated Voltage6.3 V (DC)
Endurance 2000
Ripple Current6100 mA
Ripple Current1929 mA
ESR9 mΩ
Leakage Current592 µA
Dissipation Factor8 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit –
–Check availability
870135375007
SPEC470 µF, 16 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 µF
Rated Voltage16 V (DC)
Endurance 2000
Ripple Current6100 mA
Ripple Current1929 mA
ESR10 mΩ
Leakage Current752 µA
Dissipation Factor10 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135174003
SPEC560 µF, 6.3 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance560 µF
Rated Voltage6.3 V (DC)
Endurance 2000
Ripple Current6100 mA
Ripple Current1929 mA
ESR9 mΩ
Leakage Current705.6 µA
Dissipation Factor8 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135375008
SPEC560 µF, 16 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance560 µF
Rated Voltage16 V (DC)
Endurance 2000
Ripple Current6100 mA
Ripple Current1929 mA
ESR10 mΩ
Leakage Current896 µA
Dissipation Factor10 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135174004
SPEC680 µF, 6.3 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance680 µF
Rated Voltage6.3 V (DC)
Endurance 2000
Ripple Current6100 mA
Ripple Current1929 mA
ESR9 mΩ
Leakage Current428 µA
Dissipation Factor8 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135174005
SPEC820 µF, 6.3 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance820 µF
Rated Voltage6.3 V (DC)
Endurance 2000
Ripple Current6100 mA
Ripple Current1929 mA
ESR9 mΩ
Leakage Current516.6 µA
Dissipation Factor10 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135174006
SPEC1000 µF, 6.3 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1000 µF
Rated Voltage6.3 V (DC)
Endurance 2000
Ripple Current6100 mA
Ripple Current1929 mA
ESR9 mΩ
Leakage Current630 µA
Dissipation Factor10 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135175007
SPEC1200 µF, 6.3 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1200 µF
Rated Voltage6.3 V (DC)
Endurance 2000
Ripple Current6640 mA
Ripple Current2100 mA
ESR9 mΩ
Leakage Current756 µA
Dissipation Factor10 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135175008
SPEC1500 µF, 6.3 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1500 µF
Rated Voltage6.3 V (DC)
Endurance 2000
Ripple Current6640 mA
Ripple Current2100 mA
ESR9 mΩ
Leakage Current945 µA
Dissipation Factor10 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability
870135175009
SPEC2000 µF, 6.3 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2000 µF
Rated Voltage6.3 V (DC)
Endurance 2000
Ripple Current6640 mA
Ripple Current2100 mA
ESR9 mΩ
Leakage Current1260 µA
Dissipation Factor10 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870135
–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WCAP-PTHT Aluminum Polymer Capacitors

Videos

#askLorandt explains: DC/DC Converter Voltage Ripple vs. ESR of Different Capacitor Technologies

Videos

How to choose the right capacitor type for a circuit?! || Film vs. Ceramic vs. Electrolytic

Videos

Webinar: Introduction to the capacitor technologies and how to use them

Learn more
