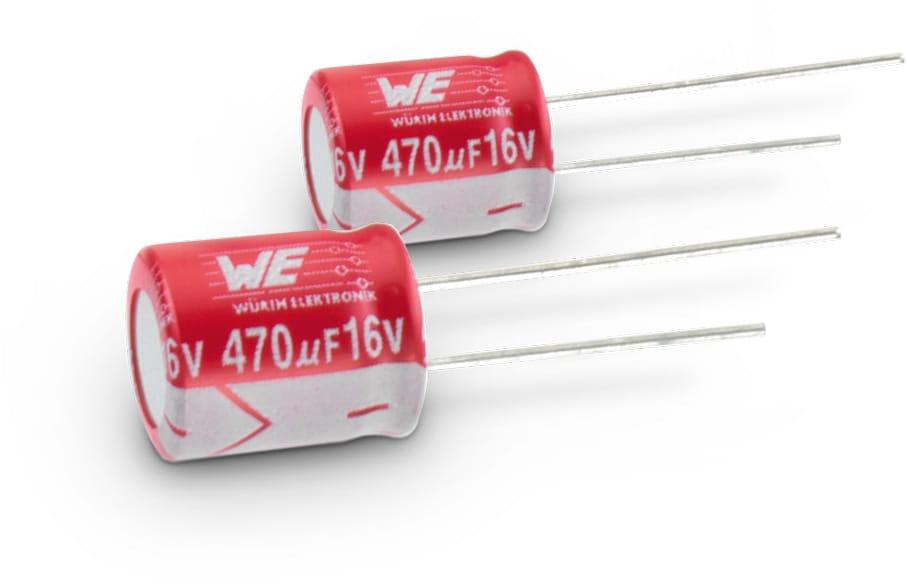

WCAP-PTHR Aluminum Polymer Capacitors

Low ESR & High Voltage

WCAP-PTHR Aluminum Polymer Capacitors

LTSpice files

Characteristics

  • High voltage product series
  • Low ESR over high frequency range
  • High permissible ripple current
  • Mounting style: THT Radial
  • Recommended soldering: Wave soldering

Applications

  • Low ripple voltage at the switching converter
  • Filtering
  • Smoothing
  • Coupling
  • e.g. High-end power supply, industrial computer, VGA card, charger, digital set-top box

Application Notes

Products

All
⌀ 6.3 mm
⌀ 8 mm
⌀ 10 mm
Reset all
Filter article data
Filter by
Delete all
 show  articles in 3 product lines
 articles in 3 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
C
VR(V (DC))
Endurance(h)
IRIPPLE(mA)
RESR(mΩ)
ILeak(µA)
DF(%)
Pitch(mm)
Ø D(mm)
L(mm)
Packaging
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
870055673001
SPEC10 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current2100 mA
ESR40 mΩ
Leakage Current100 µA
Dissipation Factor12 %
Pitch2.5 mm
Diameter6.3 mm
Length8 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055774001
SPEC10 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current1500 mA
ESR45 mΩ
Leakage Current100 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit –
–Check availability
870055874001
SPEC10 µF, 63 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 µF
Rated Voltage63 V (DC)
Endurance 2000
Ripple Current1400 mA
ESR55 mΩ
Leakage Current126 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870056174001
SPEC10 µF, 80 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 µF
Rated Voltage80 V (DC)
Endurance 2000
Ripple Current1900 mA
ESR45 mΩ
Leakage Current160 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit –
–Check availability
870055974001
SPEC10 µF, 100 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 µF
Rated Voltage100 V (DC)
Endurance 2000
Ripple Current1400 mA
ESR55 mΩ
Leakage Current200 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055673002
SPEC22 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current2100 mA
ESR40 mΩ
Leakage Current154 µA
Dissipation Factor12 %
Pitch2.5 mm
Diameter6.3 mm
Length8 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055774002
SPEC22 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current1800 mA
ESR40 mΩ
Leakage Current220 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055874002
SPEC22 µF, 63 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 µF
Rated Voltage63 V (DC)
Endurance 2000
Ripple Current1400 mA
ESR55 mΩ
Leakage Current277.2 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870056175003
SPEC22 µF, 80 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 µF
Rated Voltage80 V (DC)
Endurance 2000
Ripple Current2800 mA
ESR35 mΩ
Leakage Current352 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055975002
SPEC22 µF, 100 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 µF
Rated Voltage100 V (DC)
Endurance 2000
Ripple Current1600 mA
ESR50 mΩ
Leakage Current440 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870056175004
SPEC27 µF, 80 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance27 µF
Rated Voltage80 V (DC)
Endurance 2000
Ripple Current2800 mA
ESR35 mΩ
Leakage Current432 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055674003
SPEC33 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance33 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current2500 mA
ESR30 mΩ
Leakage Current231 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055775003
SPEC33 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance33 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current2000 mA
ESR35 mΩ
Leakage Current330 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055875003
SPEC33 µF, 63 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance33 µF
Rated Voltage63 V (DC)
Endurance 2000
Ripple Current1600 mA
ESR50 mΩ
Leakage Current415.8 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870056175005
SPEC33 µF, 80 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance33 µF
Rated Voltage80 V (DC)
Endurance 2000
Ripple Current2800 mA
ESR35 mΩ
Leakage Current528 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055975003
SPEC33 µF, 100 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance33 µF
Rated Voltage100 V (DC)
Endurance 2000
Ripple Current1600 mA
ESR50 mΩ
Leakage Current660 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055674004
SPEC39 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance39 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current2500 mA
ESR30 mΩ
Leakage Current273 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length8 mm
PackagingAmmopack
Design Kit –
–Check availability
870055775004
SPEC39 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance39 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current2000 mA
ESR35 mΩ
Leakage Current390 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055875004
SPEC39 µF, 63 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance39 µF
Rated Voltage63 V (DC)
Endurance 2000
Ripple Current1600 mA
ESR50 mΩ
Leakage Current491.4 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055674005
SPEC47 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance47 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current2890 mA
ESR25 mΩ
Leakage Current329 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055775005
SPEC47 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance47 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current2000 mA
ESR35 mΩ
Leakage Current470 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055875005
SPEC47 µF, 63 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance47 µF
Rated Voltage63 V (DC)
Endurance 2000
Ripple Current1600 mA
ESR50 mΩ
Leakage Current592.2 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055975004
SPEC47 µF, 100 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance47 µF
Rated Voltage100 V (DC)
Endurance 2000
Ripple Current1600 mA
ESR50 mΩ
Leakage Current940 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055674006
SPEC56 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance56 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current2890 mA
ESR25 mΩ
Leakage Current392 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055775006
SPEC56 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance56 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current2000 mA
ESR35 mΩ
Leakage Current560 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit –
–Check availability
870055875006
SPEC56 µF, 63 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance56 µF
Rated Voltage63 V (DC)
Endurance 2000
Ripple Current1600 mA
ESR50 mΩ
Leakage Current705.6 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055674007
SPEC68 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance68 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current2890 mA
ESR25 mΩ
Leakage Current476 µA
Dissipation Factor12 %
Pitch3.5 mm
Diameter8 mm
Length11.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055775007
SPEC68 µF, 50 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance68 µF
Rated Voltage50 V (DC)
Endurance 2000
Ripple Current2000 mA
ESR35 mΩ
Leakage Current680 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055675008
SPEC82 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance82 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current3700 mA
ESR25 mΩ
Leakage Current574 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055675009
SPEC100 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current3700 mA
ESR25 mΩ
Leakage Current700 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability
870055675010
SPEC150 µF, 35 V (DC), 2000
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance150 µF
Rated Voltage35 V (DC)
Endurance 2000
Ripple Current3700 mA
ESR25 mΩ
Leakage Current1050 µA
Dissipation Factor12 %
Pitch5 mm
Diameter10 mm
Length12.5 mm
PackagingAmmopack
Design Kit
870055
–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WCAP-PTHR Aluminum Polymer Capacitors

Videos

#askLorandt explains: DC/DC Converter Voltage Ripple vs. ESR of Different Capacitor Technologies

Videos

How to choose the right capacitor type for a circuit?! || Film vs. Ceramic vs. Electrolytic

Videos

Webinar: Introduction to the capacitor technologies and how to use them

Learn more
