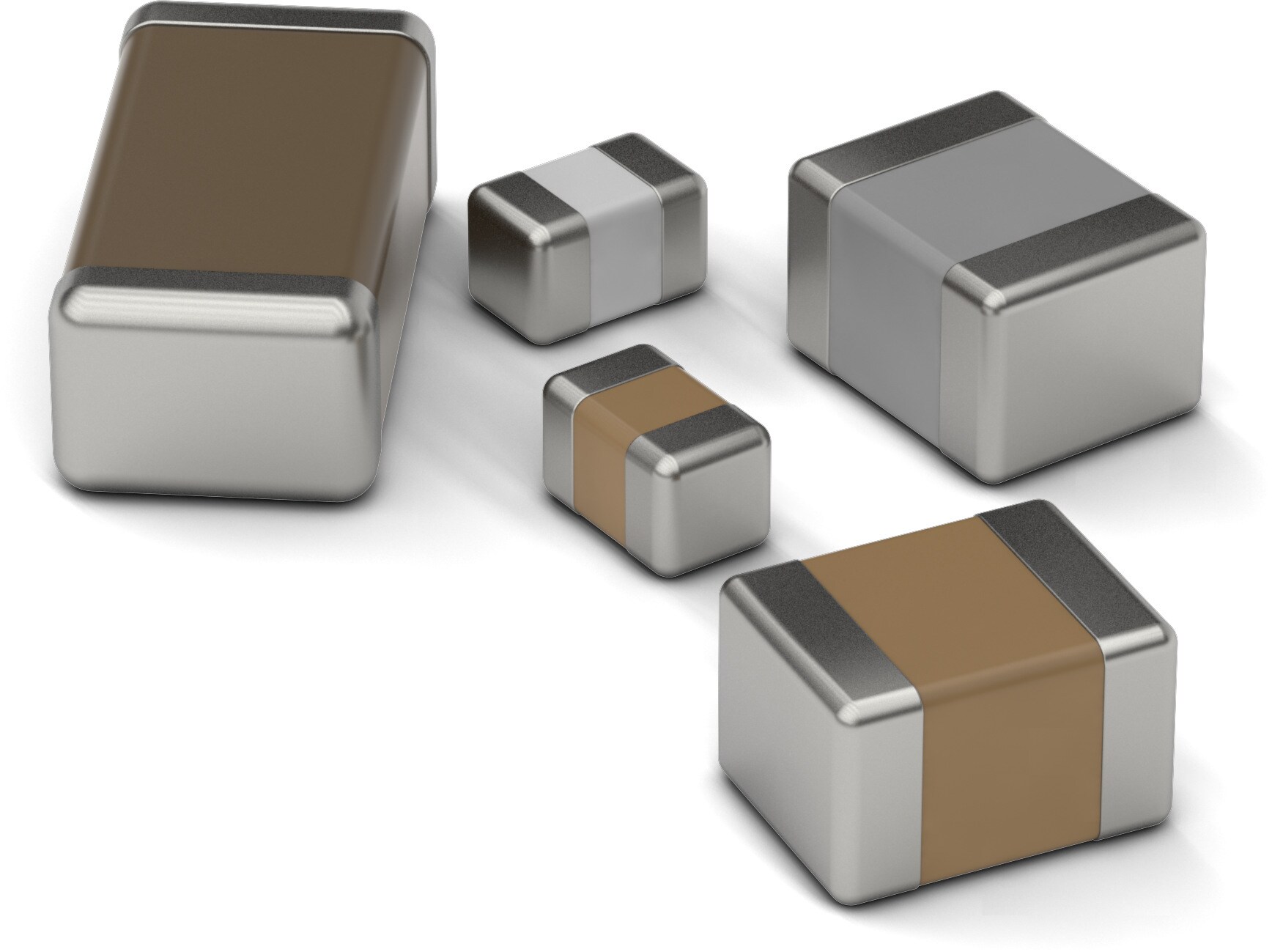

WCAP-CSGP MLCCs 100 V(DC)

General Purpose

Size L
(mm)
W
(mm)
H
(mm)
Fl
(mm)
0402 1 0.5 0.5 0.25
0603 1.6 0.8 0.8 0.4
0805 2 1.25 - 0.5
1206 3.2 1.6 - 0.6
1210 3.2 2.5 - 0.75

Characteristics

  • General purpose product series
  • High performance ceramic
  • High electrical precision and stability ceramic especially for NP0
  • Minimal aging especially for NP0
  • Mounting style: SMT-Chip
  • Ceramic: NP0 (Class I), X7R (Class II)
  • Capacitance range: 0.5 pF ‒ 2.2 µF
  • Temperature coefficient:
    ±30 ppm/°C; ±0.54 % for NP0
    ±15 % for X7R
  • Sizes: 0402 / 0603 / 0805 / 1206 / 1210
  • Operating temperature: -55 °C up to + 125 °C for NP0 and X7R
  • Termination: Cu/Ni/Sn
  • Recommended soldering: Reflow soldering
  • Wave soldering for size 0603
  • Wave soldering for size 0805 (only valid for the thickness ≤0.85 mm)

Applications

  • Temperature compensation (NP0)
  • Coupling
  • Decoupling
  • Bypass
  • Smoothing
  • Filtering
  • Resonant circuit

Happy with MLCC Downsizing? Check our menu.

Würth Elektronik offers a large portfolio of MLCC sizes up to 2220.

All Information here

Products

All
0402
0603
0805
1206
1210
Order Code Data­sheet Simu­lation Downloads C Tol. C VR
(V (DC))
Size H
(mm)
Operating Temperature Qmin. DF
(%)
RISO Ceramic Type Technical Reference Design Kit Samples
885012007094
STE ALT EAG CAD CAD 1  pF ±0.25pF 100 0805 0.6 -55 °C up to +125 °C 420 10  GΩ NP0 Class I NP008051R0C100DFCT10000 885090
885012007099
ALT EAG CAD CAD 0.5  pF ±0.25pF 100 0805 0.6 -55 °C up to +125 °C 410 10  GΩ NP0 Class I
885012006086
STE ALT EAG CAD CAD 0.5  pF ±0.25pF 100 0603 0.8 -55 °C up to +125 °C 410 10  GΩ NP0 Class I NP006030R5C100DFCT10000
885012006087
STE ALT EAG CAD CAD 1  pF ±0.25pF 100 0603 0.8 -55 °C up to +125 °C 420 10  GΩ NP0 Class I NP006031R0C100DFCT10000 885090
885012005083
STE ALT EAG CAD CAD 2.2  pF ±0.25 100 0402 0.5 -55 °C up to +125 °C 444 10  GΩ NP0 Class I NP004022R2C100DFCT10000
885012007097
STE ALT EAG CAD CAD 1.5  pF ±0.25pF 100 0805 0.6 -55 °C up to +125 °C 430 10  GΩ NP0 Class I NP008051R5C100DFCT10000
885012007100
STE ALT EAG CAD CAD 2.2  pF ±0.25pF 100 0805 0.6 -55 °C up to +125 °C 444 10  GΩ NP0 Class I NP008052R2C100DFCT10000
885012006088
STE ALT EAG CAD CAD 1.5  pF ±0.25pF 100 0603 0.8 -55 °C up to +125 °C 430 10  GΩ NP0 Class I NP006031R5C100DFCT10000
885012006089
STE ALT EAG CAD CAD 2.2  pF ±0.25pF 100 0603 0.8 -55 °C up to +125 °C 444 10  GΩ NP0 Class I NP006032R2C100DFCT10000 885090
885012007095
STE ALT EAG CAD CAD 3.3  pF ±0.25pF 100 0805 0.6 -55 °C up to +125 °C 466 10  GΩ NP0 Class I NP008053R3C100DFCT10000 885090
885012006090
STE ALT EAG CAD CAD 3.3  pF ±0.25pF 100 0603 0.8 -55 °C up to +125 °C 466 10  GΩ NP0 Class I NP006033R3C100DFCT10000 885090
885012005084
STE ALT EAG CAD CAD 4.7  pF ±0.25pF 100 0402 0.5 -55 °C up to +125 °C 494 10  GΩ NP0 Class I NP004024R7C100DFCT10000
885012007096
STE ALT EAG CAD CAD 4.7  pF ±0.25pF 100 0805 0.6 -55 °C up to +125 °C 494 10  GΩ NP0 Class I NP008054R7C100DFCT10000 885090
885012007101
STE ALT EAG CAD CAD 5  pF ±0.25pF 100 0805 0.6 -55 °C up to +125 °C 500 10  GΩ NP0 Class I NP008055R0C100DFCT10000
885012006091
STE ALT EAG CAD CAD 4.7  pF ±0.25pF 100 0603 0.8 -55 °C up to +125 °C 494 10  GΩ NP0 Class I NP006034R7C100DFCT10000 885090
885012006092
STE ALT EAG CAD CAD 5.6  pF ±0.5pF 100 0603 0.8 -55 °C up to +125 °C 512 10  GΩ NP0 Class I NP006035R6D100DFCT10000 885090
885012005085
STE ALT EAG CAD LTS PSP CAD 8.2  pF ±0.5pF 100 0402 0.5 -55 °C up to +125 °C 564 10  GΩ NP0 Class I NP004028R2D100DFCT10000
885012007098
STE ALT EAG CAD CAD 8.2  pF ±0.5pF 100 0805 0.6 -55 °C up to +125 °C 564 10  GΩ NP0 Class I NP008058R2D100DFCT10000
885012006093
STE ALT EAG CAD CAD 8.2  pF ±0.5pF 100 0603 0.8 -55 °C up to +125 °C 564 10  GΩ NP0 Class I NP006038R2D100DFCT10000 885090
885012005074
STE ALT EAG CAD LTS PSP CAD 10  pF ±5% 100 0402 0.5 -55 °C up to +125 °C 600 10  GΩ NP0 Class I NP00402100J100DFCT10000
885012006073
STE ALT EAG CAD LTS PSP CAD 10  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 600 10  GΩ NP0 Class I NP00603100J100DFCT10000 885090
885012007076
STE ALT EAG CAD LTS PSP CAD 10  pF ±5% 100 0805 0.6 -55 °C up to +125 °C 600 10  GΩ NP0 Class I NP00805100J100DFCT10000 885090
885012008061
STE ALT EAG CAD LTS PSP CAD 10  pF ±5% 100 1206 0.8 -55 °C up to +125 °C 600 10  GΩ NP0 Class I NP01206100J100DFCT10000
885012006074
STE ALT EAG CAD LTS PSP CAD 15  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 700 10  GΩ NP0 Class I NP00603150J100DFCT10000
885012007077
STE ALT EAG CAD LTS PSP CAD 15  pF ±5% 100 0805 0.6 -55 °C up to +125 °C 700 10  GΩ NP0 Class I NP00805150J100DFCT10000
885012008062
STE ALT EAG CAD LTS PSP CAD 15  pF ±5% 100 1206 0.8 -55 °C up to +125 °C 700 10  GΩ NP0 Class I NP01206150J100DFCT10000
885012005077
STE ALT EAG CAD LTS PSP CAD 33  pF ±5% 100 0402 0.5 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00402330J100DFCT10000
885012006076
STE ALT EAG CAD LTS PSP CAD 33  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00603330J100DFCT10000 885090
885012007079
STE ALT EAG CAD LTS PSP CAD 33  pF ±5% 100 0805 0.6 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805330J100DFCT10000 885090
885012005078
STE ALT EAG CAD LTS PSP CAD 47  pF ±5% 100 0402 0.5 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00402470J100DFCT10000
885012006077
STE ALT EAG CAD LTS PSP CAD 47  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00603470J100DFCT10000 885090
885012007080
STE ALT EAG CAD LTS PSP CAD 47  pF ±5% 100 0805 0.6 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805470J100DFCT10000 885090
885012008065
STE ALT EAG CAD LTS PSP CAD 47  pF ±5% 100 1206 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP01206470J100DFCT10000
885012005079
STE ALT EAG CAD LTS PSP CAD 68  pF ±5% 100 0402 0.5 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00402680J100DFCT10000
885012006078
STE ALT EAG CAD LTS PSP CAD 68  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00603680J100DFCT10000 885090
885012007081
STE ALT EAG CAD LTS PSP CAD 68  pF ±5% 100 0805 0.6 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805680J100DFCT10000 885090
885012005080
STE ALT EAG CAD LTS PSP CAD 100  pF ±5% 100 0402 0.5 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00402101J100DFCT10000
885012006079
STE ALT EAG CAD LTS PSP CAD 100  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00603101J100DFCT10000 885090
885012007082
STE ALT EAG CAD LTS PSP CAD 100  pF ±5% 100 0805 0.6 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805101J100DFCT10000 885090
885012008067
STE ALT EAG CAD LTS PSP CAD 100  pF ±5% 100 1206 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP01206101J100DFCT10000
885012206102
STE ALT EAG CAD LTS PSP CAD 100  pF ±10% 100 0603 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0603101K100DFCT10000 885090
885012207110
STE ALT EAG CAD LTS PSP CAD 100  pF ±10% 100 0805 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0805101K100DFCT10000 885090
885012006080
STE ALT EAG CAD LTS PSP CAD 150  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00603151J100DFCT10000 885090
885012007083
STE ALT EAG CAD LTS PSP CAD 150  pF ±5% 100 0805 0.6 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805151J100DFCT10000 885090
885012208101
STE ALT EAG CAD LTS PSP CAD 150  pF ±10% 100 1206 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R1206151K100DFCT10000
885012008068
STE ALT EAG CAD LTS PSP CAD 150  pF ±5% 100 1206 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP01206151J100DFCT10000
885012206103
STE ALT EAG CAD LTS PSP CAD 150  pF ±10% 100 0603 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0603151K100DFCT10000 885090
885012207111
STE ALT EAG CAD LTS PSP CAD 150  pF ±10% 100 0805 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0805151K100DFCT10000 885090
885012006082
STE ALT EAG CAD LTS PSP CAD 330  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00603331J100DFCT10000 885090
885012007085
STE ALT EAG CAD LTS PSP CAD 330  pF ±5% 100 0805 0.6 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805331J100DFCT10000 885090
885012008070
STE ALT EAG CAD LTS PSP CAD 330  pF ±5% 100 1206 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP01206331J100DFCT10000
885012208103
STE ALT EAG CAD LTS PSP CAD 330  pF ±10% 100 1206 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R1206331K100DFCT10000
885012206105
STE ALT EAG CAD LTS PSP CAD 330  pF ±10% 100 0603 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0603331K100DFCT10000 885090
885012207113
STE ALT EAG CAD LTS PSP CAD 330  pF ±10% 100 0805 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0805331K100DFCT10000 885090
885012006083
STE ALT EAG CAD LTS PSP CAD 470  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00603471J100DFCT10000 885090
885012007086
STE ALT EAG CAD LTS PSP CAD 470  pF ±5% 100 0805 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805471J100DFCT10000 885090
885012208104
STE ALT EAG CAD LTS PSP CAD 470  pF ±10% 100 1206 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R1206471K100DFCT10000
885012008071
STE ALT EAG CAD LTS PSP CAD 470  pF ±5% 100 1206 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP01206471J100DFCT10000
885012206106
STE ALT EAG CAD LTS PSP CAD 470  pF ±10% 100 0603 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0603471K100DFCT10000 885090
885012207114
STE ALT EAG CAD LTS PSP CAD 470  pF ±10% 100 0805 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0805471K100DFCT10000 885090
885012006084
STE ALT EAG CAD LTS PSP CAD 680  pF ±5% 100 0603 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00603681J100DFCT10000 885090
885012007087
STE ALT EAG CAD LTS PSP CAD 680  pF ±5% 100 0805 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805681J100DFCT10000 885090
885012208105
STE ALT EAG CAD LTS PSP CAD 680  pF ±10% 100 1206 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R1206681K100DFCT10000
885012008072
STE ALT EAG CAD LTS PSP CAD 680  pF ±5% 100 1206 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP01206681J100DFCT10000
885012206107
STE ALT EAG CAD LTS PSP CAD 680  pF ±10% 100 0603 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0603681K100DFCT10000 885090
885012207115
STE ALT EAG CAD LTS PSP CAD 680  pF ±10% 100 0805 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0805681K100DFCT10000 885090
885012006085
STE ALT EAG CAD LTS PSP CAD 1  nF ±5% 100 0603 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00603102J100DFCT10000 885090
885012007088
STE ALT EAG CAD LTS PSP CAD 1  nF ±5% 100 0805 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805102J100DFCT10000 885090
885012208106
STE ALT EAG CAD LTS PSP CAD 1  nF ±10% 100 1206 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R1206102K100DFCT10000 885090
885012008073
STE ALT EAG CAD LTS PSP CAD 1  nF ±5% 100 1206 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP01206102J100DFCT10000
885012205080
STE ALT EAG CAD CAD 1  nF ±10% 100 0402 0.5 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0402102K100DFCT10000
885012206108
STE ALT EAG CAD LTS PSP CAD 1  nF ±10% 100 0603 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0603102K100DFCT10000 885090
885012207116
STE ALT EAG CAD LTS PSP CAD 1  nF ±10% 100 0805 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R0805102K100DFCT10000 885090
885012007089
STE ALT EAG CAD LTS PSP CAD 1.5  nF ±5% 100 0805 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP00805152J100DFCT10000 885090
885012208107
STE ALT EAG CAD LTS PSP CAD 1.5  nF ±10% 100 1206 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II X7R1206152K100DFCT10000
885012008074
STE ALT EAG CAD LTS PSP CAD 1.5  nF ±5% 100 1206 0.8 -55 °C up to +125 °C 1000 10  GΩ NP0 Class I NP01206152J100DFCT10000
885012206109
STE ALT EAG CAD LTS PSP CAD 1.5  nF ±10% 100 0603 0.8 -55 °C up to +125 °C 2.5 10  GΩ X7R Class II
